"T" Granite Tooth Guard Diamond Sintered Segments

Diamond Segments for single blade, multi-blade, frame saws, core drills, special shape cutters, etc.

SANSO Diamond Segment application for trimming and cutting granite, marble, sandstone, limestone and travertine, etc. Also it can be ordered by customers.



Product Name

Diameter

(mm)

Core Thicknessmm)

Segment Dimension (mm)

Segment No.

Apply To Stone

"T" Granite Tooth Guard Diamond Sintered Segments

L40

300

2.4/2.2

40*3.5/3.2/2.9*15/20

21

Granite

350

2.4/2.2

40*3.5/3.2/2.9*15/20

24

400

2.8/2.6

40*4.0/3.7/3.4*15/20

28

500

3.0

40*4.5/4.2/3.9*15/20

36

600

3.6

40*5.0/4.7/4.4*15/20

42

700

4.0

40*5.4/5.1/4.8*15/20

50

800

4.5

40*6.3/6.0/5.7*15/20

46


Main uses

Diamond Segment for single blades, multi-blades, frame saws, core drills, special shape cutters Diamond Cutting Tools.

Different types Diamond Segments used for granite, marble, concrete, limestone, sandstone, basalt, ceramica, refractory material, etc.


Feature

* Guarantee sharp and smooth cutting.

* Fast cutting without chipping.

* Apply for wet or dry cutting.

* Various specifications are available upon your request.

* Long life and excellent service.

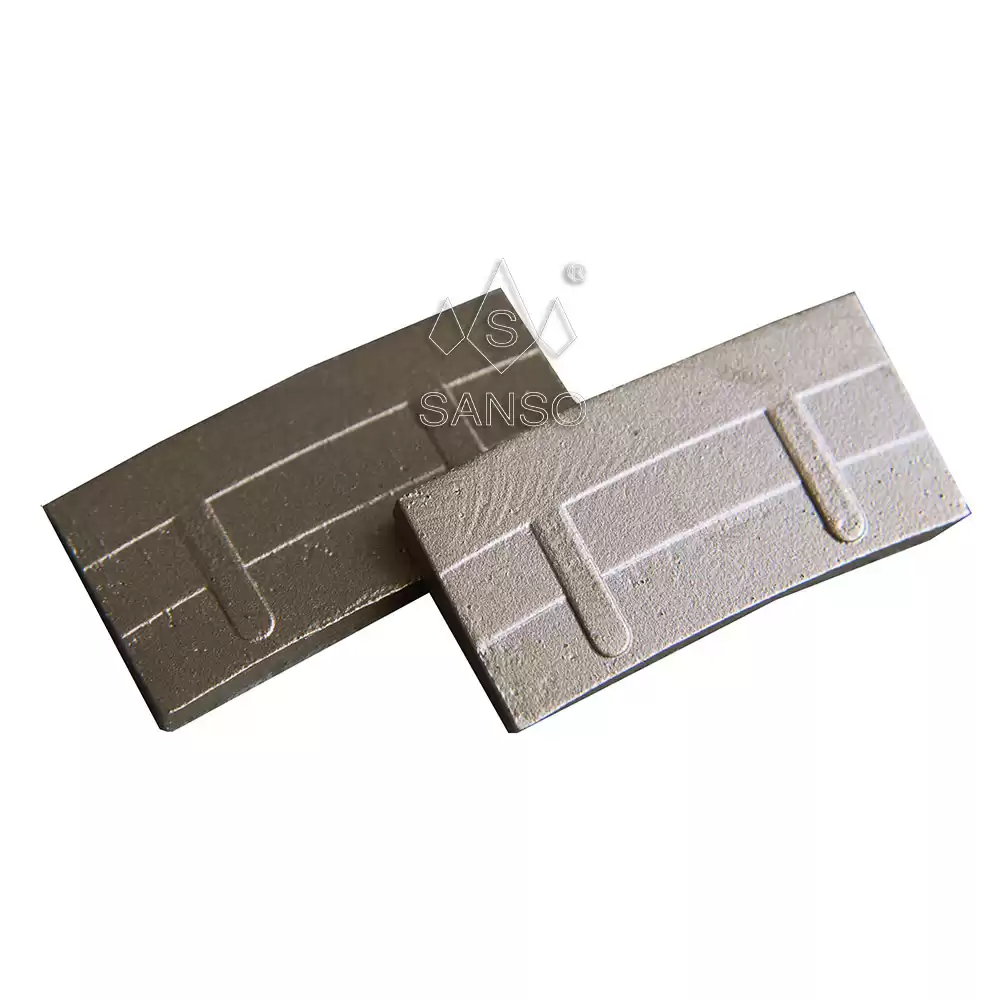

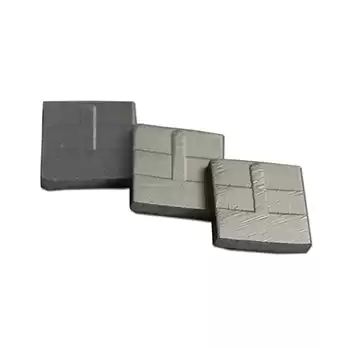

DETAIL PHOTOS




DIAMOND SEGMENTS QC

diamond segments


Product Tags multi-blade diamond segments          granite cutting saw diamond segment          high performance diamond segment          sandwich type diamond segment          diamond tools for stone          granite diamond segment
