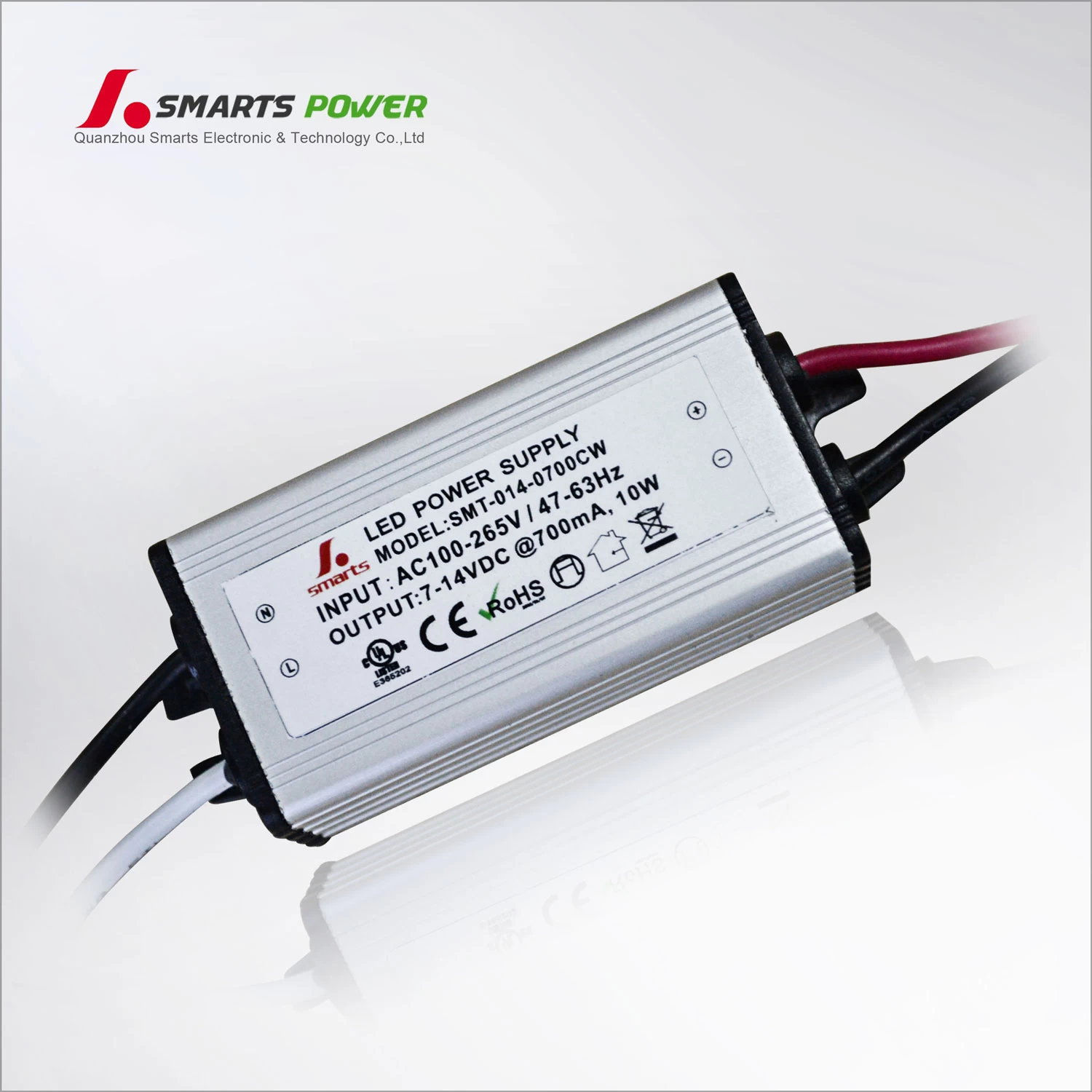

waterproof electronic 700ma constant current led driver 10w with EMC LVD
Specifications:
1. Input voltage.:100~265vAC,47~63Hz
2. output :7-14vDC @700ma 10w
3. Efficiency>82%
4. Warranty: 2 years
5. CE,ROHS approval
6. product size: 80*36*23mm(IP20) or 62*29*20mm(IP67)
7. Net weight: 90g/pc(IP20) 115g/PC (ip67)
8. Case material:plastic
9. Waterproof rate: IP20/ip67
10.CE, ROHS approval
Want to buy high quality Waterproof 10w LED Drivers,choose waterproof 700ma 10w LED driver from smarts-electronics.com
Features:
1. Case material:plastic
2. Cooling by nature.
3. 100% full load burn-in test
4. High reliability designing solution
5. High efficiency,save energy ,protected environment
6. High stability and low ripple, increase light efficiency and decrease light attenuation
7. Meet to safety standard and EMC
8. Assure LED stability long lift and light efficiency by constant voltage
9. Passed high ,low temperature and waterproof testing.
10. integrity protection,over loading, over voltage ,over current
11. 8Hrs and 100% full load burn-in test.
Environment:
1. Working Temperature : -30 ~ +60°C
2. Working Humidity : 20 ~ 90% RH non-condensing
3. Storage Temp. , Humidity : -40 ~ +80°C , 10 ~ 95% RH
4. TEMP. Coefficient : ±0.03%/°C (0 ~ 50°C)
5. Vibration : 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes.
Safety:
1. Safety Standards : IEC 61347 –2–11 , IEC 61347 –1 , IEC 60529
2. Withstand Voltage : I/P-O/P: 3000KVAC
3. Isolation Resistance : I/P-O/P:100M Ohms/500VDC
Applications:
Our products are widely used in various industries, such as
-
indoor LED illuminating lights,
-
LED Neon,
-
LED urban Decoration
-
LED Lighting Advertising,
-
LED Display,
-
Safety Protection Apparatus,
-
Telecommunications,
-
Networks,
-
Vehicle Lights, Controller Panels, etc.
