Hot Sale Semi-auto Stacking Machine For Lithium Battery Manufacturing
Product Specification
LIO-S-DP-300 is a high-accuracy Semi-auto stacking machine with many advanced features to ensure a stable, repeatable and precise electrode stacking. It adopts "Z" glyph laminated.
Model
|
Semi auto stacking machine LIO-S-DP-300
|
Suitable battery size
|

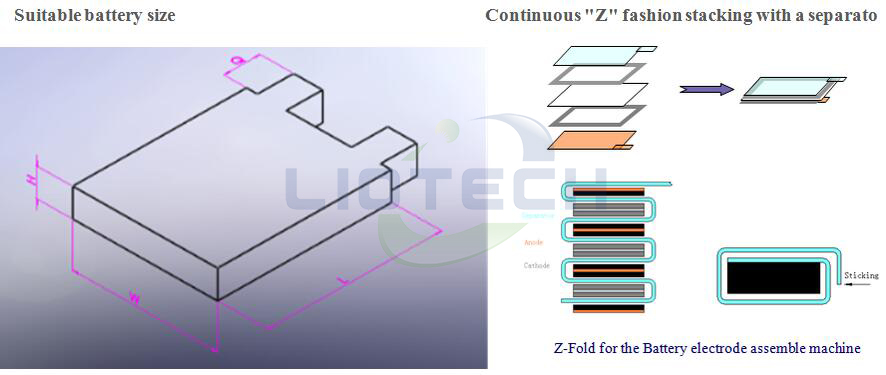

Thickness H (mm)
|
5-20
|
Width W (mm)
|
80-150
|
Length L (mm)
|
250-300
|
Tab length Q (mm)
|
10-20
|
Tab width (mm)
|
8-20
|
Technology parameter
|
Stacking speed
|
1.3-1.6s/pcs
|
Registration accuracy
|
±0.4mm
|
Stacking quantity
|
Can be set
|
Percent of pass
|
≥98%
|
Power
|
4kw
|
Weight
|
800kg
|
Dimension (L*W*H)
|
1800mm*1300mm*1350mm
|
Materials size
|
Electrode
|
Length : 250-300mm
Width : 80-150mm
Thickness : 0.07-0.25mm
|
Tab
|
Length : 10-20mm
Width : 8-20mm
|
Separator
|
Length : in roll
Width : 250-300mm
Thickness : 0.02-0.04mm
Inner diameter : φ76.2mm
Max out diameter : φ300
|
Features
1. Knife press buffer mechanism: lift the press knife out of the electrode plate slightly before it exits,avoiding pull of the electrode plate.
2. The separator is actively unwound, tension control, rectifying the deviation in the whole process, eliminating static electricity, and effectively ensuring the alignment accuracy of the separator.
3. Multiple measures are taken to effectively control the phenomenon of multiple pieces and missing pieces: blow mechanism of material box, split brush, external sucker robot hand shake piece
4. The material box and secondary positioning are equipped with effective dust suction mechanism.

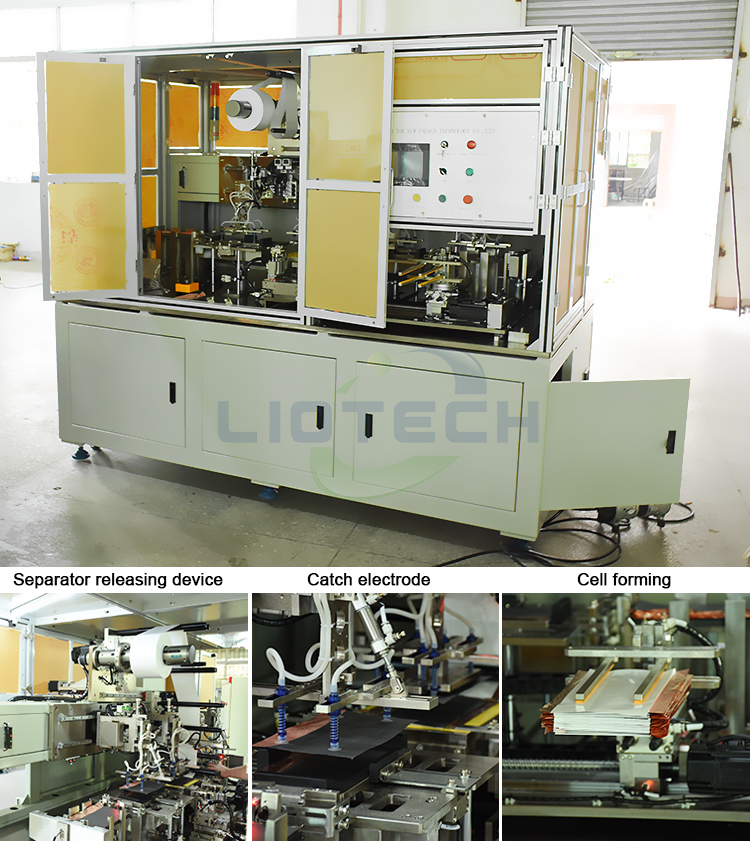

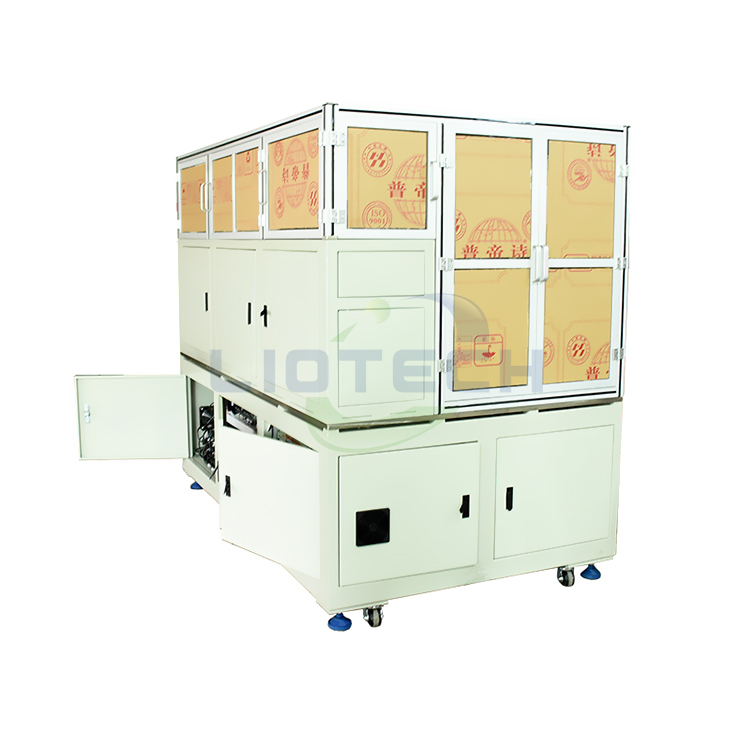

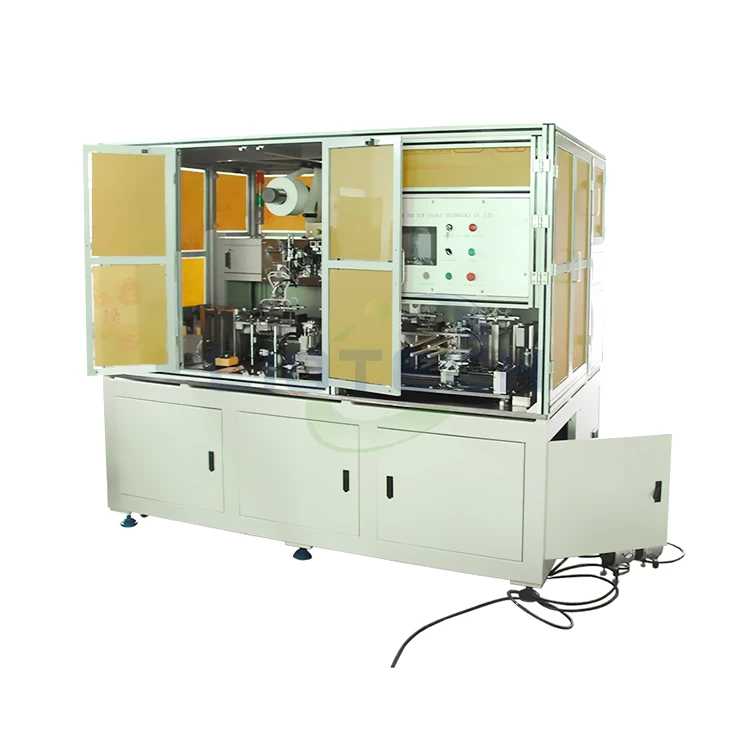

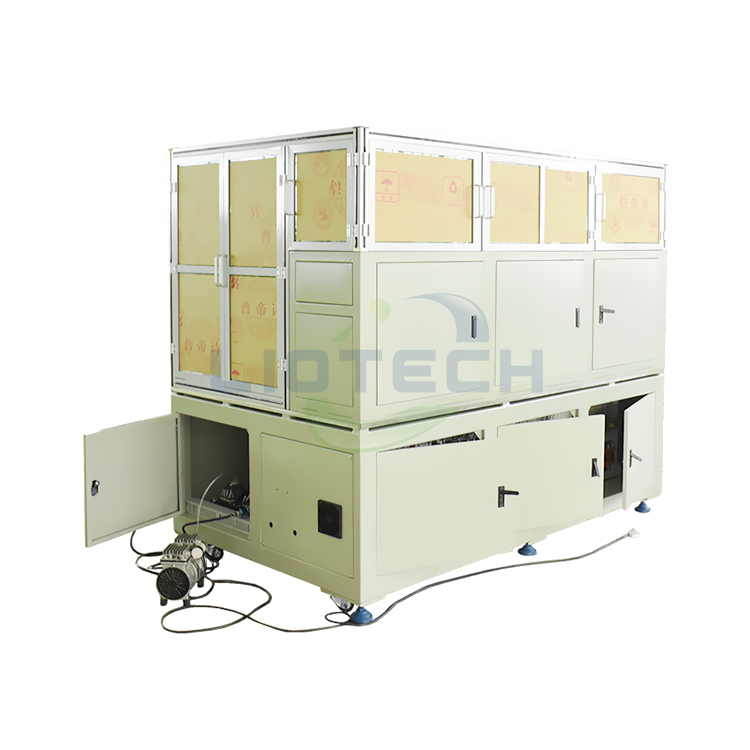

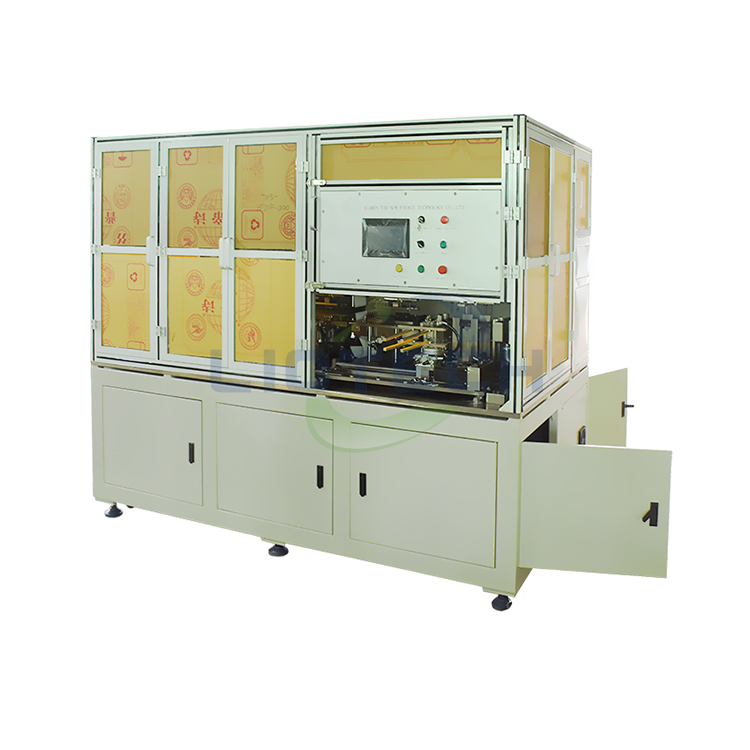

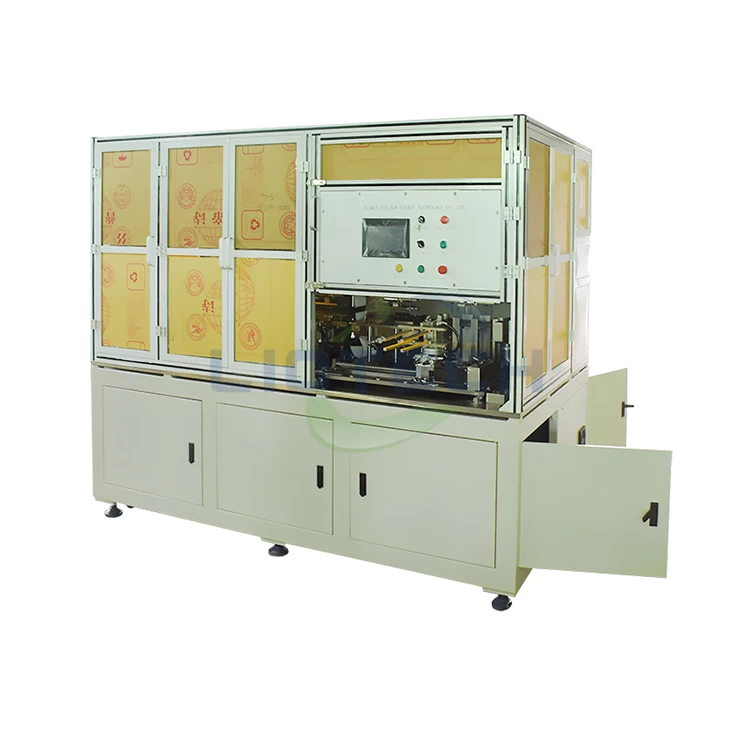

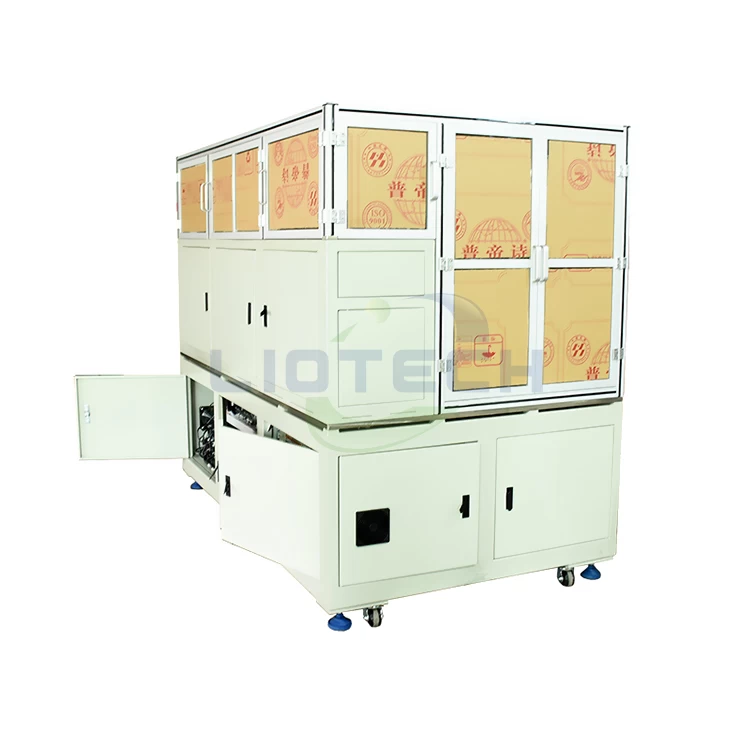

Product Image

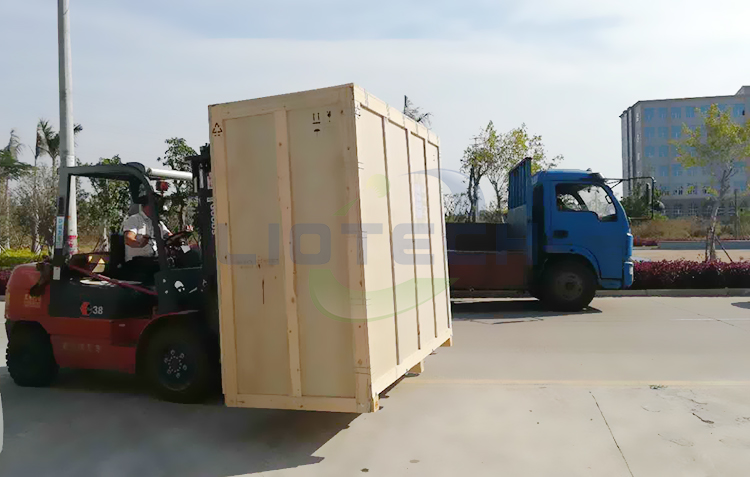

Packing
