Our rod core inductors have high resonance frequency, light weight, easy to surface mounting. All ferrite rod core inductors we shipped, are all meet customers requirement strictly. We are located in AnHui Province, where the labor cost is much lower, so our price is very competitive.
Quick Details
|
PN: MCT Φ4×20 Rod core inductor
|
|
Brand Name: MCT
|
|
Current Rating: @50Hz and 40℃ Ambient temperature
|
|
Custom Made: Available
|
|
Inductance Tolerance:±20%
|
|
Logo: Can be customized
|
|
Normal Inductance: Measure at 25℃
|
|
Packing: Carton,can custom
|
|
Testing Current: 0.1mA
|
|
Certification: ISO9001,ROHS,CE
|
|
Testing frequency :L≤10uH:1MHz,10uH＜L≤1000uH:100KHz,L＞1000uH:10KHz
|
|
OEM: Available
|
|
Climate level: 40/125/56
|
|
Lead Time: 25 days after payment
|
|
Terminal Tinned Copper Wire or LITZ Wire
|
|
MOQ: Any quantity
|
|
Ferrite Rod Core
|
|
Shipping: Air, Ship, etc
|
|
Single Layer Winding
|
|
With or Without Shrink Tube
|
|
Dimension Tolerance: Component:±0.5mm Terminal：±2.0mm
|
|
High Resonance Frequency
|
Part Information

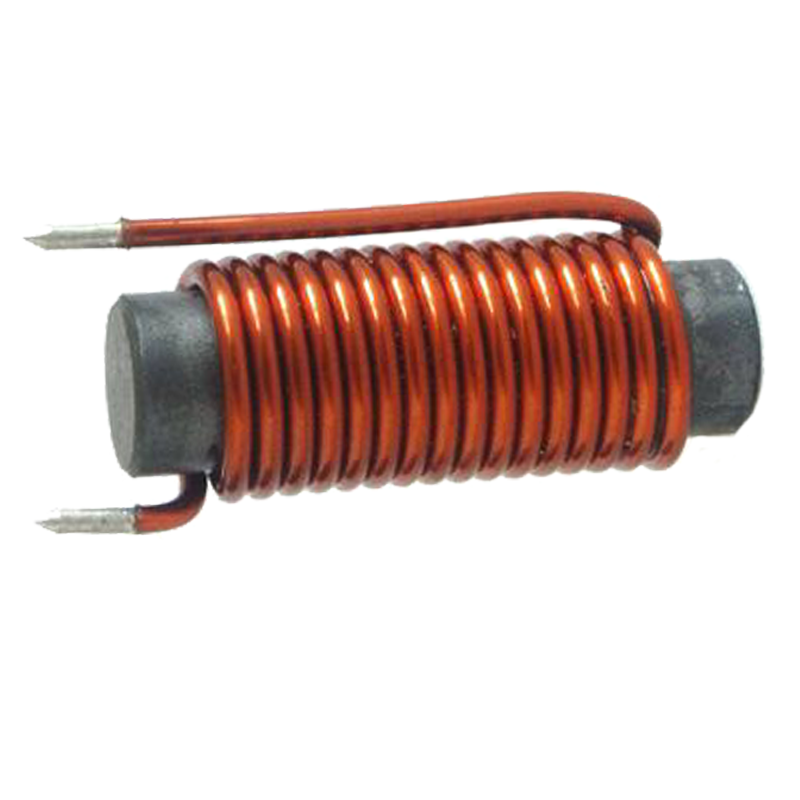

Product Name: Φ4×20 Ferrite Rod Core Inductor Multi-level Winding Inductor
Applications: switching power supply, power amplifiers, broadband filtering, UPS and Adapter.
Packing Details: PP packing belt + Outer packing hard paper carton + inner packing pearl cotton or plastic tray
Samples time: 7-10 days for customized parts, 3-5 days for standard parts.
Advantages:Our factory is made up of 500 people, huge output can be finished every day.
We have a technical team consist of 5 experienced engineers.
All materials are environmental protected. We accept custom made and design service.
Product Specification
High Frequency Chokes with Ferrite Rod Cores Φ4×20
|
IR in A
|
LR in uH
|
RDC-mΩ
|
ΦC-mm
|
MCT PN
|
|
1.0
|
30
|
85
|
0.40
|
MCT-LB-A05
|
|
2.0
|
15
|
30
|
0.60
|
MCT-LB-A06
|
|
3.0
|
9
|
15
|
0.75
|
MCT-LB-A07
|
|
4.0
|
6
|
10
|
0.85
|
MCT-LB-A08
|
We can supply these dimension Ferrite Rod Core. Please make your design with the following table:
|
Type
|
Diameter:A
|
Length:B
|
|
Type
|
Diameter
|
Length
|
|
R1.65×7
|
1.65±0.20
|
7±0.40
|
|
R6×10
|
6±0.30
|
10±0.40
|
|
R1.65×10
|
1.65±0.20
|
10±0.40
|
|
R6×12
|
6±0.30
|
12±0.40
|
|
R2×7
|
2±0.20
|
7±0.40
|
|
R6×15
|
6±0.30
|
15±0.40
|
|
R2×10
|
2±0.20
|
10±0.40
|
|
R6×20
|
6±0.30
|
20±0.40
|
|
R3×10
|
3±0.20
|
10±0.40
|
|
R6×22
|
6±0.30
|
22±0.50
|
|
R3×12
|
3±0.20
|
12±0.40
|
|
R6×22.5
|
6±0.30
|
22.5±0.50
|
|
R3×14
|
3±0.20
|
14±0.40
|
|
R6×25
|
6±0.30
|
25±0.50
|
|
R3×15
|
3±0.20
|
15±0.50
|
|
R6×30
|
6±0.30
|
30±0.50
|
|
R3×16
|
3±0.20
|
16±0.50
|
|
R6×45
|
6±0.30
|
45±0.50
|
|
R3×20
|
3±0.20
|
|
|
R6.2×26
|
6.2±0.30
|
26±0.50
|
|
R4×10
|
4±0.20
|
10±0.40
|
|
R7.94×7.94
|
7.94±0.30
|
7.94±0.40
|
|
R4×11
|
4±0.20
|
|
|
R8×18.5
|
8±0.40
|
18.5±0.50
|
|
R4×12
|
4±0.20
|
12±0.40
|
|
R8×20
|
8±0.40
|
20±0.50
|
|
R4×15
|
4±0.20
|
15±0.50
|
|
R8×25
|
8±0.40
|
25±0.50
|
|
R4×16
|
4±0.20
|
16±0.50
|
|
R8×30
|
8±0.40
|
30±0.50
|
|
R4×18
|
4±0.20
|
18±0.50
|
|
R8×32
|
8±0.40
|
32±0.50
|
|
R4×19
|
4±0.20
|
19±0.50
|
|
R8×40
|
8±0.40
|
40±0.50
|
|
R4×20
|
4±0.20
|
20±0.50
|
|
R10×6
|
10±0.50
|
6±0.40
|
|
R4×25
|
4±0.20
|
25±0.50
|
|
R10×12
|
10±0.50
|
12±0.40
|
|
R4.5×19
|
4.5±0.20
|
19±0.50
|
|
R10×20
|
10±0.50
|
20±0.50
|
|
R5×4
|
5±0.20
|
4±0.40
|
|
R10×22
|
10±0.50
|
22±0.50
|
|
R5×10
|
5±0.20
|
10±0.40
|
|
R10×30
|
10±0.50
|
30±0.50
|
|
R5×12
|
5±0.20
|
12±0.40
|
|
RWW3×8
|
3±0.20
|
8±0.40
|
|
R5×13
|
5±0.20
|
|
|
ROO3×10
|
3±0.20
|
10±0.40
|
|
R5×15
|
5±0.20
|
15±0.50
|
|
ROO4×15
|
4±0.20
|
15±0.50
|
|
R5×18
|
5±0.20
|
18±0.50
|
|
RWW4×20
|
4±0.20
|
20±0.50
|
|
R5×20
|
5±0.20
|
20±0.50
|
|
ROO5×15
|
5±0.30
|
15±0.50
|
|
R5×21.5
|
5±0.20
|
21.5±0.50
|
|
ROO5×20
|
5±0.30
|
20±0.50
|
|
R5×24
|
5±0.20
|
24±0.50
|
|
|
|
|
|
R5×25
|
5±0.20
|
25±0.50
|
|
|
|
|
|
R5×30
|
5±0.20
|
30±0.50
|
|
|
|
|
|
R5.5×17
|
5.5±0.20
|
17±0.50
|
|
|
|
