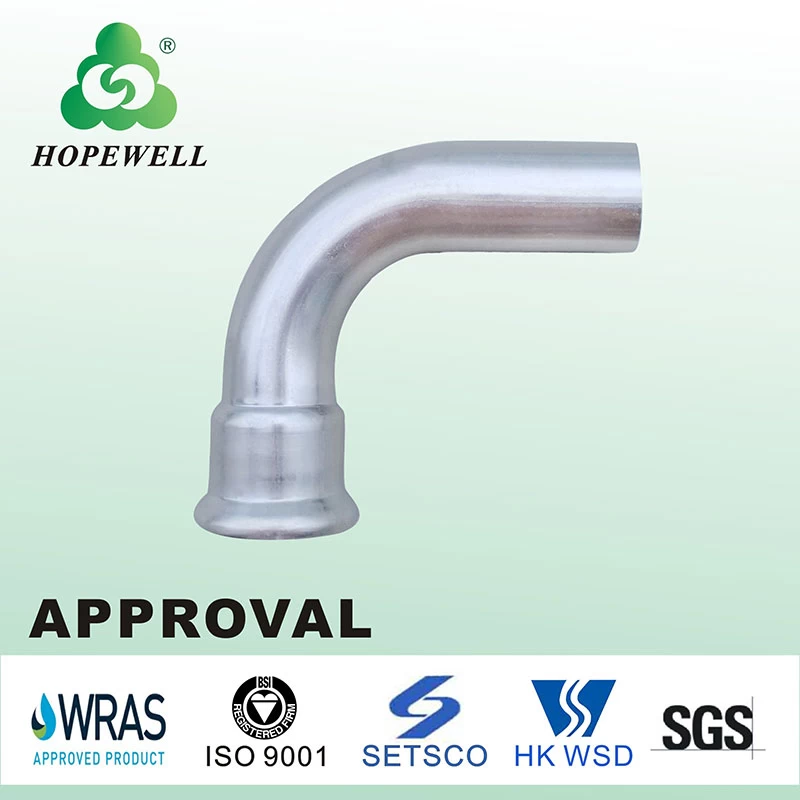

Stainless 304 inox plumbing press fit tubing elbow steel press fittings
|
Item
name
|
Item number
|
Out
diameter
(mm)
|
|
90° short plain elbow-B
|
HW91691
|
15
|
|
90° short plain elbow-B
|
HW91692
|
18
|
|
90° short plain elbow-B
|
HW91693
|
22
|
|
90° short plain elbow-B
|
HW91694
|
28
|
|
90° short plain elbow-B
|
HW91695
|
35
|
|
90° short plain elbow-B
|
HW91696
|
42
|
|
90° short plain elbow-B
|
HW91697
|
54
|
|
90° plain elbow-B
|
HW05067
|
76.1
|
|
90° plain elbow-B
|
HW05068
|
88.9
|
|
90° plain elbow-B
|
HW05069
|
108
|
Standard:
steel press fittings standard: GB/T 19228.1-2003 (including EN10312 standard and GB Ⅱ standard);
Pipe standard: GB/T 19228.2-2003
Sealing ring standard: GBT 19228.3-2003
Material for Stainless 304 inox plumbing press fit tubing elbow steel press fittings:
Stainless steel 304 and 316 available.
Sealing ring material: EPDM
steel press fittings range:
Coupling -- Stainless steel equal pipe coupling, Reducer-A, Reducer-B, Adjustable coupling, Female coupling, Rotatable coupling, Male coupling;
Elbow -- equal elbow, plain elbow, reducing elbow, Female elbow, Based female elbow, Short female elbow, Male elbow;
Tee -- equal tee, reducing tee, Female tee, Male tee;
Pipe cap, pipe bridge and Flange.
Stainless steel pipe
Sizes range for Stainless 304 inox plumbing press fit tubing elbow steel press fittings:
The norminal diameter are: DN15, 20, 25, 32, 40, 50, 65, 80 and DN100, including EN10312 standard and GB Ⅱ standard.
EN10312 standard out diameters are: 18, 22, 28, 35, 42, 54, 76.1, 88.9, 108mm.
GB Ⅱ standard out diameters are: 15.9, 22.2, 28.6, 34, 42.7, 48.6, 76.1, 88.9, 108mm.
Under production:
Install Effect:
Loading:
Please contact us for more details about Stainless 304 inox plumbing press fit tubing elbow steel press fittings and price list.
