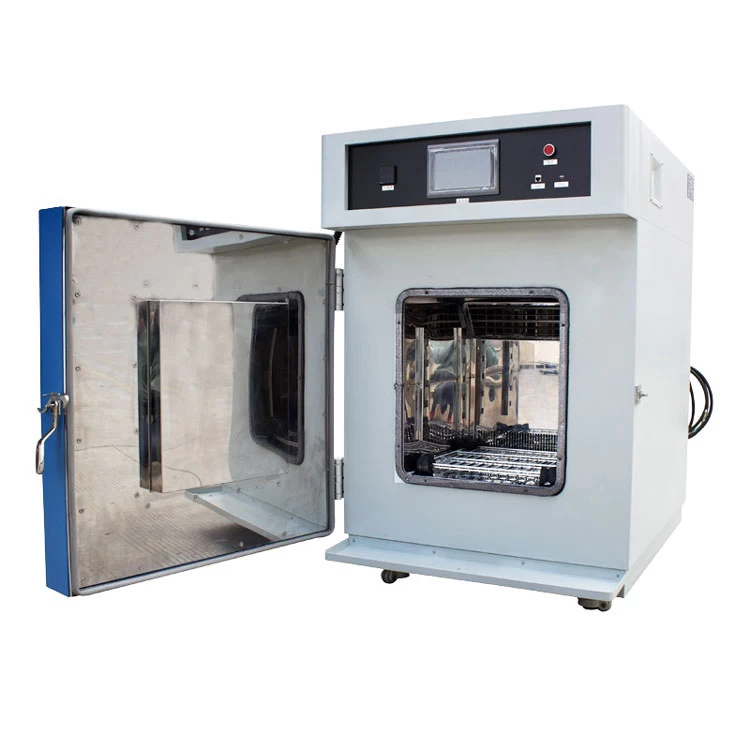

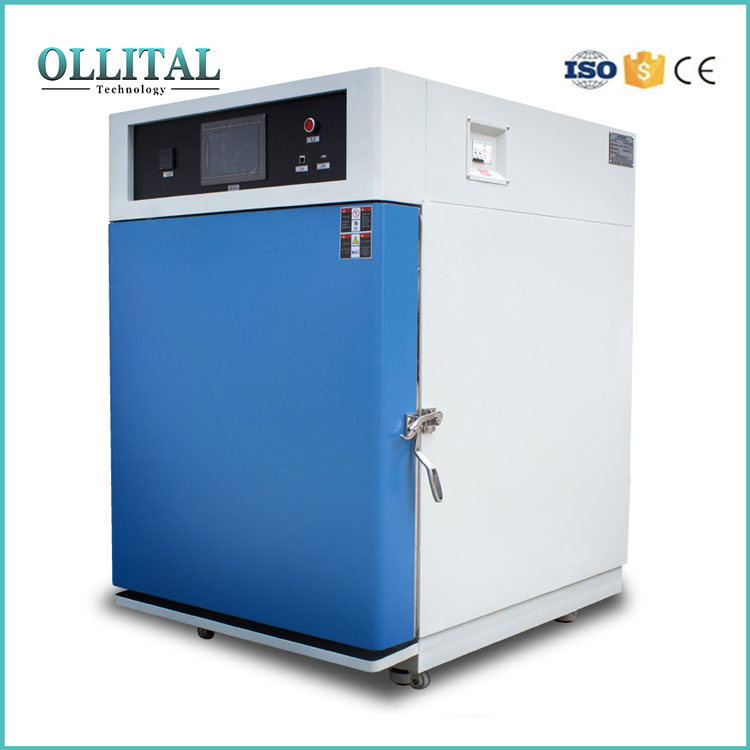

+300 ℃ High Temperature Test Chamber
+300℃ High Temperature Test Chamber give the maximum durability and performance for your most demanding test requirements.It is the necessary test equipment for aviation, Aerospace, automotive, electronics, military and solar panel industry etc.It can be used to test and determine the parameters and performance of electrical, electronic products and materials in the most extreme temperature and humidity conditions.
|
Sizes of High Temperature Chambers
|
|
Model
|
Volume (L)
|
Temperature Range
(°C)
|
Rated Power
|
Internal Dimension (mm) D*W*H
|
External Dimension (mm) D*W*H
|
|
LRHS-101-LG
|
101
|
RT+10℃～200℃
or
RT+10℃～300℃
|
2.8kw
|
450*450*500
|
940×750×1120
|
|
LRHS-225-LG
|
225
|
3.2kw
|
500*600*750
|
990×900×1370
|
|
LRHS-504B-LG
|
504
|
4.2kw
|
700*800*900
|
1190×1100×1620
|
|
LRHS-800B-LG
|
800
|
6.0kw
|
800*1000*1000
|
1290×1300×1720
|
|
LRHS-1000B-LG
|
1000
|
6.2kw
|
1000*1000*1000
|
1490×1300×1720
|
Note: In the Model, the number means volume of test chamber's working room.
For example, model LRHS-101-LG means the volume of this test chamber is 101L
|
|
Basic Specification
|
|
Performance
|
Temperature Range
|
RT+10℃～200℃/RT+10℃～300℃
|
|
Temperature Fluctuation
|
±0.5°C ( without load )
|
|
Temperature Uniformity
|
≤2.0°C ( without load )
|
|
Ramp Rate
|
1.0～3.0°C/min for heating (non-linear, based on on-load)
＜50mins（RT+10～200°C）
Note: can be customized as per requirement
|
|
Material
|
External Casing
|
Cold-rolled A3 (Q235) steel plates with plastics painted.
|
|
Interior Working Room
|
Stainless Steel Plates SUS304 with miror surface
|
|
Heat Isolation
|
Polyurethane foams and fine glass fibres
|
|
Illumination Lamp
|
Philips® one in per standard test chamber.
|
|
Casters
|
4pcs, with PU covered for protection. Height adjustable and direction universal.
|
|
Viewing Window
|
Multi-layer hollow toughened glass with conductive films for heating to defrost
|
|
Door
|
Manually operated sliding door with unlock button
|
|

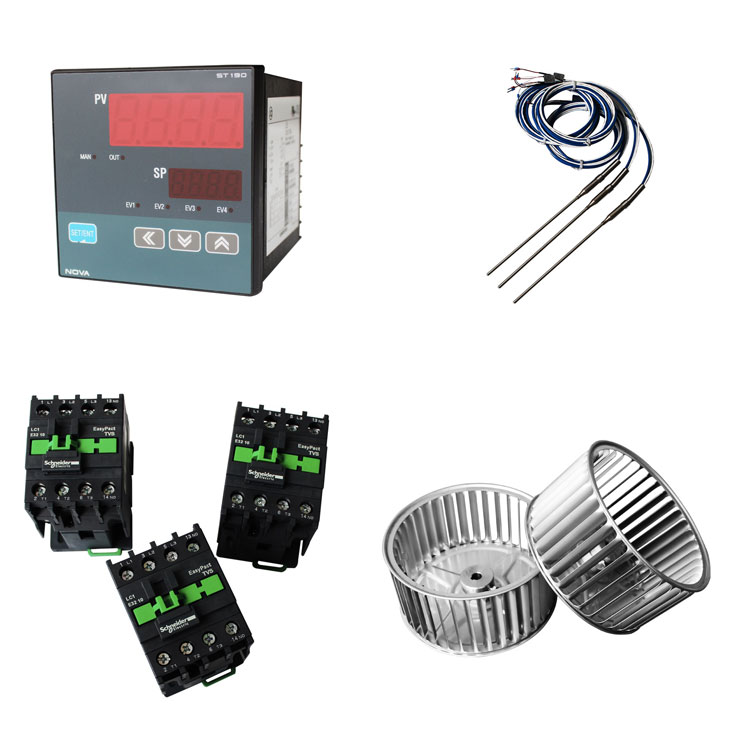

Heating & Cooling System
|
Heater
|
Steipped Nickel-chromium Wire Heater
|
|

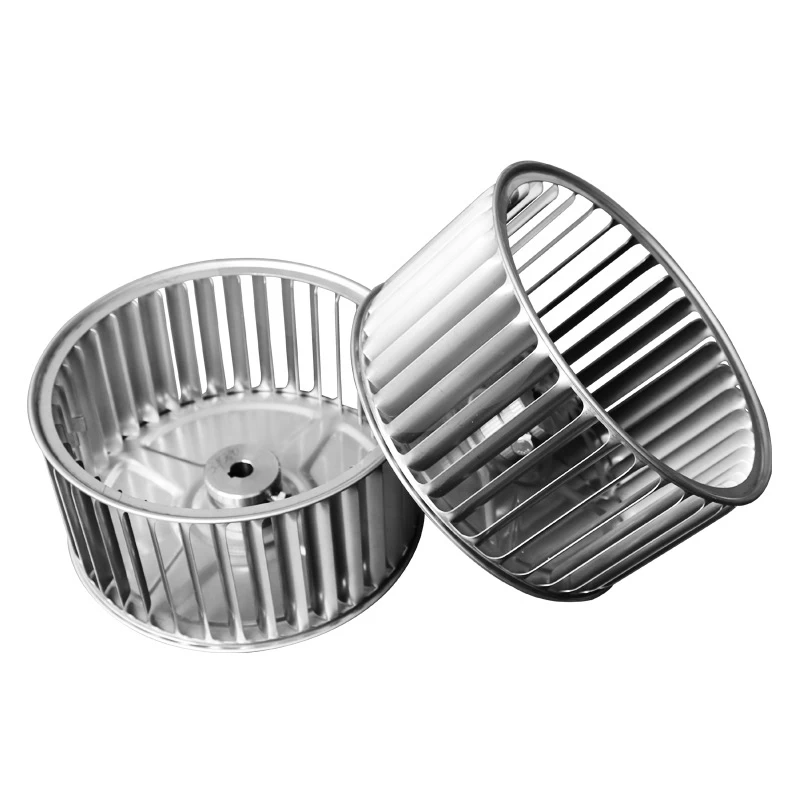

Air Blower
|
Anti-temperature stainless fan blades with low noise
|
|
Control System
|

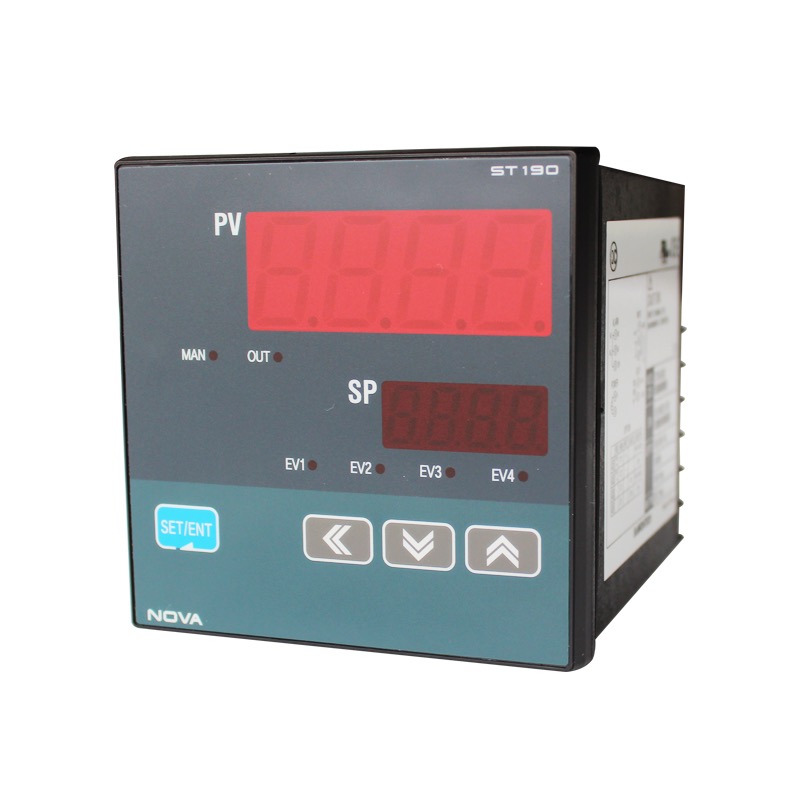

Controller
|
ST190
|
|
Display
|
LCD English Display
|
|
Controller
|
Microcomputer integrated controller
|
|

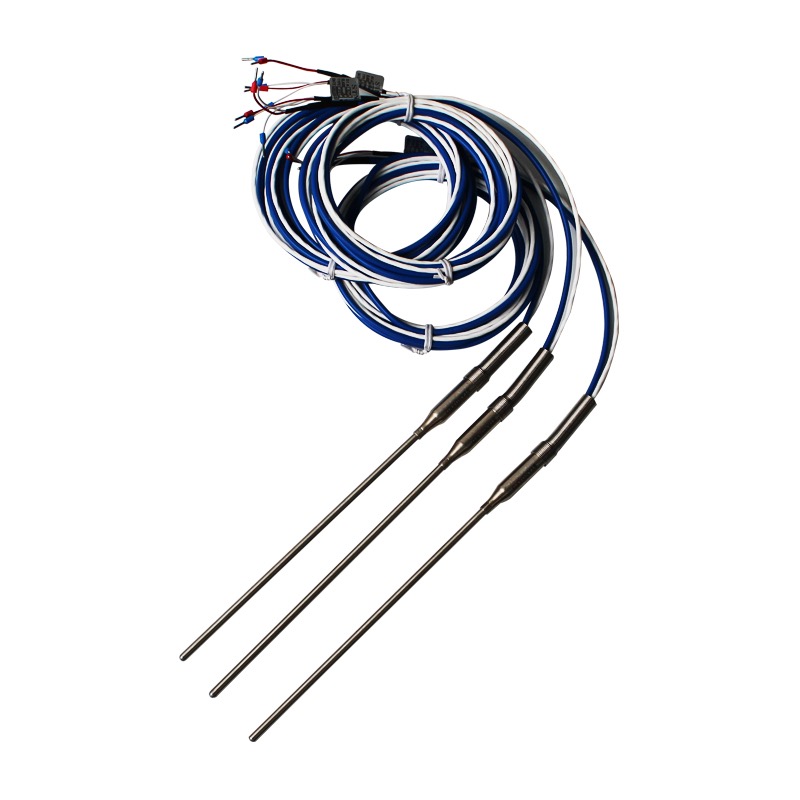

Temperature Sensor
|
Platinum Resistance.PT100Ω
|
|
Running Model
|
Constant/Fix-value Model and Programmable Model
|
|
I/O Interface
|
Communicate port (RS485) to connect test chamber to a PC
|
|
Standard Configuration
|
Test Chamber x 1, Specimen Holder Shelf x 2, φ100mm Cable Access Port x 1 with 1 soft plug, EMO x 1, Tri-color Indicator x 1, etc.
|
|
Safety Protection
|
Power leakage protection/Compressor over-heat, over-load or over-current protection/Dry burning protection.
|
|
Voltage
|
AC220V/380V/440V±10%, 50Hz/60Hz or as per requirement
|
|
Ambient Enviromental for application
|
5°C～+30°C ≤ 85%R.H
|
|
Test Standards (not limited to)
|
IEC60068-2-1
IEC60068-2-2
IEC60068-2-78
IEC60068-2-30
|
●Programmable Touch Screen Controller
●Custom Sizes Available
●Running Time Meter
●Wide Temperature and Humidity Ranges
●Capable of Handling Extreme Temperature and Humidity
●High Performance Even Under Load
●Incandescent Interior Lighting
●Modular,Robust Reliable Construction
●Stainless Steel Interior
●Painted Galvanized Steel Exterior For Long Life
●Heavy-duty Flooring to Support Vehicles
●Mechanical Cooling
●Comprehensive Safety Features
●Refrigeration Gauges
●Refrigeration Sound Deadening Package
●Low or Zero Ozone Depletion Refrigerants
●All Circuits Fused or Circuit Breaker Protected.
●All Wiring Numbered or Color Coded
●Compressor Overload Protection
●Prefabricated for On-Site Installation
