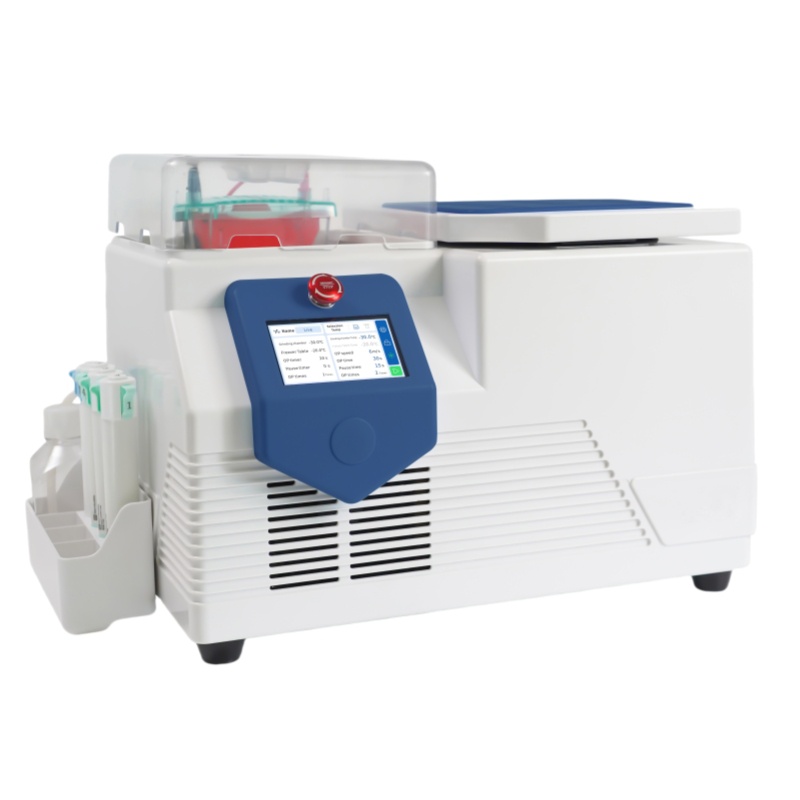

Product Introduction
Yanbio -50℃ low temperature homogenizer is typically used in research or clinical applications, particularly when working with tissues that are sensitive to heat (like enzymes or proteins) or require minimal thermal exposure.
Product Specifications
|
Product Name:
|
-50℃ Low Temperature Tissue Homogenizer
|
|
Cat No.
|
YB-HL
|
|
Operation Mode
|
The vertical shaking system moves back and forth at high speed.
|
|
Temperature
|
-50℃
|
|
Temperature Control Precision
|
±1℃
|
|
Maximum Sample Volume
|
192pcs
|
|
Adaptor
|
24x0.5mL.24x2mL.48x2mL.32x2mL. 60x2mL.96x2mL.12x5mL.10x10mL.4x30mL(steel can). 6x5mL(steel can).8x15mL(steel can). 2x50mL(steel can).96x2mL(2pcs 96-deep well plate)
|
|
Adapter Fixing Method
|
Knob Cover with safety locking device
|
|
Working time
|
Run time 0-9999 s;Pause time 0-999 s;Number of runs 1-99
|
|
Dimensions
|
370*365*500mm
|
|
Screen Size
|
5 inches
|
|
Emergency stop button
|
Yes
|
|
Electromagnetic Safety Lock
|
Screen click control with automatic power-off unlocking. the cover cannot be opened during operation until the grinding program ends,full protected.
|
|
Weight
|
52kg
|
|
Power Parameters
|
200-240VAC,50-60 Hz,400W
|
|
Cooling method
|
Compressor Cooling
|
|
Advantages
|
Higher grinding efficiency, reducing tissue degradation. Freezing function, lowest temperature can reach -40℃
|
Key Features
Linear Guide Rail: stable and durable, capable of continuous grinding 24 hours a day.
Process Up to 192 Samples Simultaneously
Various Adapters Available
Compact body and beautiful appearance
Protein Extraction
| Product Name |
Grinding Beads |
Frequency |
Grinding Time |
Pause Time |
Cycle Times |
Recommended Extraction Solution |
| Plant Stems, Leaves |
Stainless Steel Beads 3mm*3, 4mm*1 |
60Hz |
60s |
15s |
3 |
Protein Extraction Solution |
| Heart, Liver, Spleen, Lungs, Kidneys, Brain of Mice and Rats |
Stainless Steel Beads 3mm*2, 4mm*1 |
60Hz |
30s |
15s |
2 |
Protein Extraction Solution |
| Stomach, Intestines, Muscles, Fat, Pancreas of Mice and Rats |
Stainless Steel Beads 3mm*2, 4mm*1 |
60Hz |
45s |
15s |
2 |
Protein Extraction Solution |
| Skin, Ears, Tail, Blood Vessels of Mice and Rats |
Stainless Steel Beads 3mm*3, 4mm*2 |
70Hz |
60s |
20s |
3 |
Protein Extraction Solution |
| Cartilage, Hair, Hard Bones of Mice and Rats |
Stainless Steel Beads 3mm*4, 4mm*2 |
70Hz |
90s |
20s |
3 |
Protein Extraction Solution |
RNA Extraction
| Product Name |
Grinding Beads |
Frequency |
Grinding Time |
Pause Time |
Cycle Times |
Recommended Extraction Solution |
| Plant Stems, Leaves |
Zirconia Beads 3mm*3, 4mm*1 |
60Hz |
60s |
15s |
3 |
RNA Extraction Solution |
| Heart, Liver, Spleen, Lungs, Kidneys, Brain of Mice and Rats |
Zirconia Beads 3mm*2, 4mm*1 |
60Hz |
30s |
15s |
2 |
RNA Extraction Solution |
| Stomach, Intestines, Muscles, Fat, Pancreas of Mice and Rats |
Zirconia Beads 3mm*3, 4mm*2 |
60Hz |
45s |
15s |
2 |
RNA Extraction Solution |
| Skin, Ears, Tail, Blood Vessels of Mice and Rats |
Zirconia Beads 3mm*4, 4mm*2 |
70Hz |
60s |
20s |
3 |
RNA Extraction Solution |
| Cartilage, Hair, Hard Bones of Mice and Rats |
Zirconia Beads 3mm*3, 4mm*4 |
70Hz |
90s |
20s |
3 |
RNA Extraction Solution |
Applications
- Life Sciences: Ideal for mixing biological samples such as cells, tissues, bacterial cultures, and other biological fluids.
- Chemical Reagents: Suitable for the homogenization and preparation of chemical reagents in research labs.
- Pharmaceutical: Useful for pharmaceutical research and the preparation of sample mixtures.
- Environmental Studies: Can be used for mixing environmental samples for pollutant analysis.
FAQ
Q. How many samples can be grinded in one time?
A. Up to 192 samples can be processed simultaneously in 1 minute (24 samples can be processed with standard),efficiently and effectively completing sample grinding with high
throughput.
Q. What kind of samples can be grinded?
A.
a) It is suitable for grinding and crushing all kinds of plant tissues,including roots,stems,leaves,
b) It is suitable for grinding and crushingall kinds of animal tissues,including brain,heart,lung,
c) It is suitable for grinding and crushing of food and drug composition analysis and detectionflowers,fruits,seeds and other samplesstomach,liver,thymus,kidney,intestine,lymph node,muscle,bone and other samples
Q. How low the chamber temperature can be?
A. -50℃ to room temperature; Control accuracy:±1℃
