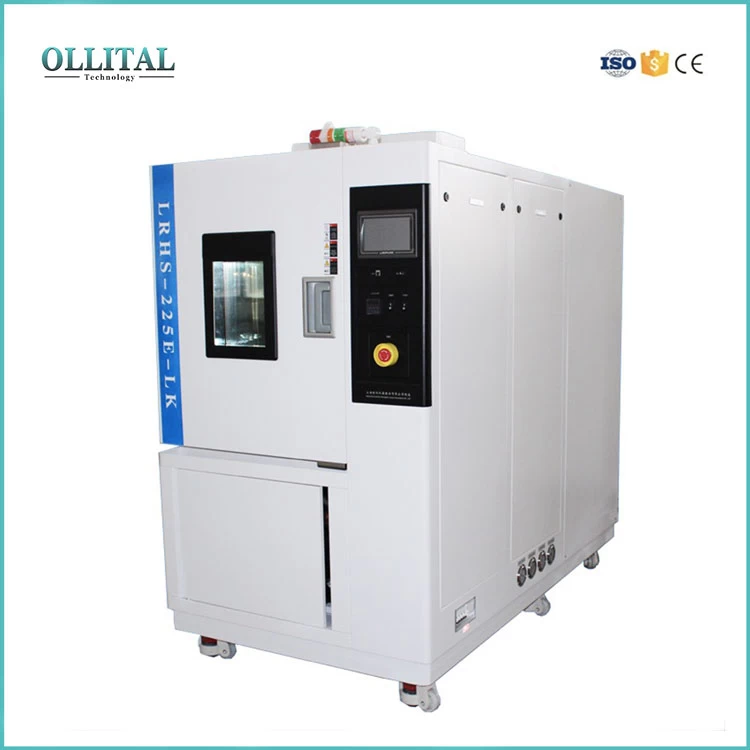

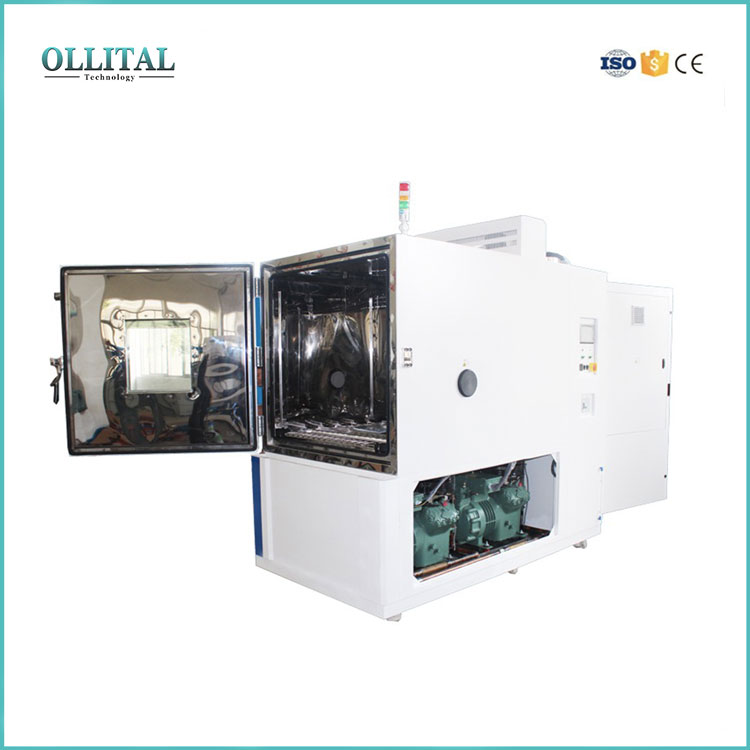

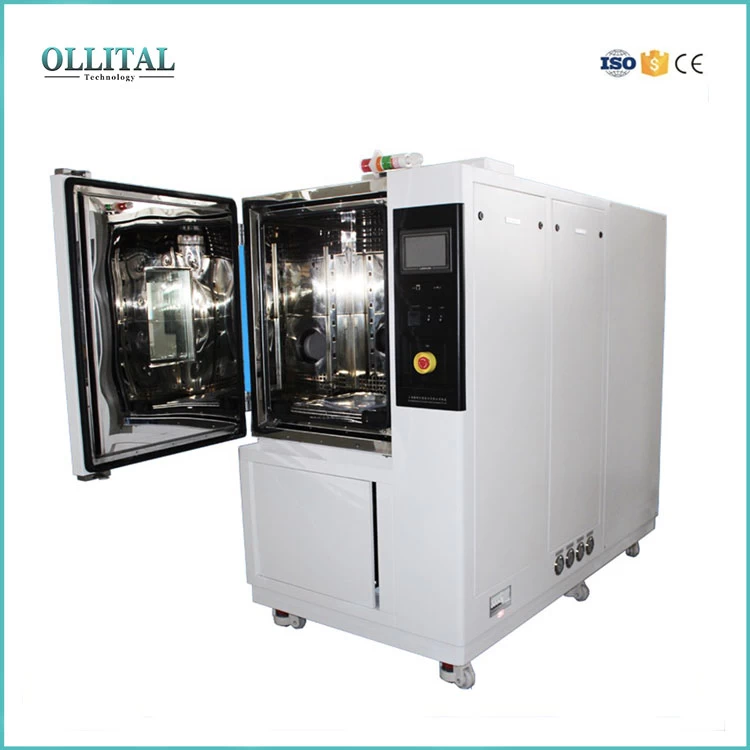

-60~+150℃ Fast Temperature Cycling Test Chamber
Rapid temperature change test chamber can simulate impact on product caused by climate condition change during working and evulate reliability and durability of a product. When thermal adoptability of product components is had or interal stress is quite large, rapid temperature changing test can tigger failing caused by mechnical structure defects. Rapid temperature changing test chamber is a powerful meth for environmental stress screening, It can effectively eliminate product early failing.
|
Model
|
Interior size(mm)
|
Exterior size(mm)
|
Volum(L)
|
|
OLT-101C-LK
|
450*450*500
|
1160*1000*1610
|
101
|
|
OLT-225C-LK
|
500*600*750
|
1210*1150*1870
|
225
|
|
OLT-504C-LK
|
700*800*900
|
1260*1340*2070
|
504
|
|
OLT-800C-LK
|
800*1000*1000
|
1370*1550*2170
|
800
|
|
OLT-1000C-LK
|
1000*1000*1000
|
1560*1550*2170
|
1000
|
|
|
|
Temperature Range
|
A:-20℃～150℃ B:-40℃～150℃ C:-60℃～150℃
|
|
Temperature Uniformity
|
≤2℃
|
|
Temperature Fluctuation
|
±0.5℃
|
|
Ramp up Rate
|
-55℃～85℃≤15℃/min (nonlinear)
|
|
Ramp Down Rate
|
85℃～-55℃≤15℃/min(nonlinear)
|
|
Inner material
|
Mirror Stainless Steel-SUS#304
|
|
Exterior Material
|
A3 Steel board with powder coated
|
|
Observing Window
|
1 PC(215×275mm)/(395*395mm);
|
|
Sensor
|
PT-100Ω Dry &Wet Bulb
|
|
Insulation way of Chamber
|
Glass fiber cotton or polyurethane foam
|
|
Heater
|
Nickel-chromium naked wire heating
|
