Desk Top Microcomputer Control Battery Tab Welding Machine For Ni Tab 0.05-0.15mm , 110-240v Customized
SPECIFICATIONS
1 TOB-HT-015 ModelBattery tab welding machinehas two kinds type to choose, pneumatic spot welding machine with smaller shipping weight and volume, but need to connect air compressor. Pedal Type welding machine without air supply but need with desk shipping together.
2 This kindbattery spot welderis mainly used for 18650, 26650, 32650 cylindrical battery, NI-MH battery(nickel-metal hydride battery), Nickel cadmium battery and EV Lithium battery pack Ni tab welding.
3 TOB-HT Systembattery spot welder machinehas different models according it’s welding ability. TOB-HT-012 Spot welder is suitable for Ni tab thickness less than 0.12mm, TOB-HT-015 model suitable for Ni tab thickness less than 0.15mm. TOB-HT-022 model suitable for Ni tab less than 0.22mm. We can also supply high power spot welding machine can weld up to 1mm tab. Please contact with our engineers to get the most suitable machines for you.
|
Model
|
Battery Tab Welding Machine TOB-HT-015
|
|
Source voltage
|
110V-240V with transformer, Single Phase 50/60Hz
|
|
Power
|
15KVA
|
|
Welding ability
|
0.05-0.15mm Ni tab
|
|
Warranty
|
One year limited and lifetime support
|
|
Advantages
|
1 Double pulse welding - pre welding and welding
2 Microcomputer control precision, Guarantee the evenness of each welding effect
3 Automatic count
|
|
Scope of application
|
18650, 26650, 32650 cylindrical battery, NI-MH battery
(nickel-metal hydride battery), Nickel cadmium battery and
EV Lithium battery pack Ni tab welding
|
|
Welding setting
|
Pre welding current : 00-99A,
Welding time : 00-30S
Welding current : 00-99A
|
|
Welding stroke
|
25mm, the welding height can be adjusted
|
|
Operating
|
Foot switch and pneumatic model can be chosen
|
|
Control
|
The microcomputer chip control,
LCD liquid crystal display, simple and precision
|
|
Weight
|
50kg
|
|
Dimension (L*W*H)
|
Foot switch model with desk : 800*580*1100mm
Pneumatic model : 400*370*220mm
|

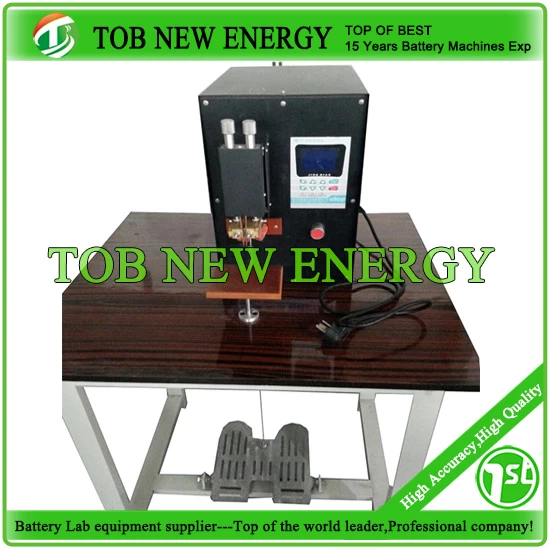

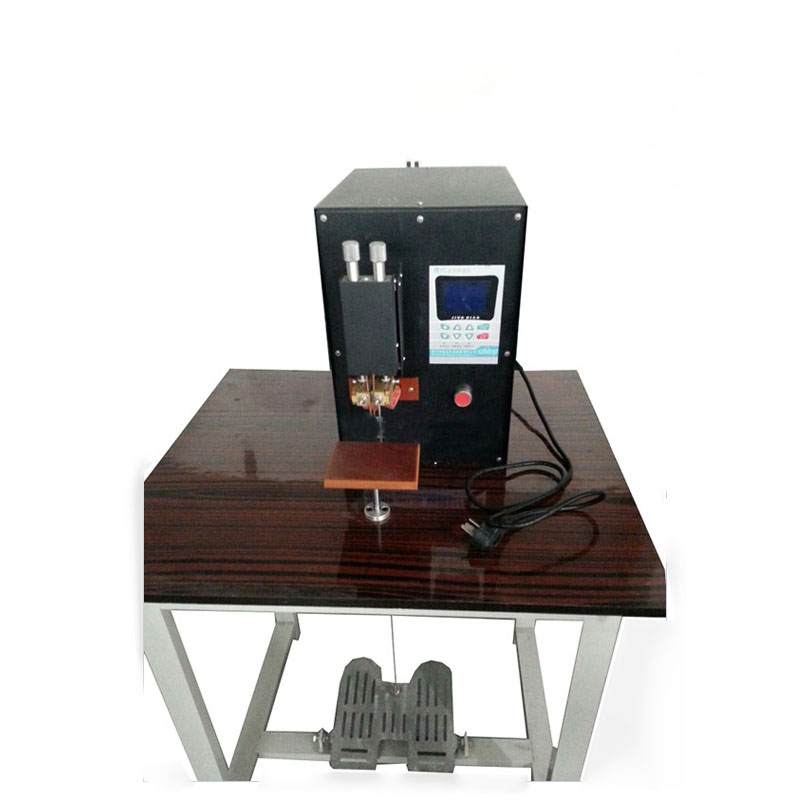

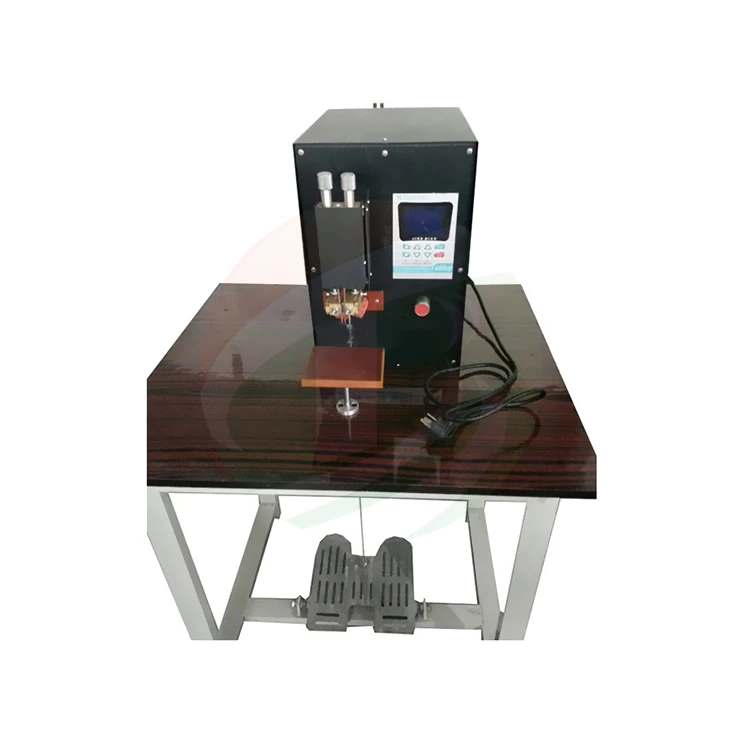

PRODUCT DISPLAY
PACKAGE AND SHIPPING
|
1 Standard exported package : Internal anticollision protection, external export wooden box package
2 Shipping by express, by air, by sea according to customer's requirements to suggest the most suitable shipping mode
3 Responsible for the damage during shipping process, change the damage part for free
4 Supply with suitable voltage input and power plug according to customer's country requirements.
5 Supply with CO, ECO, FORM A, FORM E and any other original certificate for import custom clearance and tax relief.
|
SERVICES
|
1 We supply machines with battery technology support.
2 We can also supply a full set of materials for lithium battery including polymer battery, cylinder battery, mobile phone battery, EV battery.
3 We can also supply a full set of lithium battery equipment for lab research, pilot scale research and production line.
4 We can also supply a full set of battery technology for battery design, research and producing.
|
