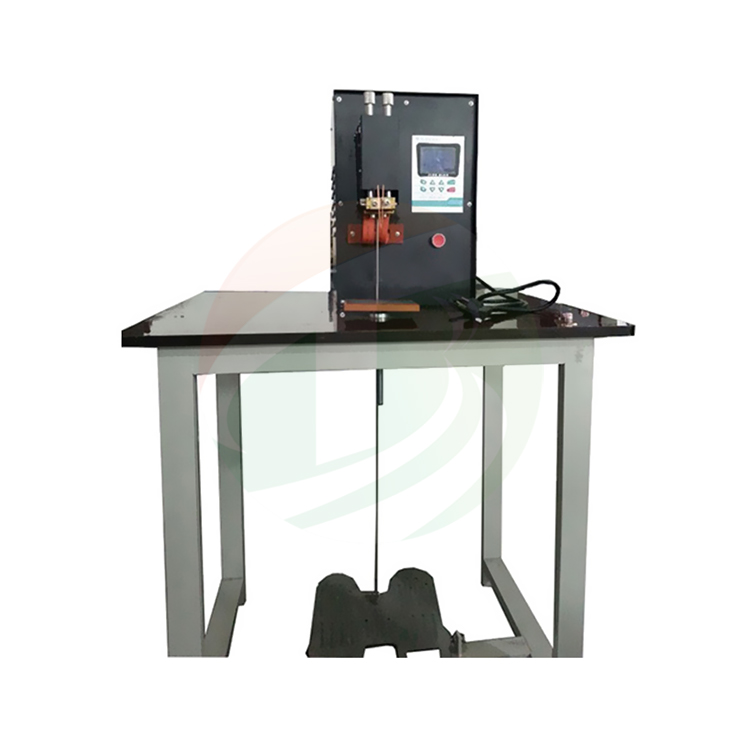

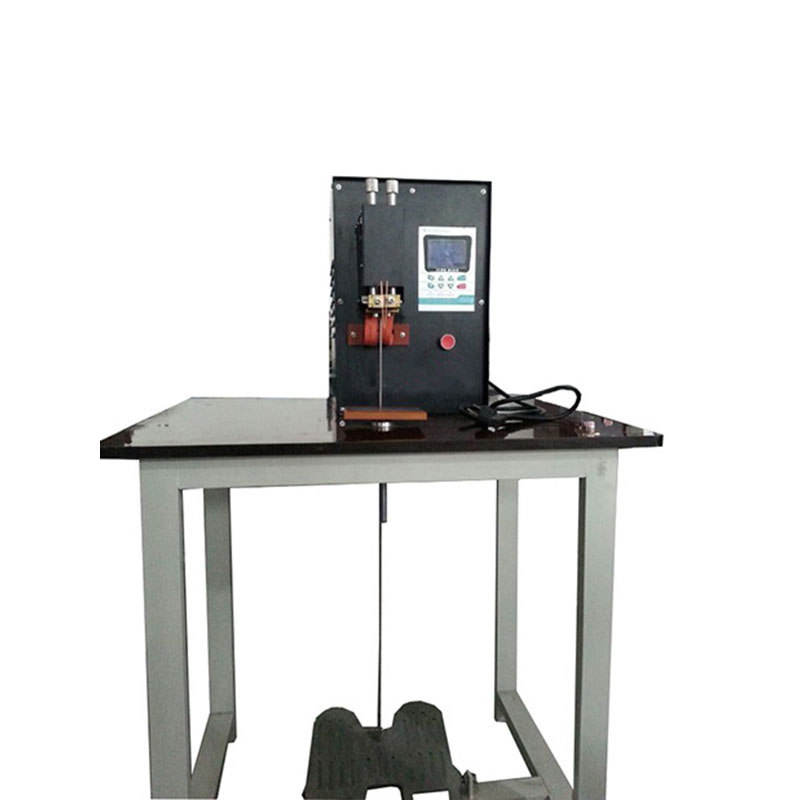

High Power Battery Cell Welding Machine (Pneumatic Type and Pedal Type optional ) For Thick Tab 0.22mm & Larger Battery Pack
SPECIFICATIONS
1 TOB-HT-022 ModelBattery Cell Welding Machinehas two kinds type to choose, pneumatic spot welding machine with smaller shipping weight and volume, but need to connect air compressor. Pedal Type welding machine without air supply but need with desk shipping together.
2 This kindbattery spot welderis mainly used for 18650, 26650, 32650 cylindrical battery, NI-MH battery(nickel-metal hydride battery), Nickel cadmium battery and EV Lithium battery pack Ni tab welding.
3 TOB-HT Systembattery spot weldermachine has different models according it’s welding ability. TOB-HT-012 Spot welder is suitable for Ni tab thickness less than 0.12mm, TOB-HT-015 model suitable for Ni tab thickness less than 0.15mm. TOB-HT-022 model suitable for Ni tab less than 0.22mm. We can also supply high power spot welding machine can weld up to 1mm tab. Please contact with our engineers to get the most suitable machines for you.
|
Model
|
Battery Cell Welding Machine TOB-HT-022
|
|
Source voltage
|
110V-240V with transformer, Single Phase 50/60Hz
|
|
Power
|
25KVA
|
|
Welding ability
|
0.05-0.22mm Ni tab
|
|
Warranty
|
One year limited and lifetime support
|
|
Advantages
|
1 Double pulse welding - pre welding and welding
2 Microcomputer control precision, Guarantee the evenness of each welding effect
3 Automatic count
|
|
Scope of application
|
18650, 26650, 32650 cylindrical battery,
NI-MH battery(nickel-metal hydride battery), Nickel cadmium battery and
EV Lithium battery pack Ni tab welding
|
|
Welding setting
|
Pre welding current : 00-99A,
Welding time : 00-30S
Welding current : 00-99A
|
|
Welding stroke
|
25mm, the welding height can be adjusted
|
|
Operating
|
Foot switch and pneumatic model can be chosen
|
|
Control
|
The microcomputer chip control,
LCD liquid crystal display, simple and precision
|
|
Weight
|
70kg
|
|
Dimension (L*W*H)
|
Foot switch model with desk : 800*650*1180mm
Pneumatic model : 400*370*220mm
|
PRODUCT DISPLAY

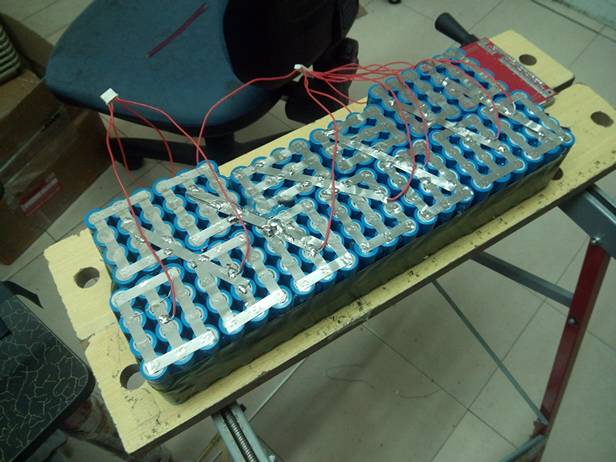

EV Battery pack use the DC spot welding machine from customers
