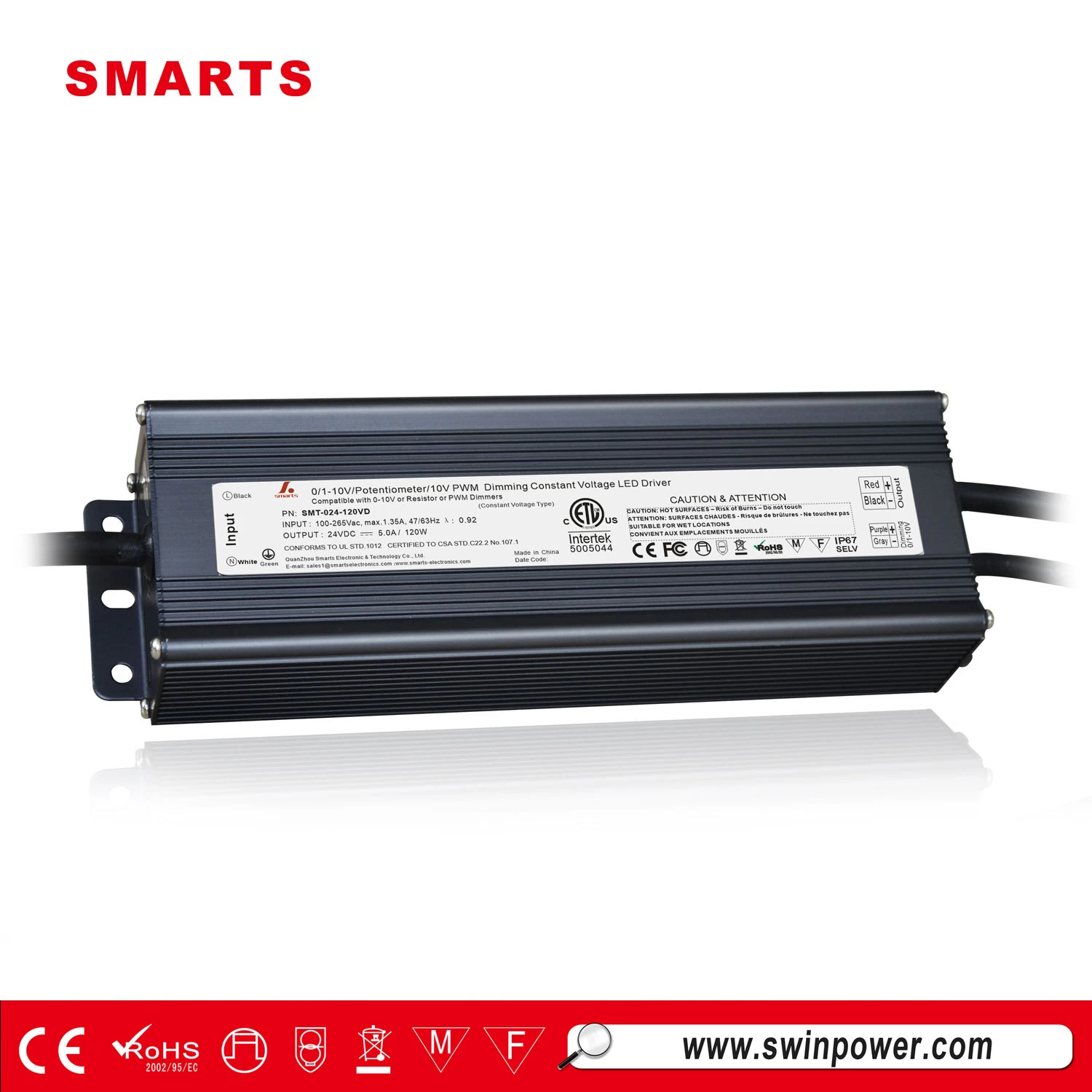

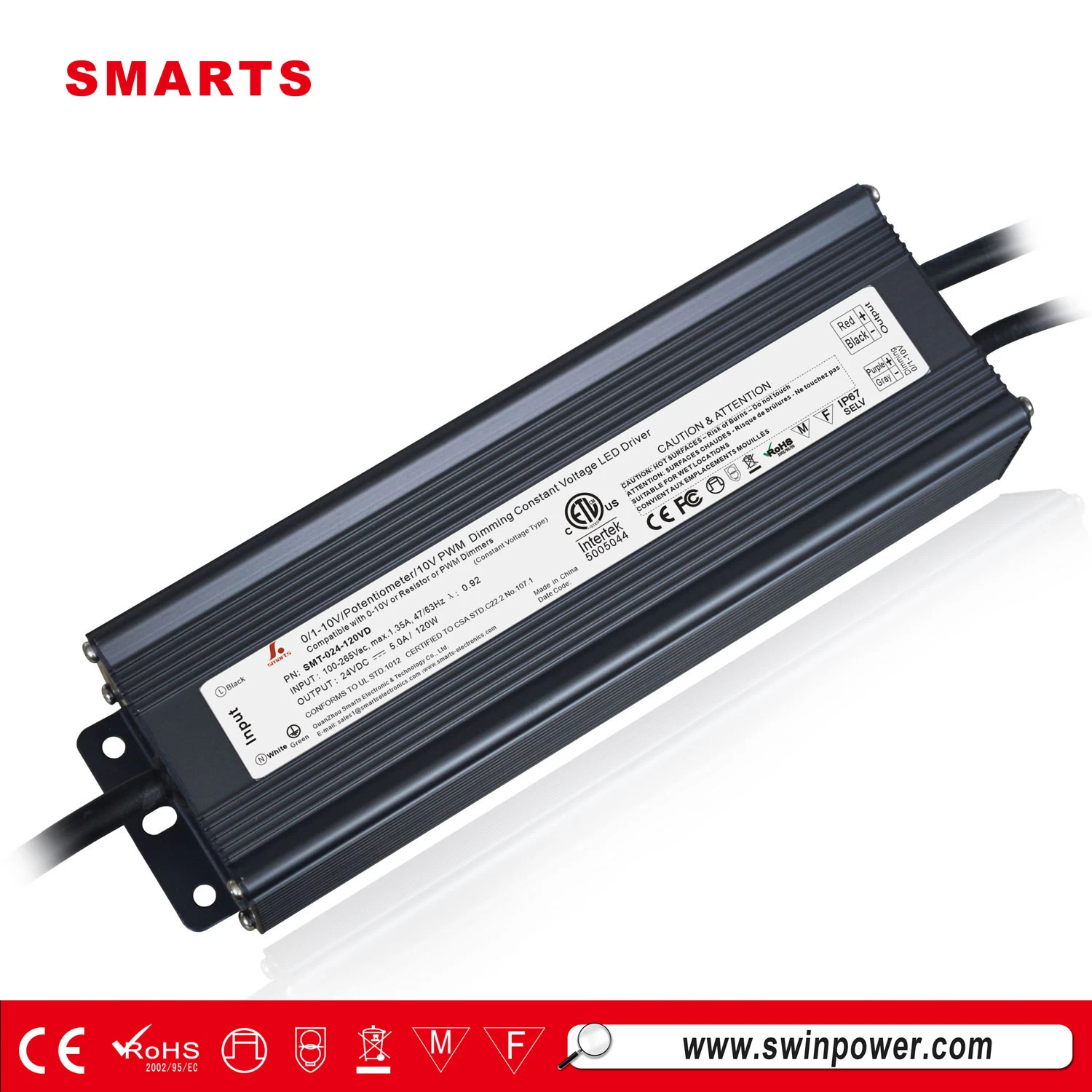

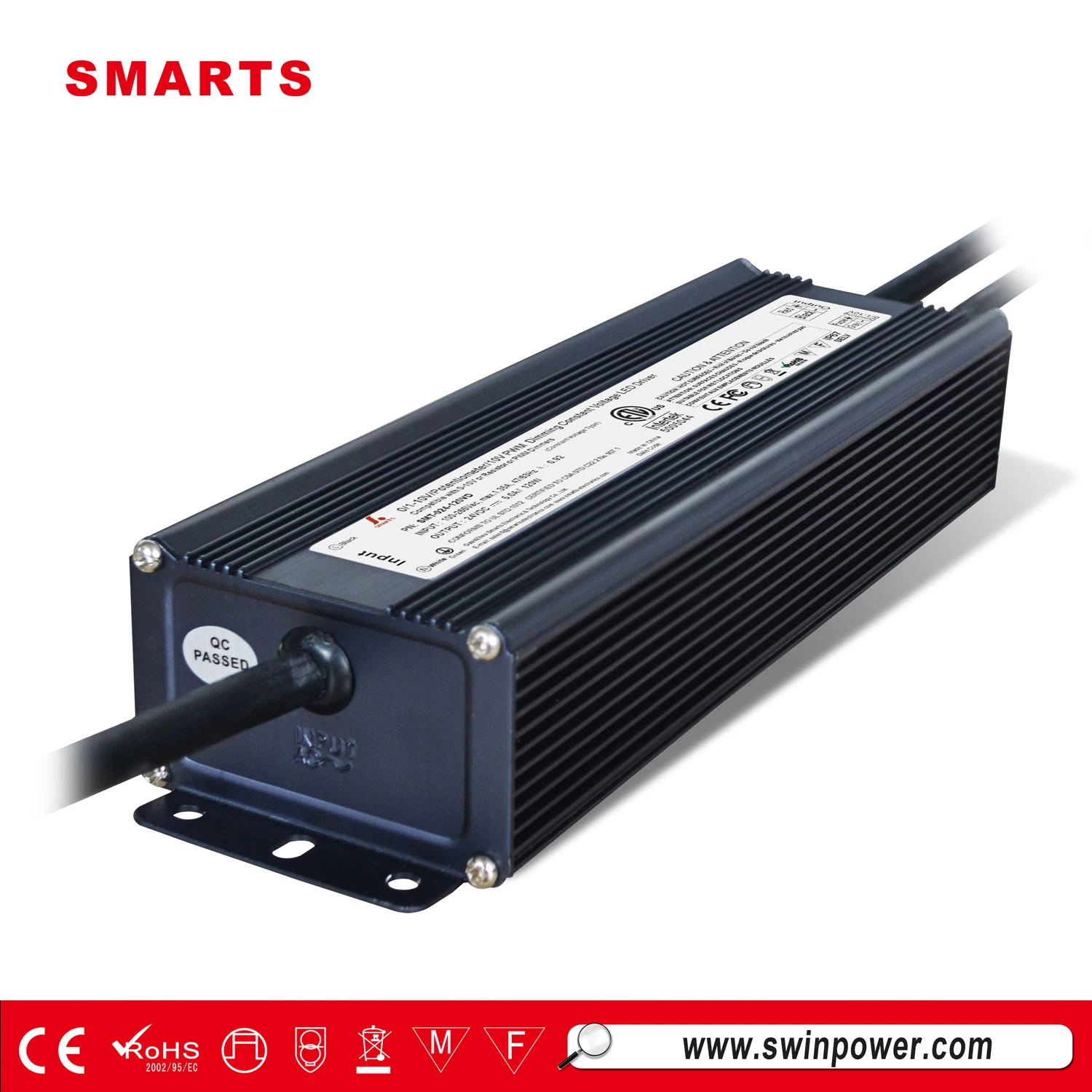

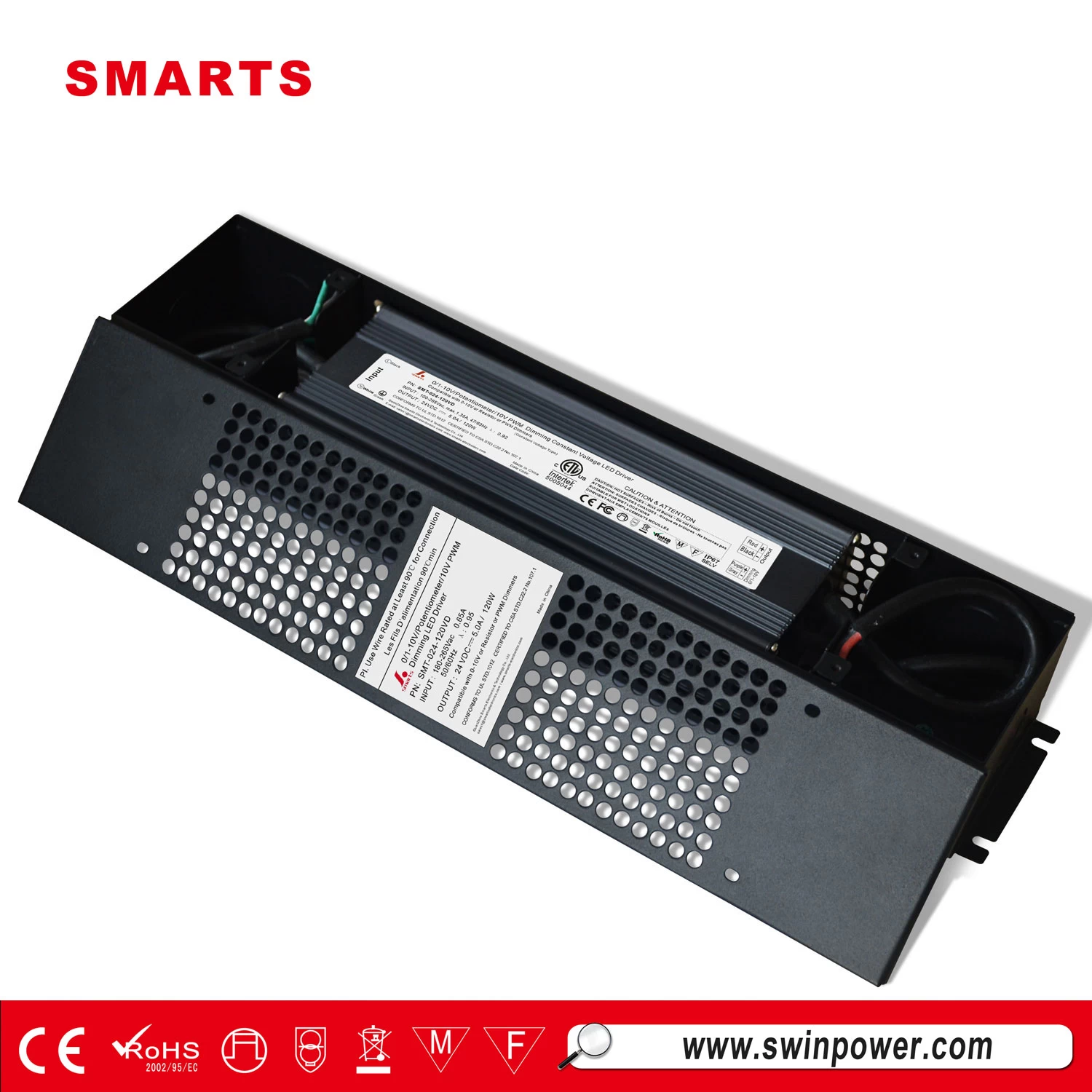

0-10v dimable led driver 24 volt 120w for striplite gold coast
Features：
·working mode: constant voltage type
·output voltage range :100-130VAC，170-265VAC
·Built-in PFC function
·Efficiency >88% / PF>0.9
·Protections:short circuit/over current/over voltage/over temperature
·Cooling by free air convection
·IP67 design for indoor or outdoor installations .
·Dimming function:0-10V/ 1-10V/ 10VPWM signal or resistance .
·Suitable for LED lighting and moving sign applications
·Compliance to worldwide safety regulations for lighting
·Suitable for dry/damp/wet locations
·3 years warranty
Specification
|
Model
|
SMT-012-120VD
|
SMT-024-120VD
|
SMT-036-120VD
|
|
Output
|
DC Voltage
|
12V
|
24V
|
36V
|
|
Voltage Accuracy
|
±0.5V
|
|
Rated current
|
0-1.0A
|
0-5.0A
|
0-3.33A
|
|
Rated power
|
120W
|
120W
|
120W
|
|
Ripple&noise Max.
|
200mVp-p
350mVp-p
350mVp-p
|
250mVp-p
400mVp-p
|
290mVp-p
|
|
Input
|
Voltage Range
|
100-130VAC，170-265VAC
|
|
Frequency Range
|
47～63HZ
|
|
|
Power Factor ( Typ.）
|
>0.90@110V ,220VAC
|
>0.90@110V,220V
|
|
Full Load Efficiency（Typ.）
|
>88%
86%
87%
|
>88%
88%
|
|
AC Current（Typ.）
|
1.263A/120VAC 0.891A/170VAC 0.689A/220VAC 0.572A/265VAC
|
|
Leakage current
|
﹤0.25mA/110V,220VAC
|
|
|
Protection
|
Short Circuit
|
Protection type: Hiccup mode, recovers automatically after fault condition is
removed
|
|
Over voltage
|
≦315VAC
|
|
Over temperature
|
100℃±10℃ shut down o/p voltage, re-power on to recover
|
|
Environment
|
Working TEMP.
|
-40～+60℃
|
|
Working Humidity
|
20～95%RH,non-condensing
|
|
Storage TEM.,Humidity
|
-40～+80℃，10～95%RH
|
|
TEMP.coefficient
|
±0.03%/℃（0～50℃）
|
|
Vibration
|
10～500Hz，5G 12min./1 cycle，period for 72min.each along X,Y,Z axes
|
|
Safety&EMC
|
Safety standards
|
EN61347-2-13. IP67
|
|
Withstand voltage
|
I/P-O/P:3.75KVAC I/P-FG:1.88KVAC O/P-FG:0.5KVAC
|
|
Isolation resistance
|
I/P-O/P I/P-FG O/P-FG：100MΩ/500VDC/25℃/70%RH
|
|
EMC EMISSION
|
Compliance to EN55015,EN61000-3-2 (≧50%Load)
|
|
EMC IMMUNITY
|
Compliance to EN61000-4-2,3,4,5,6,8,11,EN61547,Alight industry
level （surge4KV）
|
|
Others
|
Weight
|
1.32Kg
|
|
Size
|
230*68.5*43mm（L*W*H）
|
|
packing
|
329*279*176mm/10pcs
|
|
Notes
|
1. All parameters NOT specially mentioned are measured at 110V, 230VAC input , rated load and
25℃of ambient temperature.
2. Ripple& noise are measured at 20MHz of bandwidth by using a 12”twisted pair-wire terminated with a
0.1uf &47uf parallel capacitor.
3. Tolerance:includes set us tolerance,line regulation and load regulation .
|

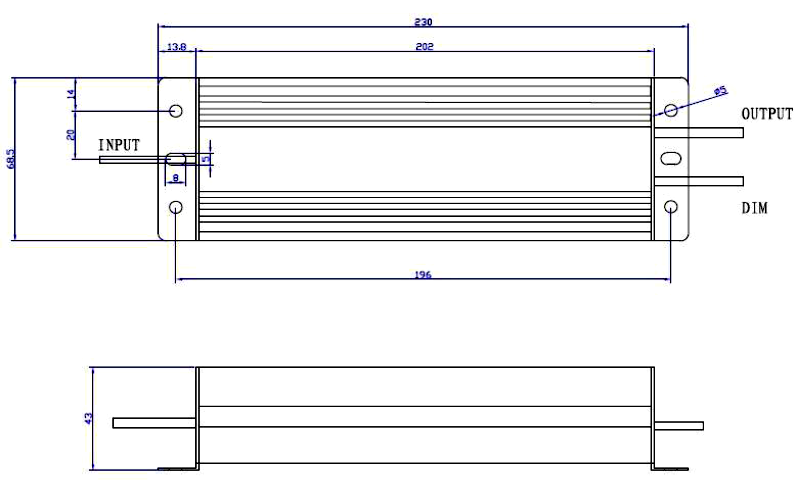

Mechanical Specification
Input 18AWG*3C，the green/yellow cable connect with (FG)，Brown with AC (L),Blue with AC(N)
Signal 18AWG*2C，Red is（DIM+）,Black is（DIM-）
Output 18AWG*2C，Blown is output（V+）,Blue is output（V-）
