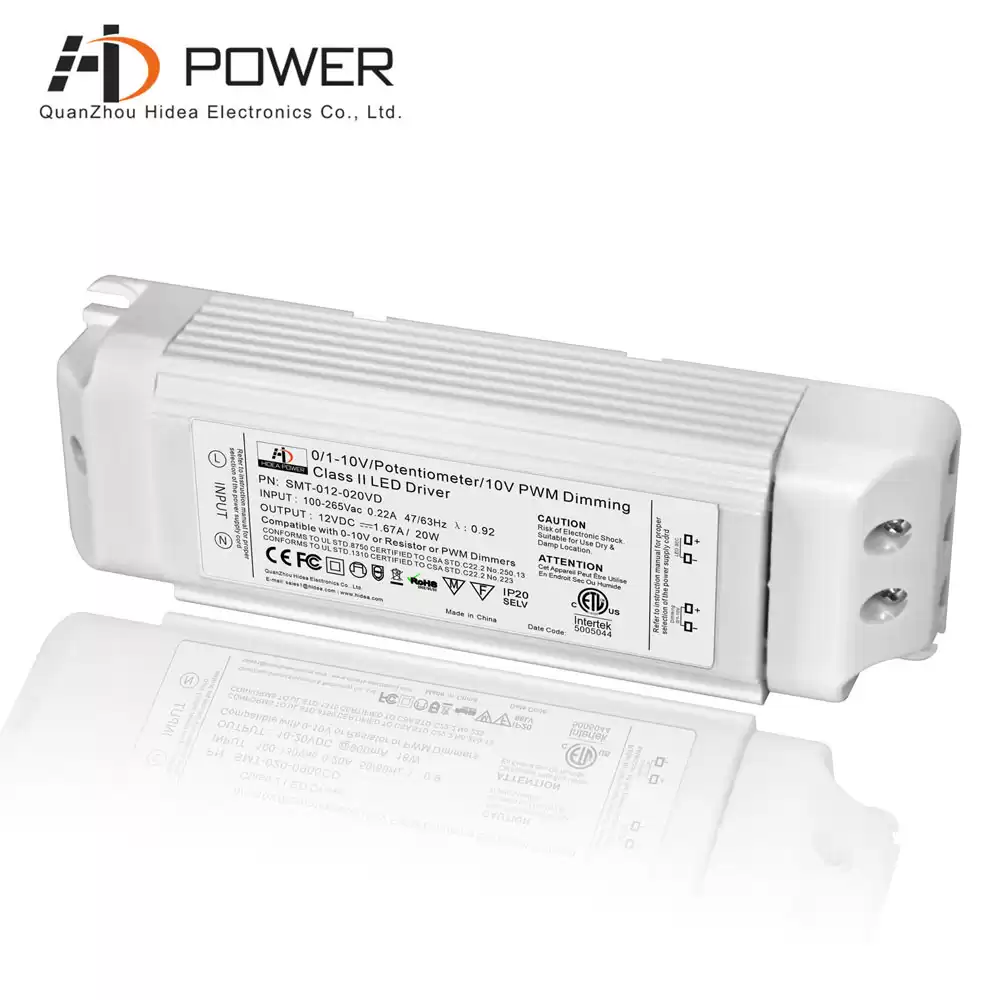

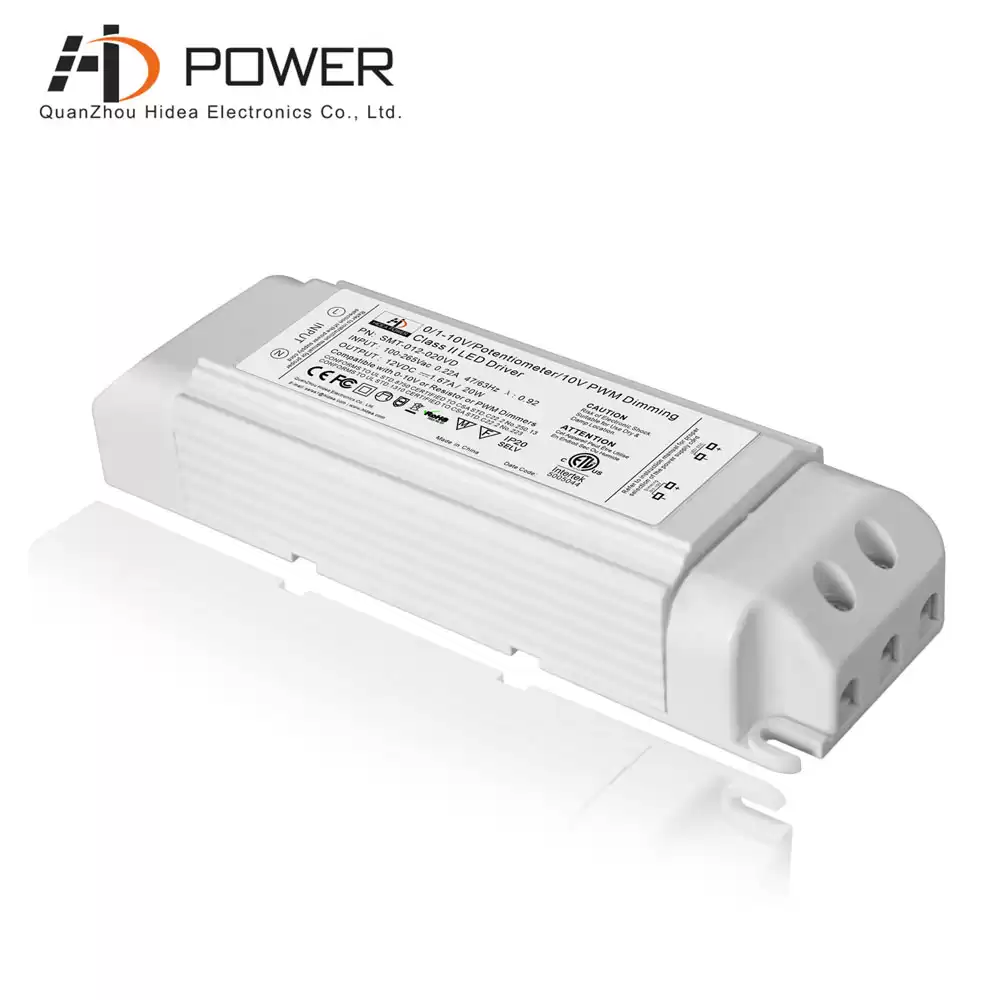

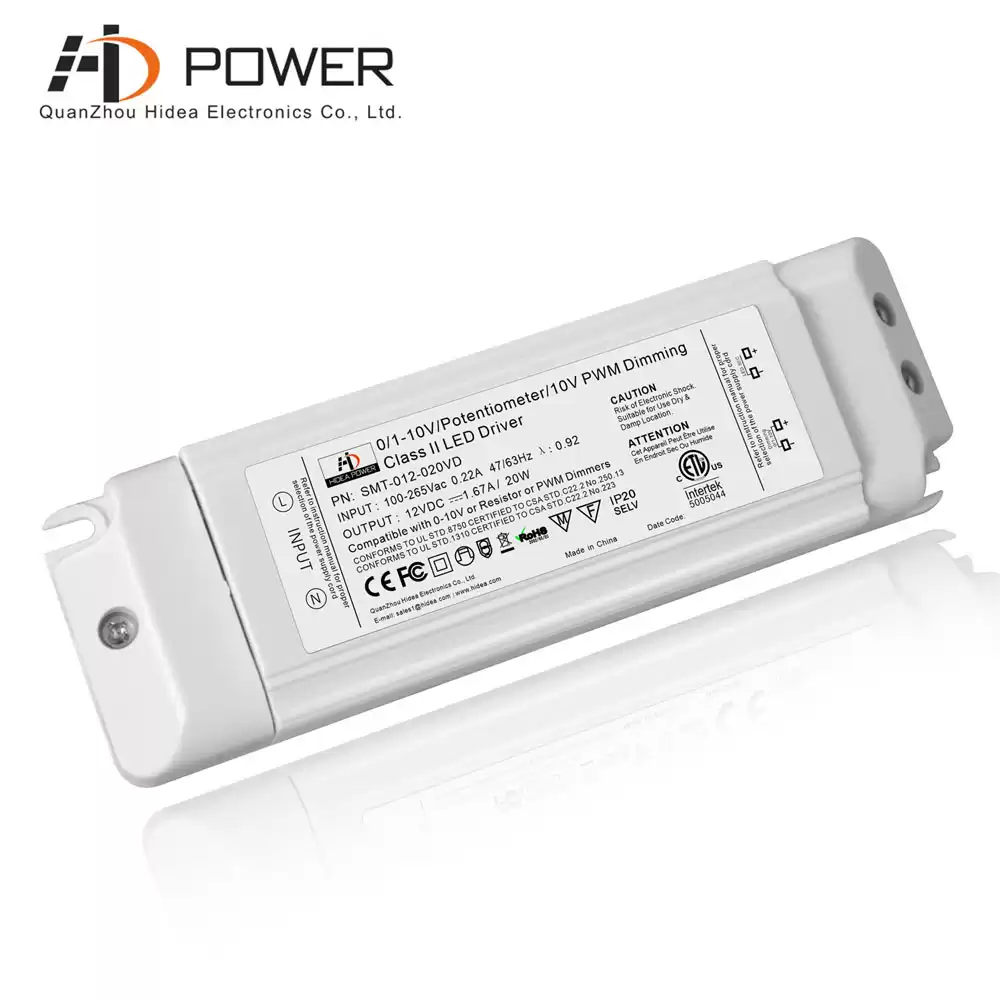

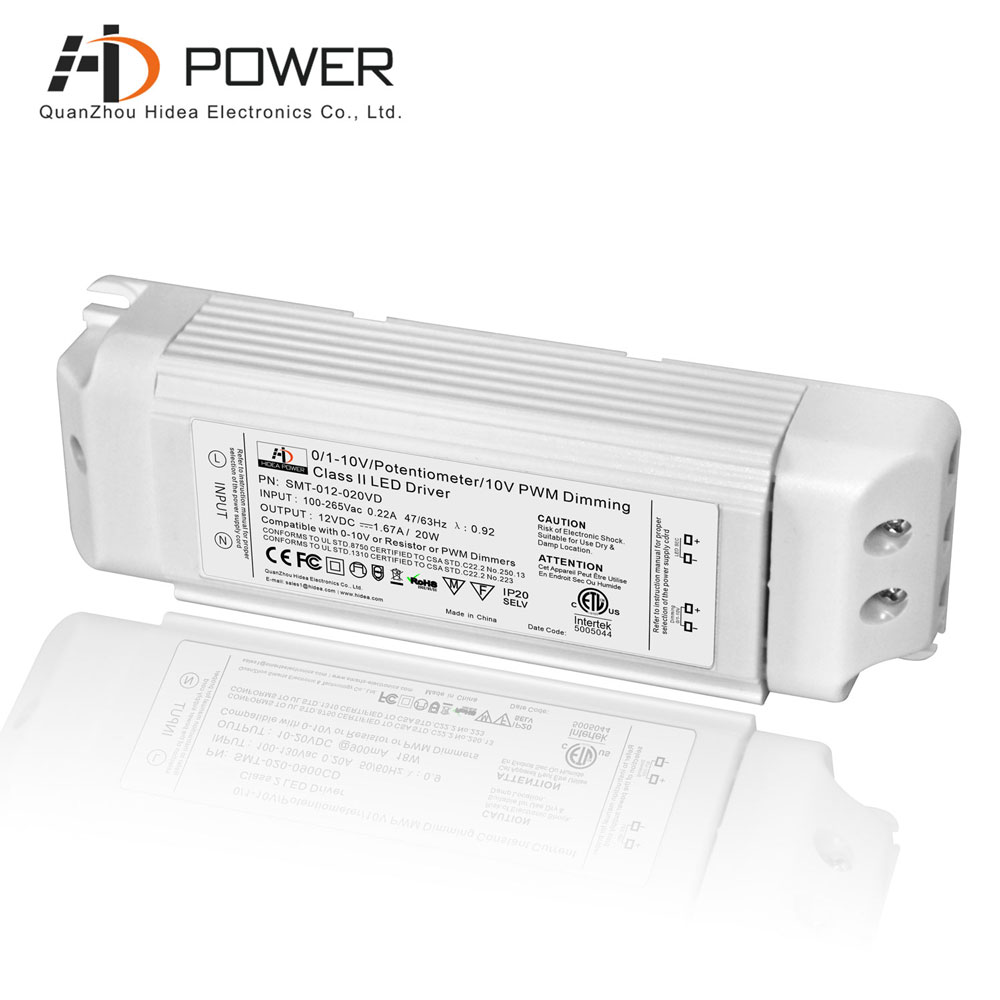

0 10v dimmable 20W constant voltage led power supply strip light driver price
This 20W constant voltage LED driver has built-in active PFC function. The dimming range is smooth and flicker-free dimming between 0-100%. It is compatible with most 0 to 10v dimmers on the market and has a 5-year warranty.
Specification
|
Model
|
SMT-012-020VD
|
SMT-024-020VD
|
|
Output
|
DC Voltage
|
12V
|
24V
|
|
Voltage Accuracy
|
±0.5V
|
|
Rated current
|
0~1.66A
|
0~0.83A
|
|
Rated power
|
20W
|
20W
|
|
Input
|
Voltage Range
|
100~130VAC / 170~265VAC
|
|
Frequency Range
|
47~63HZ
|
|
Power Factor ( Typ.)
|
PF≧0.90/110V, PF≧0.90/220V
|
|
Full Load Efficiency(Typ.)
|
>88%/110V
|
>88% 220V
|
|
AC Current(Typ.)
|
0.23A/110V
|
0.11A/220V
|
|
Leakage current
|
﹤0.7mA/110V, 220VAC
|
|
Protection
|
Short Circuit
|
Protection type: Hiccup mode, recovers automatically after fault condition is removed
|
|
Over voltage
|
≦280VAC
|
|
Over temperature
|
100℃±10℃ shut down o/p voltage, re-power on to recover
|
|
Environment
|
Working TEMP.
|
-40~+50℃
|
|
Working Humidity
|
20~95%RH,non-condensing
|
|
Storage TEM.,Humidity
|
-40~+80℃,10~95%RH
|
|
TEMP.coefficient
|
±0.03%/℃(0~50℃)
|
|
Vibration
|
10~500Hz,5G 12min./1 cycle,period for 72min.each along X,Y,Z axes
|
|
Safety&EMC
|
Safety standards
|
EN61347-1 EN61347-2-13
|
|
Withstand voltage
|
I/P-O/P:3.75KVAC I/P-FG:1.88KVAC O/P-FG:0.5KVAC
|
|
Isolation resistance
|
I/P-O/P I/P-FG O/P-FG:100MΩ/500VDC/25℃/70%RH
|
|
EMC EMISSION
|
Compliance toEN55015,EN61000-3-2 (≧50%load)
|
|
EMC IMMUNITY
|
Compliance to EN61000-4-2,3,4,5,6,8,11,EN61547,A light industry level
|
|
Others
|
Weight
|
0.16Kg
|
|
Size
|
140*45*27mm(L*W*H)
|
|
packing
|
320*280*215mm/50pcs /CTN 145*50*36mm for inner box
|
|
Notes
|
1. All parameters NOT specially mentioned are measured at 110V,220VAC input , rated load and 25℃of ambient temperature.
|
|
2. Ripple& noise are measured at 20MHz of bandwidth by using a 12”twisted pair-wire terminated with a 0.1uf &47uf parallel capacitor.
|
|
3. Tolerance:includes set us tolerance,line regulation and load regulation .
|
Compatible Light Type

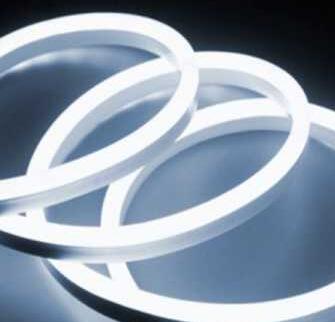

ETL listed led driver 24v 20w indoor plastic IP20 type. widely use in luminare led lighting., work with DELLUM LED IP65 (Waterproof) NEON UL 3014(120) LED Strip White.
Related Products
|

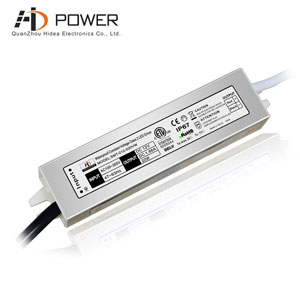

 Constant voltage waterproof ip67 led driver 20w, input voltage 100-265vac, ETL certified, compliant with global safety lighting laws, 2-year warranty
