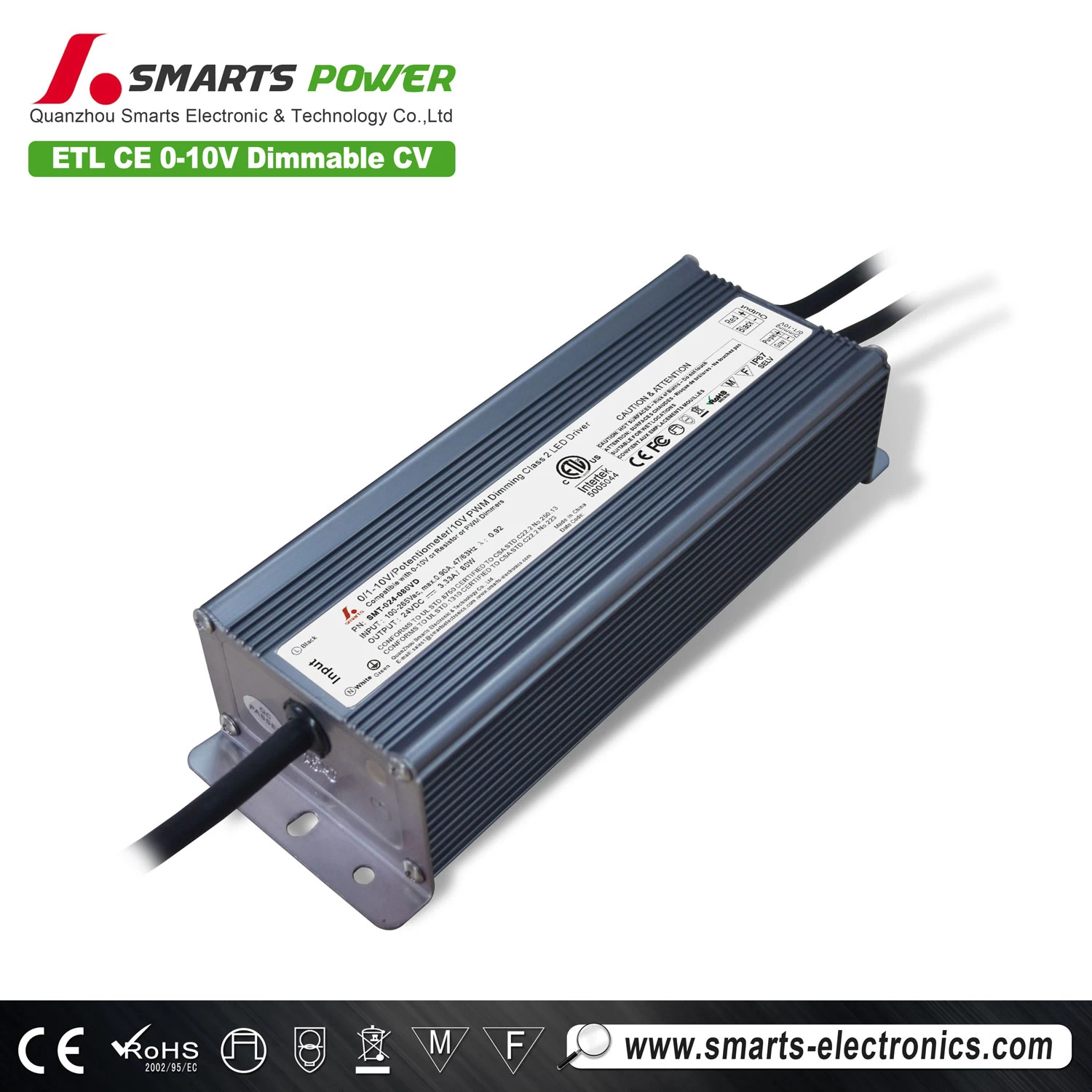

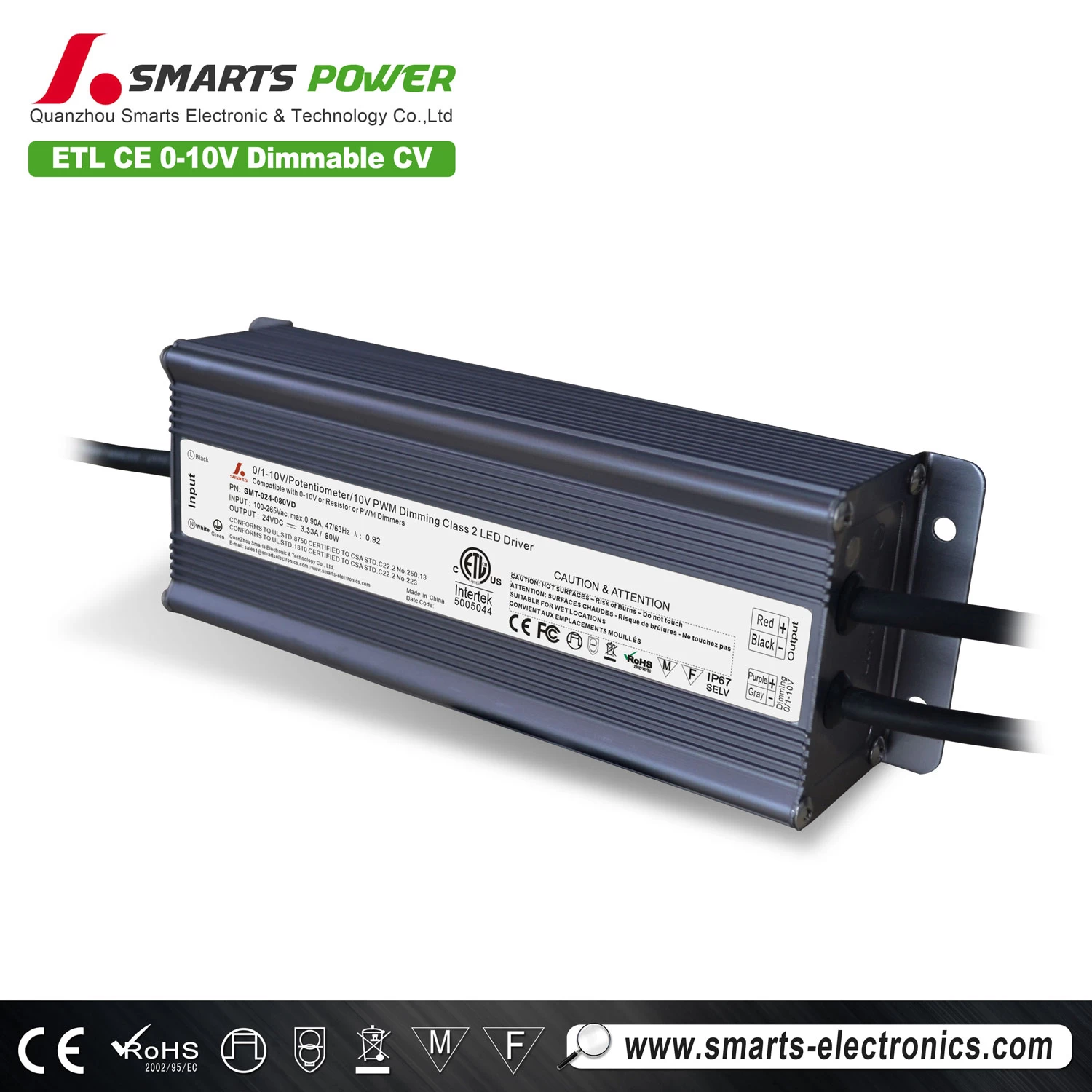

0-10v dimmable 24v 80w LED panel light Driver Constant Voltage

dimmable 24v 80w LED panel light Driver;0-10v dimmable 80w LED panel light Driver;


  • Input Voltage170-265VAC
  • Output Voltage24VDC
  • Output Current3.33A
  • Working ModeConstant Voltage
  • CertificationETL
  • Warranty3 years

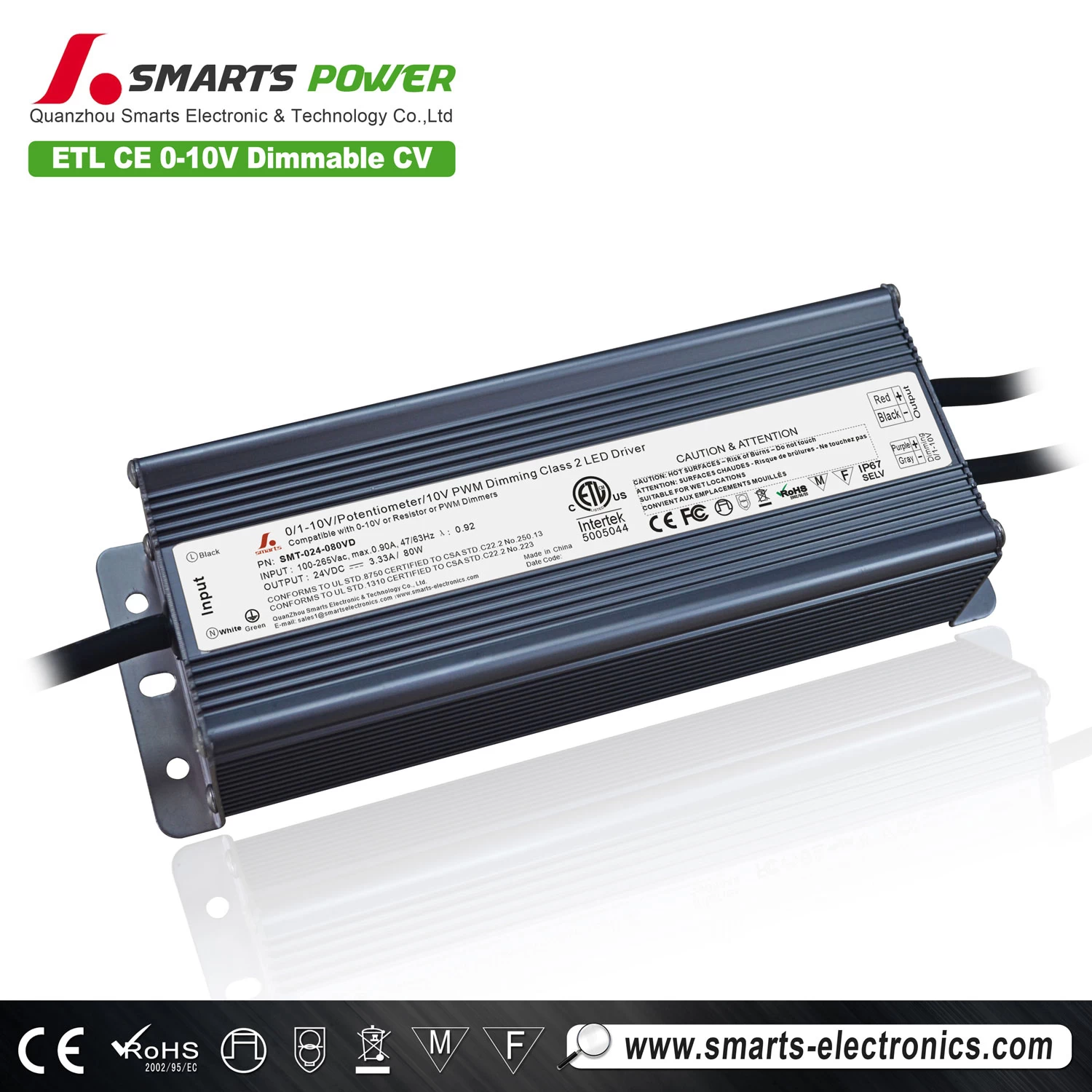

0-10v dimmable 24v 80w LED panel light Driver Constant Voltage



  Feature


·Output constant voltage type
·Range 100-130VAC,170-265VAC
·Built-in PFC function, PF>0.90
·Efficiency> 88%
·Protections:short circuit/over current/over voltage/over temperature
·Cooling by free air convection
·IP67 design for indoor or outdoor installation .
·Dimming function:0-10V/ 1-10V/ 10V PWM or potentiometer.
·Suitable for LED lighting and moving sign applications
·Compliance to worldwide safety regulations for lighting
·Suitable for dry/damp/wet location
3 years warranty


  Specification

Model

SMT-012-080VD

SMT-024-080VD

Output

DC Voltage

12V

24V

Voltage Accuracy

±0.5V

Rated current

06.67A

03.33A

Rated power

80W

Input

Voltage Range

100-130VAC,170-265VAC

Frequency Range

4763HZ

Power Factor ( Typ.

PF0.90/110V; PF0.90/220V

Full Load EfficiencyTyp.

>88%

>88%

AC CurrentTyp.

0.918A@110VAC

0.459A@220VAC

Leakage current

0.66mA/110VAC ; 0.7mA/220VAC

Protection

Short Circuit

Protection type: Hiccup mode, recovers automatically after fault condition is removed

Over voltage

280VAC

Over temperature

100±10 shut down o/p voltage, re-power on to recover

Environment

Working TEMP.

-40+60

Working Humidity

2095%RH,non-condensing

Storage TEM.,Humidity

-40+801095%RH

TEMP.coefficient

±0.03%/050

Vibration

10500Hz5G 12min./1 cycleperiod for 72min.each along X,Y,Z axes

Safety&EMC

Safety standards

EN61347-1  EN61347-2-13.

Withstand voltage

I/P-O/P:3.75KVAC  I/P-FG:1.88KVAC  O/P-FG:0.5KVAC

Isolation resistance

I/P-O/P I/P-FG O/P-FG100MΩ/500VDC/25/70%RH

EMC EMISSION

Compliance toEN55015,EN61000-3-2 (50%load)

EMC IMMUNITY

Compliance to EN61000-4-2,3,4,5,6,8,11,EN61547,A light industry

level

Others

Weight

1.1Kg

Size

200*68.5*45mmL*W*H

packing

329*279*176mm/10pcs /CTN   245*80*58mm for inner box

Notes

1. All parameters NOT specially mentioned are measured at 220VAC input , rated load and 25

of ambient temperature.

2. Ripple& noise are measured at 20MHz of bandwidth by using a 12”twisted pair-wire

terminated with a 0.1uf &47uf parallel capacitor.

3. Tolerance:includes set us tolerance,line regulation and load regulation .

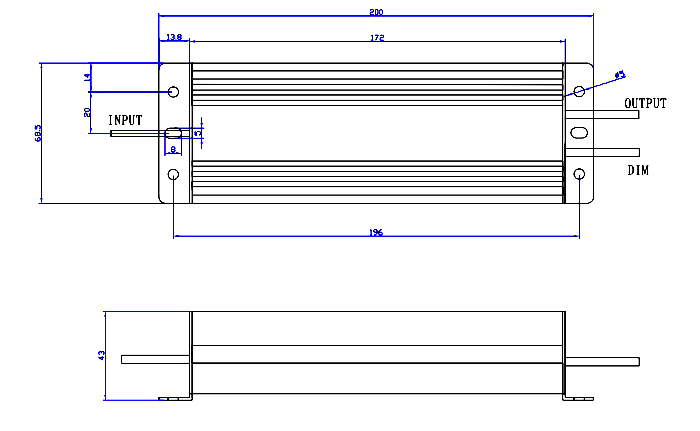

  Mechanical Specification


dimmable 80w LED panel light Driver
