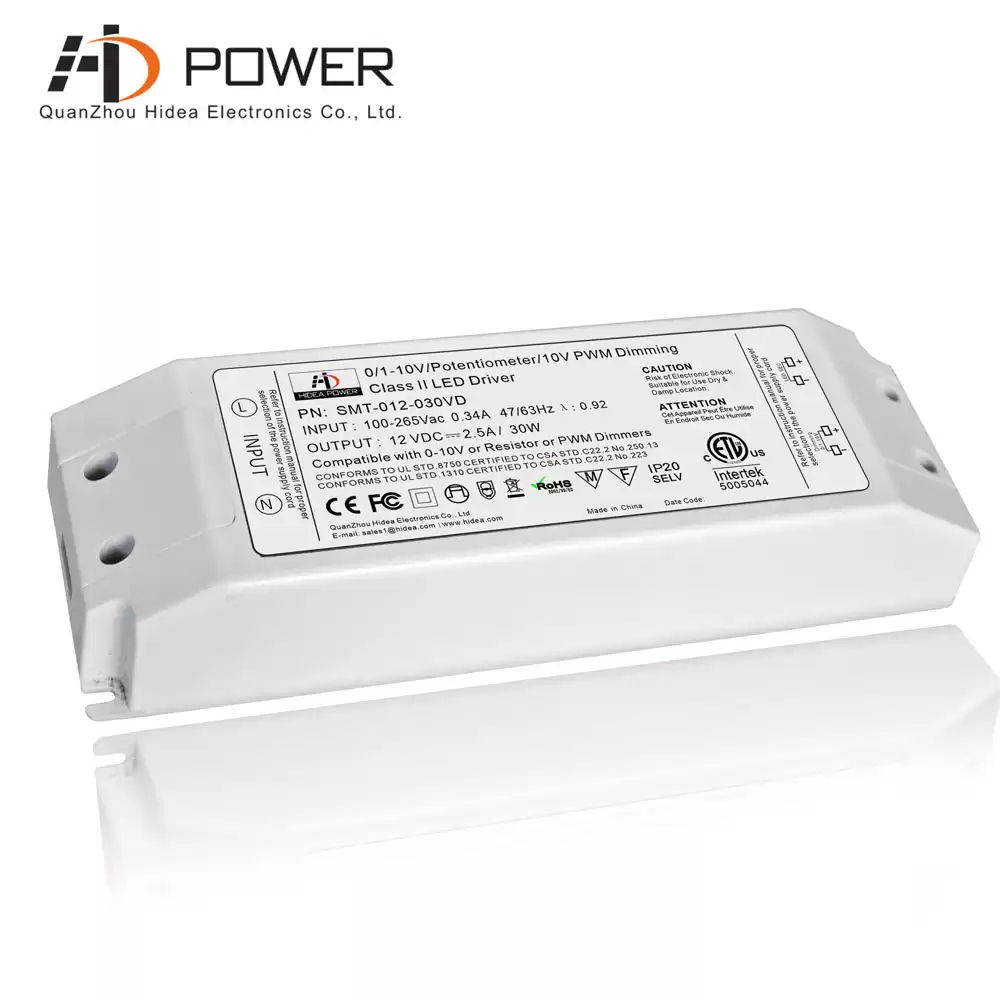

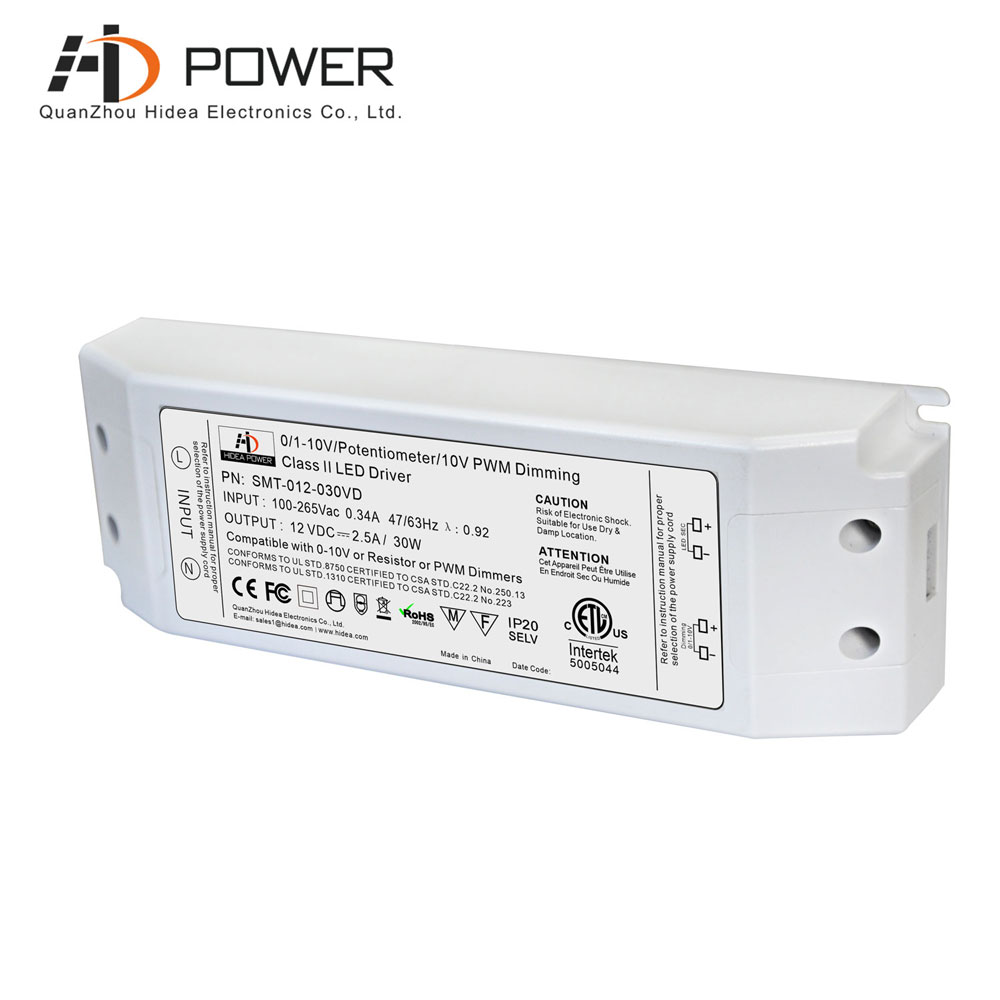

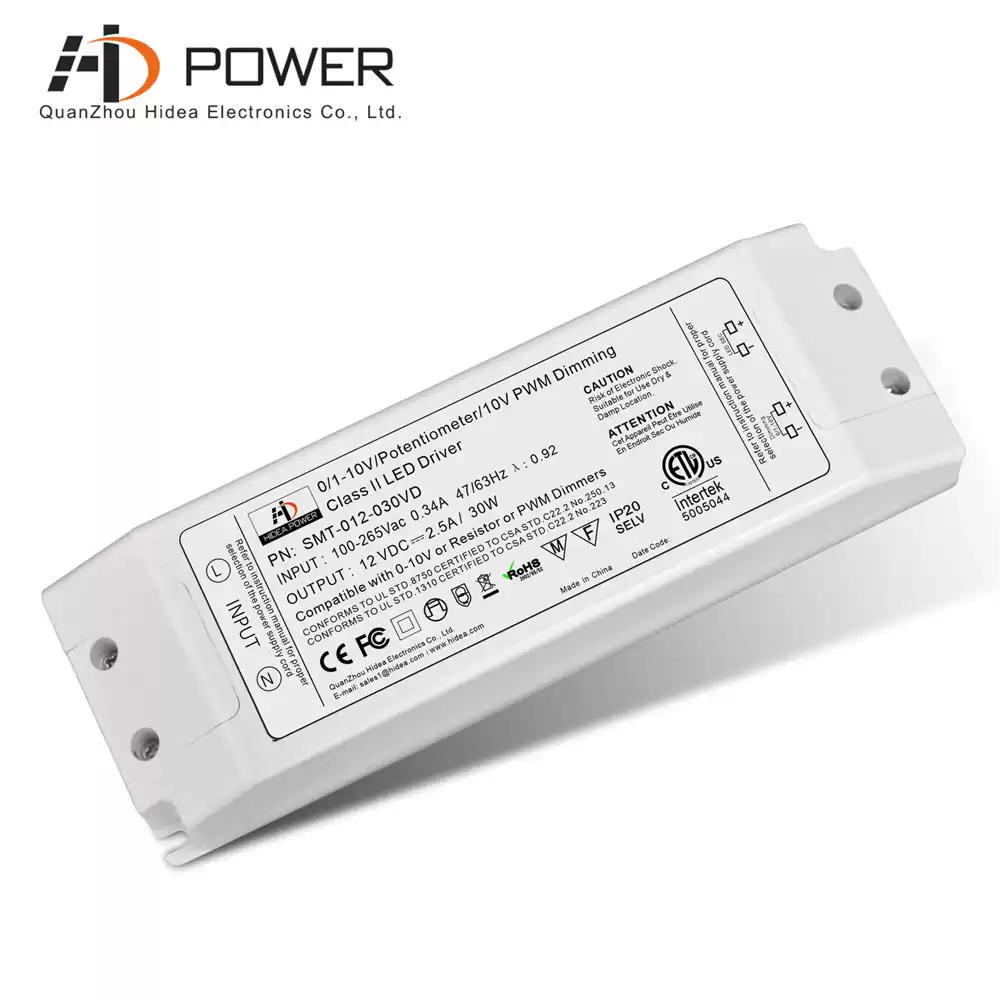

0 10v dimmable driver 12v 30w led power supply
30w led driver is constant voltage type power supply 0/1-10v dimming, plastic IP20 type, 5 years warranty, 100-265vac, competitive with Universal lighting technologies 12v/24v 0-10v dimmable driver.
Specification
|
Model
|
SMT-012-030VD
|
SMT-024-030VD
|
|
Output
|
DC Voltage
|
12VDC
|
24VDC
|
|
voltage Accuracy
|
±3%
|
|
Current
|
2.5Amp
|
1.25Amp
|
|
Rated power
|
30W
|
30W
|
|
Input
|
Voltage Range
|
100~265VAC,100-130VAC, 170-265VAC
|
|
Frequency Range
|
47~63HZ
|
|
PF(Typ.)
|
PF>0.90
|
|
Full Load Efficiency(Typ)
|
>88%
|
>88%
|
|
AC Current (Typ.)
|
0.34A
|
0.17A
|
|
Leakage current
|
﹤0.7mA/110-220VAC
|
|
Protection
|
Short Circuit
|
Protection type: Hiccup mode, recovers automatically after fault condition is removed
|
|
Over voltage
|
≦280VAC
|
|
Over temperature
|
100℃±10℃ shut down o/p voltage, re-power on to recover
|
|
Environme
|
Working TEMP.
|
-40~+50℃
|
|
Working Humidity
|
20~95%RH,non-condensing
|
|
Storage TEM.,Humidity
|
-40~+80℃,10~95%RH
|
|
TEMP.coefficient
|
±0.03%/℃(0~50℃)
|
|
Vibration
|
10~500Hz,5G 12min./1 cycle,period for 72min.each along X,Y,Z axes
|
|
Safety&EMC
|
Safety standards
|
EN61347-1 EN61347-2-13. IP40
|
|
Withstand voltage
|
I/P-O/P:3.75KVAC I/P-FG:1.88KVAC O/P-FG:0.5KVAC
|
|
Isolation resistance
|
I/P-O/P I/P-FG O/P-FG:100MΩ/500VDC/25℃/70%RH
|
|
EMC EMISSION
|
Compliance to EN55015,EN61000-3-2 (≧50%Load)
|
|
EMC IMMUNITY
|
Compliance to EN61000-4-2,3,4,5,6,8,11,EN61547,A light industry level
|
|
Others
|
Weight
|
0.4Kg
|
|
Size
|
180*60*34mm(L*W*H)
|
|
packing
|
355*215*215mm/20pcs /CTN
|
|
Notes
|
1. All parameters NOT specially mentioned are measured at 110v~220VAC input , rated load and 25℃of ambient temperature.
|
|
2. Ripple& noise are measured at 20MHz of bandwidth by using a 12”twisted pair-wire terminated with a 0.1uf &47uf parallel capacitor.
|
|
3. Tolerance:includes set us tolerance,line regulation and load regulation .
|
Compatible Light Type

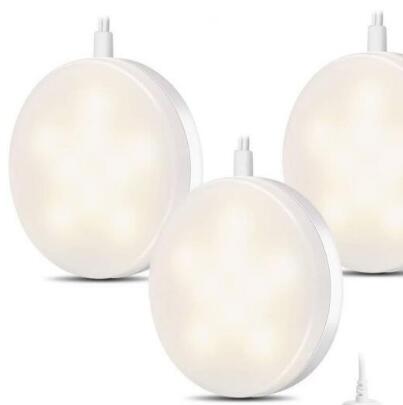

Constant voltage dimmable led driver 12v/24v 30w with ETL and CE listed, 5 years wattanty, dimming well with LE Lighting LED Under Cabinet Lighting for Kitchen.
