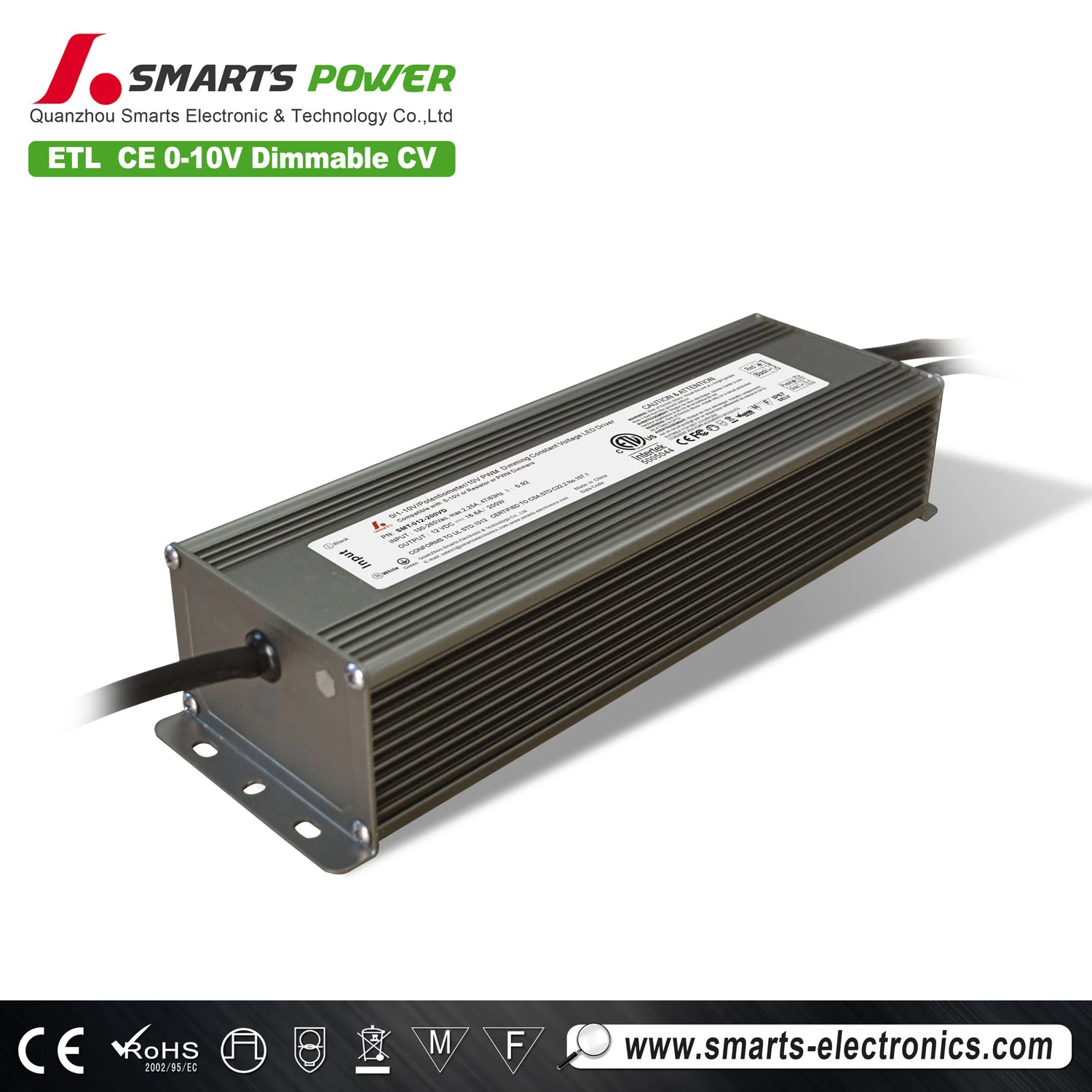

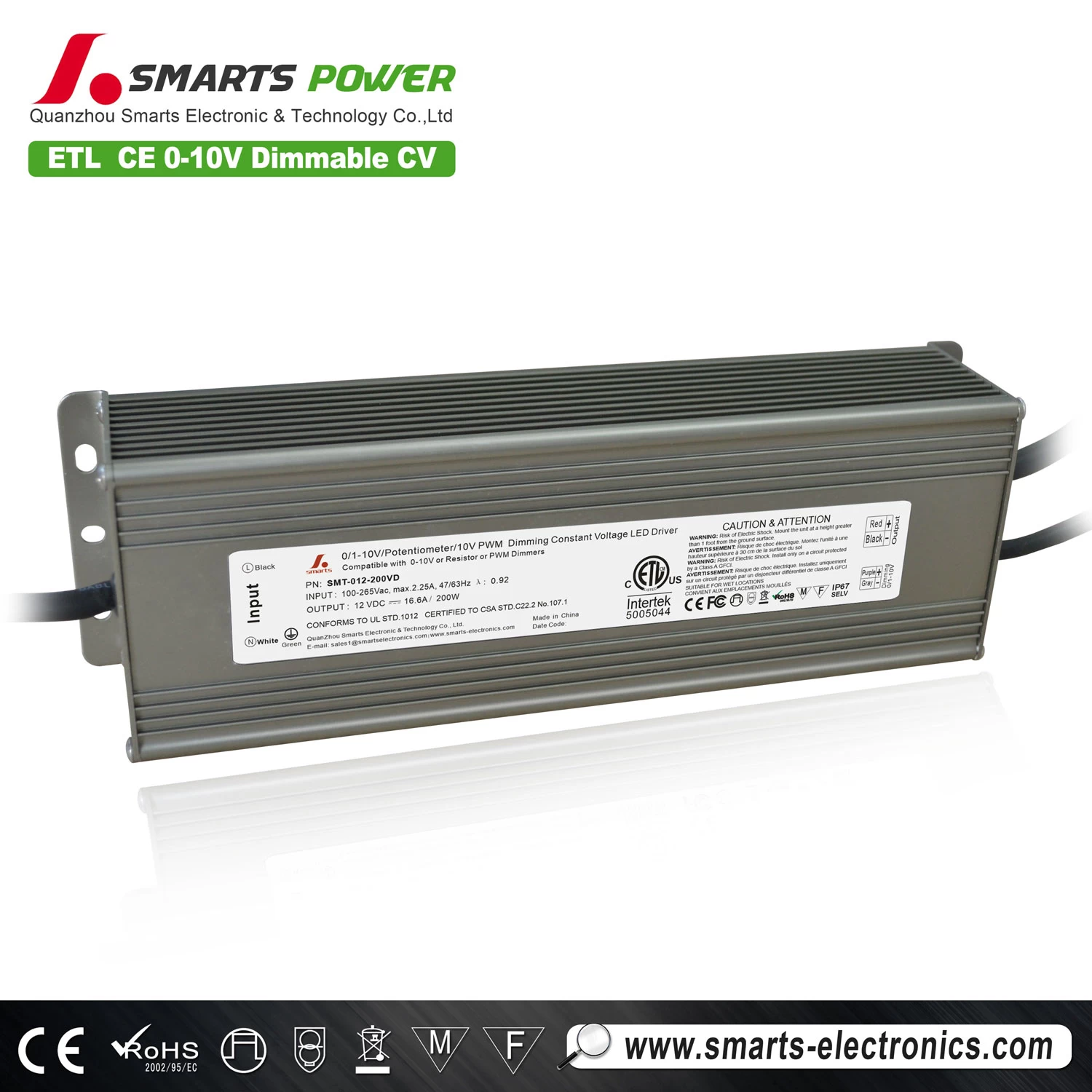

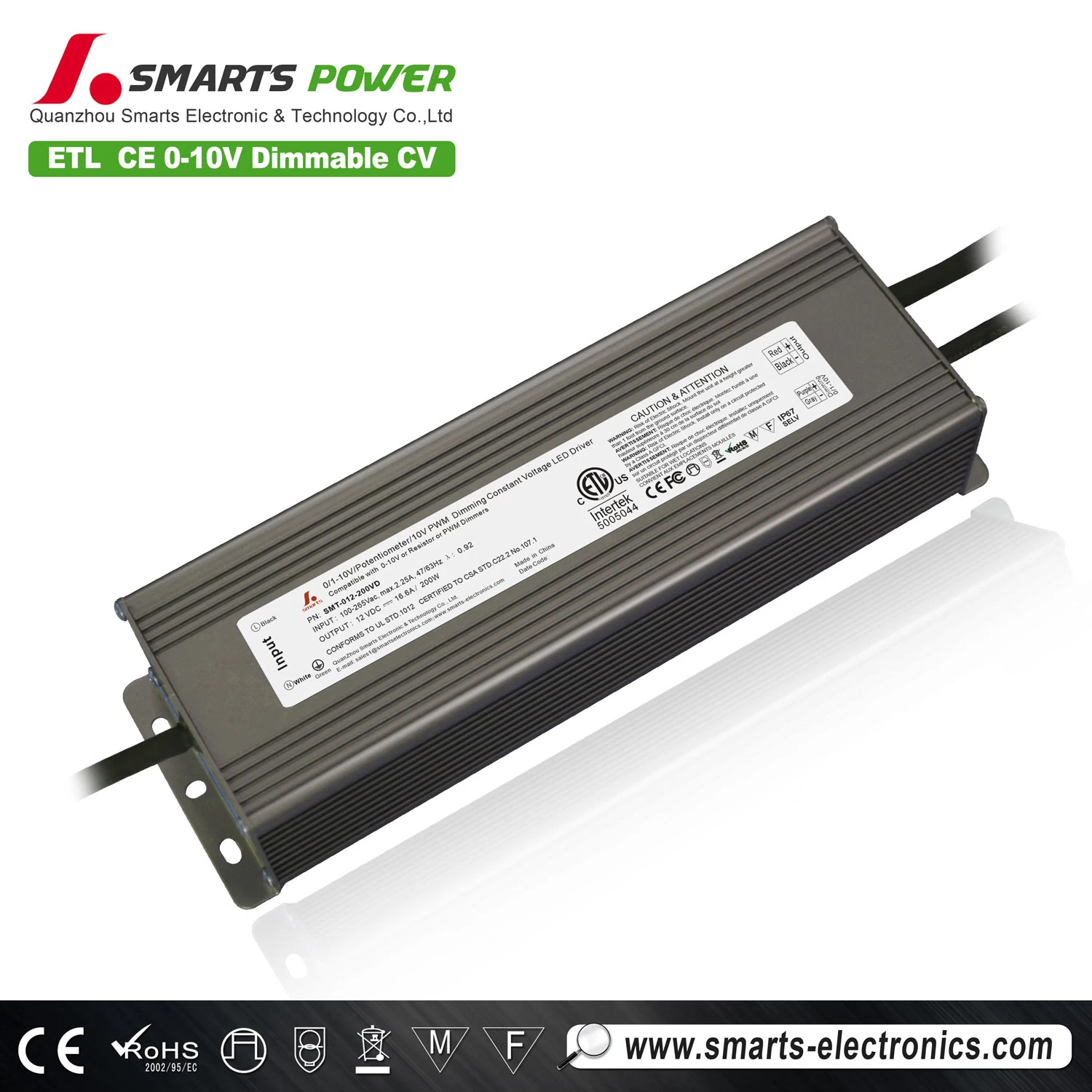

0-10v dimmable LED downlight driver 12v 180w waterproof power supply

12v 0-10v dimmable LED downlight driver;0-10v dimmable LED downlight driver 12v 180w


  • Input Voltage100-130VAC, 170-265VAC
  • Output Voltage180W
  • Output Current15A
  • Working ModeConstant Voltage
  • CertificationCE ROHS
  • Warranty3 years

0-10v dimmable LED downlight driver 12v 180w waterproof power supply


 Product Description


12v constant voltage dimmable led driver


 Specifications


Model

SMT-012-180VD

SMT-024-180VD

Output

DC Voltage

12V

24V

Voltage Accuracy

±0.5V

Rated current

015A

07.5A

Rated power

180W

180W

Input

Voltage Range

100-130VAC, 170-265VAC

Frequency Range

4763HZ

Power Factor ( Typ.

PF0.90/120V / PF0.90/220V

Full Load EfficiencyTyp.

>88%(120V) / >88%(220V)

>88%(120V) / >88%(220V)

AC CurrentTyp.

   2.066A@110VAC

    1.033A@220V

Leakage current

0.89mA/120VAC / 0.73mA/220VAC

Protection

Short Circuit

Protection type: Hiccup mode, recovers automatically after fault condition is removed

Over voltage

280VAC

Over temperature

100±10 shut down o/p voltage, re-power on to recover

Environment

Working TEMP.

-40+50

Working Humidity

2095%RH,non-condensing

Storage TEM.,Humidity

-40+801095%RH

TEMP.coefficient

±0.03%/050

Vibration

10500Hz5G 12min./1 cycleperiod for 72min.each along X,Y,Z

axes

Safety&EMC

Safety standards

EN61347-1 EN61347-2-13 IP66

Withstand voltage

I/P-O/P:3.75KVAC  I/P-FG:1.88KVAC  O/P-FG:0.5KVAC

Isolation resistance

I/P-O/P I/P-FG O/P-FG100MΩ/500VDC/25/70%RH

EMC EMISSION

Compliance toEN55015,EN61000-3-2 (50%load)

EMC IMMUNITY

Compliance to EN61000-4-2,3,4,5,6,8,11,EN61547,A light industry

level

Others

Weight

1.8Kg

Size

255*80*53mmL*W*H

packing

440*295*145mm/8pcs/CTN    265*98*55 mm for inner box

Notes

1. All parameters NOT specially mentioned are measured at 110~ 220VAC input , rated load and 25of ambient temperature.

2. Ripple& noise are measured at 20MHz of bandwidth by using a 12”twisted pair-wire terminated with a 0.1uf &47uf parallel capacitor.

3. Tolerance:includes set us tolerance,line regulation and load regulation .

Click Send Email for Details
Click skpye 24 hours Online Reply
Scan to start our communication
Back to top




 Environment


  • Working Temperature : -25 ~ +50°C
  • Working Humidity : 20 ~ 90% RH non-condensing
  • Storage Temp. , Humidity : -40 ~ +80°C , 10 ~ 95% RH
  • TEMP. Coefficient : ±0.03%/°C (0 ~ 50°C)
  • Vibration : 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes


 Safety


  • Safety Standards : IEC 61347 –2–11 , IEC 61347 –1 , IEC 60529 , IP67 approved
  • Withstand Voltage : I/P-O/P: 3000KVAC
  • Isolation Resistance : I/P-O/P:100M Ohms/500VDC


 Applications


  • indoor LED illuminating lights, LED Neon
  • LED urban Decoration,LED Lighting Advertising
  • LED Display, Safety Protection Apparatus
  • Telecommunications, Networks
  • Vehicle Lights, Controller Panels

dimmable led transformer 12v





 Packaging & Shipping


0-10v dimmable LED downlight driver 12v 180w waterproof power supply
 Net weight (g) Gross Weight/ctn  Qty/ctn  Carton size(mm)
1800    g 15 kg 10 pcs 414*308*174mm

dimmable led transformer 12v
