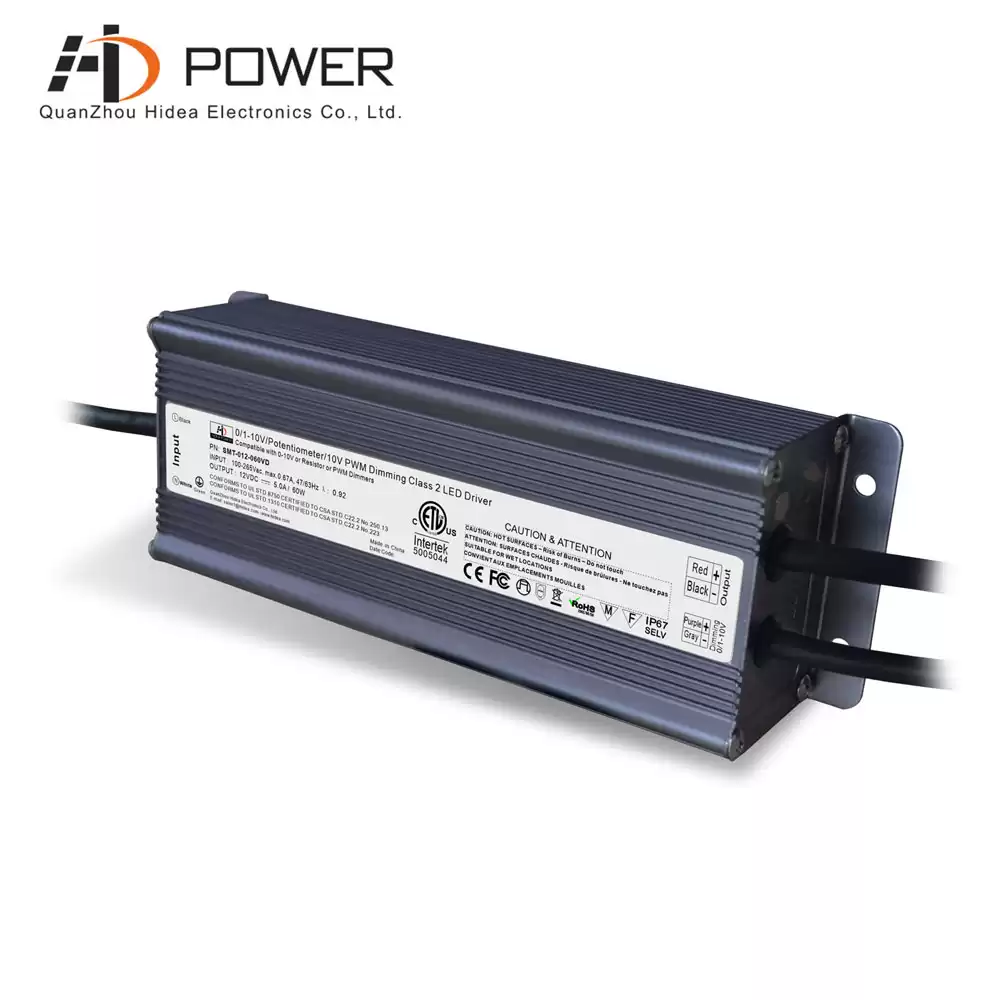

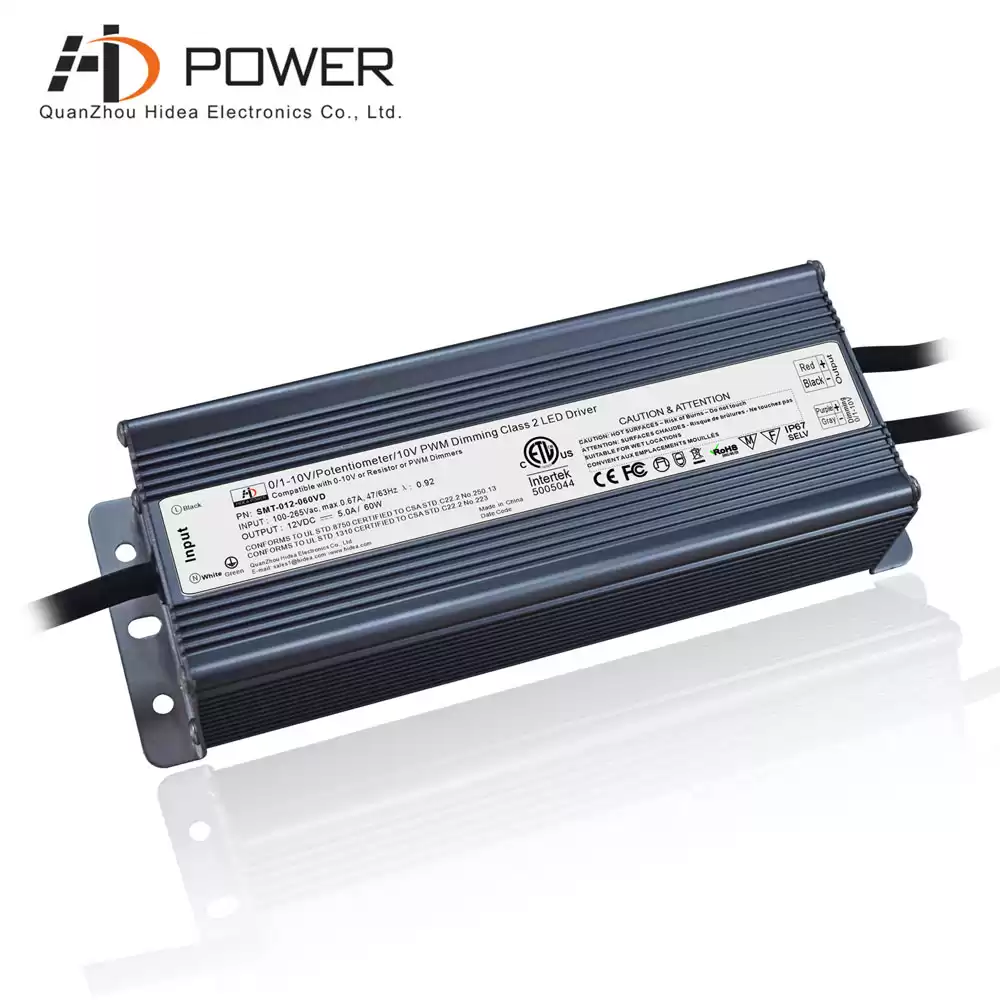

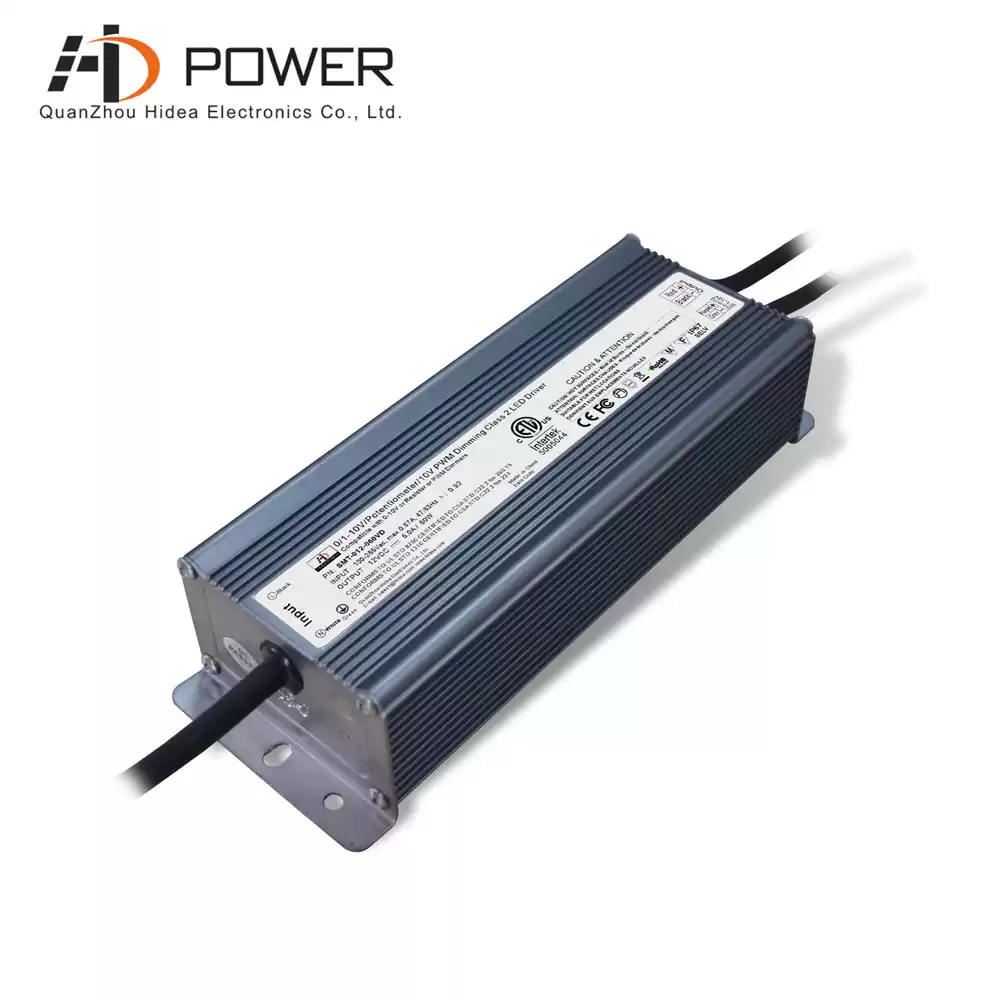

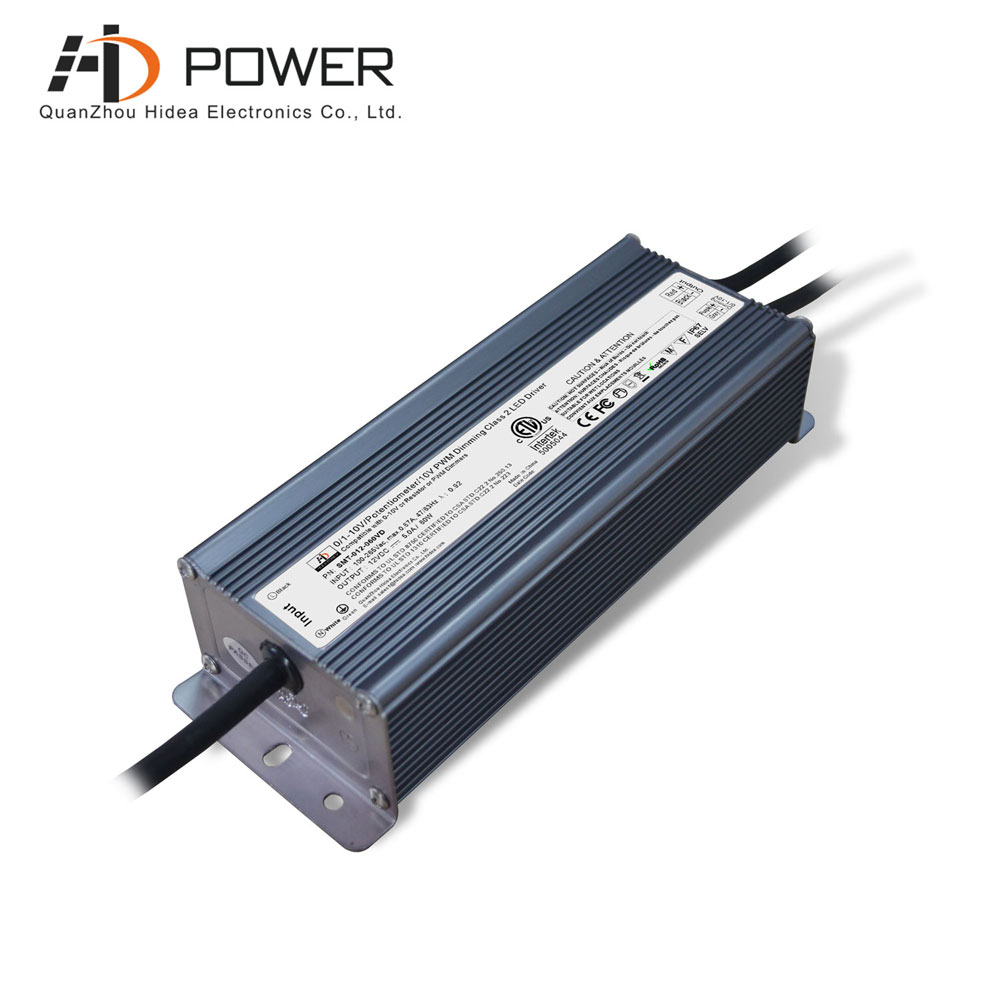

Constant voltage waterproof led power supply 12v 60w is designed for direct wire hook-up installation and housed in paired junction box for Americanlighting cabinet lights.
Specification
|
Model
|
SMT-012-060VD
|
SMT-024-060VD
|
|
Output
|
DC Voltage
|
12V
|
24V
|
|
Voltage Accuracy
|
±0.5V
|
|
Rated current
|
0~5.0A
|
0~2.5A
|
|
Rated power
|
60W
|
|
Input
|
Voltage Range
|
AC100~130V / AC170~265V
|
|
Frequency Range
|
47~63HZ
|
|
Power Factor ( Typ.)
|
PF≧0.90/110V; PF≧0.90/220V
|
|
Full Load Efficiency(Typ.)
|
>88%
|
>88%
|
|
AC Current(Typ.)
|
0.689A@110VAC
|
0.344A@220VAC
|
|
Leakage current
|
﹤0.66mA/110VAC ; ﹤0.7mA/220VAC
|
|
Protection
|
Short Circuit
|
Protection type: Hiccup mode, recovers automatically after fault condition is removed
|
|
Over voltage
|
≦280VAC
|
|
Over temperature
|
100℃±10℃ shut down o/p voltage, re-power on to recover
|
|
Environment
|
Working TEMP.
|
-40~+60℃
|
|
Working Humidity
|
20~95%RH,non-condensing
|
|
Storage TEM.,Humidity
|
-40~+80℃,10~95%RH
|
|
TEMP.coefficient
|
±0.03%/℃(0~50℃)
|
|
Vibration
|
10~500Hz,5G 12min./1 cycle,period for 72min.each along X,Y,Z axes
|
|
Safety&EMC
|
Safety standards
|
EN61347-1 EN61347-2-13.
|
|
Withstand voltage
|
I/P-O/P:3.75KVAC I/P-FG:1.88KVAC O/P-FG:0.5KVAC
|
|
Isolation resistance
|
I/P-O/P I/P-FG O/P-FG:100MΩ/500VDC/25℃/70%RH
|
|
EMC EMISSION
|
Compliance toEN55015,EN61000-3-2 (≧50%load)
|
|
EMC IMMUNITY
|
Compliance to EN61000-4-2,3,4,5,6,8,11,EN61547,A light industry level
|
|
Others
|
Weight
|
1.1Kg
|
|
Size
|
200*68.5*45mm(L*W*H)
|
|
packing
|
329*279*176mm/10pcs /CTN 245*80*58mm for inner box
|
|
Notes
|
1. All parameters NOT specially mentioned are measured at 110V/220VAC input , rated load and 25℃ of ambient temperature.
|
|
2. Ripple& noise are measured at 20MHz of bandwidth by using a 12”twisted pair-wire terminated with a 0.1uf &47uf parallel capacitor.
|
|
3. Tolerance:includes set us tolerance,line regulation and load regulation .
|
Compatible Dimmer Type
Leviton's low voltage dimmer for 0-10V dimming waterproof led power supply 12v 60w features a low-profile fluid slide bar movement for fine adjustment of light levels that is accompanied by an easy-to-use ON/OFF control.
Related Products
|

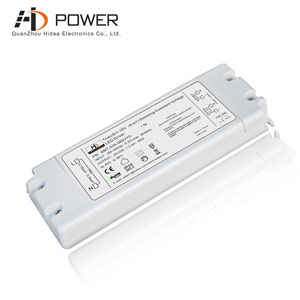

 No load power consumption <0.5W triac dimmable, 0 10v dimmable 5 in 1 type led power supply.
