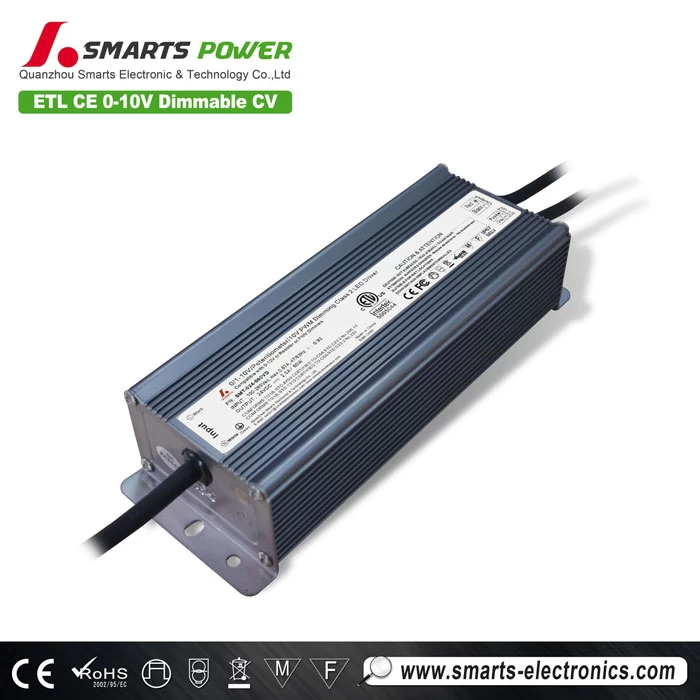

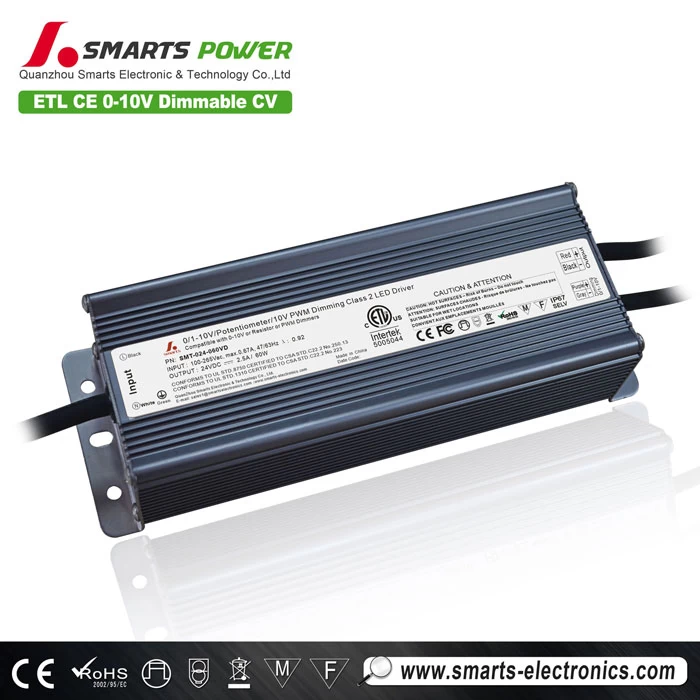

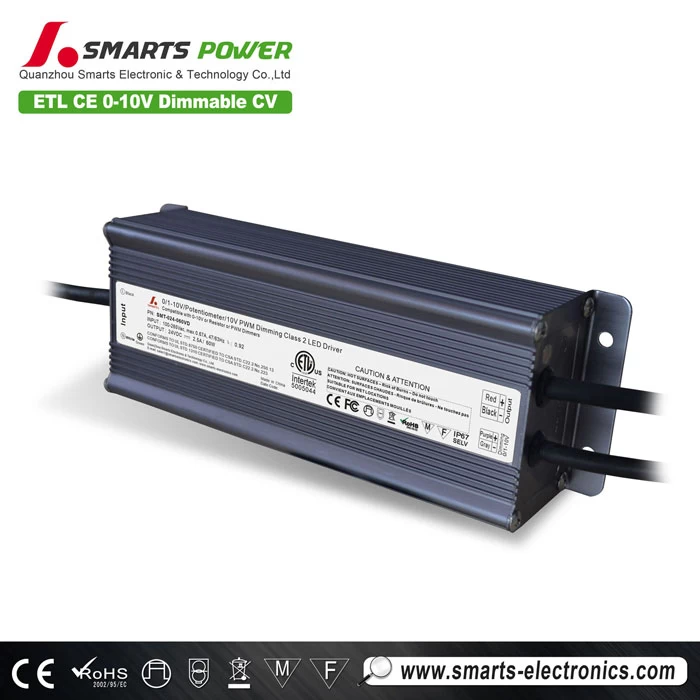

0-10v PWM dimming led driver 24v 60w

PWM dimming led driver 24v 60w;0-10v dimming led driver 24v 60w;dimming led driver 24v 60w


  • Working ModeConstant Voltage
  • Output Current2.5A
  • Output Voltage24VDC
  • Input Voltage100~130V / AC170~265V
  • CertificationETL
  • Warranty3 years

0-10v PWM dimming led driver 24v 60w


 Product Description

led driver 24v 60w



  Features


  • High efficiency,save energy ,protected environment
  • Constant voltage design with high accuracy.
  • International wide input voltage.
  • output voltage 12v/24vselectable.
  • Wattage: 20w-200w.
  • High efficiency, save energy, protected environment.
  • High stability and low ripple, increase light efficiency and decrease light attenuation.
  • Meet to safety standard and EMC.
  • Assure LED stability long lift and light efficiency by constant voltage.
  • Cooling by free air convection.
  • 100% full load burn-in test.
  • Brand electrotronic components.
  • ROHS material.
  • Suitable for LED lighting


  Specification


Model

SMT-012-060VD

SMT-024-060VD

Output

DC Voltage

12V

24V

Voltage Accuracy

±0.5V

Rated current

05.0A

02.5A

Rated power

60W

Input

Voltage Range

AC100130V / AC170~265V

Frequency Range

4763HZ

Power Factor ( Typ.

PF0.90/110V; PF0.90/220V

Full Load EfficiencyTyp.

>88%

>88%

AC CurrentTyp.

0.689A@110VAC

0.344A@220VAC

Leakage current

0.66mA/110VAC ; 0.7mA/220VAC

Protection

Short Circuit

Protection type: Hiccup mode, recovers automatically after fault condition

 is removed

Over voltage

280VAC

Over temperature

100±10 shut down o/p voltage, re-power on to recover

Environment

Working TEMP.

-40+60

Working Humidity

2095%RH,non-condensing

Storage TEM.,Humidity

-40+801095%RH

TEMP.coefficient

±0.03%/050

Vibration

10500Hz5G 12min./1 cycleperiod for 72min.each along X,Y,Z axes

Safety&EMC

Safety standards

EN61347-1  EN61347-2-13.

Withstand voltage

I/P-O/P:3.75KVAC  I/P-FG:1.88KVAC  O/P-FG:0.5KVAC

Isolation resistance

I/P-O/P I/P-FG O/P-FG100MΩ/500VDC/25/70%RH

EMC EMISSION

Compliance toEN55015,EN61000-3-2 (50%load)

EMC IMMUNITY

Compliance to EN61000-4-2,3,4,5,6,8,11,EN61547,A light industry

level

Others

Weight

1.1Kg

Size

200*68.5*45mmL*W*H

packing

329*279*176mm/10pcs /CTN   245*80*58mm for inner box

Notes

1. All parameters NOT specially mentioned are measured at 110V/220VAC input , rated load

   and 25 of ambient temperature.

2. Ripple& noise are measured at 20MHz of bandwidth by using a 12”twisted pair-wire

terminated with a 0.1uf &47uf parallel capacitor.

3. Tolerance:includes set us tolerance,line regulation and load regulation .

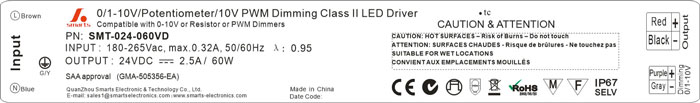

  Label   0-10v PWM dimming led driver 24v 60w
Click Send Email for Details
Click skpye 24 hours Online Reply
Scan to start our communication
Back to top


  Applications


  • Indoor LED illuminating lights
  • LED Neon, LED urban Decoration
  • LED Lighting Advertising,LED Display
  • Safety Protection Apparatus
  • Telecommunications, Networks
  • Vehicle Lights, Controller Panels

led driver 24v 60w
