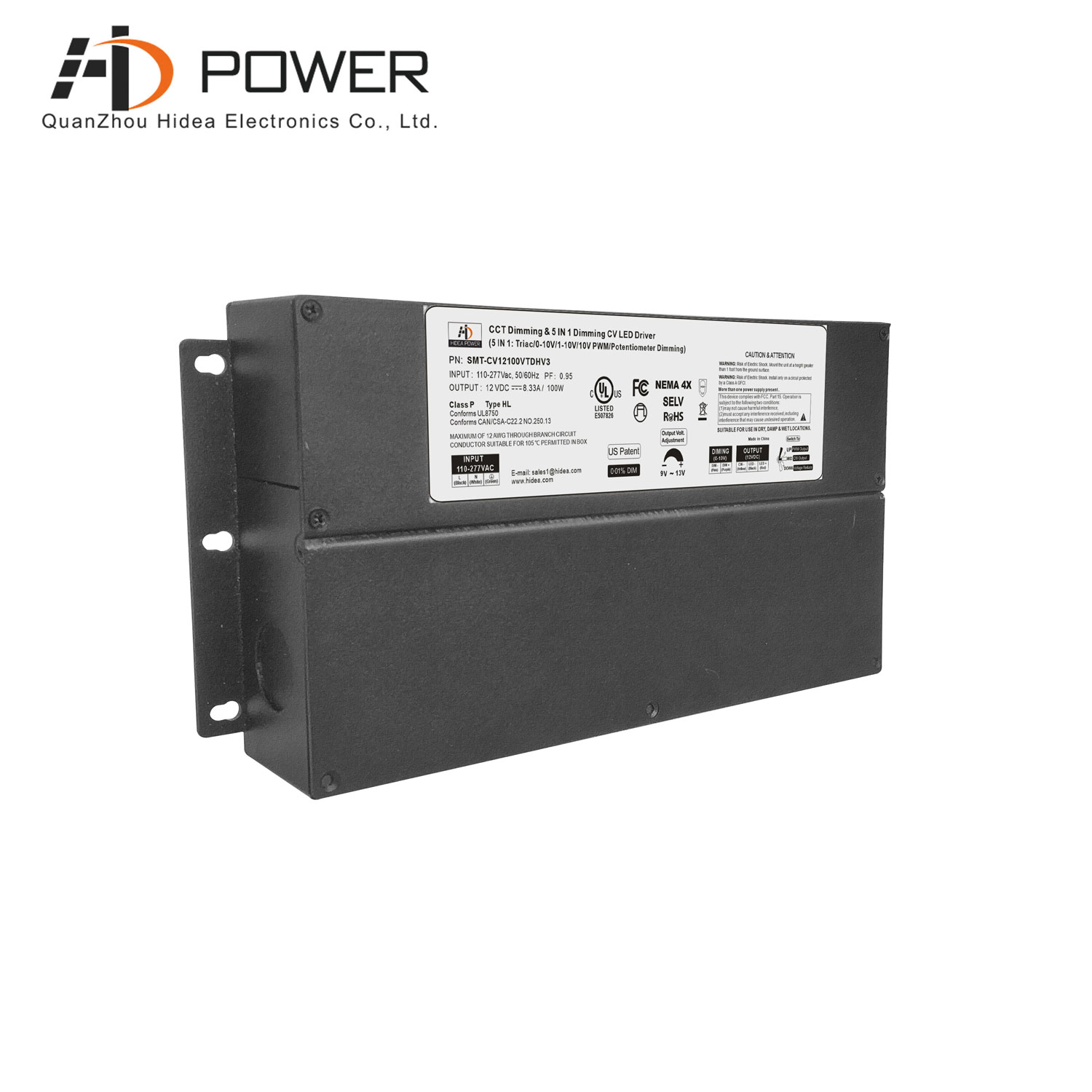

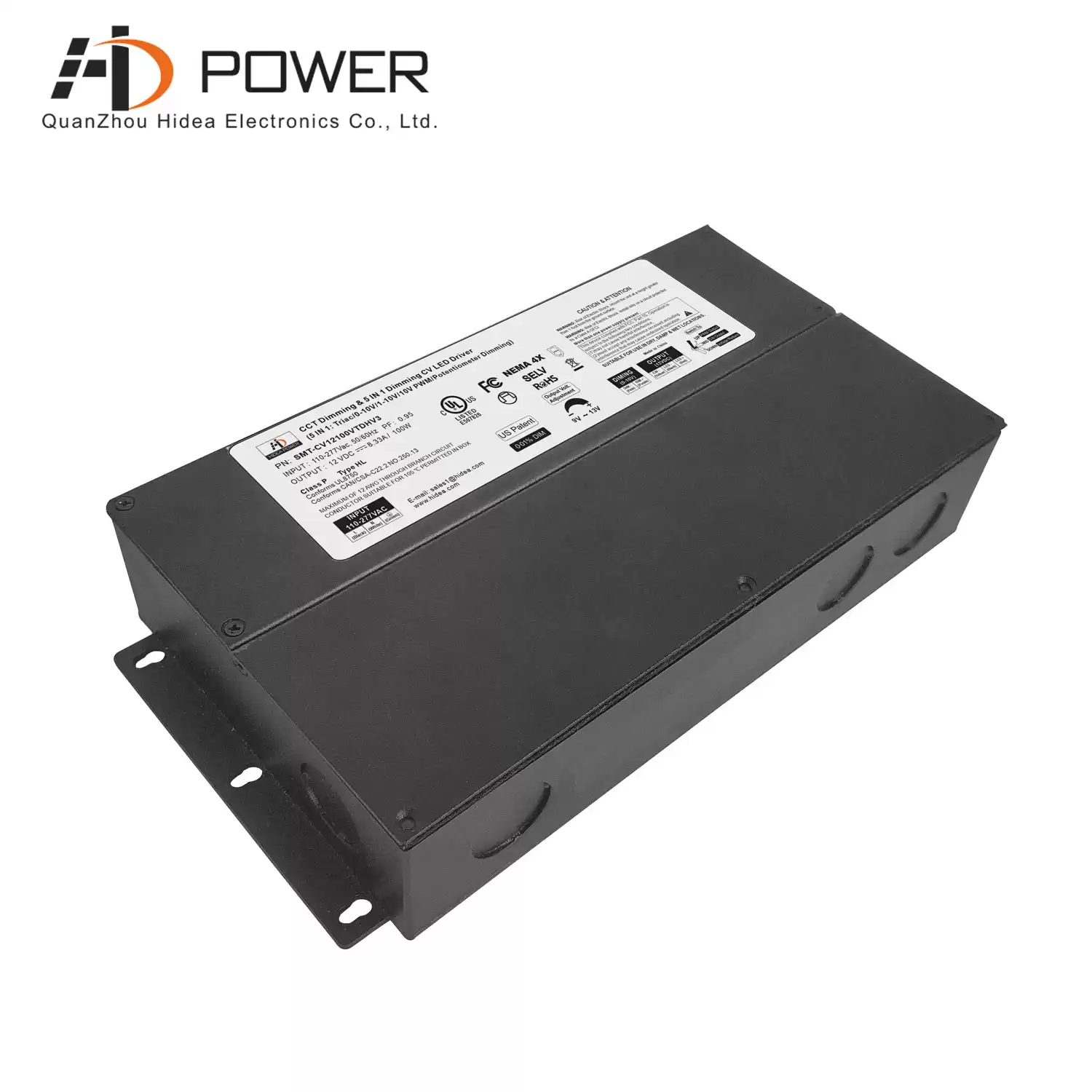

0 10v/triac dimmable constant voltage led strip power supply 100w 24 volt transformer for led flood light

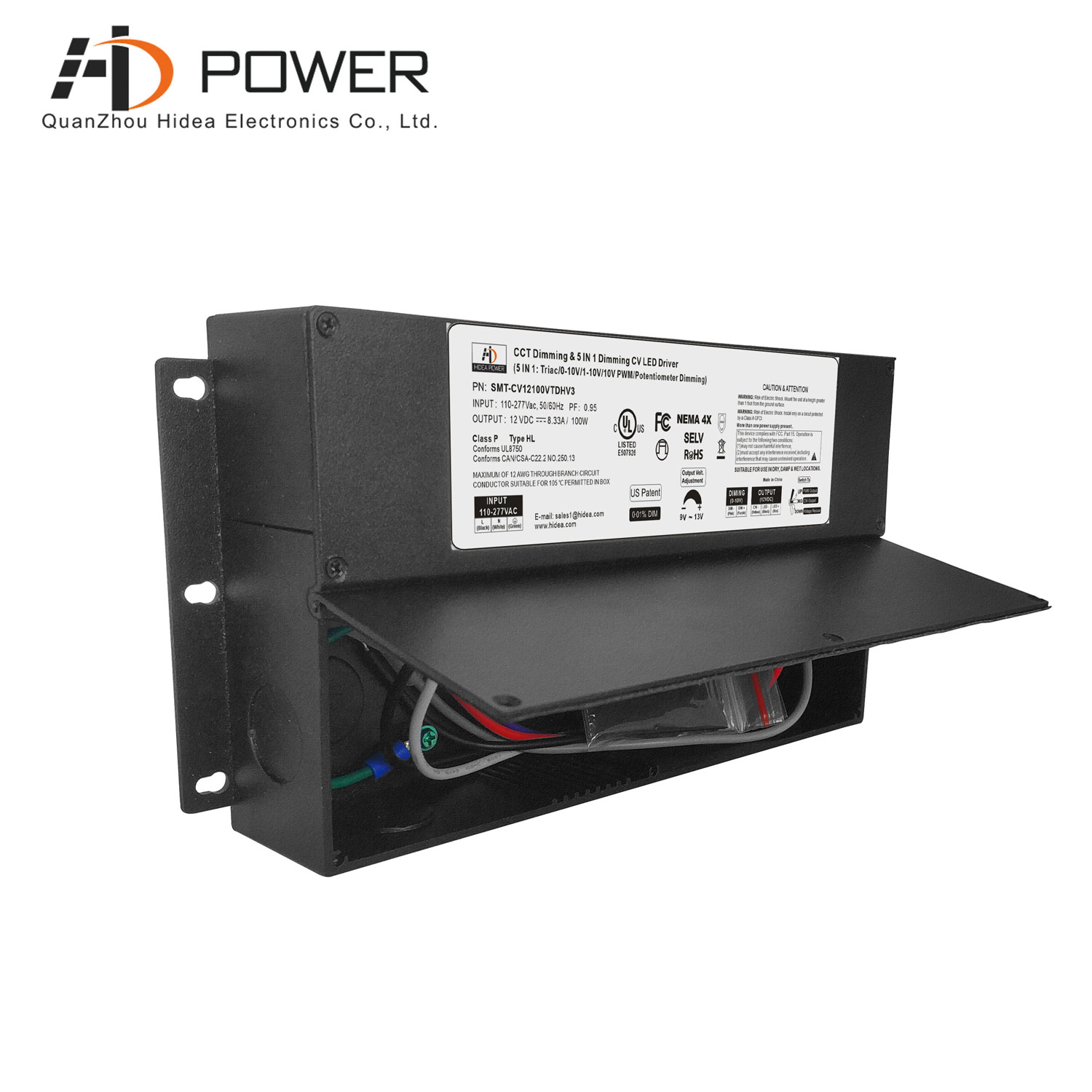

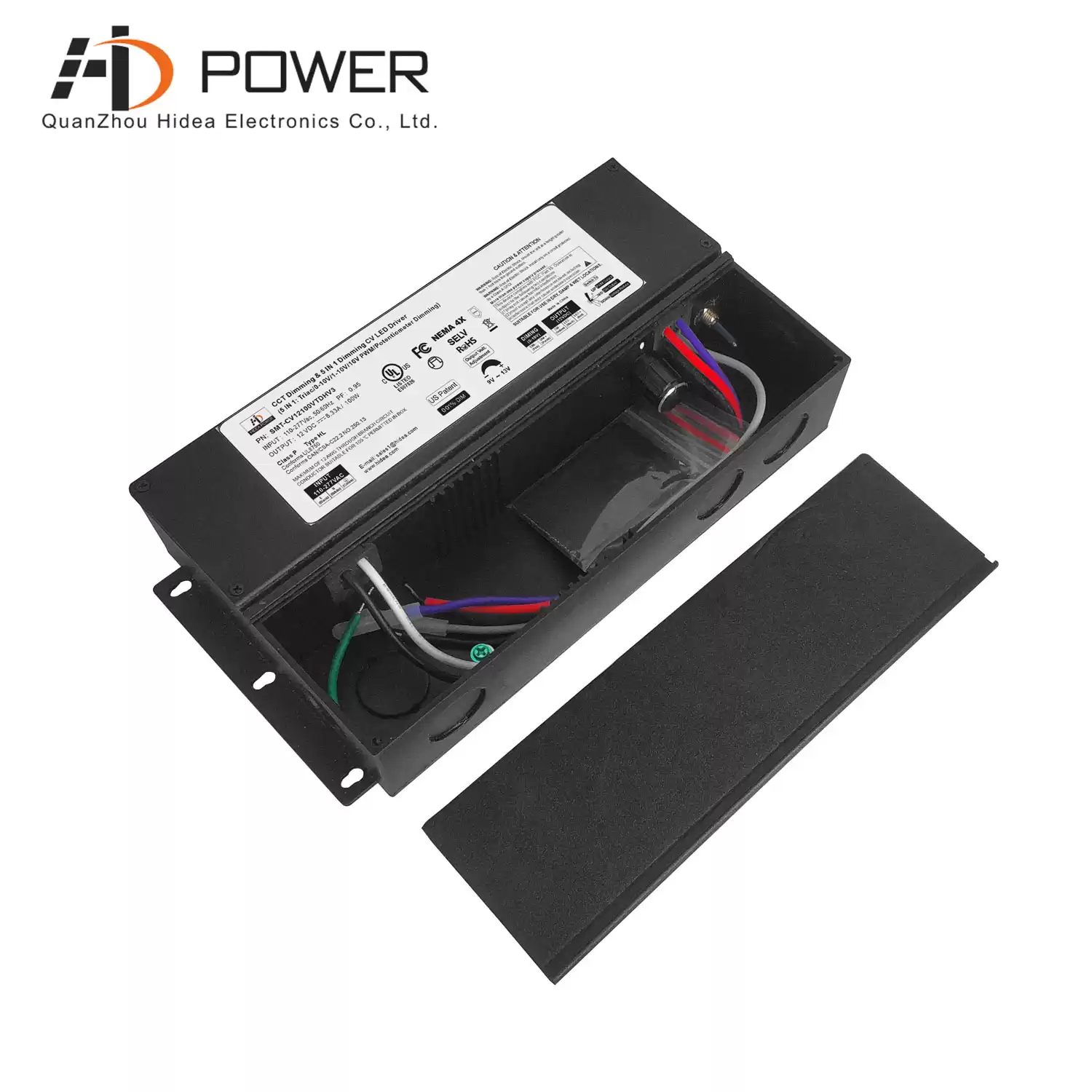

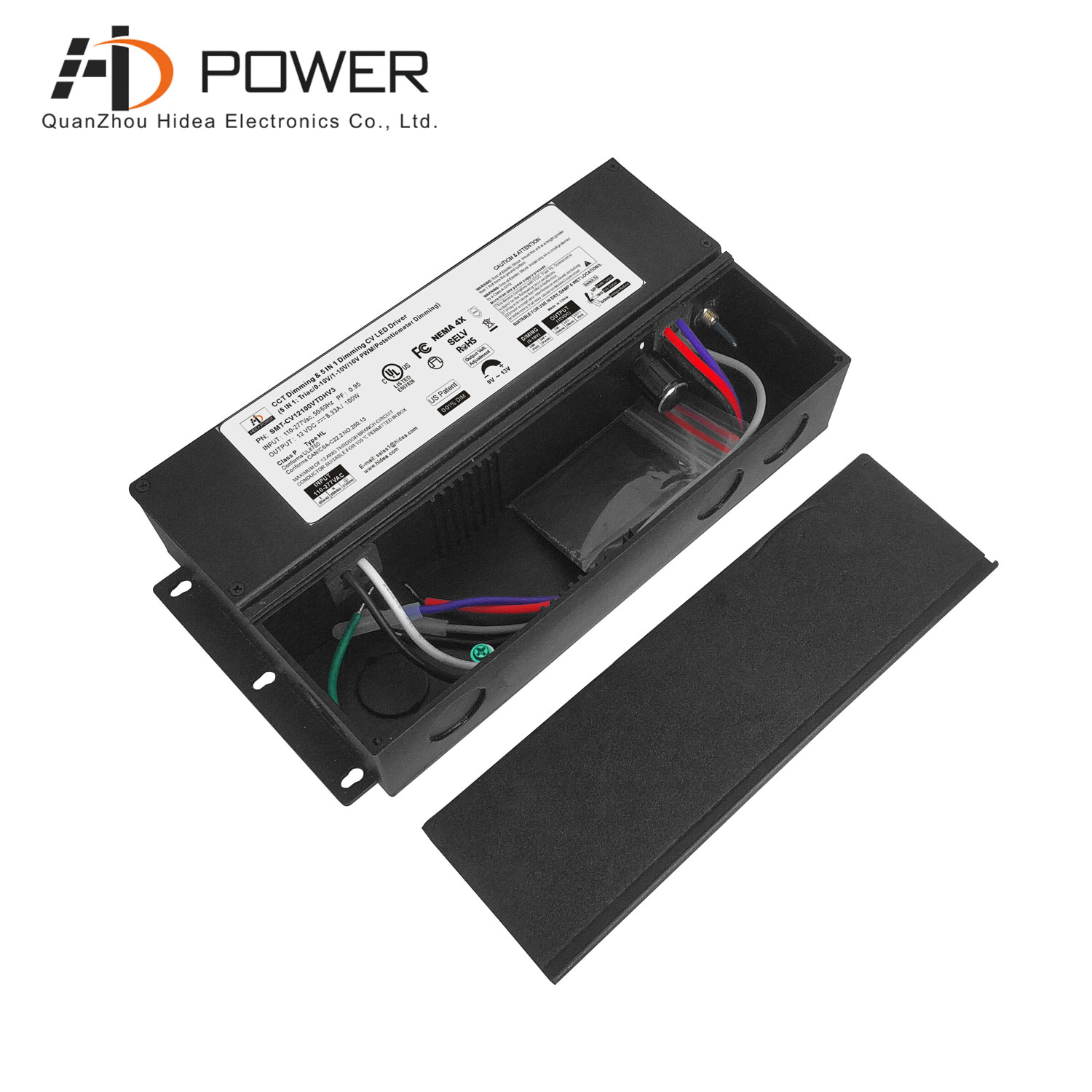

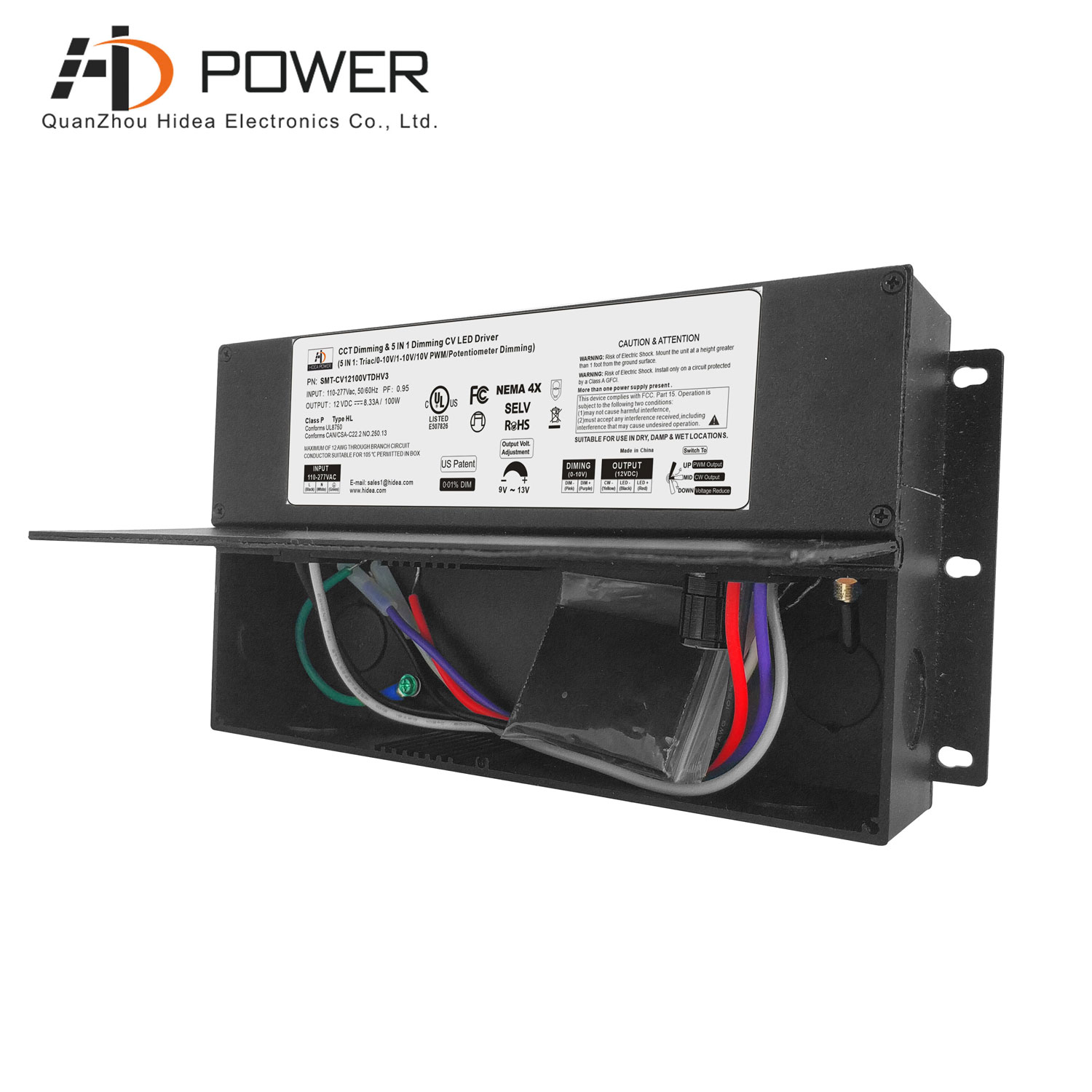

Hidea power's new dimming power supply is integrated with the junction box, and also has a patented flip-top junction box design, ultra-low load requirements, and can operate perfectly under 10-100% load.

  • Weight1KG
  • Size226.5*117.5*42.5mm
  • Shape & SizeJ-BOX Driver
  • Output Voltage12/24Vdc
  • Output Power(Watt)100W
  • Input Voltage100-277Vac
  • Working ModeConstnat Voltage LED Driver
  • Color DimmingCCT warm dimming
  • OutputDual channel (2 colors)
  • Dimming ModeCCT & 5 in 1(Triac 0-10V 1-10V Registor 10V PWM) Dimmable
  • CertificationUL
  • Warranty 7 Years
Facebook Twitter Pinterest LinkedIn 分享

The new 5 in 1 dimmable power supply has UL, CE, RoHs,

FCC certification, complete certificates, meets global lighting

standards, Hidea power provides it with a 7-year warranty,

easy installation, adjustable AC and DC wiring space


  Specification

Model Number SMT-CV12100-VTDHV3 SMT-CV24100-VTDHV3
OUTPUT
Rated Power 100W 100W
Rated Voltage 12V 24V
Rated Current 8.33A 4.15A
Voltage Tolerance ±0.5V
Voltage Regulation ±0.5%
Load Regulation ±1%
INPUT
Voltage Range 100-277V
Frequency Range 47-63Hz
Power Factor(typ.) 0.98@120VAC  0.95@277VAC  Full load
Total Harmonic Distortion THD< 20%@120VC/277VAC;
Efficiency(Typ.) 85%@120VAC   86%@277VAC 86% @ 120VAC  87% @277VAC
AC Current(Typ.) 1.3A
Inrush Current(Typ.) 27A, 50%, 700us @120VAC;   15A, 50% , 550us @277VAC
Leakage Current <0.5mA/ 120VAC
PROTECTION
Short Circuit shut down o/p voltage, re-power on to recover after fault condition removed
Over Load ≤120% shut down o/p voltage, re-power on to recover after fault condition removed
Over Temperate 100℃±10℃ shut down o/p voltage, automatically recover after cooling.
ENVIRONMENT
Working Temp. Tcase=-40 ~ +60 ℃
Max. Case Temp. Tcase=+90℃
Working humidity 20 ~ 95% RH non-condensing
Storage temp., Humidity -40 ~ +90, 10 ~ 95% RH
Temp .coefficient ±0.03%/℃(0~50℃)
Vibration 10~500Hz, 5G 10min./1 cycle,period for 60min. each along X,Y,Z axes
SAFETY & EMC
Safety standards UL8750, CSAC22.2 No. 250.0-08
Withstand voltage I/P-O/P:1.88KVAC
Isolation resistance I/P-O/P:100M Ohms / 500VDC / 25/ 70% RH
EMC Emission Compliance to FCC part 15  Subpart B
OTHERS
Dimension 226.5*117.5*42.5mm (L*W*H)
Packing 10pcs/CTN     G.W:11.2KG   SIZE:275*255*250mm

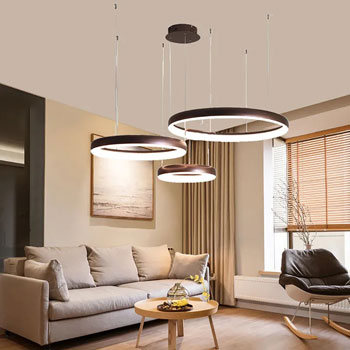

  Compatible Light Type

This constant voltage dimming power supply is compatible with PWM and step-down output, the dimming range is 100%-0.01% ultra-deep amplitude, and it can perform flicker-free smooth dimming
