0-15T Manual Hydraulic Press with Working Temperature 50-250C
YLJ-CSP-15 is a 15T Max. manual hydraulic press with heatable uniaxial die (0.5" ID) upto 250 ºC max. It is designed for cold sintering process (CSP) of ceramic, polymer, or ceramic-polymer composite materials for applications such as microwave dielectric materials, solid state electrolyte, and semiconductor. The compact design of the press makes it well-suited for inside glove box operation with an inert gas environment.
Specification
|
Working Pressure Range
|
· 0~15 Metric Tons
|
|
Gauge Pressure Value to Force Conversion
|
Gauge Displayed Pressure Value (Bar)
|
50
|
100
|
150
|
200
|
250
|
300
|
350
|
400
|
|
Actual Force Applied on the Hydraulic Cylinder (Ton)
|
1.9
|
3.8
|
5.8
|
7.7
|
9.6
|
11.5
|
13.3
|
15.4
|
|
Actual Pressure Applied on 0.5" ID Die (MPa)
|
147
|
294
|
441
|
588
|
735
|
882
|
1029
|
1176
|
|
Notes:
Displayed Pressure Value to Actual Applied Force Conversion: 26 bar = 1 Ton
The actual force applied on the Hydraulic Cylinder (Ton) equal to the force applied on your working piece
For calculating the actual pressure (MPa) applied on your working piece, please follow the equations in below:
P = T/(πr^2) x g x 10
P: Pressure (MPa) applied on your working piece
T: Force (Ton) applied on the Hydraulic Cylinder
g: Standard gravity. g ≈ 9.8 m/s2
π: ~3.14
r: Radius (cm) of the working piece
*1 Metric Ton = 1000 kg; 1 MPa ≈ 10 kgf/cm2
|
|
Pressure Stability
|
<1 MPa /10 min
|
|
Heatable Dies
|
0.5" ID heatable dies with high strength tool steel of hardness >RC60
Optional: Die with electric insulating BN liner is available at extra cost for researching sample's conductivity vs pressure
For larger heatable dies such as 1.5" ID, please choose the 40T electric hydraulic CSP press
|
|
Working Temperature Range
|
50 - 250 ºC
|
|
Temperature Control
|
30 segments programmable digital temperature controller with overheating protection
PID auto-tune function with +/- 1 ºC stability
|
|
Power
|
Standard: 208 VAC (single phase)
Optional: Please order a 1000W 110V-220V transformer for using under 110 V
|
|
Bottom Hydraulic Cylinder Travel Distance
|
0 - 13 mm
|
|
Top Support Screw Adjustable Height
|
215 mm
|
|
Dimension of Working Space Under Frame
|
D1: 120 mm D2: 70 mm D3: 124 mm H1: 180 mm H2: 155 mm
|
|
Press Dimensions
|
340 mm L x 200 mm W x 420 mm H
|
|
Net Weight
|
20 kg (44 lbs)
|
|
Warranty
|
Two years limited warranty with lifetime support
|
|
Compliance
|
CE Certified
|
|
Application Notes
|
Thoroughly clean the die pieces immediately after the use to avoid corrosion from the cold sintering process!
To avoid pressing die cracking, assemble all the pressing die pieces without the sample before the CSP experiment and pre-heat them without applying pressure.
Warning: Customers must always wear protection goggles during operation !!!
Do not raise the bottom cylinder (piston) more than it's maximum traveling distance. (13 mm)
This compact press can be placed inside various glove boxes for cold sintering process of air sensitive materials under inert gas
|
Packing List:
|
No.
|
Descriptions
|
Qty.
|
|
1
|
YLJ-15 compact hydraulic pellet press
|
1 unit
|
|
2
|
EQ-HC-D heatable pressing die with temperature controller
|
1 unit
|
|
3
|
Operation manual CD
|
1 pcs
|

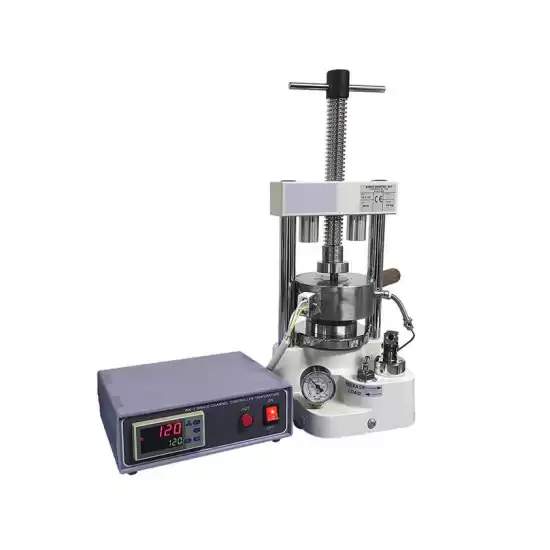

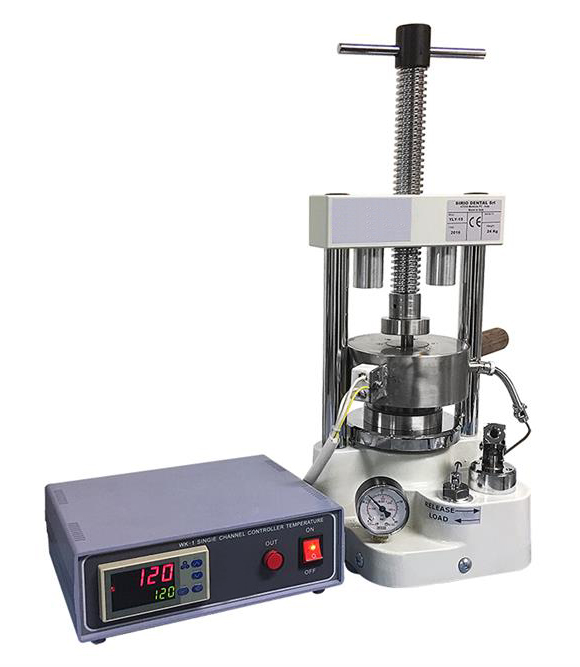

Product Images
1 Standard exported package: Internal anticollision protection, external export wooden box packaging.
2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.
3 Responsible for the damage during the shipping process, will change the damage part for you for free.
