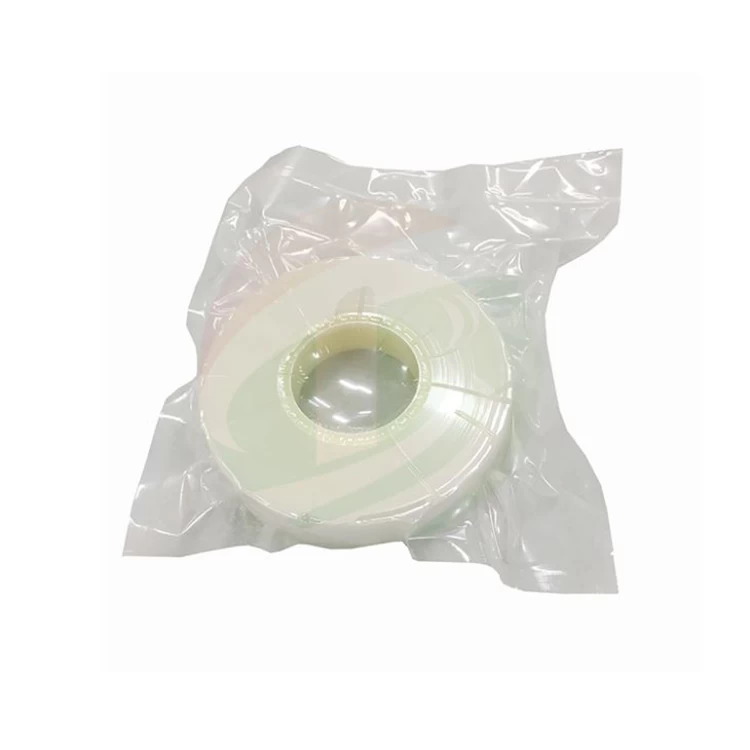

0.1mm Thickness White Hot Melt Adhesive (Polymer Tape) for Heat Sealing Pouch Cell Tabs
SPECIFICATIONS
Packing : 100M/Roll
This hot melt adhesive/sealant is specific and necessary item for sealing tab (Nickel or Aluminum) in between aluminum-made lamination film (pouch cell case).
|
Model
|
TOB-W-TTP
|
|
Color
|
Milk-White
|
|
Thickness
|
100 um
|
|
Width
|
4mm, 5mm, 6mm, 7mm, 8mm,10mm, Customized width
|
|
Length
|
100m for 1 roll
|
|
Material
|
Enhanced Sulfurized Polymer Resin Material (3 Layers Lamination)
|
|
Outside Layers (Both Sides)
Thermal Softening Index
|
116ºC/ 3 Seconds/ 0.3Mpa/ 180ºC (Reference only)
|
|
Outside Layers
(Both Sides) Thermal Melting Index
|
135ºC/ 3 Seconds/ 0.3Mpa/ 180ºC (Reference only)
|
|
Middle Layers (Both Sides)
Thermal Softening Index
|
145ºC/ 3 Seconds/ 0.3Mpa/ 180ºC (Reference only)
|
|
Middle Layers (Both Sides)
Thermal Melting Index
|
175ºC/ 3 Seconds/ 0.3Mpa/ 180ºC (Reference only)
|
|
Removal Strength from Tab
|
> 15N/15mm
|
|
Removal Strength from
Al Lamination Film (Cell Case)
|
> 35N/15mm
|
|
Resistance to LiPF6 Solution (1:1:1)
|
No Change in the Solution @ 85ºC*24 Hours
|
