1, Long-range reader,RS 232, Wiegand, TCP/IP coexistence of the three data output.
2, can add low temperature treatment, to -40 degrees environment, industrial 6000V lightning.
3, free warranty for two years, has done CE, FCC certification.
4, the device encryption, authorization card, anti-copy.
5, clip code installed pole diameter of not more than 6CM.
Description:

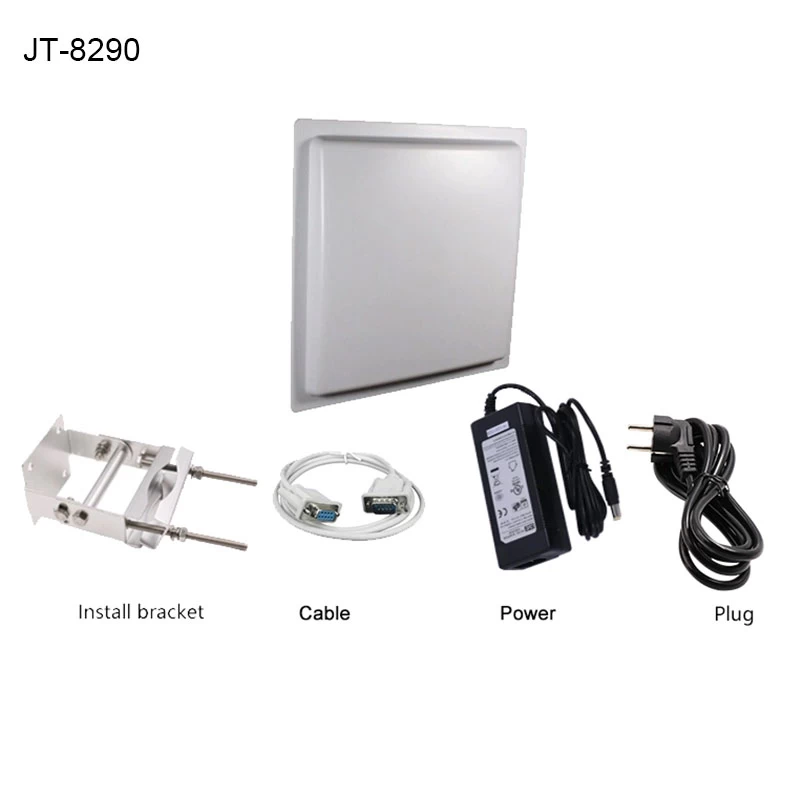

UHF RFID Long Range reader JT-8290 could be applied in various harsh working environment for multiple
protocols compatible and high speed reading. Full support the tags of
ISO-18000-6C (EPC C1 GEN2) or ISO-18000-6C.Its stable reading distance is 25m (Depends
on tag and environment)
Application:
◆Transportation vehicle management: Monitor and manage the
transportation of vehicle and container
◆Custom management: custom clearance and transit of material
◆Logistic management: manage the flow of commodity, mail and package
◆Manufacturing sequence: monitor parts during the whole productive process
◆Device management: monitor the flow of device
Specification:
|
Item No.
|
|
JT-8290A
|
RS232,RS485,Wiegand
|
|
JT-8290B
|
RS232,TCP/IP,Wiegand
|
|
JT-8290W
|
RS232,WIFI,Wiegand
|
|
JT-8290G
|
RS232,GPRS,Wiegand
|
|
Performance
parameters
|
|
Working
Frequency
|
902~928 MHz or
865~868MHz
|
|
Protocol
|
ISO18000-6C(EPC
C1 GEN2)
|
|
RF power
|
0~30dBm(Adjustable)
|
|
Software &
SDK
|
DEMO and C#, VC,
VB, Java, DELPH, etc.,
|
|
Encryption
|
Can be directly
encrypted, copy prevention.
|
|
Reading range
|
stable reading
range 25M(Depends on tag & environment)
|
|
Industrial
lightning protection
|
6000V
|
|
Low temperature
protection
|
Northeast,
Northwest extremely cold region, low temperature protection
|
|
Frequency
modulation
|
hopping or fixed
frequency
|
|
Input/output
port
|
Two-way relay
output(customized), one-way trigger input
|
|
Antenna gain
|
12dBi
polarization
|
|
Working way
|
Buzzer
|
|
Power
|
12V/3A Adaptor
|
|
Physical parameters:
|
|
|
Item size
|
450x450x50mm
|
|
Package size
|
600x480x110mm
|
|
Net weight
|
5KG
|
|
Shell material
|
ABS
|
|
Working
temperature
|
-20℃~+65℃
|
|
Storage
temperature
|
-45℃~+95℃
|
