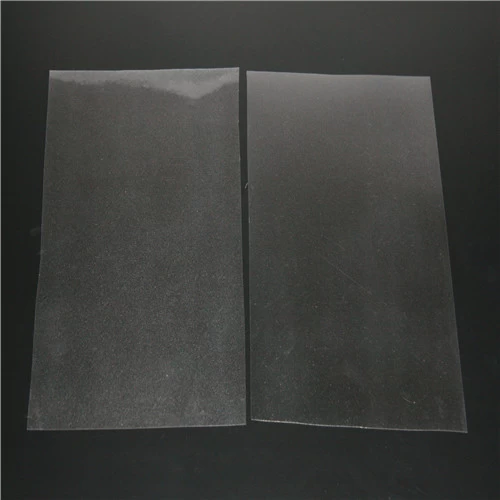

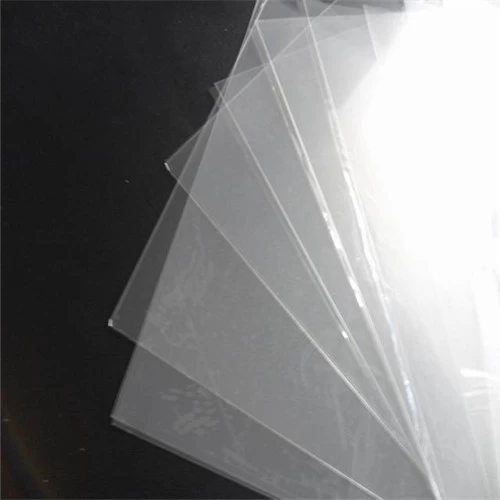

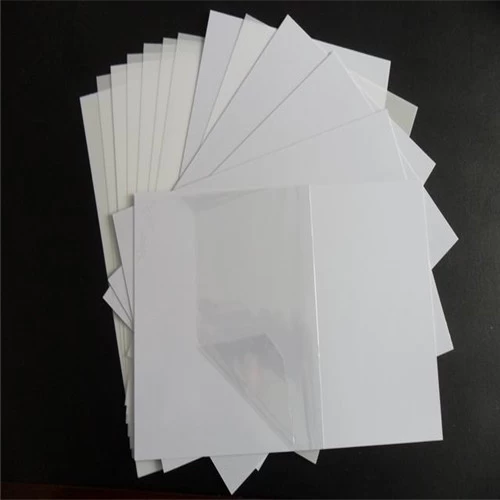

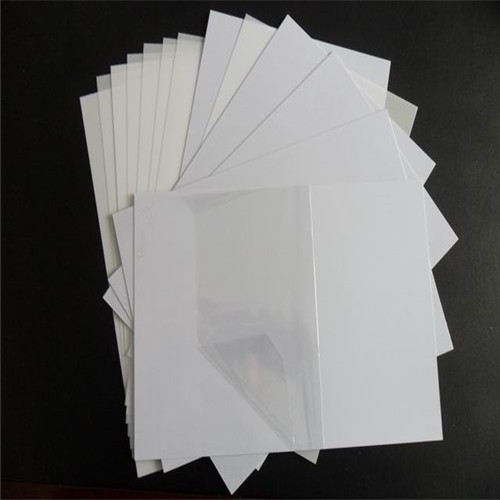

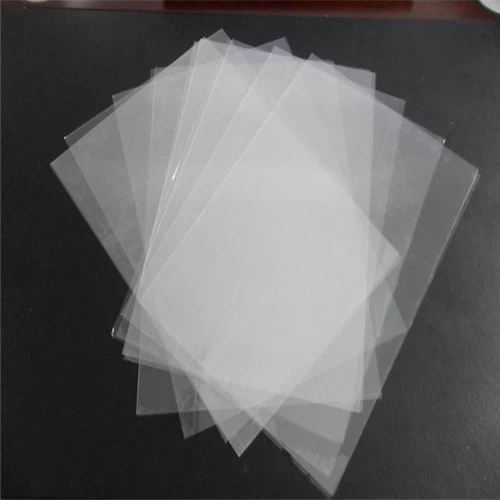

0.2mm printable transparent pvc plastic sheets

PVC is one of the most widely used plastics. PVC plastic material is a non-crystalline material. Transparent PVC sheet is widely used in the Packages,Sign,Advertisement,Print ,Construction And So on.


offset/UV/screen printing, screen prinitng, vacuum forming, medical packing, package box, stationery sheet, and other area to make label.


  • Price range$1.2-1.8/KGS
Facebook Twitter Pinterest LinkedIn 分享



clear rigid pvc sheet for thermoforming

Description

Rigid PVC sheet(extruded plastic board)

PVC Thanspanrent Sheets





Size

Length

According to the customers’ request

Width

0.915-1.3m

Thickness

0.25-15mm

1000*2000mm

1300*2000mm

1220*2440mm

We can produce other special sizes according to the customers’ request.

Colours

Transparnet light blue(usually),white.sapphire blue,dark brown,and other





characteristics

High intensity,high degree of transparency

High weather resistance,better physical properties

Non-toxic

Health,good surface brightness

No crack ,no bubbles,

Remarks

Industrial PVC sheet has a maximum long term service temperature of 60°C and also has a melting point of 75°C. Although PVC has a tensile strength of about 5Mpa,it is not the toughest engineering plastic and althougth PVC is durable,it can fracture to large impact.

Application

Equipment protection board,interior,blisster,printingindustry,packing industry surface display



Features:


1.High chemical stability,fine anti-fire,super-transparent,
2.Highly UV.stabilized,good mechanical properties,high hardness and strength,
3.The sheet aslo has well aging resistance,good self-extinguishing property and reliable insularity,
4.Moreover the sheet is waterproof and has very good smooth surface,and is non deformable.
5.Application:chemical industry,oil industry,galvanization,water purification equipments, environment protection   equipments,medical appliance and so on.
6.important item: the sheet anti-stastic,anti-UV,anti-sticky



Feature :


Name of indexIndex
Thickness ToleranceAccording to GB(higher than GB)
Density1.3-1.5 g/cm3
Tensile-Strength(lengthwise,crosswise),MPa≥52.0
Impact strength(cut)(four-way)KJ/M2≥5.0
Drop impact strenghtNo fracture
Vicat softening piont,°C
Decoration plate
Industrial plate
≥75.0
≥80.0
Heating size change rate, %
Lengthwise
Crosswise
-5.0--+5.0
-3.0--+3.0
Width
Length
Diagonal line		Deviation 0-3mm
Deviation 0-8mm
