Feature:
◆Built in the RFID module of R2000
◆The stable reading distance could be reach 30M
◆Multiple
tagss reading ability
◆High
sensitivity to tag
◆Support
RSSI indication
◆Waterproof
and sunscreen
Application:
JT-9292 could be used in variation area, such as vehicle management, customs management, logistics management and production automatic management, etc.
Specification:
|
Item No
|
|
JT-9292A
|
RS232
|
|
JT-9292B
|
RS232,TCP/IP
|
|
JT-9292W
|
RS232,WIFI,
|
JT-9292G
|
RS232,GPRS
|
|
Performance parameters
|
|
Working
Frequency
|
902~928 MHz or
865~868MHz
|
|
Protocol
|
ISO18000-6C(EPC
C1 GEN2)
|
|
Chip
|
Impinj R2000
|
|
RF power
|
0～30dBm(Adjustable)
|
|
Software &
SDK
|
DEMO and C#, VC,
Java
|
|
Industrial
lightning protection
|
6000V
|
|
Low temperature
protection
|
Northeast, Northwest
extremely cold region, low temperature protection
|
|
Reading range
|
stable reading
range 25 M(Depends on tag & environment)
|
|
Tag handling
volume
|
0-200 tags
|
|
Storage space
|
1M or 8M Flash
save without power supply(customized)
|
|
Real-time clock
|
without power
supply, real-time clock save and working(customized)
|
|
Frequency
modulation
|
hopping or fixed
frequency
|
|
Input/output
port
|
Two-way relay
output(customized), two-way I/O input(customized)
|
|
RSSI
|
RSSI numerical
test
|
|
Antenna gain
|
12dBi
polarization
|
|
Working way
|
Buzzer
|
|
Power
|
12V/3A Adaptor
|
|
Ethernet power
supply
|
POE(customized)
|
|
Physical
parameters:
|
|
|

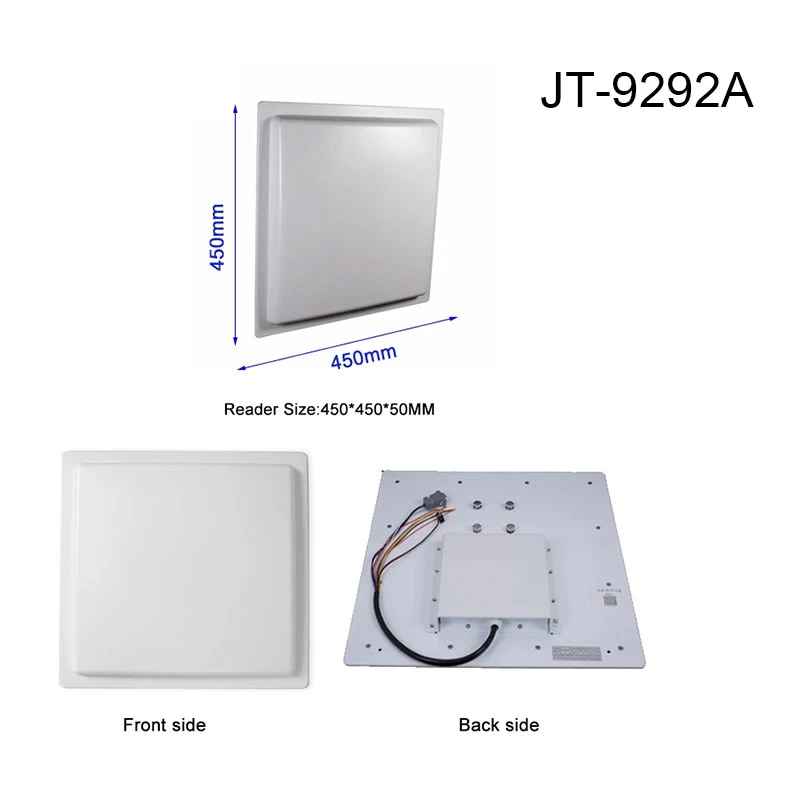

Item size
|
450x450x50mm
|
|
Package size
|
600x480x110mm
|
|
Net weight
|
5KG
|
|
Shell material
|
ABS
|
|
Working
temperature
|
-20℃~+65℃
|
|
Storage
temperature
|
-45℃~+95℃
|
