Propety | Test Method | Unit | Vacuum forming | Food packaging | Fold molding |
| VB | VD | VG | VS | FB | FC | FF | VD | BB | BF |
| Tensile strength | ASTM-D 638/882 | kg/cm' (min) | 450 | 450 | 450 | 450 | 450 | 450 | 450 | 450 | 450 | 450 |
| Tensile elongation | ASTM-D 638/882 | % (min) | 80~120 | 80~150 | 80~150 | 80~120 | 80~150 | 100~150 | 100~150 | 80~150 | 80~150 | 80~100 |
| Vicat temp | ASTM-D 1525-76 | ℃ (min) | 80 | 83 | 83 | 83 | 83 | 83 | 80 | 80 | 83 | 83 |
| Heat distortion temp | ASTM-D 1637 | ℃ (min) | 65 | 68 | 68 | 68 | 68 | 68 | 65 | 68 | 68 | 68 |
| Optical properties | ASTM-D 1003.61 | % (min) | 90.5 | 85 | 85 | 85 | 88 | 30 | 40 | 85 | 88 | 88 |
| Haze | ASTM-D 1003.61 | (max) | 3.0 | 3.0 | 3.0 | 3.0 | 3.0 | — | — | 3.0 | 3.0 | 3.0 |
| Description |

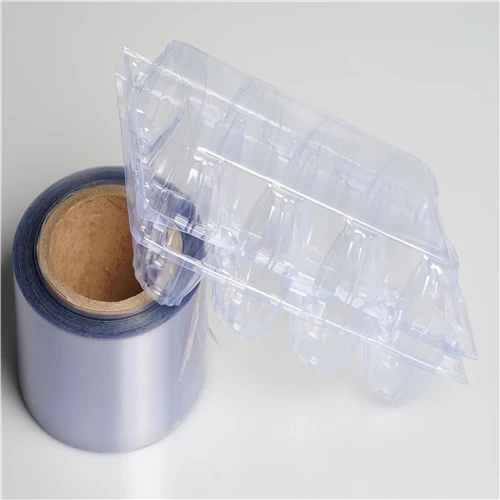

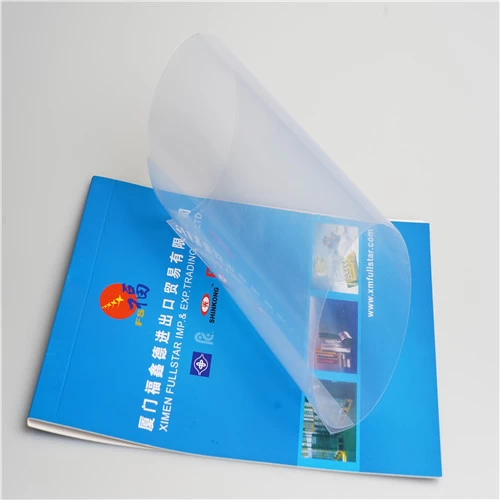

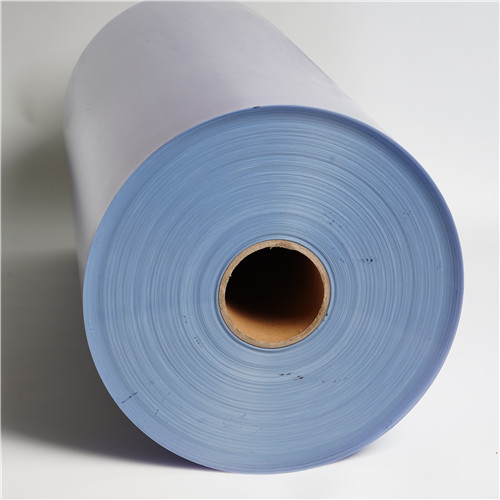

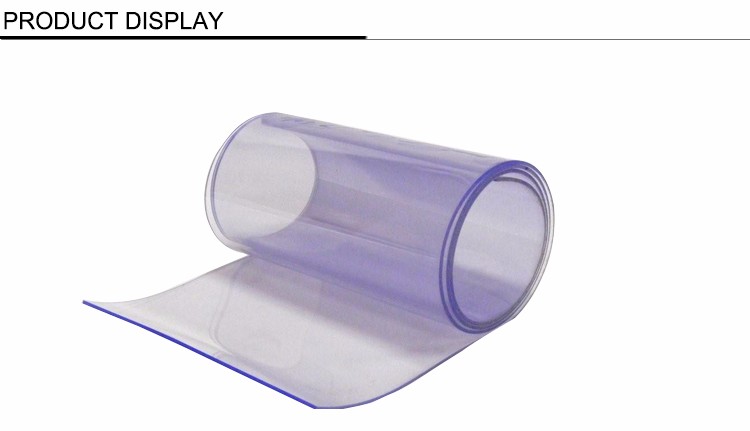

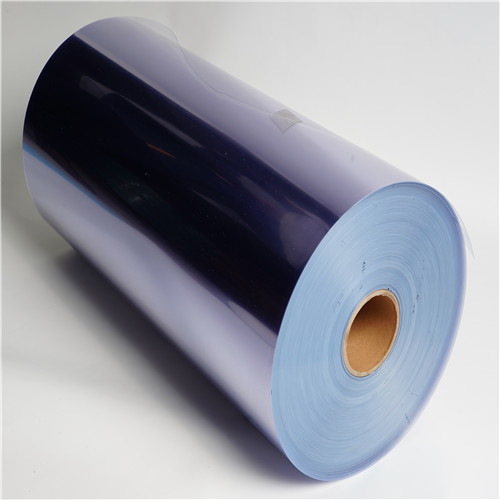

Rigid PVC sheet
(extruded or calendar plastic sheet or roll)
Transparent, frosted, embossed, etc |
Size | Length | According to the customers' request |
| Max width | 1.6m |
| Thickness | 0.05-6mm |
| 1000*2000mm | 700*1000mm | 1220*2440mm |
| We can produce other special sizes according to the customers' request. |
| Colors | Transparent blue tint(usually), Transparent white tint, any colored transparent, dark brown, opaque colored(any) and other customized colors |
Characteristics | High intensity, high degree of transparency |
| better physical properties |
| Non-toxic |
| good surface brightness |
| No crack ,no bubbles, no flow line |
| Application | Equipment protection board, blister, printing ,packaging, vacuum forming, decoration for drum wrap and kitchen
|
FAQ:
Q1: How many countries you already exported ?
A1: Exported to more than 50 countries mainly from the United States, Russia, UK, Australia, Egypt, Canada, Turkey,
India, Republic of South Africa, Indonesia, Philippines etc.
Q2: How can I get some samples?
A2: Small samples in store and can provide the samples for free, but you need to pay for the postage fee. Directory is
available, most patterns we have ready samples in stock. Customized samples will take about 5-7days.
Q3: What is the MOQ?
A3: Minimum Order Quantity is 1 ton.
Q4: How about the delivery time?
A4: Sample order’s delivery time is 3- 5days. 20 feet Container ordersare around 10-15 days after receiving confirmed
deposit.
Q5: How does your company do regarding quality control?
A5: The SGS Report, FDA Certificates, QS Certificates, production process followed with the ISO 9001 System.
Q6: How to get the product quotation?
A6: Please tell us your required material & material purpose & width & thickness & color & quantity.
