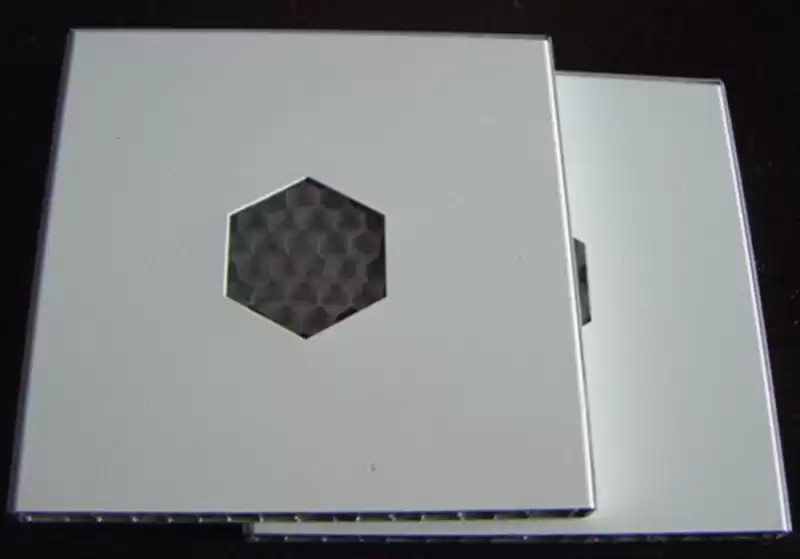

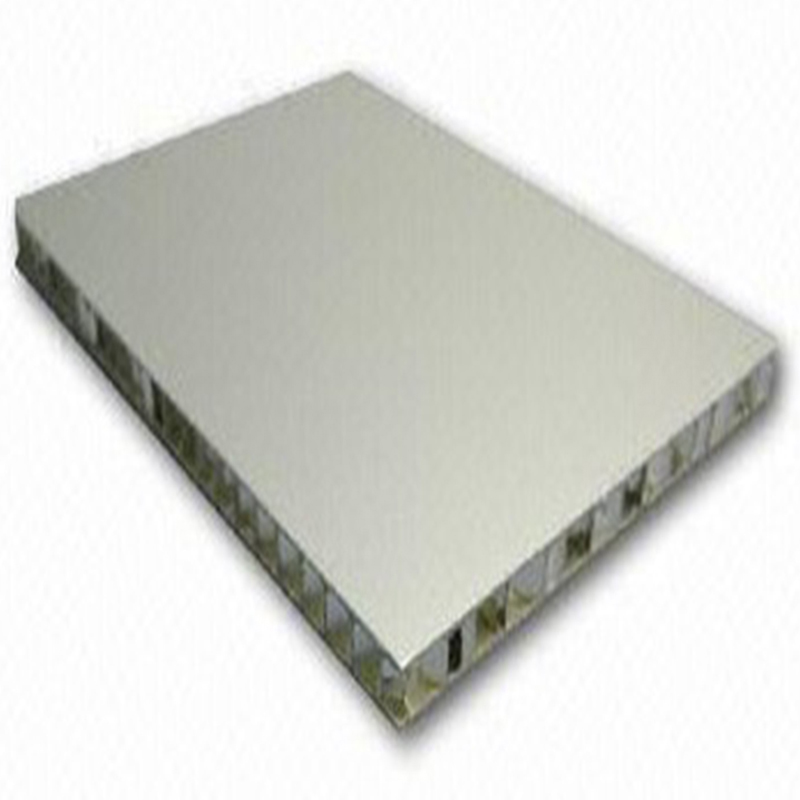

0.4-1.5mm PVDF Color Coating Aluminum Coil/ Sheet for Honeycomb Panel
1. Production Description:
Color coated Aluminum coil means coloring is processed onto the surface of aluminum coil by coating PE or PVDF paints.
* Widely application: Aluminum composite panels, solid aluminum single panel, aluminum honeycomb panel, aluminum ceiling, aluminum roofing, pop-top cans, home appliance, electronic products etc..
* Advantages Features: Stable property, anti-corrosion, 30 years guarantee after special process, the lowest density in metals, the color coated aluminum become one of the most popular new materials.
|
Alloy Series
|
AA1050, AA1060, AA1100, AA3003, AA3004
|
|
Coatings
|
PE, PU, PVDF, FEVE
|
|
Coating Thickness
|
PE: no less than 18micron; PVDF: no less than 25micron
|
|
Aluminum Thickness
|
0.25mm ~ 1.5mm normally, could be custom-made
|
|
Width
|
500mm~2000mm
|
|
Coil Interior Diameter
|
150mm,405mm,505mm,508mm,510mm normally
|
|
Gloss
|
10~90%, (EN ISO-2813:1994)
|
Coating Hardness
(Pencil resistance)
|
More than 2H
|
|
Impact Resistance
|
No peeling or cracking(50 kg/cm,ASTMD-2794:1993)
|
|
Flexibility(T-bend)
|
2T
|
|
MEK resistance
|
More than 100
|
|
Colors
|
RAL colors or custom-made
|
|
Surface
|
Wooden coated
|

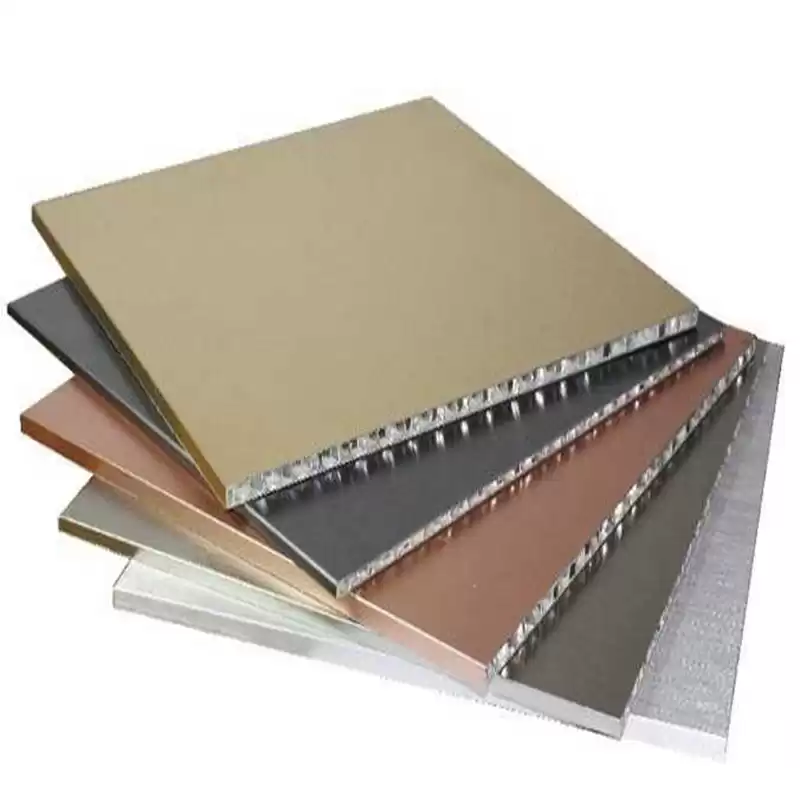

2.Product&Color Chart:
3.Company Profile:
"Alucosuper" is our brand. We are JINGGONG STEEL BUILDING GROUP - WONDERFUL-WALL BUSINESS DIVISION.
We possess:

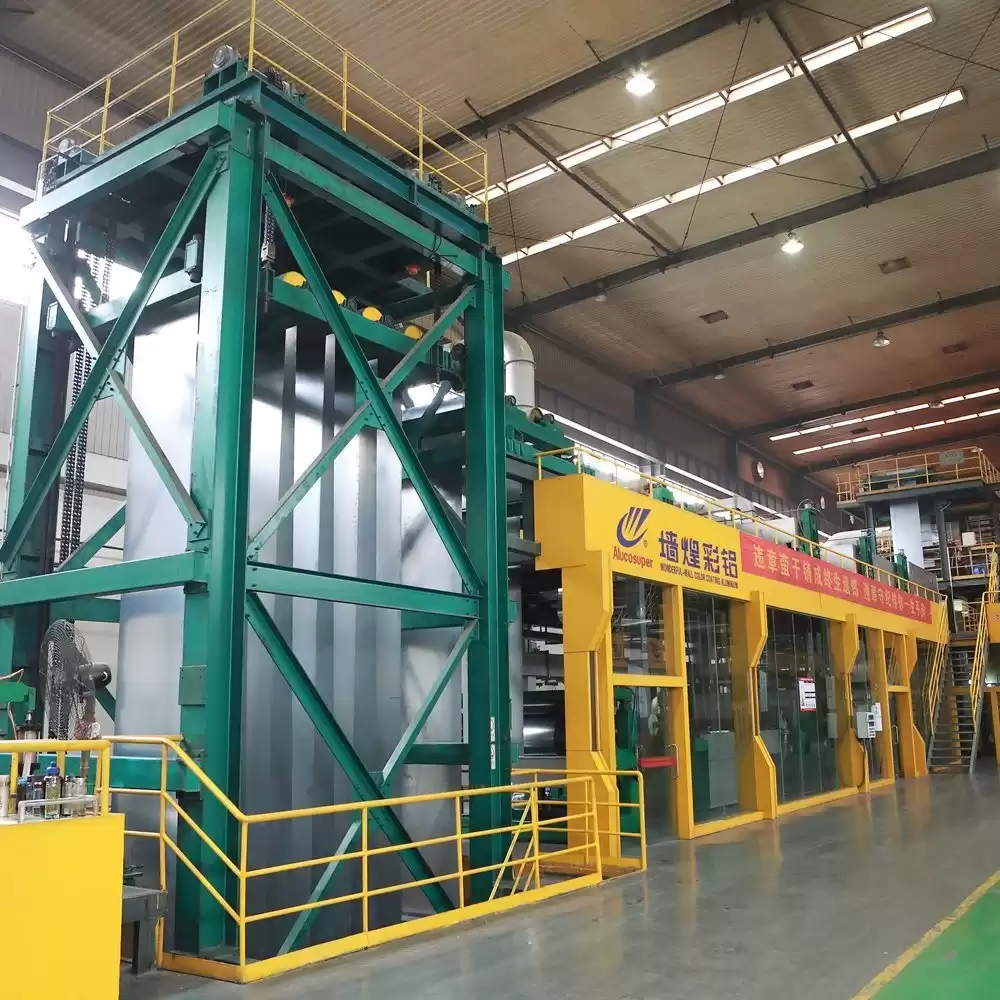

8 sets of production lines for Color coated aluminum sheet,aluminum coil, Color coated steel sheet , steel coil.
1 set of production lines for embossed aluminum sheet/coil (2 style: stucco, diamond) .
2 sets of production lines for Aluminum composite panel, Steel composite panel.
2 sets of production lines for Solid aluminum sheet

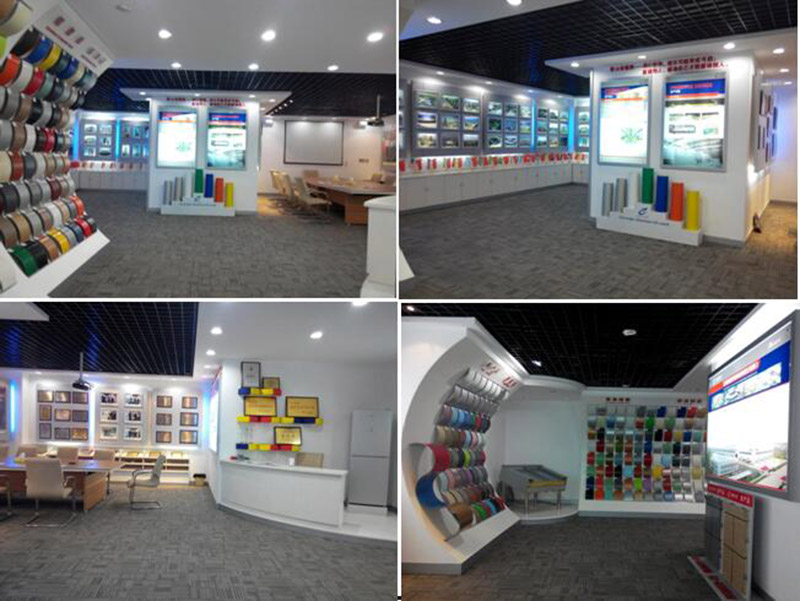

4.Our Exibition Room:
5. Our New Products:
*Pre-painted Galvanized Steel Sheet for Writing Board: White writing board / green chalk board / black board;
*PVDF Powder Painted Solid Aluminium Sheet for Curtain Wall;
*Aluminium Composite Panel ACP / ACM;

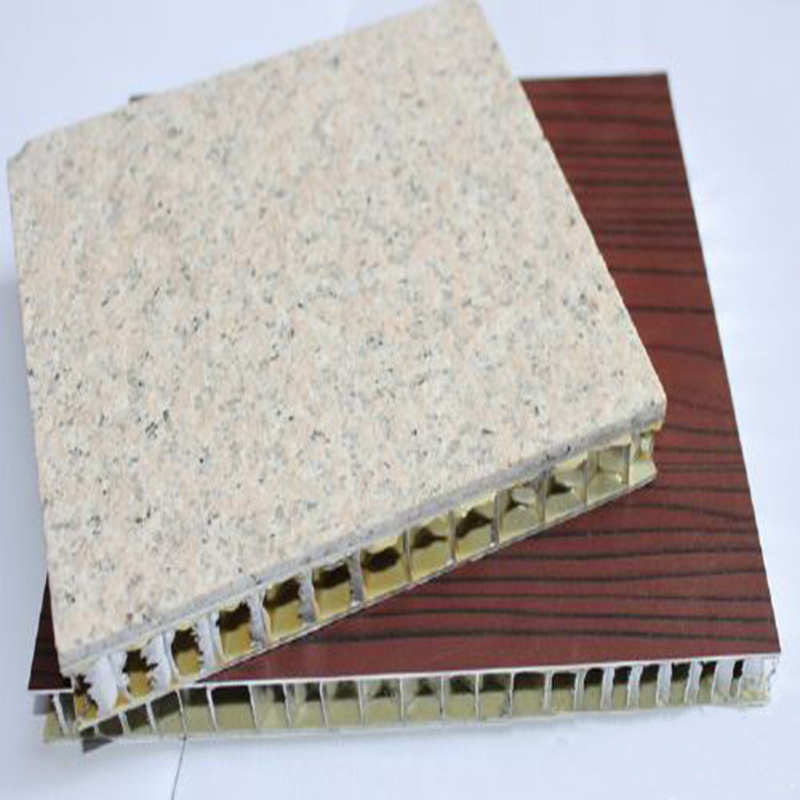

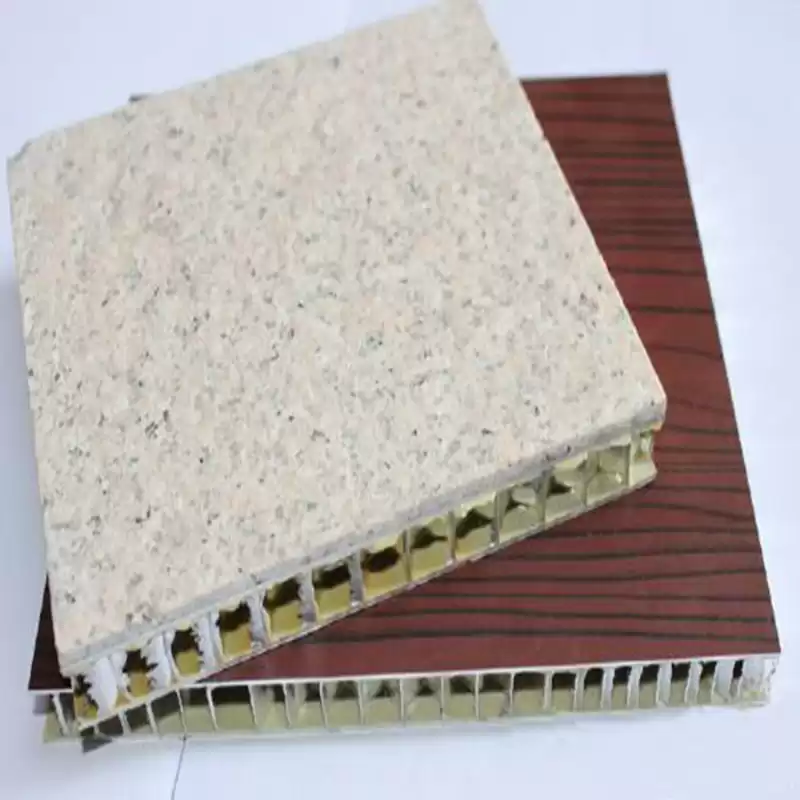

*Alucosuper Wood Grain and Stone Imitation coated aluminium coils are widely applied in many construction project, and also be popular and be favoured by many ACP ACM manufacturer due to its high quality, beautiful colours and rich drawings. Welcome to contact us for more details and prices.
*NANO self-clean PVDF / FEVE coated aluminium coil;
*Coated Mirror / Brushed types also very popular, can match your colours.
