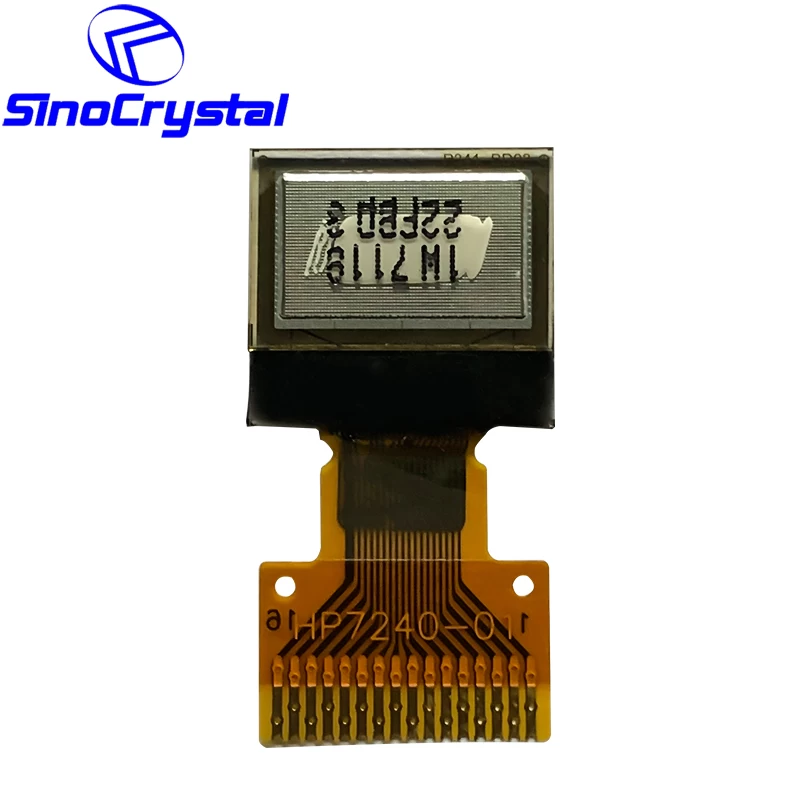

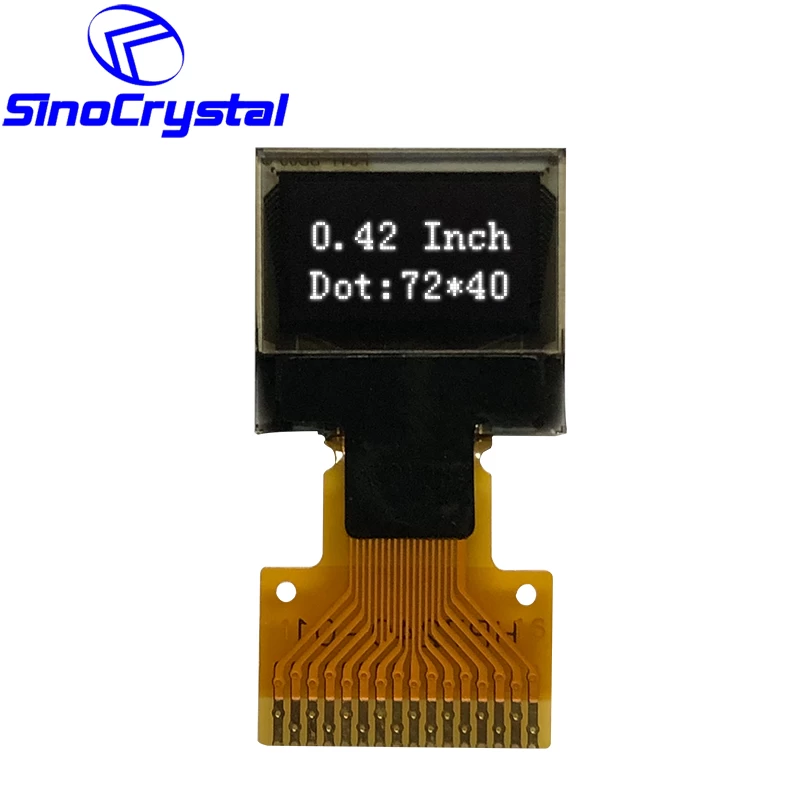

0.42'' OLED Graphic LCD Display with I2C interface

SCE042001-V01 is a OLED Display with COG Type, 72×40 Resolution, SSD1306BZ IC, 4-wire serial interface I2C,16PIN


  • ColorMonochrome (White)
  • IC Part No.SSD1306BZ
  • Interface4-wire serial interface,I2C
  • Active Area (mm)9.196×5.18
  • Viewing Area (mm)10.196×6.18
  • Outline Dimension (mm)12×11×1.227
  • Resolution72×40
  • PIN16
  • FPC typeConnector

Basic Information


  • Display Color:                 WHITE
  • Dot Matrix:                      72x40
  • Drive IC:                         SSD1306BZ
  • Viewing Angle:               160°
  • Aperture rate:                 71%
  • Interface:                        4-WIRE Serial interface,I2C
  • Outline Dimension:         12.0(W)x11.0(H)x1.227(D)
  • View area:                      10.196 (W) x 6.18(H)
  • Driver IC:                        SSD1306BZ
  • PIN:                                16
  • FPC Type:                      Connector




General Specification


ITEM SPECIFICATIONS UNIT
 MODULE SIZE 12.0(W)x11.0(H)x1.227(D) mm
 VIEWING AREA 10.196 (W) x 6.18(H) mm
 ACTIVE AREA 9.196 (W) x5.18 (H) mm
 DOT SIZE 0.108(W) x0.11(H) mm
 DOT PITCH 0.128(W) x0.13 (H) mm
 ASSY.TYPE COG ---
 WEIGHT TBD



Interface Definition


PIN NO. SYMBOL TYPE FUNCTION DESCRIPTIONS
1 C2P I C1P/C1N-Pin for charge pump capacitor.
C2P/C2N-Pin for charge pump capacitor.
Connect to each other with a capacitor. They must be floated when the
Charge pump not use.
2 C2N
3 C1P
4 C1N
5 VBAT P Power supply for charge pump regulator circuit.
It must be connected to external source when charge pump is used.
It must be float when charge pump is not used.
6 VSS P Ground pin. It must be connected to external ground.
7 VDD P Power pin for logic circuit. It must be connected to external source.
8 BS1 I Interface selection pins.
 I2C 4SPI
BS1 1 0
9 CS# I Chip Select input pin. Active "L"
10 RES# I Hardware reset input pin. Active "L".
11 D/C# I This is Data/Command control pin.
When the pin is pulled HIGH, the data at D[7:0]  is data. When the pin is pulled LOW, the data at D[7:0] is command. In I2C mode, this pin acts as SA0 for slave address section.
When 3-wire serial interface is selected, this pin must be connected to VSS
12 D0
When serial interface mode is selected, D2 should be kept NC, D1 will be the serial data input: SDIN, D0 will be the serial clock input: SCLK.
When I2C mode is selected, D2, D1 should be tied together and serve
as SDA and D0 is the serial clock input, SCL.
13 D1
14 D2 I/O
15 VCOMH O COM signal deselected voltage level.
A capacitor should be connected between this pin and VSS.
16 VCC P Power supply for OLED driving voltage. A capacitor should be connected between this pin and VSS, when charge pump is used.
It must be connected to external source when charge pump is not used.
