0.4kV Fixed Partition Switchgear GDF

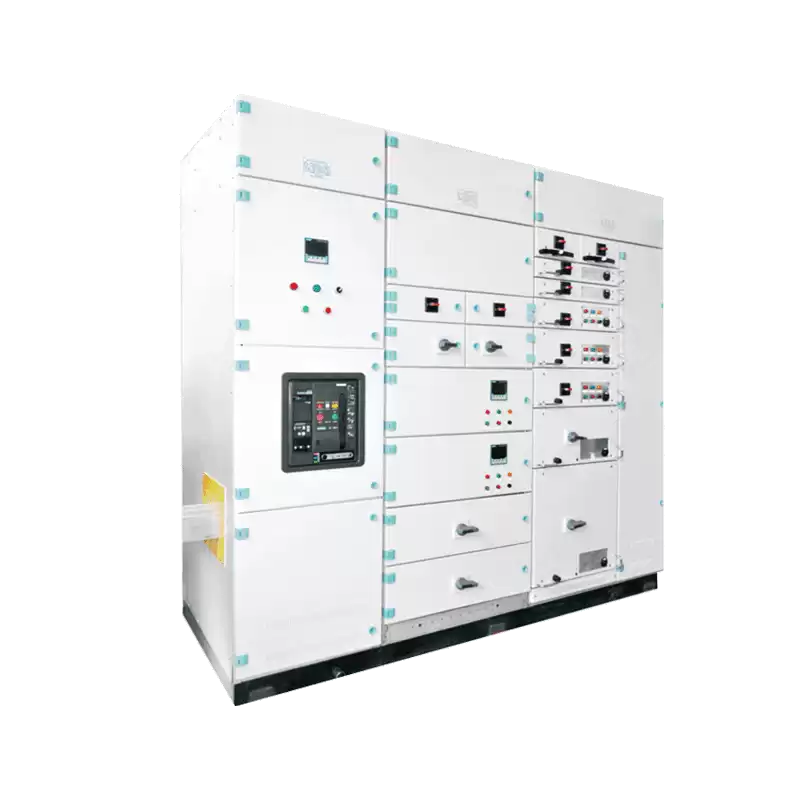

The GDF Low Voltage Fixed Partition Switchgear is a robust and reliable solution designed for three-phase AC power systems, primarily used in power distribution, motor control, and industrial electrical installations. It is engineered to provide enhanced safety, high operational reliability, and modular flexibility, making it ideal for industrial and commercial applications. The switchgear supports a variety of configurations, ensuring it meets the needs of modern electrical systems while adhering to international safety standards. Its fixed partition structure offers excellent protection, while its easy maintenance features reduce downtime.









  • GDF Fixed Partition Switchgear Features
  • #
    High Current Capacity
    Supports up to 6300A, suitable for substantial power requirements.
  • #
    Versatile Design
    Compatible with both three-phase four-wire and five-wire systems, providing flexibility in application.
  • #
    Intelligent Integration
    Capable of supporting advanced power distribution and motor control needs in modern installations.
  • #
    Compliance with Standards
    Meets key industry standards GB7251.12, IEC 439-1, and JB/T9661 for quality and performance.











  • Specifications



Rated Insulation Voltage AC 690(1000)V
Rated Working Voltage Main Circuit AC 380(660)V
Auxiliary Circuits  AC 380/220/11/24V
DC 220/110 V
Rated Frequency 50(60)Hz
Rated Current Of Horizontal Busbar  ≤6300A
Rated Current Of Vertical Busbar  1250A
Rated Peak Withstand Current(0.1s)  105/176kA
Rated Short-Time Withstand Current(1s)  50/80kA
Enclosure Ingress Protection Rating IP30/IP40
