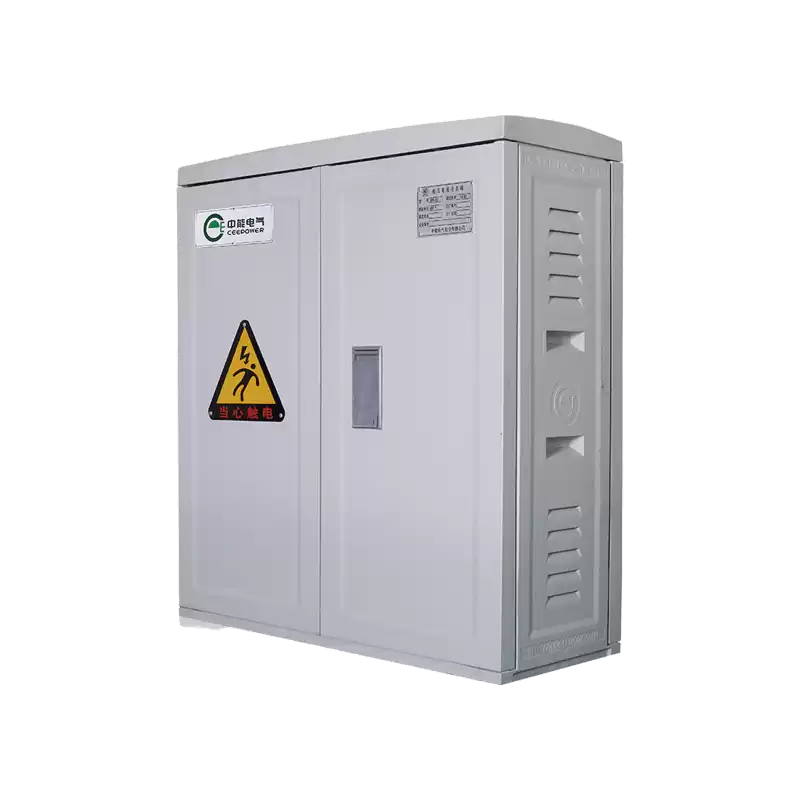

0.4kV Low Voltage Cable Branch Box XFW Series

The 0.4kV Low Voltage Cable Branch Box is engineered for efficient and reliable branching of 0.4kV distribution cables within public power grids. Widely utilized in urban grid construction and overhead line replacement projects, this branch box plays a key role in modernizing and upgrading power distribution networks. Its design and flexibility make it ideal for urban power grid renovation, promoting seamless integration and enhancing the overall stability of local power infrastructure.









  • XFW Series  Low Voltage Cable Branch Box Features
  • #
    Outdoor Installation
    Compact and small-sized structure for easy installation in outdoor settings.
  • #
    Weatherproof
    Resistant to condensation and pollution, suitable for harsh environments.
  • #
    Flexible Configuration
    Offers options for bar-type fuse-load isolation switches or molded case circuit breakers for protection.
  • #
    Customized Options
    Offered in SMC or stainless steel, standard colors: military green, camel gray; custom options available.















  • Specifications





Item With Molded Case Circuit Breaker With Bar-type Fuse-load Isolation Switch
Rated Voltage 0.4kV 0.4kV
Maximum Working Voltage 0.8kV 0.8kV
Rated Frequency 50Hz 50Hz
Rated Current 10-800A 160/250/400/630A
Power Frequency Withstand Voltage(1min) 3kV 3kV
Lightning Impulse Withstand Voltage 6kV 8kV
Rated Thermal Stability Current(kA/s) 12In or 5kA
Rated Short-Circuit Breaking Current 10-800A 160/250/400/630A
Rated Short-Circuit Closing Current (1.5 - 2.2) Icu
Mechanical Life 7000/5000/4000 Times 3000/1000 Times
Enclosure Ingress Protection Rating IP44 IP44

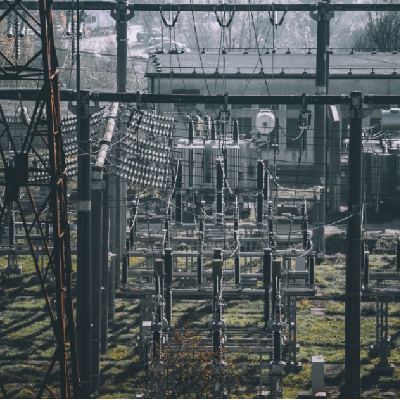

  • Application Scenarios
