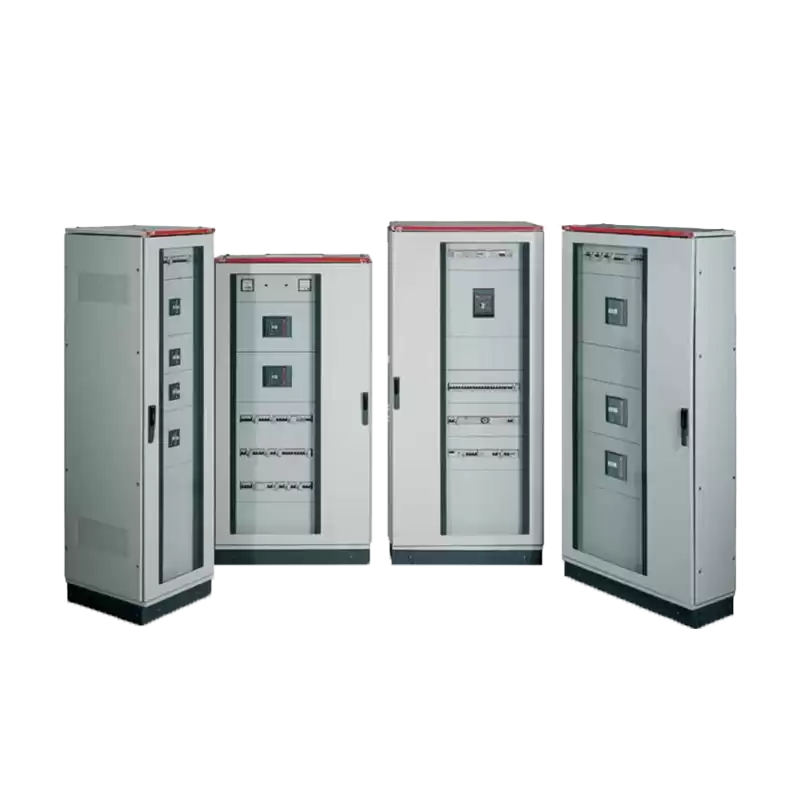

0.4kV Low Voltage Switchgear ArTu (ABB Authorized)

The ArTu switchgear by ABB is a highly modular and integrated power distribution system, tailored to meet the demanding requirements of modern power networks. Designed in full compliance with EN60439-1, IEC60439-1, and GB7251 standards, it ensures superior performance, safety, and reliability. The system supports a wide range of power distribution needs, including industrial facilities, commercial buildings, and infrastructure projects. With its versatile configurations and compatibility with advanced automation solutions, ArTu delivers efficient energy management and seamless integration into diverse applications.

Facebook Twitter Pinterest LinkedIn 分享







  • ArTu (ABB Authorized) Low Voltage Switchgear Features
  • #
    Modular Design
    Adaptable for floor-standing or wall-mounted configurations, fitting both distribution and control applications.
  • #
    High-Quality Components
    Standardized ABB components ensure reliability and ease of assembly, allowing certified partners to create compliant systems.
  • #
    Internal Compartmentalization
    Separates busbar, equipment, and cable sections for safe operation and flexible cable routing.
  • #
    Patented Connectivity
    Features unique K-type columns and busbar screws for secure and efficient assembly, ensuring durability.
  • #
    DMBWIM Software
    Windows-based tool simplifies configuration, enhancing user experience.













  • Specifications



Rated Insulation Voltage(Ui) 1000V
Rated Working Voltage(Ue) 690V
Rated Impulse Withstand Voltage(Uimp) 8kV
Rated Operating Frequency 50-60Hz
Maximum Rated Current Of Main Busbars (Basic Type)(Iu) 4000A
Short-Time (1s) Withstand Current Of Main Busbars(Icw) Up To 105kA(RMS)
Short-Circuit Peak Current Of Main Busbars(Ipik) Up To 254kA
Maximum Rated Current Of Distribution Busbars(In) 1600A
Short-Time (1s) Withstand Current Of Distribution Busbars(Icw) Up To 75kA(RMS)
Short-Circuit Peak Current Of Distribution Busbars(Ipik) Up To 166kA
Internal Partition Form 2 – 3 – 4
Enclosure Ingress Protection Rating IP30/IP40/IP55



*IP30: Protection Against Solid Objects Greater Than Ø2.5mm

*IP40: Protection Against Solid Objects Greater Than Ø1.0mm

*IP55: Protection Against Dust And Water Jets From Any Direction

*Refer to IEC60529, DIN40050 and GB4208 for more details about IP Rating















  • Application Scenarios
