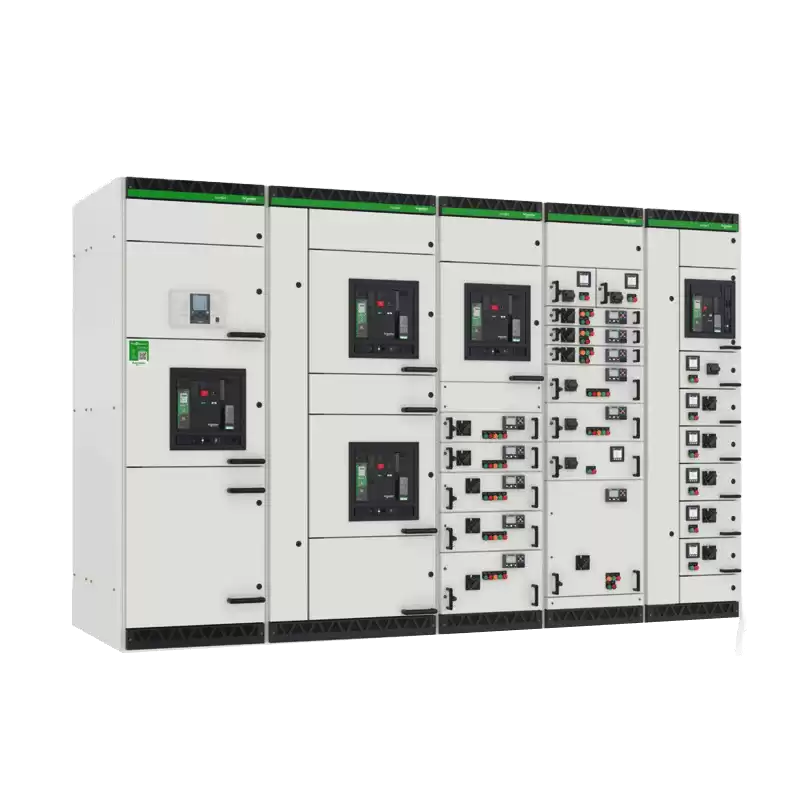

0.4kV Low Voltage Switchgear Blokset (Schneider Authorized)

Blokset low-voltage switchgear is a high-performance power distribution solution, renowned for its advanced modular design, superior reliability, and operational safety. Designed to meet the complex needs of construction, industrial processes, energy generation, data centers, and critical infrastructure, Blokset ensures optimal power distribution and enhanced energy efficiency. Fully compliant with international standards, this switchgear supports intelligent monitoring systems, providing robust performance and long-term operational stability for modern low-voltage applications.









  • Blokset (Schneider Authorized) Low Voltage Switchgear Features













  • Specifications



Rated Insulation Voltage(Ui) 1000V AC
Rated Voltage(Ue) 400/690V AC
Rated Frequency(F) 50/60Hz
Rated Impact Withstand Voltage(Uimp) 12kV
Secondary Circuit Rated Voltage Max. 230V AC
Overvoltage Category IV
Pollution Degree 3
Horizontal Busbar Rated Current(In) Up To 7000A
Vertical Busbar Rated Current Up To 3200A
Horizontal Busbar: Rated Short-Time Withstand Current(Icw) 30/50/85/100kA
Horizontal Busbar: Rated Peak Current 63/105/187/220kA
Vertical Busbar: Rated Short Time Withstand Current(Icw) 30/50/85kA
Vertical Busbar: Rated Peak Current 63/105/187kA
Arc Withstand Capability 85kA 0.4s
Grounding System TT-IT-TNS-TNC
Motor Protection 250kW(400V)

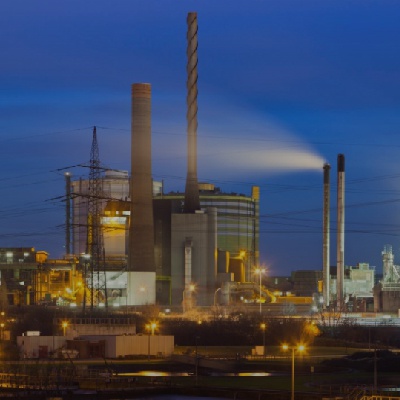

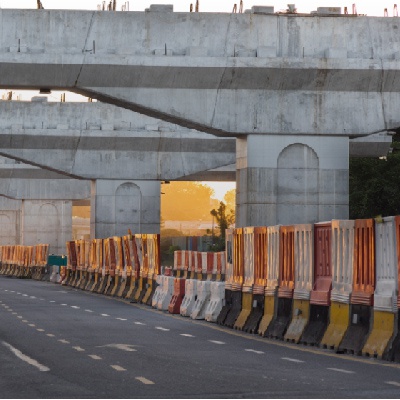

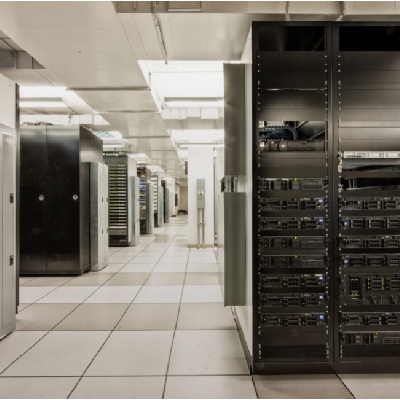

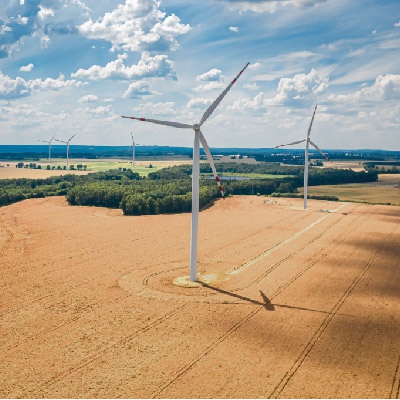

  • Application Scenarios
