0.54 inch mini OLED module China Supplier

Basic Info.


Dot Number 96x32 Interface I2C
Control IC CH1115 Display Color White
AA 12.46x4.14mm Pixel Size 0.11x0.11mm
Pixel Pitch 0.13x0.13mm Connector FPC
View Angle IPS Working Temp. -40° to 70°C
Working Vol. 3.3 V Transport Package Carton/Pallet
Trademark Jinhua Origin China
HS Code 853120000 MOQ 1000 pcs, negotiable
Productivity 600000 pcs/month




0.54 inch mini OLED module China Supplier

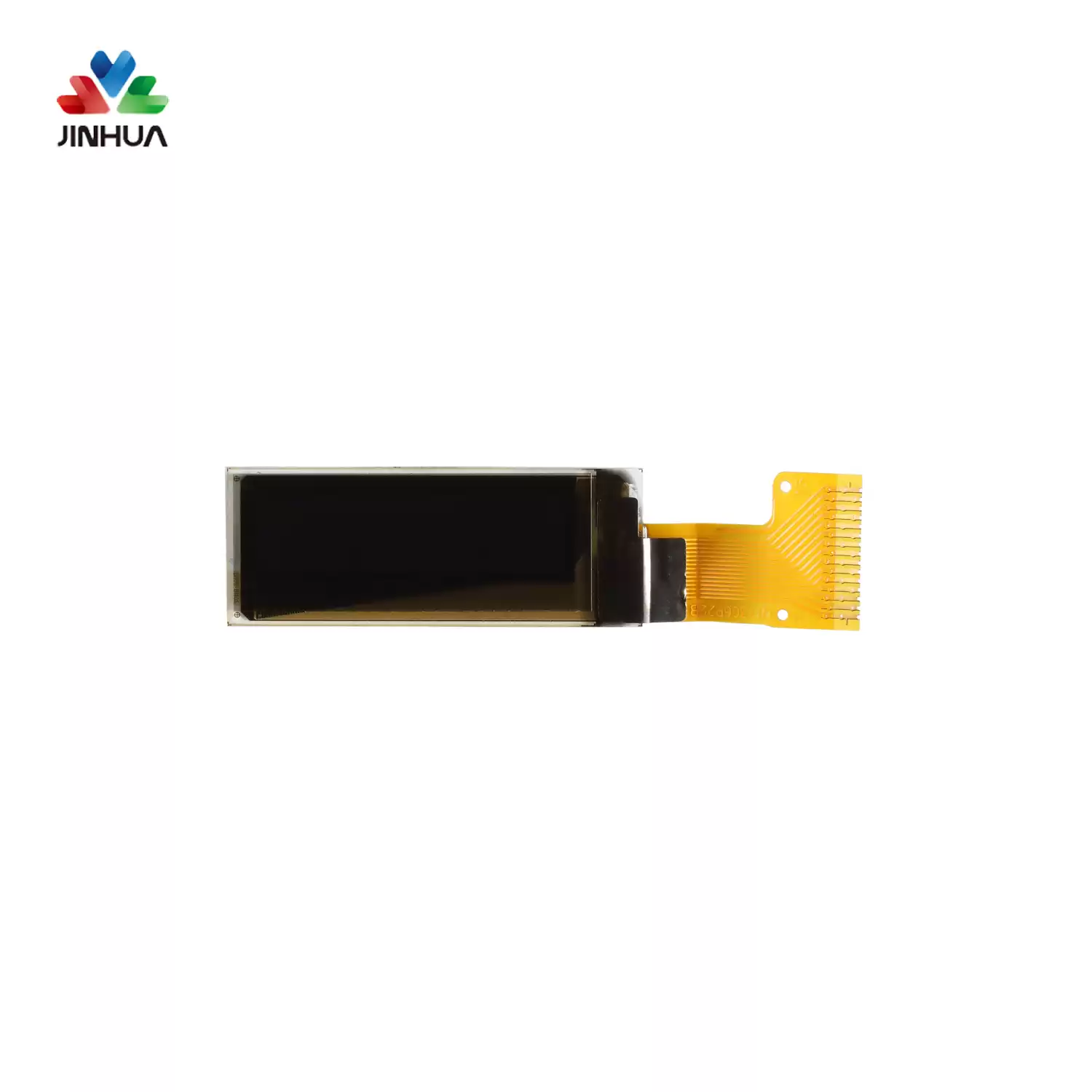

It is a 0.54 inch mini OLED module product with 96x32 dot resolution and I2C interface. The pixel size is 0.11x0.11mm by FPC connecting.

This 0.54 inch mini OLED module adopts CH1115 IC to realize display control. By using such kind of OLED diplay, it's ables to show different types of contents including digit and grahpic, etc.



Mini OLED Display
Product Parameters
Display Type OLED
Display Size 0.54 Inch
View Angle IPS
Dot Number 96x32
AA 12.46x4.14mm
Backlight Color White
Interface I2C
Control IC CH1155
Pixel Size  0.11x0.11mm
Pixel Pitch 0.13x0.13mm
Connector FPC
Working Temp. -40-70°C
Working Voltage 3.3V

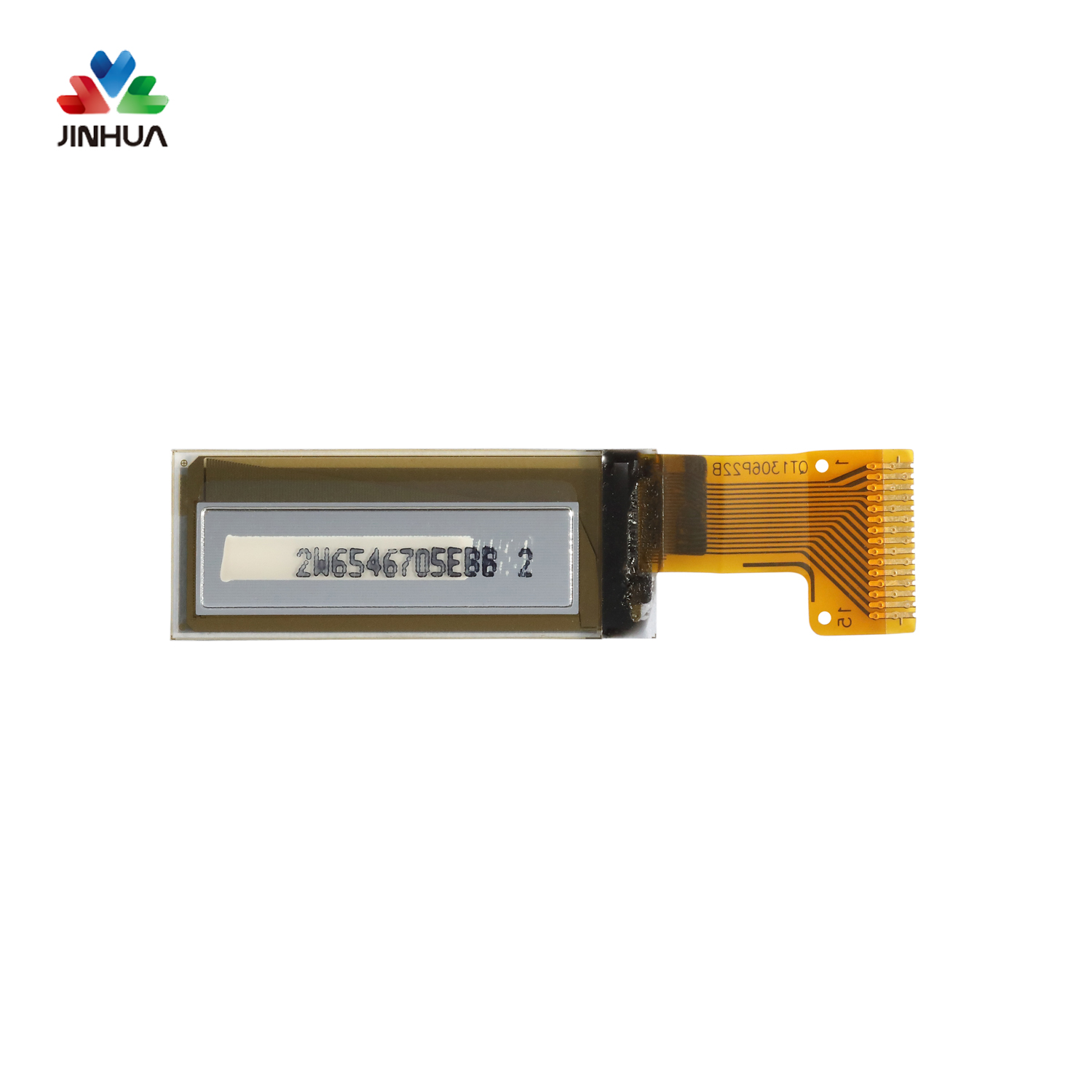

Detailed Picture


Features

Δ          Wide Viewing Angle
Δ          All Kinds Of Emitted Colors And Size
Δ          Low Power Consumption
Δ          Long Lifespan
Δ          RoHS Compliant
Δ          High Luminance
Δ          Wide Range Working Temperature



Application

Mini OLED display are extensively used in various fields such as industrial control, home appliance equipment, consumer electronics, medical instrument, etc.
