Product Name

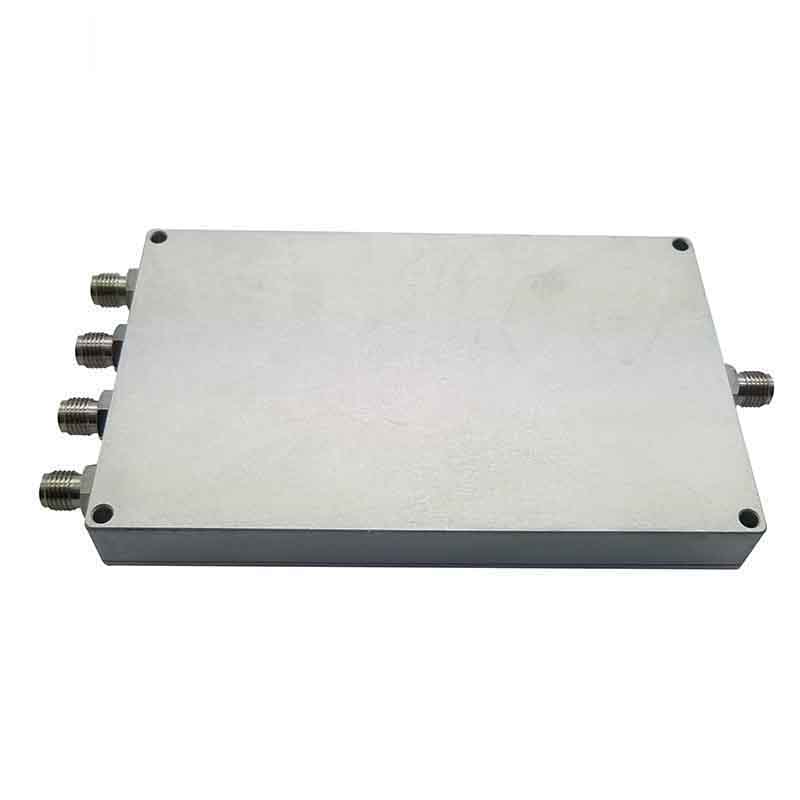

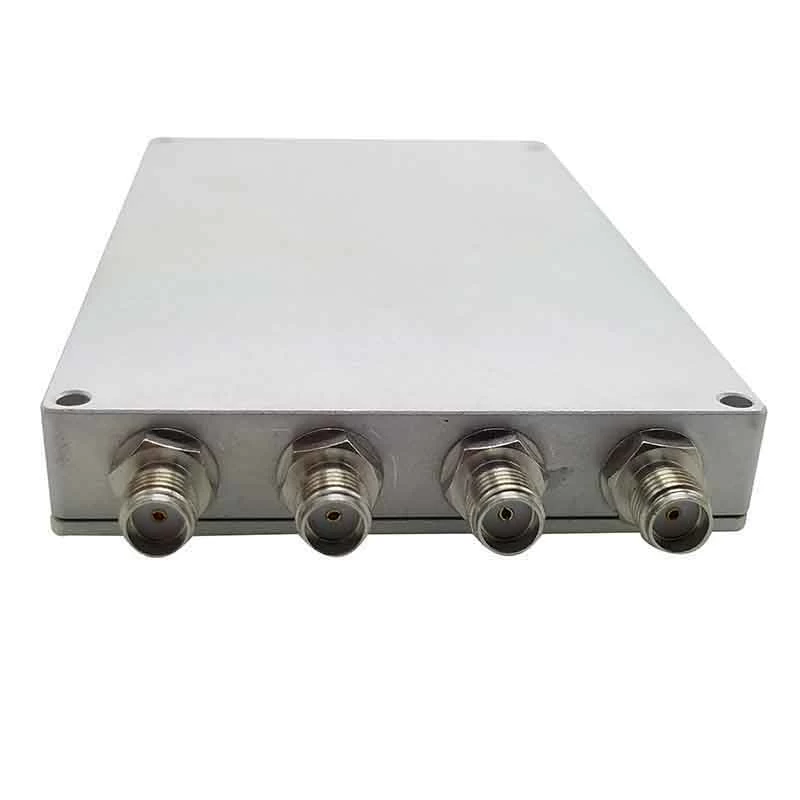

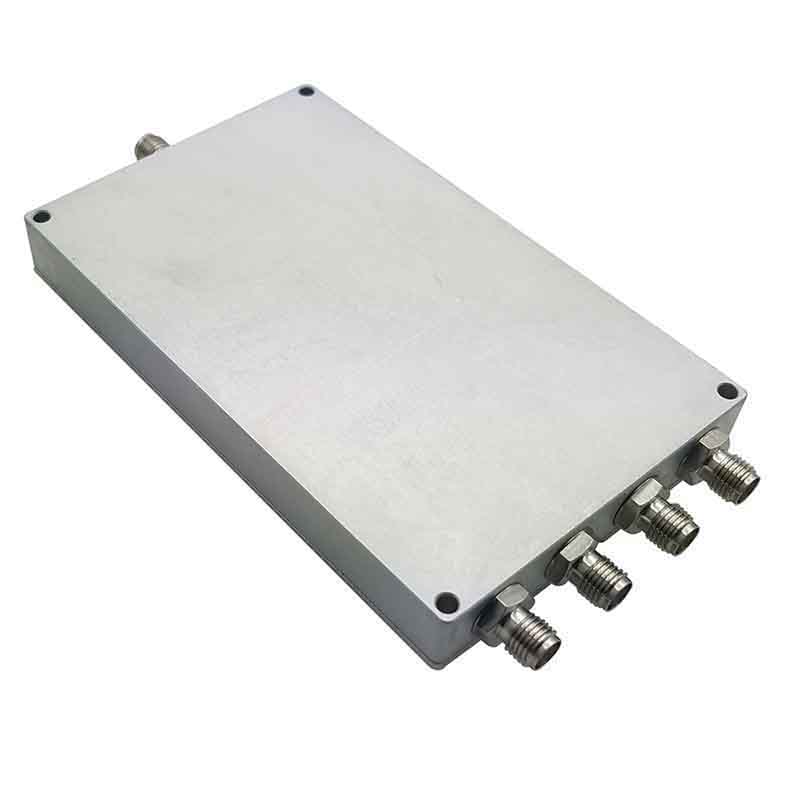

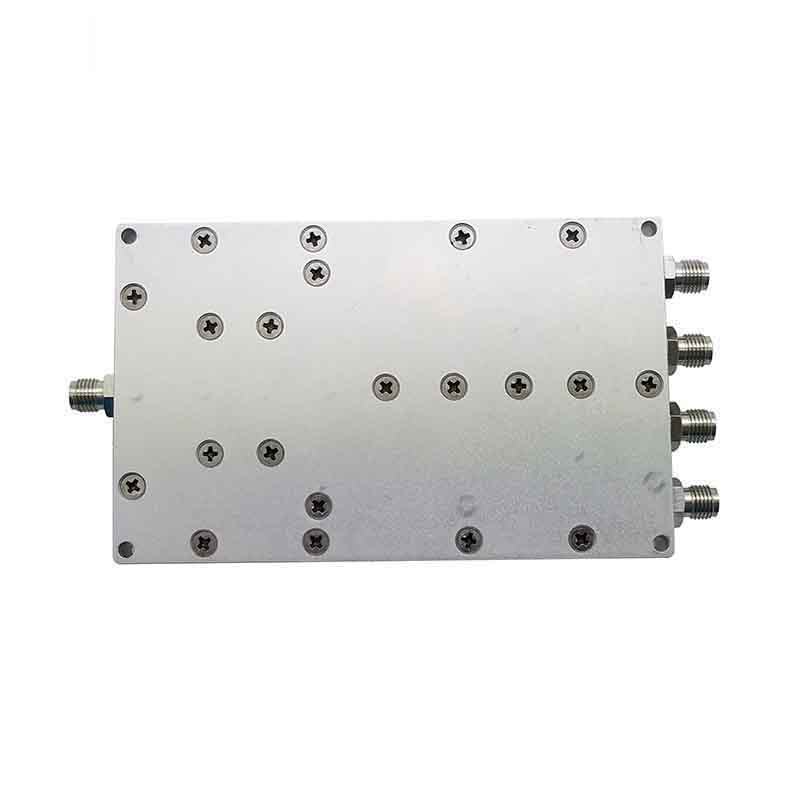

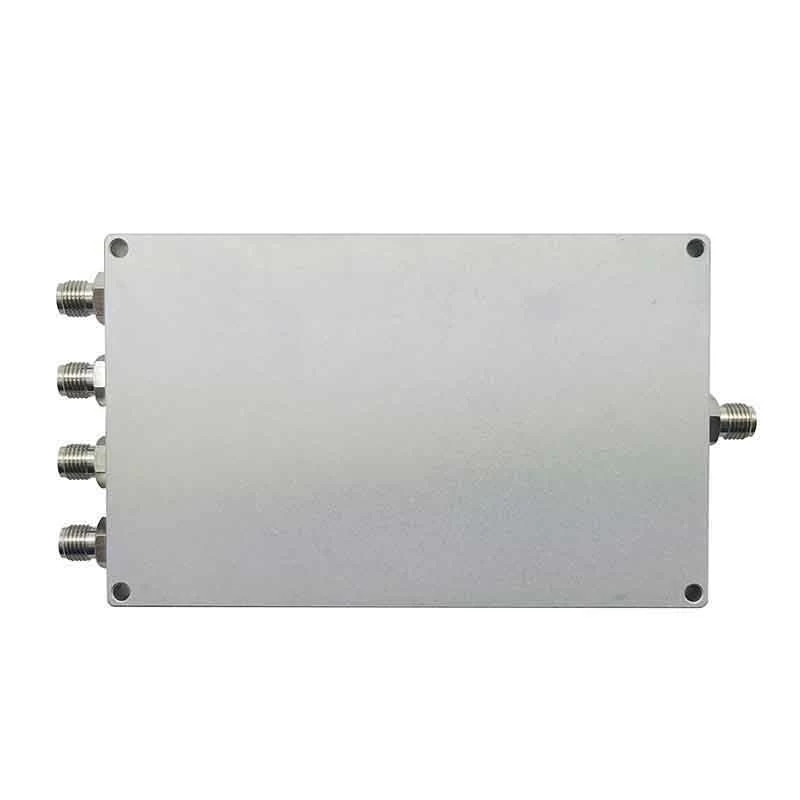

0.6-6GHz Wideband 4Way Wilkinson/Microstrip Power Splitter/Divider with SMA-F
2way,6way,8way wilkinson power dividers with coverage of 0.6-6GHz are also available.
Product Features
◆Low VSWR
◆ Low Insertion Loss
◆ Indoor Application
◆Widely used for In-building Solutions and high frequency equipements.

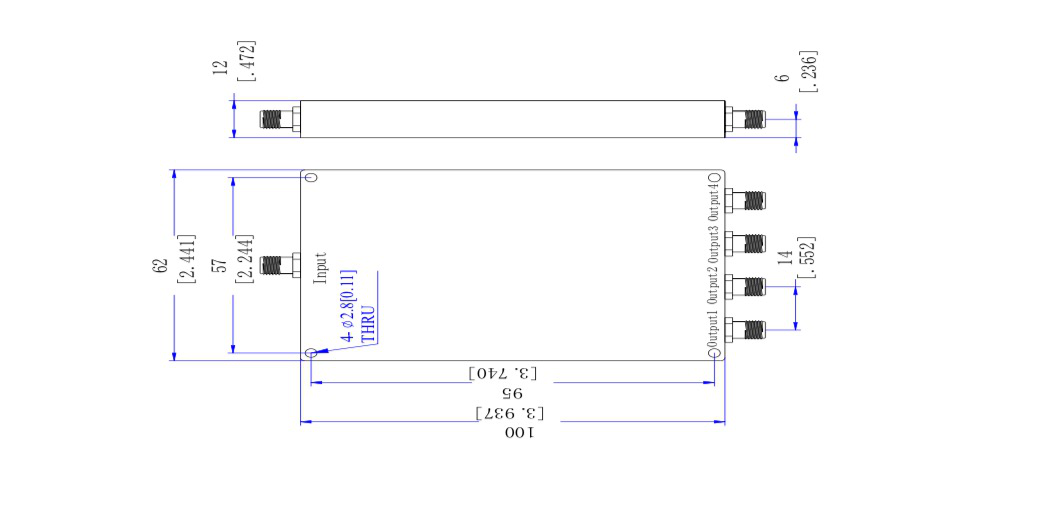

Technical &Mechanical Specifications
|
Frequency Range (GHz)
|
0.6-6G
|
|
Nominal Impedance (Ohm)
|
50
|
|
VSWR
|
1.3(in)/1.2(out)
|
|
IL(dB)
|
7.8
|
|
Isolation (dB)
|
20
|
|
Amplitude Balance (dB)
|
±0.4
|
|
Phase Balance (deg)
|
±4
|
|
Power Handing
|
30W Avg
|
|
Connector Type
|
5×SMA-Female
|
|
Color
|
Silver or Black
|
|
Operating Temperature (℃)
|
-40～+75
|
OUR SERVICES
1. Professional skills support for 0.6-6GHz Wideband
4Way Wilkinson/Microstrip Power Splitter/Divider with SMA-F
2. OEM services is available.
3. 24 hours you can contact our salesman and engineer.
4. We will try our best to provide support whatever you need and we can do.
NOTE:All the specifications can be changed as customer's requirment. Our company has a variety of products to choose
