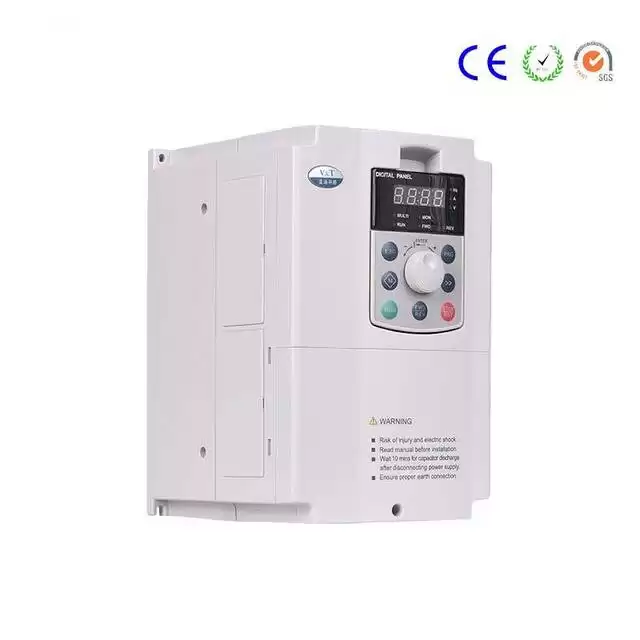

Product Overview
|
Item
|
Description
|
|
Product Name
|
Frequency Inverter/ AC Drive
|
|
Model Number
|
V6-H-4TxxG/xxL
|
|
Power Range
|
0.75kW-500kW
|
|
Rated Input Voltage
|
3 phase 380V/480V
|
|
Rated Output Voltage
|
3 phase 0 to rated input voltage
|
|
Input Frequency
|
50Hz/60Hz
|
|
Adaptable Motor
|
Asynchronous Motor
|
|
Control Mode
|
V/F Control, Vector Control, Sensorless Vector Control, Sensor Vector Control, Vector Torque Control
|
|
Communication
|
Modbus 485 RTU
|
|
IP Class
|
Standard IP20
|
|
Overload Capacity
|
150% 1 minute, 180% 10 seconds, 200% 0.5 second, interval: 10 minutes (inverse time lag feature)
|
Feature
■ Open - loop vector, Closed - loop vector, Open - loop torque, Closed - loop torque control.
■ High performance universal inverter operates stably without tripping under any acceleration and deceleration time and any impact load.
■ Real torque control is realized through the independent current loop control, and online switching between torque control and speed control is supported.
■ Independent input and output port of high speed pulse, which can realize high speed pulse cascade function.
■ Accurate speed identification and rotor flux orientation, the torque can also respond quickly and operate stably when a load of 0.25hz breaks.
■ High-precision current detection and protection, high-precision hall to detect output current, realization of fast real-time control and protection of software and hardware, and assurance of performance and reliability of the whole machine.
Model Explanation
Product Catalogue
V6−H−4T□□□G Three−phase 400V Constant torque/heavy−duty application
|
Power (kW)
|
0.75
|
1.5
|
2.2
|
3.7
|
5.5
|
7.5
|
11
|
15
|
18.5
|
22
|
30
|
37
|
45
|
55
|
75
|
|
Motor power (kW)
|
0.75
|
1.5
|
2.2
|
3.7
|
5.5
|
7.5
|
11
|
15
|
18.5
|
22
|
30
|
37
|
45
|
55
|
75
|
|
Output
|
Voltage (V)
|
Three-phase 0 to rated input voltage
|
|
Rated current (A)
|
2.5
|
3.8
|
5.5
|
9
|
13
|
17
|
24
|
30
|
39
|
45
|
60
|
75
|
91
|
112
|
150
|
|
Overload capacity
|
150% 1 minute, 180% 10 seconds, 200% 0.5 second, interval: 10 minutes (inverse time lag ;feature)
|
|
Input
|
Rated voltage/frequency
|
Three-phase 380V/480V; 50Hz/60Hz
|
|
Allowable voltage range
|
323V ~ 528V; Voltage imbalance ;≤3%; allowable frequency fluctuation: ±5%
|
|
Rated current (A)
|
2.8
|
4.2
|
6.1
|
10
|
15
|
19
|
26
|
33
|
43
|
50
|
66
|
83
|
100
|
123
|
165
|
|
Braking unit
|
Built-in as standard
|
Built-in as option
|
|
Protection class
|
IP20
|
|
Cooling mode
|
Natural−cooling
|
Forced air cooling
|
|
Power (kW)
|
90
|
110
|
132
|
160
|
185
|
200
|
220
|
250
|
280
|
315
|
355
|
400
|
450
|
500
|
|
|
Motor power (kW)
|
90
|
110
|
132
|
160
|
185
|
200
|
220
|
250
|
280
|
315
|
355
|
400
|
450
|
500
|
|
|
Output
|
Voltage (V)
|
Three-phase 0 to rated input voltage
|
|
Rated current (A)
|
176
|
210
|
253
|
304
|
350
|
380
|
426
|
470
|
520
|
600
|
650
|
690
|
775
|
860
|
|
|
Overload capacity
|
150% 1 minute, 180% 10 seconds, 200% 0.5 second, interval: 10 minutes (inverse time lag ;feature)
|
|
Input
|
Rated voltage/frequency
|
Three-phase 380V/480V; 50Hz/60Hz
|
|
Allowable voltage range
|
323V ~ 528V; Voltage imbalance ;≤3%; allowable frequency fluctuation: ±5%
|
|
Rated current (A)
|
160*
|
196*
|
232*
|
282*
|
326*
|
352*
|
385*
|
437*
|
491*
|
580*
|
624*
|
670*
|
755*
|
840*
|
|
|
Braking unit
|
External braking unit needed
|
|
Protection class
|
IP20
|
|
Cooling mode
|
Forced air cooling
|
*V6−H−4T90G and higher products are equipped with external DC reactor as standard.
V6−H−4T□□□L Three−phase 400V Variable torque/light−duty application
|
Power (kW)
|
1.5
|
2.2
|
3.7
|
5.5
|
7.5
|
11
|
15
|
18.5
|
22
|
30
|
37
|
45
|
55
|
75
|
90
|
|
Motor power (kW)
|
1.5
|
2.2
|
3.7
|
5.5
|
7.5
|
11
|
15
|
18.5
|
22
|
30
|
37
|
45
|
55
|
75
|
90
|
|
Output
|
Voltage (V)
|
Three-phase 0 to rated input voltage
|
|
Rated current (A)
|
3.3
|
5
|
7.5
|
11
|
17
|
22
|
30
|
37
|
44
|
56
|
72
|
91
|
110
|
142
|
176
|
|
Overload capacity
|
115% 1 minute, 160% 0.5 second, interval: 10 minutes (inverse time lag feature)
|
|
Input
|
Rated voltage/frequency
|
Three-phase 380V/480V; 50Hz/60Hz
|
|
Allowable voltage fluctuation range
|
323V ~ 528V; Voltage imbalance: ≤3%; allowable frequency fluctuation: ±5%
|
|
Rated current (A)
|
3.6
|
5.5
|
8.3
|
12
|
19
|
25
|
33
|
40
|
50
|
62
|
80
|
100
|
121
|
156
|
194
|
|
Braking unit
|
Built-in as standard
|
Built-in is optional
|
|
Protection class
|
IP20
|
|
Cooling mode
|
Natural cooling
|
Forced air cooling
|
|
Power (kW)
|
110
|
132
|
160
|
185
|
200
|
220
|
250
|
280
|
315
|
355
|
400
|
450
|
500
|
560
|
|
|
Motor power (kW)
|
110
|
132
|
160
|
185
|
200
|
220
|
250
|
280
|
315
|
355
|
400
|
450
|
500
|
560
|
|
|
Output
|
Voltage (V)
|
Three-phase 0 to rated input voltage
|
|
Rated current (A)
|
210
|
253
|
304
|
350
|
380
|
426
|
470
|
520
|
600
|
650
|
690
|
775
|
860
|
950
|
|
|
Overload capacity
|
115% 1 minute, 160% 0.5 second, interval: 10 minutes (inverse time lag feature)
|
|
Input
|
Rated voltage/frequency
|
Three-phase 380V/480V; 50Hz/60Hz
|
|
Allowable voltage range
|
323V ~ 528V; Voltage imbalance ;≤3%; allowable frequency fluctuation: ±5%
|
|
Rated current (A)
|
196*
|
232*
|
282*
|
326*
|
352*
|
385*
|
437*
|
491*
|
580*
|
624*
|
670*
|
755*
|
840*
|
920*
|
|
|
Braking unit
|
External braking unit needed
|
|
Protection class
|
IP20
|
|
Cooling mode
|
Forced air convection cooling
|
*V6−H−4T110L and higher power ;products are equipped with external DC reactor as standard.
V6−H−2T□□□G Three−phase 200V Constant torque/heavy−duty ;application
|
Power (kW)
|
0.4
|
0.75
|
1.5
|
2.2
|
|
Motor power (kW)
|
0.4
|
0.75
|
1.5
|
2.2
|
|
Output
|
Voltage (V)
|
Three−phase 0 to rated input voltage
|
|
Rated current (A)
|
3
|
5
|
7.5
|
10
|
|
Overload capacity
|
150% 1 minute, 180% 10 seconds, 200% 0.5 second, interval: 10 minutes ;(inverse time lag feature)
|
|
Input
|
Rated voltage/frequency
|
Three−phase or single−phase 200V~240V; 50Hz/60Hz
|
|
Allowable voltage range
|
180V ~ 260V; Voltage imbalance≤3%; allowable frequency fluctuation: ±5%
|
|
Rated current (A)
|
3.8
|
5.5
|
8.3
|
12
|
|
Braking unit
|
Built−in as standard
|
|
Protection class
|
IP20
|
|
Cooling mode
|
Natural−cooling
|
Forced air cooling
|
Technical Specification
|
Control characteristics
|
Control mode
|
Vector control 1
|
Vector control 2 (Without encoder)
|
Vector control 2 (With encoder )
|
|
Starting torque
|
0.50Hz 180%
|
0.25Hz 180%
|
0.00Hz 180%
|
|
Range of speed regulation
|
1:100
|
1:200
|
1:1000
|
|
Precision of steady speed
|
± 0.5%
|
± 0.2%
|
± 0.02%
|
|
Torque control
|
N
|
Y
|
Y
|
|
Precision of torque control
|
−
|
±5%
|
±5%
|
|
Torque response time
|
−
|
<20ms
|
<10ms
|
|
Product functions
|
Key functions
|
Under-voltage regulation, switchover of run command source(operation panel, terminal and communication), speed tracing function, torque limit, multi− step frequency reference(up to 23 step frequency), motor data identification, S curve acceleration and deceleration, slip compensation, PID regulation, droop control, current limit, switch-over between torque control and speed control, manual torque boost and auto torque boost, programmable digital inputs and programmable digital outputs
|
|
Frequency reference mode
|
Parameter setting, operation panel UP/DN, terminal, terminal UP/DN, communication, analog ( AI1/AI2/AI3), pulse DI , etc.
|
|
Frequency range
|
0.00 ~ 300.00Hz
Note:
In the control mode of vector control 1, frequency range from 0.0Hz to 3000.0Hz can be customized according to the customer demand
|
|
Start frequency
|
0.00 ~ 60.00Hz
|
|
Acceleration time and deceleration time
|
0.1 ~ 36000s
|
|
Dynamic braking
|
Braking unit action voltage: 650 ~ 750V; operating time: 100.0s
The braking unit can be built-in for V6−H−4T75G and below equipment
|
|
DC braking
|
DC braking start frequency: 0.00 ~ 300.00Hz
DC braking current: constant torque: 0.0 ~ 120.0%, variable torque: 0.0 ~ 90.0% DC braking time: 0.0 ~ 30.0s; DC braking function does not required waiting time to start to realize quick braking
|
|
Magnetic flux braking
|
Enabled or disabled during deceleration are optional, the default setting is enabled
|
|
Unique functions
|
Multi-function M key
|
The unique multi-function key can be set to frequently used operations: such as JOG, emergency stop, switchover of run command source, switchover of parameters display mode, etc.
|
|
Multiple parameters display modes
|
Basic parameters display mode, fast parameters display mode, non−factory setting parameters display mode, last changed 10 parameters display mode
|
|
Parameters copy
|
The standard operation panel can realize the parameters upload, download and display the copy progress. Users can set to forbid overwriting the
uploaded parameters
|
|
Displayed and hidden parameters group
|
The customer can select to display or hide the parameters group by themselves
|
|
Dual 485 communication ports
|
Dual 485 communication ports support Modbus protocol (RTU). The maximum distance is 500 meters
|
Installation dimension
V6−H−2T0.4G～V6−H−2T2.2G、V6−H−4T7.5G/11L And below power class
V6−H−4T11G/15L ;And above power class
Product appearance, installation dimensions, approximate weight
|
Voltage
|
Model
|
Appearance, installation dimension（mm）
|
weight（kg）
|
|
W
|
H
|
D
|
W1
|
H1
|
D1
|
T1
|
Hole d
|
|
200V
|
V6−H−2T0.4G
|
118
|
190
|
155
|
105
|
173
|
40.8
|
3
|
5.5
|
1.5
|
|
V6−H−2T0.75G
|
175
|
60.5
|
4
|
2.2
|
|
V6−H−2T1.5G
|
155
|
40.8
|
3
|
1.5
|
|
V6−H−2T2.2G
|
175
|
60.5
|
4
|
2.2
|
|
400V
|
V6−H−4T0.75G/1.5L
|
118
|
190
|
155
|
105
|
173
|
40.8
|
3
|
5.5
|
1.5
|
|
V6−H−4T1.5G/2.2L
|
118
|
190
|
175
|
105
|
173
|
60.5
|
4
|
5.5
|
2.6
|
|
V6−H−4T2.2G/3.7L
|
|
V6−H−4T3.7G/5.5L
|
|
V6−H−4T5.5G/7.5L
|
155
|
249
|
185
|
136
|
232
|
69
|
8
|
5.5
|
4.5
|
|
V6−H−4T7.5G/11L
|
|
V6−H−4T11G/15L
|
210
|
337
|
200
|
150
|
324
|
88
|
2
|
7
|
8.5
|
|
V6−H−4T15G/18.5L
|
|
V6−H−4T18.5G/22L
|
289
|
440
|
215
|
200
|
425
|
88
|
2.5
|
7
|
17
|
|
V6−H−4T22G/30L
|
|
V6−H−4T30G/37L
|
|
V6−H−4T37G/45L
|
319
|
575
|
212
|
220
|
553
|
90.5
|
2.5
|
10
|
25
|
|
V6−H−4T45G/55L
|
|
V6−H−4T55G/75L
|
404
|
615
|
255
|
270
|
590
|
86.5
|
3.0
|
10
|
35
|
|
V6−H−4T75G/90L
|
|
V6−H−4T90G
V6−H−4T110L
|
465
|
745
|
325
|
343
|
715
|
151.5
|
3.0
|
12
|
55
|
|
V6−H−4T110G
V6−H−4T132L
|
|
V6−H−4T132G
V6−H−4T160L
|
540
|
890
|
385
|
370
|
855
|
205.5
|
4.0
|
14
|
85
|
|
V6−H−4T160G
V6−H−4T185L
|
|
V6−H−4T185G
V6−H−4T200L
|
|
V6−H−4T200G
V6−H−4T220L
|
|
V6−H−4T220G
V6−H−4T250L
|
700
|
1010
|
385
|
520
|
977
|
210
|
4.0
|
14
|
125
|
|
V6−H−4T250G
V6−H−4T280L
|
|
V6−H−4T280G
V6−H−4T315L
|
|
V6−H−4T315G
V6−H−4T355L
|
810
|
1358
|
425
|
520
|
1300
|
210
|
4.0
|
14
|
215
|
|
V6−H−4T355G
V6−H−4T400L
|
|
400V
|
V6−H−4T400G
V6−H−4T450L
|
810
|
1358
|
425
|
520
|
1300
|
210
|
4.0
|
14
|
215
|
|
V6−H−4T450G
V6−H−4T500L
|
|
V6−H−4T500G
V6−H−4T560L
|
Applications
Representative Industry
Shenzhen V&T Technologies Co.,Ltd. variable frequency drive (VFD) Printing Packaging, Petrochemical, Textile, Cable Machinery, Food Packaging, Electric Vehicles, Plastic Machinery, Metal Products Equipment, Centrifuges and High-end applications requiring closed-loop vector or torque control.
