Product Overview
|
Item
|
Description
|
|

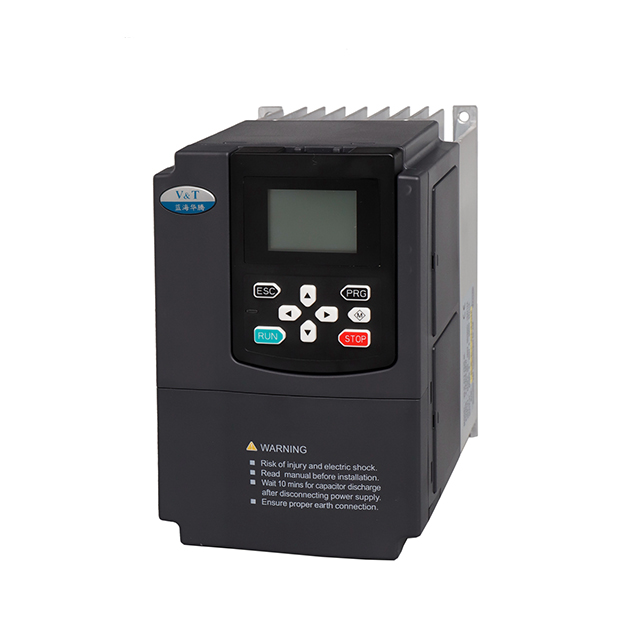

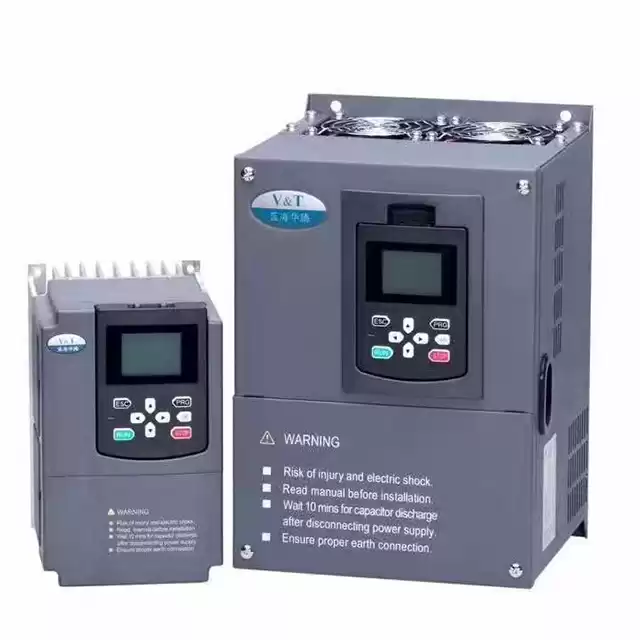

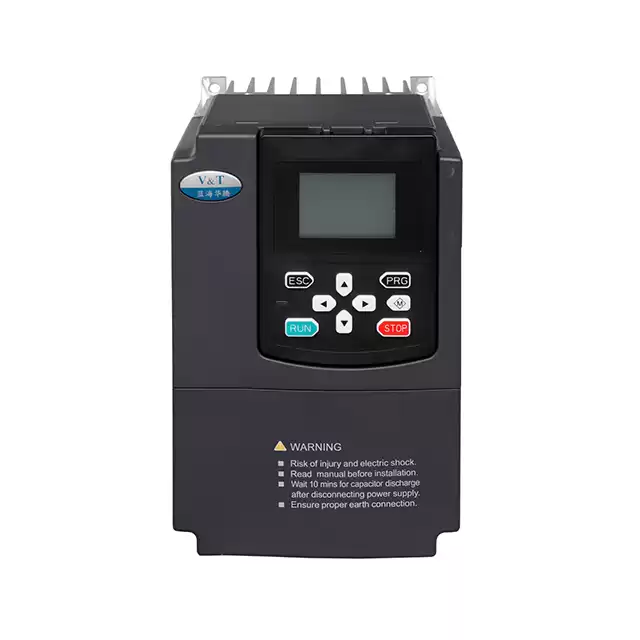

Product Name
|
Frequency Inverter/ AC Drive
|
|
Model Number
|
V9-H-4TxxG/xxL
|
|
Power Range
|
0.75kW-630kW
|
|
Rated Input Voltage
|
3 phase 380V/480V
|
|
Rated Output Voltage
|
3 phase 0 to rated input voltage
|
|
Input Frequency
|
50Hz/60Hz
|
|
Adaptable Motor
|
Asynchronous Motor, Synchronous Motor
|
|
Control Mode
|
V/F Control, Vector Control, Sensorless Vector Control, Sensor Vector Control, Vector Torque Control
|
|
Communication
|
Modbus 485 RTU, CANOpen, Profibus-DP, Profinet
|
|
IP Class
|
Standard IP20
|
|
Overload Capacity
|
150% 1 minute, 180% 10 seconds, 200% 0.5 second, interval: 10 minutes (inverse time lag feature)
|
Feature
■ Fast and accurate motor parameter self-learning, suitable for a variety of motors: synchronous/asynchronous/reluctance/high-speed/torque motor, VF vector encoder closed loop integrated
■ Asynchronous and non-inductive VF control, 200% torque output at 0.25Hz in electric state, 200% torque output at 1Hz in power generation state
■ Good voltage and current control, high speed, high frequency, deep field weakening, wave-by-wave current limiting, multiple protections
■ Modular compact structure design, high power density
■ Support multiple encoders and multiple high-speed communication protocols
■ Integrated drive and control, expandable PLC and motion control card
■ Multiple language keyboard, friendly interface, reliable and easy to use
Model Explanation

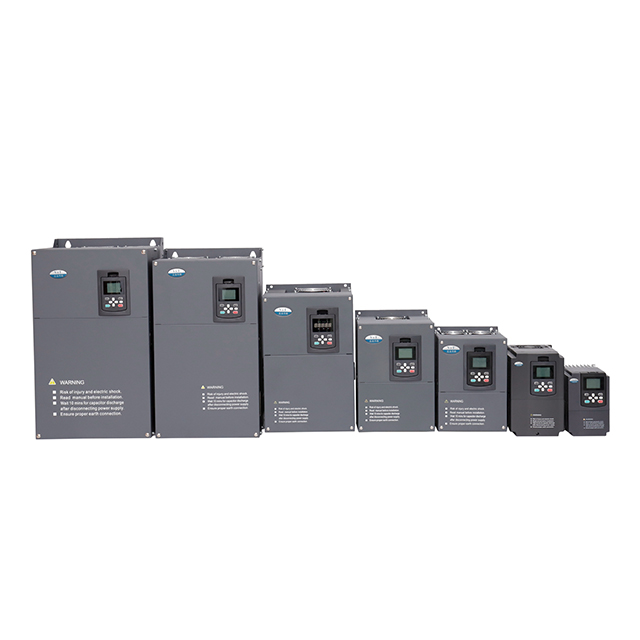

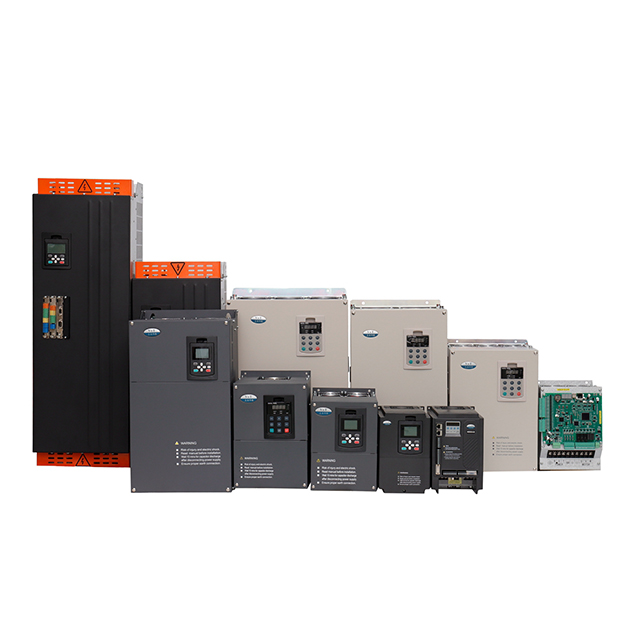

Product Catalogue
V9−H−4T□□□G Three-phase 400V constant torque / heavy duty ;application
|
Power（kW）
|
0.75
|
1.5
|
2.2
|
3.7
|
5.5
|
7.5
|
11
|
15
|
18.5
|
22
|
30
|
37
|
45
|
55
|
75
|
90
|
110
|
|
Motor power (kW)
|
0.75
|
1.5
|
2.2
|
3.7
|
5.5
|
7.5
|
11
|
15
|
18.5
|
22
|
30
|
37
|
45
|
55
|
75
|
90
|
110
|
|
Output
|
Voltage (V)
|
3-phase 0 -rated input voltage
|
|
Rated current (A)
|
2.5
|
3.8
|
5.5
|
9
|
13
|
17
|
24
|
30
|
39
|
45
|
60
|
75
|
91
|
112
|
150
|
176
|
210
|
|
Overloa capability
|
150% 1min,180% 10s, 200% 0.5s,10min interval (Inverse-time characteristic)
|
|
Input
|
Rated voltage / frequency
|
3-phase 380V-480V;50Hz/60Hz
|
|
Allowabl voltage
|
323V-528V;degree of voltage unbalance:≤3%;allowable frequency fluctuations:±5%
|
|
Rated current (A)
|
2.8
|
4.2
|
6.1
|
10
|
15
|
19
|
26
|
33
|
43
|
50
|
66
|
83
|
100
|
123
|
165
|
194
|
231
|
|
Brake unit
|
Standard built-in
|
Built-in brake unit is optional
|
|
Protection level
|
IP20
|
|
Cooling method
|
Self−cooling
|
Forced cooling
|
|
Power（kW）
|
132
|
160
|
185
|
200
|
220
|
250
|
280
|
315
|
355
|
400
|
450
|
500
|
560
|
630
|
|
Motor power (kW)
|
132
|
160
|
185
|
200
|
220
|
250
|
280
|
315
|
355
|
400
|
450
|
500
|
560
|
630
|
|
Output
|
Voltage (V)
|
3-phase 0 -rated input voltage
|
|
Rated current (A)
|
253
|
304
|
350
|
380
|
426
|
470
|
520
|
600
|
650
|
690
|
775
|
860
|
950
|
1100
|
|
Overload
capability
|
150% 1min,180% 10s, 200% 0.5s,10min interval (Inverse-time characteristic)
|
|
Input
|
Rated voltage / frequency
|
3-phase 380V-480V;50Hz/60Hz
|
|
Allowable voltage
|
323V-528V;degree of voltage unbalance:≤3%;allowable frequency fluctuations:±5%
|
|
Rated current (A)
|
232
|
282
|
326
|
352
|
385
|
437
|
491
|
580
|
624
|
670
|
755
|
840
|
920
|
1050
|
|
Brake unit
|
External braking unit needed
|
|
Protection level
|
IP20
|
|
Cooling method
|
Forced cooling
|
Note：* 0.75kW～15kW：no built-in DC reactor ;
18.5kW～110kW：optional DC reactor ;
132kW～160kW：standard built-in DC reactor ;
185kW～500kW：standard external DC reactor
560kW～630kW：standard built-in AC input reactor
Higher power level product can be customized
220V, 690V, 1140V and other voltage level inverters can be ;customized
V9−H−4T□□□L Three−phase 400V Variable torque/light−duty Application
|
Power（kW）
|
1.5
|
2.2
|
3.7
|
5.5
|
7.5
|
11
|
15
|
18.5
|
22
|
30
|
37
|
45
|
55
|
75
|
90
|
110
|
132
|
|
Motor power (kW)
|
1.5
|
2.2
|
3.7
|
5.5
|
7.5
|
11
|
15
|
18.5
|
22
|
30
|
37
|
45
|
55
|
75
|
90
|
110
|
132
|
|
Output
|
Voltage(V)
|
3-phase 0 -rated input voltage
|
|
Rated current (A)
|
3.3
|
5
|
7.5
|
11
|
17
|
22
|
29
|
35
|
45
|
57
|
70
|
91
|
110
|
144
|
180
|
216
|
242
|
|
Overload capability
|
120% 1min,160% 0.5s,10min interval (Inverse-time characteristic)
|
|
Input
|
Rated voltage /frequency
|
3-phase 380V-480V;50Hz/60Hz
|
|
Allowable
voltage
|
323V-528V;degree of voltage unbalance:≤3%;allowable frequency fluctuations:±5%
|
|
Rated current (A)
|
3.6
|
5.5
|
8.3
|
12
|
19
|
25
|
32
|
39
|
50
|
61
|
77
|
100
|
121
|
158
|
198
|
238
|
266
|
|
Brake unit
|
Standard built-in
|
Built-in brake unit is optional
|
|
Protection level
|
IP20
|
|
Cooling method
|
Self−cooling
|
Forced cooling
|
|
Power（kW）
|
160
|
185
|
200
|
220
|
250
|
280
|
315
|
355
|
400
|
450
|
500
|
560
|
630
|
710
|
|
Motor power (kW)
|
160
|
185
|
200
|
220
|
250
|
280
|
315
|
355
|
400
|
450
|
500
|
560
|
630
|
710
|
|
Output
|
Voltage (V)
|
3-phase 0 -rated input voltage
|
|
Rated current
(A)
|
325
|
365
|
405
|
440
|
495
|
547
|
610
|
695
|
770
|
866
|
950
|
1100
|
1200
|
1300
|
|
Overload capability
|
120% 1min,160% 0.5s,10min interval (Inverse-time characteristic)
|
|
Input
|
Rated voltage /frequency
|
3-phase 380V-480V;50Hz/60Hz
|
|
Allowabl
voltage
|
323V-528V;degree of voltage unbalance:≤3%;allowable frequency fluctuations:±5%
|
|
Rated current (A)
|
282
|
326
|
352
|
385
|
437
|
491
|
580
|
670
|
755
|
840
|
920
|
1050
|
1150
|
1250
|
|
Brake unit
|
External braking unit needed
|
|
Protection level
|
IP20
|
|
Cooling method
|
Forced cooling
|
Note: * 1.5kW - 18.5kW: no built-in DC reactor ;
22kW～132kW: optional DC reactor ;
160kW～185kW: standard built-in DC reactor ;
200kW～560kW: standard external DC reactor ;
630kW～710kW: standard built-in AC input reactor
Higher power level product can be customized ;
220V, 690V, 1140V and other voltage level inverters can be customized
Technical Specification
|
Control characteristics
|
Control mode
|
Sensor-less control
|
Sensor control
|
|
Applicable motor type
|
Synchronous motor
Asynchronous motor
|
Synchronous motor
Asynchronous motor
|
|
Starting torque
|
● Asynchronous motor:
200% of rated torque at 0.25Hz
● Synchronous motor:
150% of rated torque at 1.5% of rated speed
|
200% of rated torque at 0 speed
|
|
Speed regulation range
|
1:200
|
1:5000
|
|
Steady speed precision
|
± 0.5%
|
± 0.02%
|
|
Maximum speed
|
VF control: 600Hz
Vector control: 600 Hz ;
Note: Higher frequency products can be customized
|
600Hz
Note: Higher frequency products can be customized
|
|
Torque control
|
Y
|
Y
|
|
Torque control precision
|
±5%
|
±3%
|
|
Torque response time
|
<20ms
|
<10ms
|
|
Positioning control
|
N
|
Y
|
|
Positioning ;precision
|
N
|
±1 ;pulse
|
|
Product function
|
Key function
|
Torque limit, speed control, positioning control, motor auto tune, deep flux-weakening ;control, current limit control, over-voltage control, under-voltage control, motor speed tracing function, droop control, oscillation suppression, random carrier frequency, inertia auto-tune, etc.
|
|
Speed reference source
|
Modbus communication, Keypad, external digital input, analog ;AI1/AI2/AI3, high speed pulse input, simple PLC, PID, CAN, PROFIBUS DP, PROFINET, etc.
|
|
Dynamic brake
|
Brake unit action voltage: 650 ~ 750V.
The brake unit can be built-in for 110kW and below equipment
● 0.75~15kW: brake ;unit is built- in as standard.
● 18.5~110kW: ;brake unit is built- in as optional.
|
|
Communication
|
Built-in Modbus-RTU communication, the maximum distance up to 500 meters.
|
|
Keypad
|
LED Keypad and LCD Keypad are optional
the Keypad can be used as remote-control box via straight-through wired cable. ;
|
|
Common DC bus
|
Support common DC bus directly
|
|
Independent air duct
|
All series product adopts independent duct design
|
|
Protection function
|
Power supply under-voltage, over-current protection, over-voltage protection, auto-tune fault, module protection, heat-sink overtemperature ;protection, drive overload protection, motor overload protection, peripheral protection, current abnormal ;detection, output short-circuit ;to ;ground protection, EEPROM abnormal detection, temperature sampling disconnection, encoder disconnection, analog input abnormal detection, motor overtemperature, communication fault, hardware overload protection, etc.
|
|
Efficiency
|
At rating condition:
● 0.75kW to 7.5kW: ≥93%
● 11kW to 45kW: ≥95%
● 55kW and higher power class: ;≥98%
|
|
Environment
|
Operating site
|
● Install vertically in a well-ventilated electrical cabinet. Horizontal or other installation methods are not allowed.
● The cooling medium is air.
● Installed in an environment free from direct sunlight, dust, corrosive gases, flammable gases, no oil mist, no steam, no dripping.
|
|
Ambient temperature
|
● −10～+40℃
● Derating use when the temperature between 40 to 50℃, the rated output current is reduced by 1% for every 1 °C increasing.
|
|
Humidity
|
5～95%, no condensation is allowed.
|
|
Altitude
|
● 0～2000 ;meters
● Derating use when the altitude over 1000 meters, the rated output current is reduced by 1% for every 100-meter rising.
|
|
Vibration
|
● 3.5 m/s2, 2～9Hz
● 10 m/s2, 9～200Hz
● 15 m/s2, 200～500Hz
|
|
Storage temperature
|
−40～+70℃.
|
Installation dimension
V9−H−4T7.5G/11L and below power class
V9−H−4T11G/15L and above power class
|
Voltage
|
Model
|
Outline and mounting dimension (mm)
|
Weight
(kg)
|
|
W
|
H
|
D
|
W1
|
H1
|
T1
|
Mounting hole
diameter d
|
|
400V
|
V9−H−4T0.75G/1.5L
|
118
|
190
|
155
|
105
|
173
|
3
|
5.5
|
1.5
|
|
V9−H−4T1.5G/2.2L
|
118
|
190
|
175
|
105
|
173
|
4
|
5.5
|
2.6
|
|
V9−H−4T2.2G/3.7L
|
|
V9−H−4T3.7G/5.5L
|
|
V9−H−4T5.5G/7.5L
|
155
|
249
|
185
|
136
|
232
|
8
|
5.5
|
3
|
|
V9−H−4T7.5G/11L
|
|
V9−H−4T11G/15L
|
198
|
299
|
190
|
160
|
283
|
1.2
|
6
|
8
|
|
V9−H−4T15G/18.5L
|
|
V9−H−4T18.5G/22L
|
223
|
348
|
208
|
195
|
335
|
1.5
|
6
|
10
|
|
V9−H−4T22G/30L
|
|
V9−H−4T30G/37L
|
264
|
430
|
235
|
230
|
418
|
1.5
|
7
|
18
|
|
V9−H−4T37G/45L
|
|
V9−H−4T45G/55L
|
305
|
545
|
270
|
245
|
523
|
1.5
|
10
|
35
|
|
V9−H−4T55G/75L
|
|
V9−H−4T75G/90L
|
338
|
580
|
310
|
270
|
560
|
1.5
|
10
|
52
|
|
V9−H−4T90G/110L
|
|
V9−H−4T110G/132L
|
|
V9−H−4T132G/160L
|
400
|
917
|
323
|
320
|
890
|
3.0
|
12
|
75
|
|
V9−H−4T160G/185L
|
|
V9−H−4T185G/200L
|
540
|
890
|
385
|
370
|
855
|
4.0
|
14
|
85
|
|
V9−H−4T200G/220L
|
|
V9−H−4T220G/250L
|
540
|
890
|
416
|
370
|
855
|
4.0
|
14
|
85
|
|
V9−H−4T250G/280L
|
700
|
1010
|
385
|
520
|
977
|
4.0
|
14
|
125
|
|
V9−H−4T280G/315L
|
|
V9−H−4T315G/355L
|
700
|
1010
|
418.5
|
520
|
977
|
4.0
|
14
|
125
|
|
V9−H−4T355G/400L
|
810
|
1358
|
425
|
520
|
1300
|
4.0
|
14
|
215
|
|
V9−H−4T400G/450L
|
810
|
1358
|
425
|
520
|
1300
|
4.0
|
14
|
215
|
|
V9−H−4T450G/500L
|
|
V9−H−4T500G/560L
|
Applications

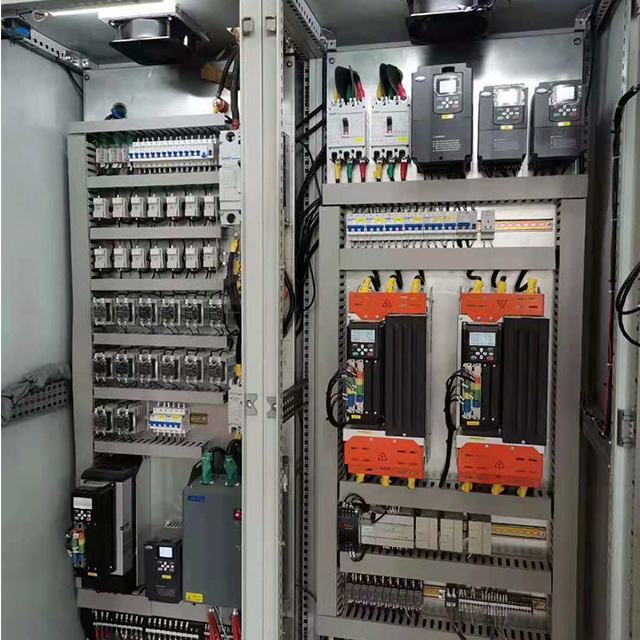

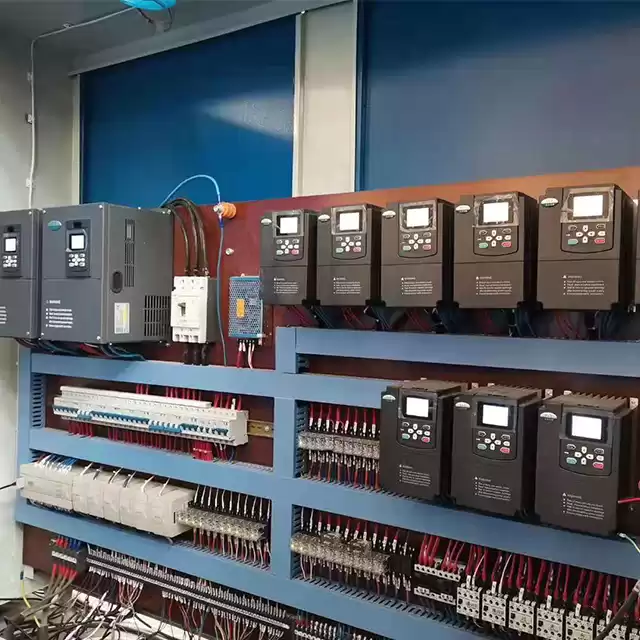

Representative Industry
Whenever a load has either a variable torque or a variable speed, a VFD should be considered to control torque and speed. V9 series universal speed AC drive of Shenzhen V&T Technologies Co.,Ltd. is suitable for Printing Packaging, Petrochemical, Textile, Cable Machinery, Food Packaging, Electric Vehicles, Plastic Machinery, Metal ;Products Equipment, Centrifuges and High-end applications requiring closed-loop vector or torque control.
