Control characteristics
|
Control mode
|
Sensor-less control
|
Sensor control
|
|
Applicable motor type
|
Synchronous motor
Asynchronous motor
|
Synchronous motor
Asynchronous motor
|
|
Starting torque
|
● Asynchronous ;motor:
200% of rated torque at 0.25Hz
● Synchronous ;motor:
150% of rated torque at 1.5% of rated speed
|
200% of rated torque at 0 speed
|
|
Speed regulation range
|
1:200
|
1:5000
|
|
Steady speed precision
|
± 0.5%
|
± 0.02%
|
|
Maximum speed
|
VF control: 600Hz; Vector control: 600 Hz ;
Note: Higher frequency products can be customized
|
600Hz
Note: Higher frequency products can be customized
|
|
Torque control
|
Y
|
Y
|
|
Torque control precision
|
±5%
|
±3%
|
|
Torque response time
|
<20ms
|
<10ms
|
|
Positioning control
|
N
|
Y
|
|
Positioning ;precision
|
N
|
±1 ;pulse
|
|
Product function
|
Key function
|
Torque limit, speed control, positioning control, motor auto tune, deep flux-weakening ;control, current limit control, over-voltage control, under-voltage control, motor speed tracing function, droop control, oscillation suppression, random carrier frequency, inertia auto-tune, etc.
|
|
Speed reference source
|
Modbus communication, Keypad, external digital input, analog ;AI1/AI2/AI3, high speed pulse input, simple PLC, PID, CAN, PROFIBUS DP, PROFINET, EtherCAT, etc.
|
|
Dynamic brake
|
Brake unit action voltage: 650 ~ 750V.
The brake ;unit can be built-in for 110kW and below equipment
● 5.5~30kW: brake ;unit is built- in as standard.
● 37~110kW: ;brake unit is built- in as optional.
|
|

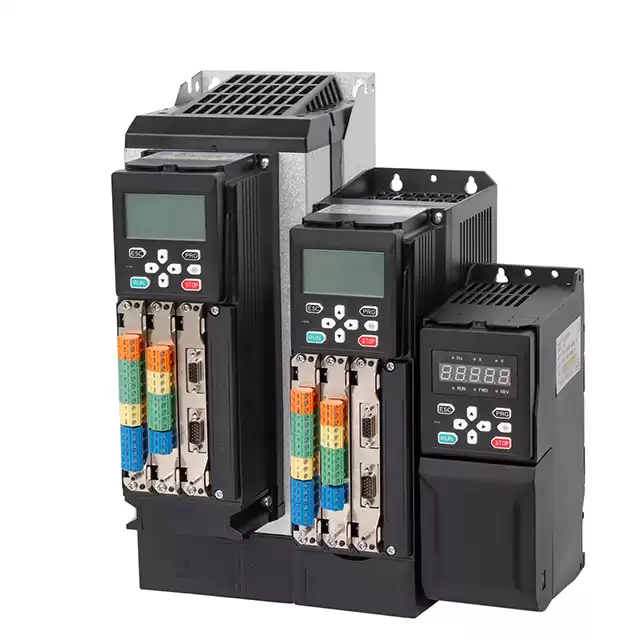

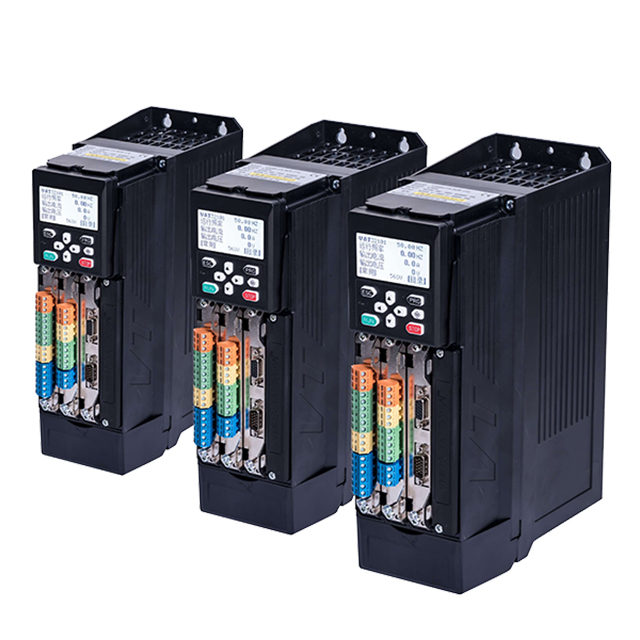

Communication
|
Built-in modbus-RTU communication, the maximum distance up to 500 meters. It can switch to CAN by jumper.
EtherCAT, PROFIBUS ;DP and PROFINET are optional.
|
|

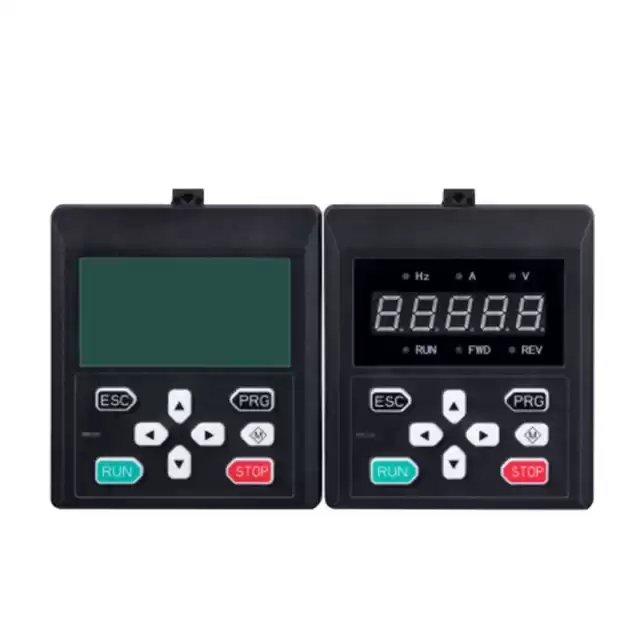

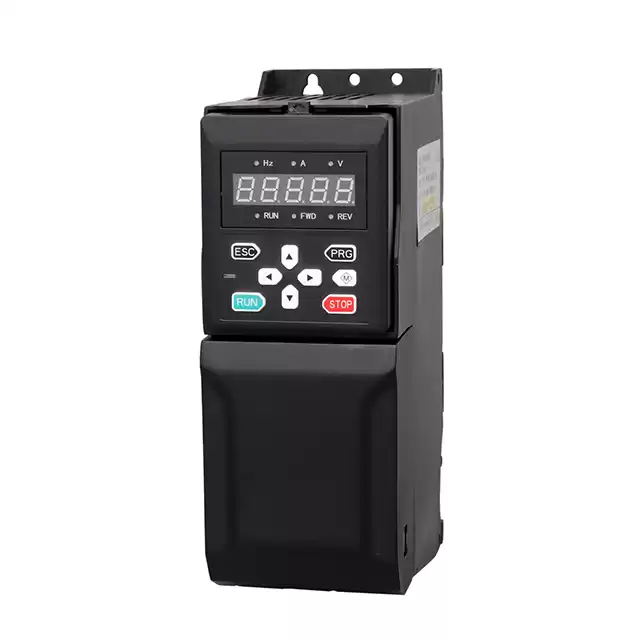

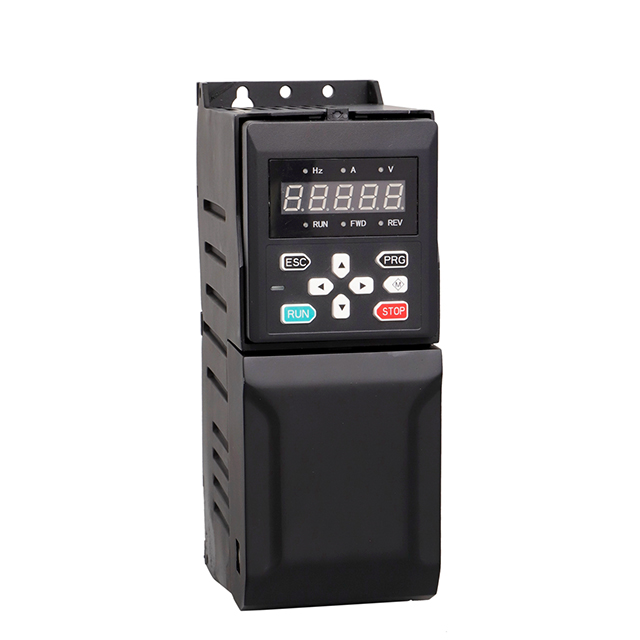

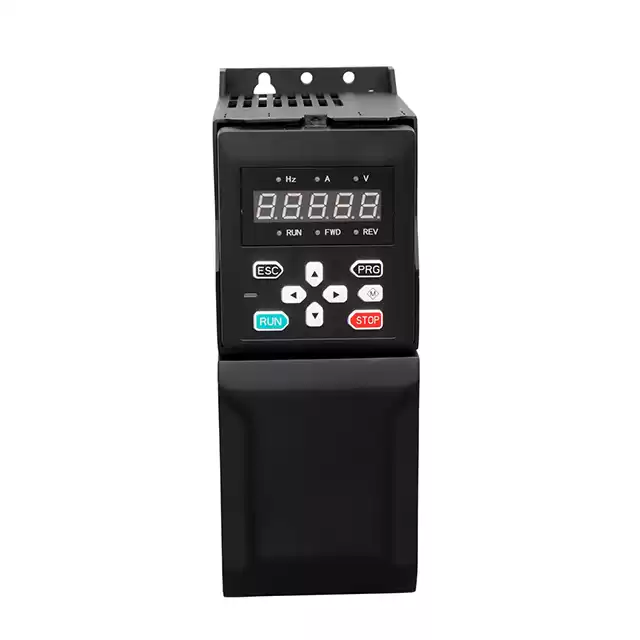

Keypad
|
LED Keypad and LCD Keypad are optional
the Keypad can be used as remote-control box via straight-through wired cable. ;
|
|
Common DC bus
|
75kW~160kW: required pre-charge circuit to realized common DC bus
Other power level drive: support common DC bus directly
|
|
Independent air duct
|
All series product adopts independent duct design
|
|
Protection function
|
Power supply under-voltage, over-current protection, over-voltage protection, auto-tune fault, module protection, heat-sink overtemperature ;protection, drive overload protection, motor overload protection, peripheral protection, current abnormal ;detection, output short-circuit ;to ;ground protection, EEPROM abnormal detection, temperature sampling disconnection, encoder disconnection, analog input abnormal detection, motor overtemperature, communication fault, hardware overload protection, etc.
|
|
Efficiency
|
At rating condition:
● 0.75kW to 7.5kW: ≥93%
● 11kW to 45kW: ≥95%
● 55kW and higher power class: ;≥98%
|
|
Environment
|
Operating site
|
● Install vertically in a well-ventilated electrical cabinet. Horizontal or other installation methods are not allowed.
● The cooling medium is air.
● Installed in an environment free from direct sunlight, dust, corrosive gases, flammable gases, no oil mist, no steam, no dripping.
|
|
Ambient temperature
|
● −10～+40℃
● Derating use when the temperature between 40 to 50℃, the rated output current is reduced by 1% for every 1 °C increasing.
|
|
Humidity
|
5～95%, no condensation is allowed.
|
|
Altitude
|
● 0～2000 ;meters
● Derating use when the altitude over 1000 meters, the rated output current is reduced by 1% for every 100-meter rising.
|
|
Vibration
|
● 3.5 m/s2, 2～9Hz
● 10 m/s2, 9～200Hz
● 15 m/s2, 200～500Hz
|
|
Storage temperature
|
−40～+70℃.
|
