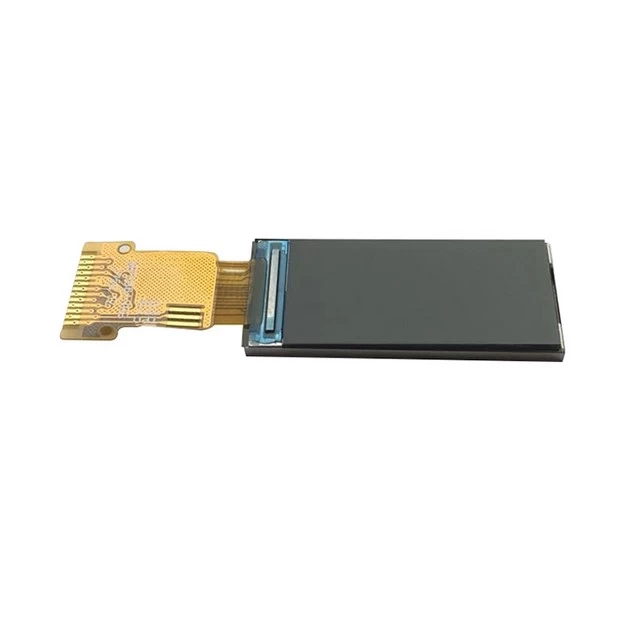

0.96'' IPS TFT Normal black transmissive LCD Display with 80*160 resolution ST7735S

SCT009003-V01 is a 0.96" mini TFT LCD display, with 80*160 resolution. This module is built in with ST7735S IC. It is a portrait mode LCD module.


  • Temperature (℃)-20°C~70°C
  • Touch ScreenNo
  • Brightness (cd/m²)300
  • Interface-
  • IC Part No.ST7735S
  • View DirectionIPS
  • Viewing Area (mm)-
  • Active Area (mm)21.7*10.8
  • Outline Dimension (mm)27.95*13.54*1.85
  • Resolution80*160

Basic Information


Dot Matrix:                        80 x 160
Module Size:                     13.54 x 27.95 x 1.5  mm.
Active Area:                     10.80 x 21.70  mm.
Interface:                         SPI  -
Driving IC:                        ST7735S

View Direction:                   IPS Full view

PIN:                                   10

Backlight:                           White LED

Touch Screen:                   No Touch Screen

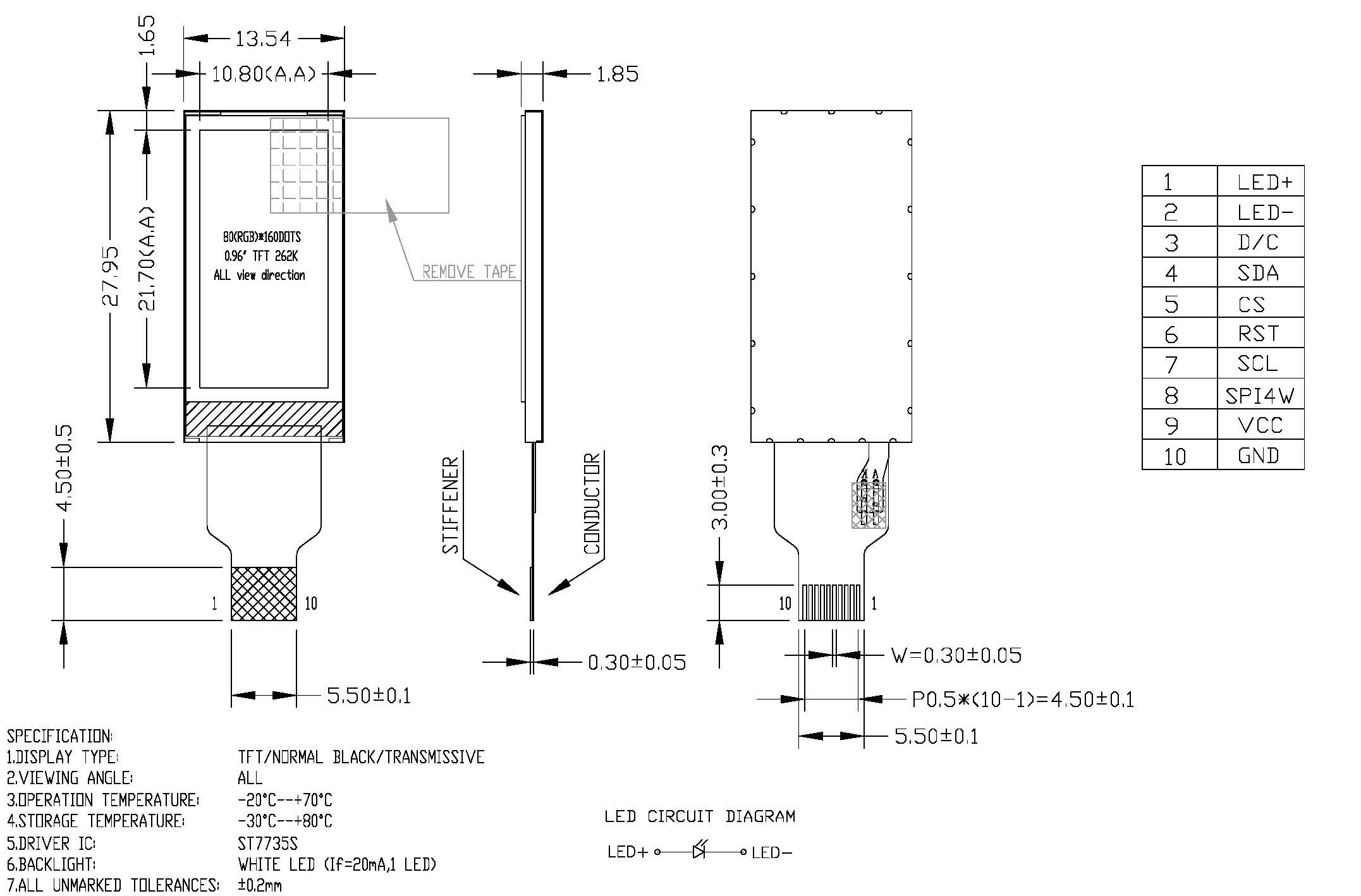

Drawing




General Specification


Item Nominal Dimension Unit
 Dot Matrix 80 x RGB x 160 Dots
 Module Size ( W×H×T ) 13.54 x 27.95 x 1.5 mm.
 Active Area ( W×H ) 10.80 x 21.70 mm.
 Pixel arrangement RGB Stripe mm.
 Dot Pitch ( W×H ) 0.135 x 0.1356 mm.
 Color depth 262K(MAX) colors
 Interface SPI -
 Driving IC ST7735S -
 Operating temperature -20 ~70 ºC
 Storage temperature -30~80 ºC
 LCD Type a-Si TFT -
 LCD Mode Normal Black -
 Backlight Type LED x 1 PCS



Interface Definition


Pin No Pin Symbol Type Description
1 LED+ P LED light, anode
2 LED- P LED light, cathode.
3 D/C I In 4-line SPI:
-D/CX='1': Display Data or Parameter.
-D/CX='0': Command Data.
In 3-line SPI: no used
If not used, please fix this pin at GND level
4 SDA I/O Serial data input/output signal
5 CS I Chip Select
6 RESET I Chip reset signal
7 SCL I Serial clock input signal



-   SPI4W='0', 3-line SPI Enable.
8 SPI4W I -   SPI4W='1', 4-line SPI Enable.
9 VCC P Power supply
10 GND P Ground
