0.96'' OLED Display with 128×64 Resolution SSD1316BZ IC,30PIN, 6800/8080 interface, 4 wire serial interface, I2C

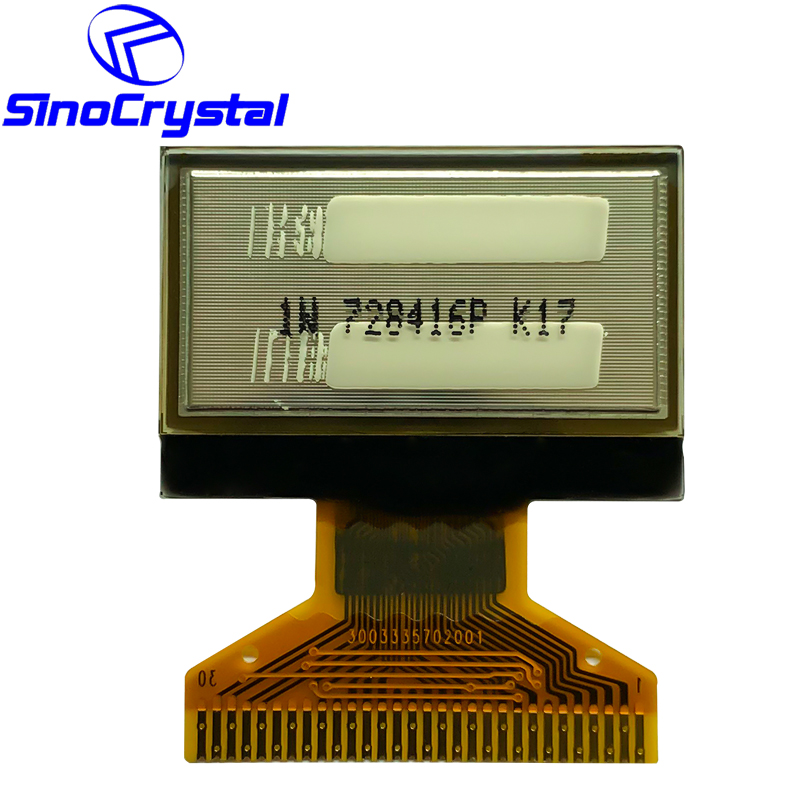

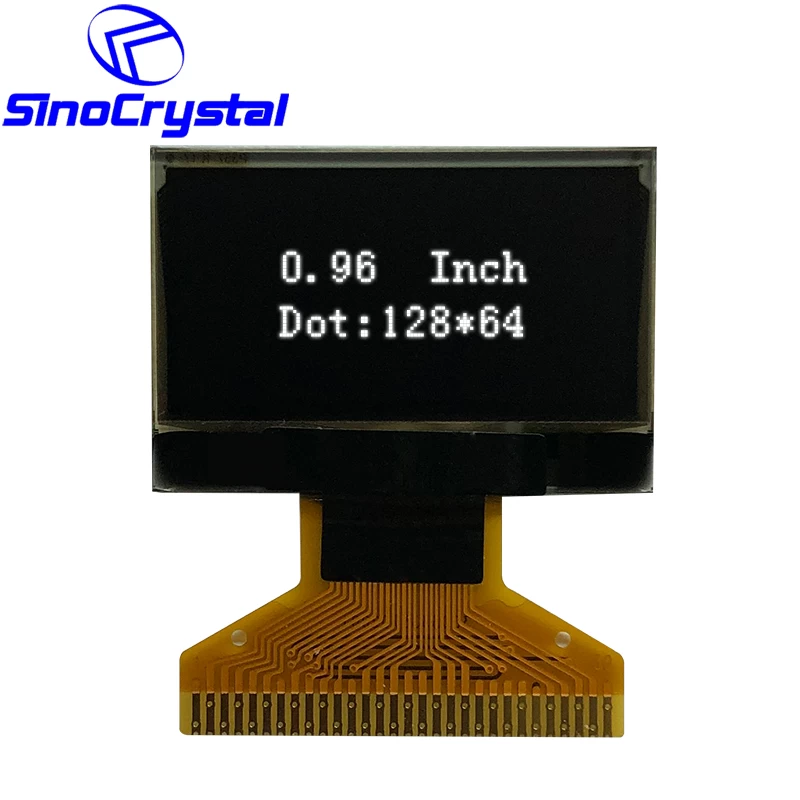

SCE096002-V01 is a OLED Display with COG Type, 128×64 Resolution, SSD1306BZ IC, 4 wire serial interface, 30PIN

  • Resolution128×64
  • Outline Dimension (mm)26.70×19.26×1.41
  • Viewing Area (mm)23.74x12.864
  • Active Area (mm)21.744×10.864
  • Interface6800/8080 Interface/I2C/ 4-wire SPI
  • IC Part No.SSD1306BZ
  • ColorMonochrome (Blue)
  • PIN30
  • FPC typeSoldering
Facebook Twitter Pinterest LinkedIn 分享


Basic Information


Display Color:               Y-B
Dot Matrix:                    128×64
Drive IC:                        SSD1306BZ
Viewing Angle:              160°
Aperture rate:                78%
Interface:                       6800/8080 interface, 4 wire serial interface, I2C
Outline Dimension:        26.7(W)x19.26(H)x1.227(D)
View area:                      23.74 (W) x 13.2(H)
PIN:                                30
FPC Type:                      Soldering

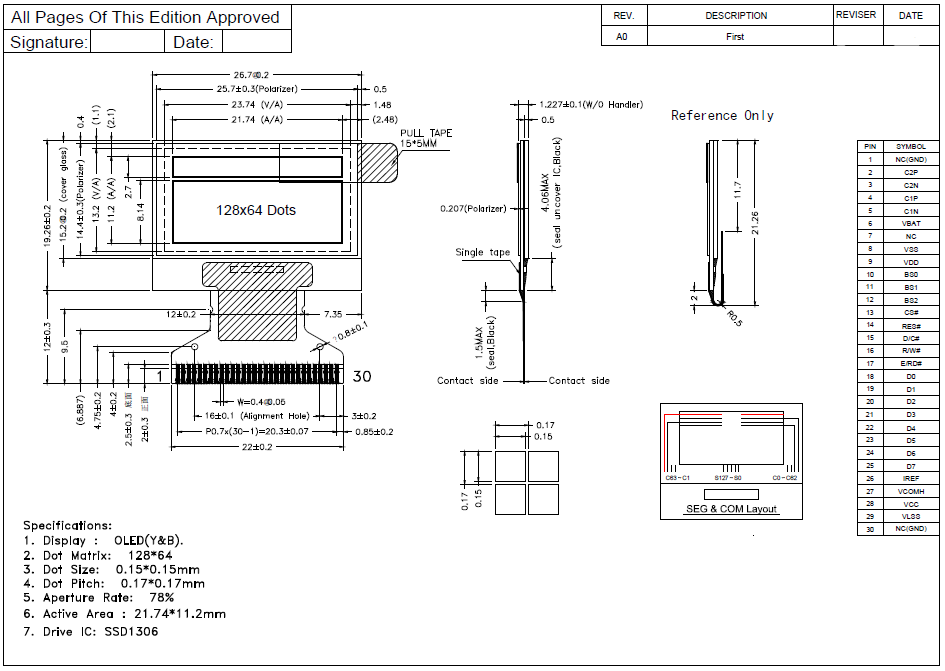

Drawing




General Specification



ITEM SPECIFICATIONS  UNIT
  MODULE SIZE 26.7(W)x19.26(H)x1.227(D) mm
  VIEWING AREA 23.74 (W) x 13.2(H) mm
  ACTIVE AREA 21.74(W) x11.2 (H) mm
  DOT SIZE 0.15(W) x0.15(H) mm
  DOT PITCH 0.17(W) x0.17 (H) mm
  ASSY.TYPE COG ---
  WEIGHT TBD




Interface Definition


PIN NO. SYMBOL TYPE FUNCTION DESCRIPTIONS
1 NC(GND) P It should be connected to external ground.
2 C2P
C1P/C1N-Pin for charge pump capacitor.
C2P/C2N-Pin for charge pump capacitor.
Connect to each other with a capacitor. They must be floated when the
Charge pump not use.
3 C2N
4 C1P I
5 C1N
6 VBAT P Power supply for charge pump regulator circuit.
It must be connected to external source when charge pump is used. It must be float when charge pump is not used.
7 NC
NC
8 VSS P Ground pin. It must be connected to external ground.
9 VDD P Power pin for logic circuit. It must be connected to external source.
10 BS0 I

Interface selection pins.

11 BS1
12 BS2
13 CS# I Chip Select input pin. Active "L"
14 RES# I Hardware reset input pin. Active "L".
15 D/C# I This is Data/Command control pin.
When the pin is pulled HIGH, the data at D[7:0]  is data. When the pin is pulled LOW, the data at D[7:0] is command. In I2C mode, this pin acts as SA0 for slave address section.
When 3-wire serial interface is selected, this pin must be connected to VSS
16 R/W# I This is read/write control input pin.
8080: data write enable; 6800: read/write select pin.
When serial or I2C interface is selected, this pin must be connected to VSS.
17 E# I This is read/write control input pin.
8080: data read enable; 6800: read/write enable pin.
When serial or I2C interface is selected, this pin must be connected to VSS.
18 D0 I/O These are 8-bit bi-directional data bus to be connected to microprocessor's Data bus.
When serial interface mode is selected, D2 should be kept NC, D1 will be the serial data input: SDIN, D0 will be the serial clock input: SCLK.
When I2C mode is selected, D2, D1 should be tied together and serve as SDA and D0 is the serial clock input, SCL.
19 D1
20 D2
21 D3
22 D4
23 D5
24 D6
25 D7
26 IREF I
 Current reference for brightness adjustment.
This is segment output current reference pin. A resistor should be connected between this pin and VSS .Set the current at 12.5 uA maximum.
27 VCOMH O COM signal deselected voltage level.
A capacitor should be connected between this pin and VSS.
28 VCC P
 Power supply for OLED driving voltage. A capacitor should be connected between this pin and VSS, when charge pump is used.
It must be connected to external source when charge pump is not used.
29 VLSS P This is an analog ground pin. It should be connected to VSS externally.
30 NC(GND) P It should be connected to external ground.
