Overview
Huawei 02310SKL H80D00GPFD03 is a 16-port GPON OLT interface board. It works with the optical network unit.
The basic working principle of the 02310SKL H80D00GPFD03 board is as follows:
* The control module loads the board software, controls the running of the board, and manages the board.
* The switching module aggregates the signals from sixteen GPON ports.
* The interface module converts between GPON signals and Ethernet packets.
* The power module supplies power to other functional modules of the board.
* The clock module provides the working clock for other functional modules of the board.
(ONU) to provide GPON access service.
Specification
Brand Name: Huawei
Model Number: 02310SKL, H80D00GPFD03
Application: Optical Line Terminal for FTTH FTTC, etc.

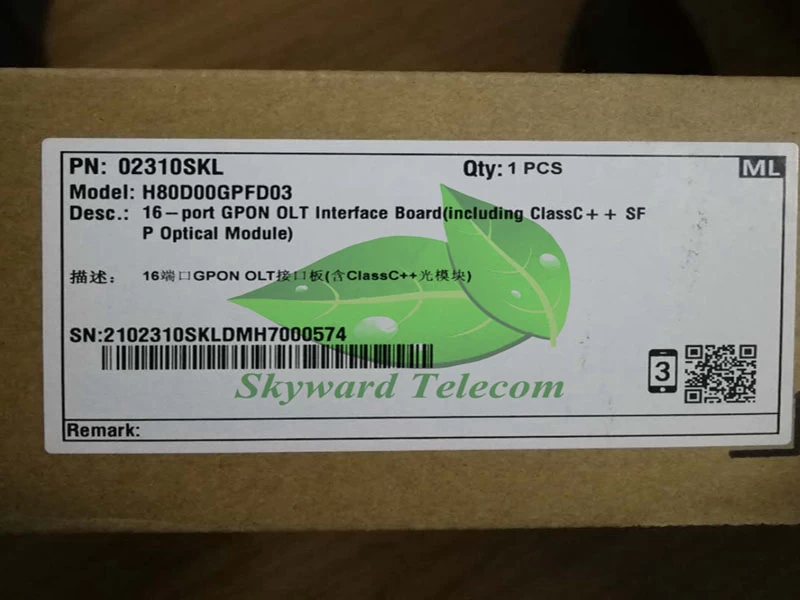

Description: 16-port GPON OLT Interface Board (including ClassC++ SFP Optical Module)
Type: GPON OLT Interface Board
Ports: 16 Ports
SFP Supporting: B+ C+ C++
Certification: CE RoHS FCC
Part Number: 02310SKL
Product Family: Access Network
Product Series: MA5600T
