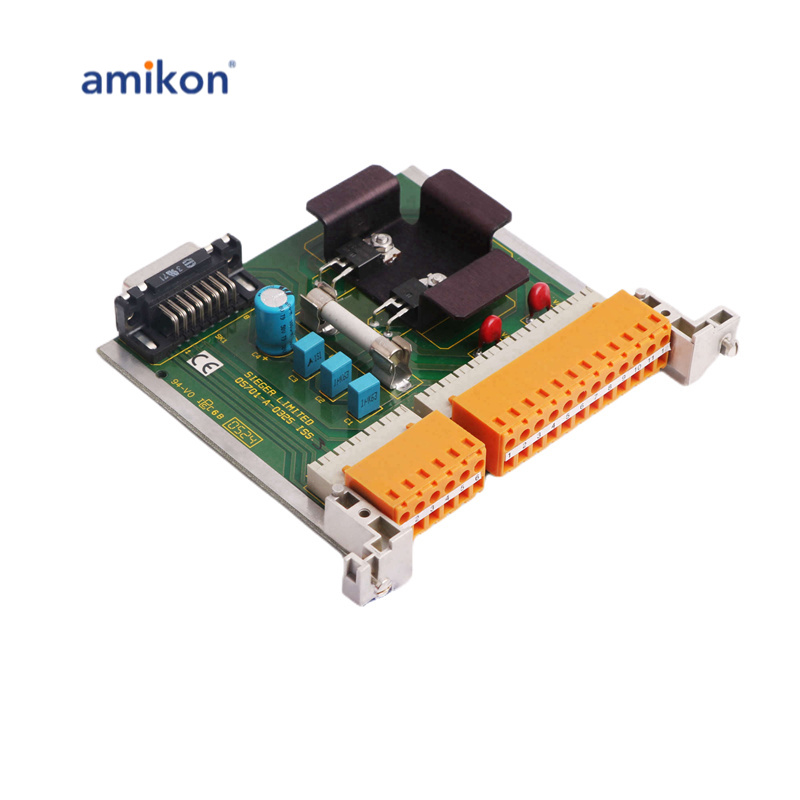

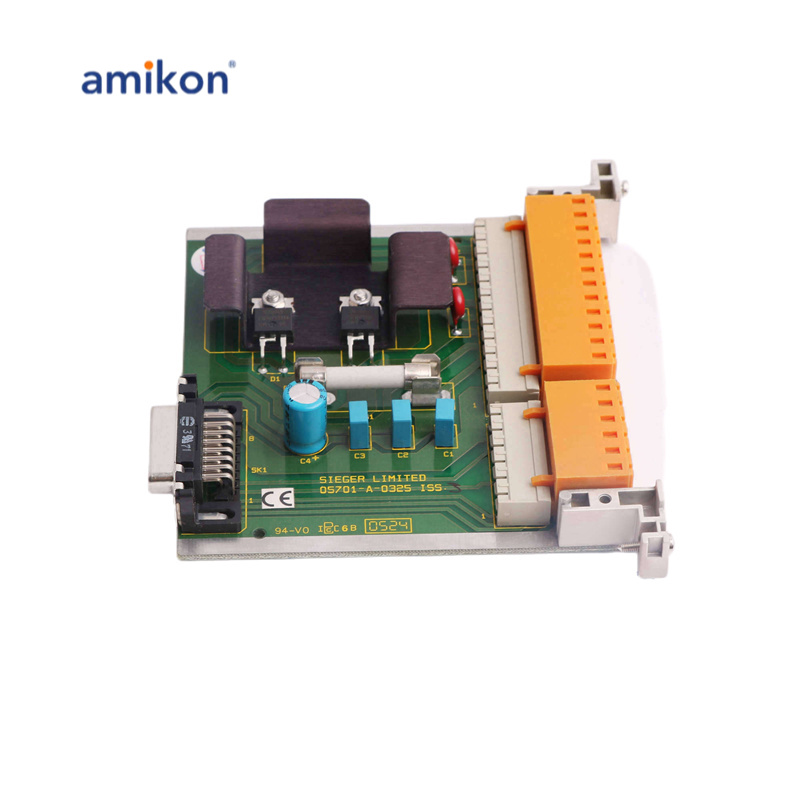

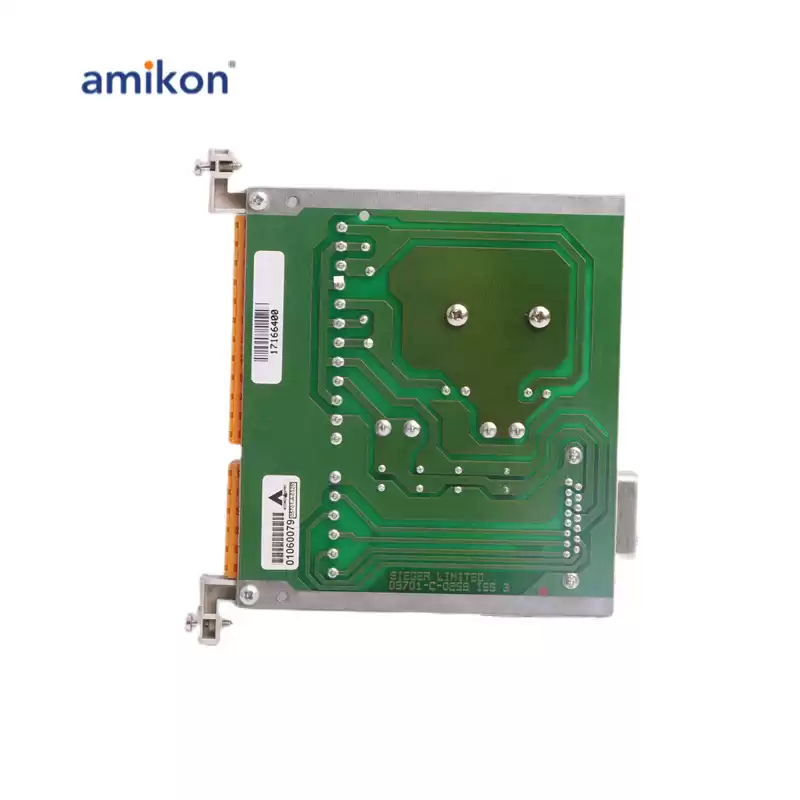

The DC power to the rack can enter the sub-rack via the DC Input Card. This power may be supplied by the user from an external nominal 24V DC supply. The DC supply is routed through the Engineering Card and sub-rack backplane to all cards in the rack and is protected by a fuse on the DC Input Card.
|
|
|
05701-A-0325 Data sheet
|
The PSU and AUX connections are isolated from each other by diodes. The DC Input Card also provides RFI filtering and reverse polarity protection.
|
|
If required, a standby backup battery supply may also be connected to the auxiliary DC input connections.
|
|
the DC Input Card is used to power the Engineering Card only.
|
|
