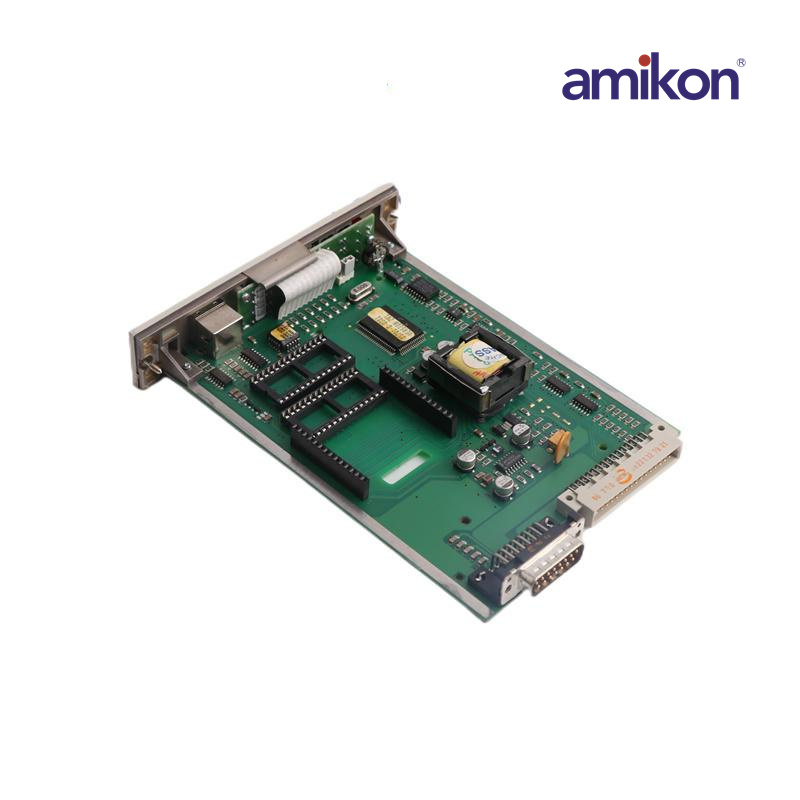

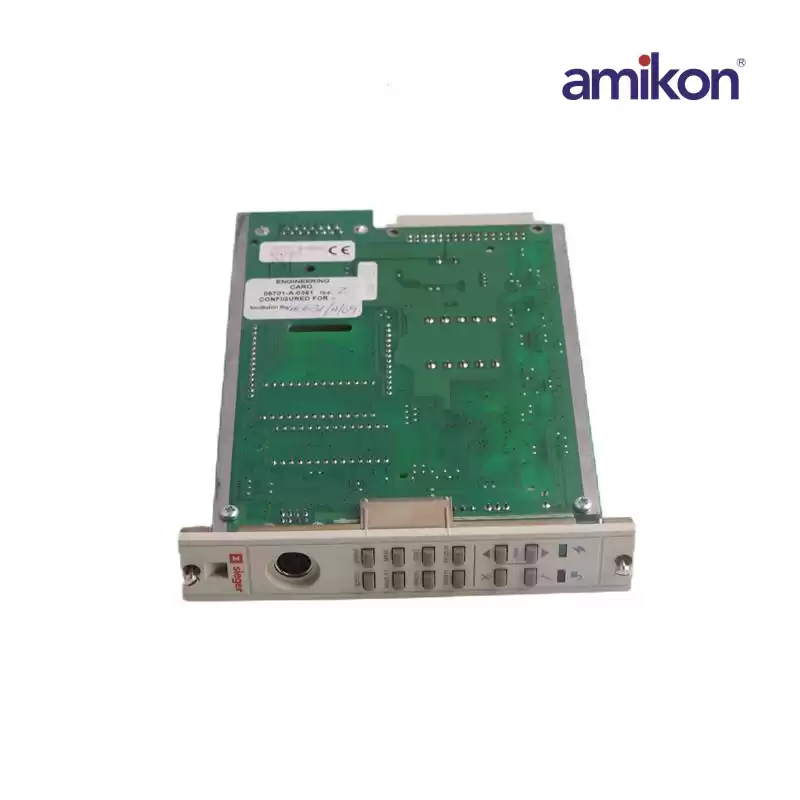

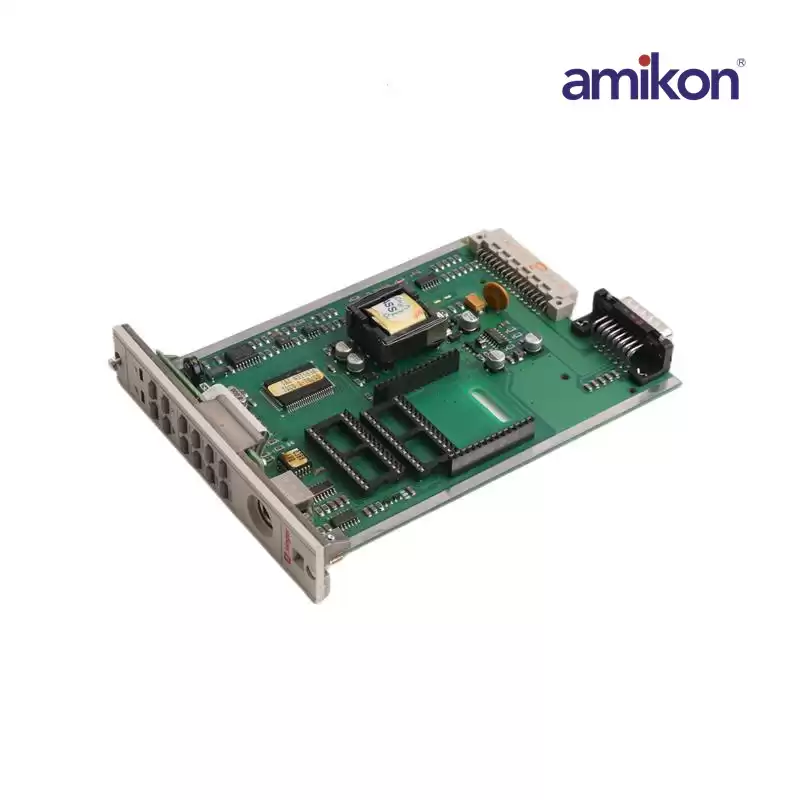

The 05701-A-0361 Series Control System is part of the System 57 family and isdesigned to monitor field mounted industrial gas detectors. The principal
features of the system are:
* Provides up to 16 channels of gas detection in a standard 19'' subrack using a 3U card format.
* Provides up to eight channels of gas detection in a half 19'' subrack using a 3U card format.
* Racking available for both front and rear access field wiring.
* Simple field connections for wire up to 2.5mm2
* Single channel mode of operation for high integrity systems.
* Channel Control Cards removable without disturbing other wiring.
* Catalytic bridge or 4 - 20mA input.
* Optional alarm change-over relay outputs.
* Multi-alarm mode for master, zoned and voted alarms.
|
