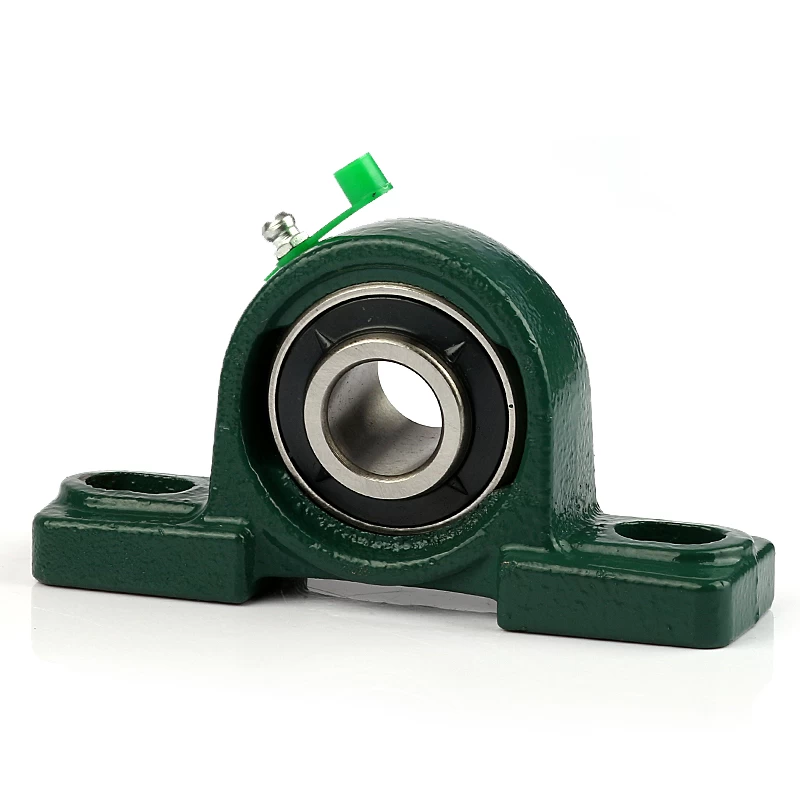

Pillow block bearings are housing combined with radial insert bearing. Most of the outer spherical bearings are made of a spherical surface The structure of bearing unit are various, and the versatility and interchangeability are good.

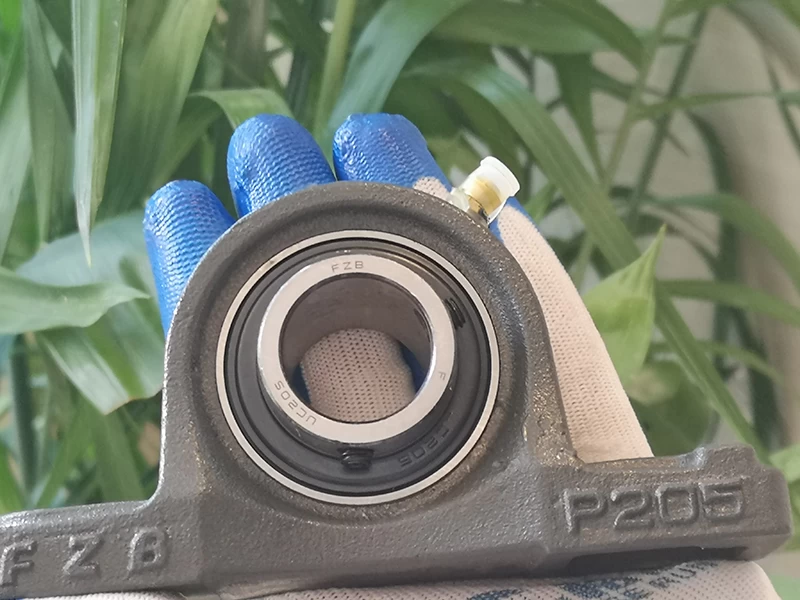

Bearing Unit UCP205-16 Specification :
Insert Bearing material :Chrome steel Gcr15 or stainless steel
Housing material : Cast iron
Dimension:
Shaft Dia (d):1 inch
Height (H):36.5mm
Length (L):140mm
Bolt Size:M10
Weight :0.76 kg
Housing bearings are also designed with a certain degree of self-alignment, they are easy to install, and have a double-structured sealing device that can work in harsh environments. There are many type of pillow block,such as vertical seat (P), square seat (F), boss square seat (FS), boss circular seat (FC), diamond seat (FL), ring seat (C), slider seat, etc. T).
The mount bearing is consist of housing and insert bearing ,the spherical bearing UC205 with pillow block P series,the new bearing nuit is UCP205. Due to the strong interchangeability of the spherical bearing with seat, the bearing core can be assembled freely in the bearing housing of the same specification and different shape,such as UCT205,UCF205,UCFL205.

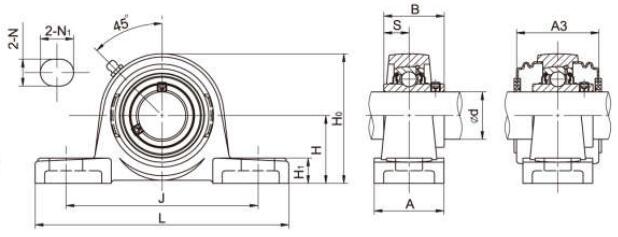

Below Here is Mounted Bearing Units No. For Your Reference :
|
Unit No.
|
Shaft Dia
|
Dimensions (mm)
|
Bolt Size
(mm)
|
Weight
|
|
d
|
H
|
L
|
J
|
A
|
N
|
N1
|
H1
|
Ho
|
B
|
S
|
A3
|
(kg)
|
|
(in)
|
(mm)
|
|
UCWP201
|
|
12
|
30.2
|
125
|
95
|
32
|
13
|
18
|
13
|
57
|
27.4
|
11.5
|
-
|
M10
|
0.72
|
|
UCWP202
|
|
15
|
30.2
|
125
|
95
|
32
|
13
|
18
|
13
|
57
|
27.4
|
11.5
|
-
|
M10
|
0.66
|
|
UCWP203
|
|
17
|
30.2
|
125
|
95
|
32
|
13
|
18
|
13
|
57
|
27.4
|
11.5
|
-
|
M10
|
0.66
|
|
UCP201
|
|
12
|
30.2
|
127
|
95
|
38
|
13
|
19
|
14
|
61
|
31
|
12.7
|
-
|
M10
|
0.76
|
|
UCP201-8
|
1/2
|
|
30.2
|
127
|
95
|
38
|
13
|
19
|
14
|
61
|
31
|
12.7
|
-
|
M10
|
0.76
|
|
UCP202
|
|
15
|
30.2
|
127
|
95
|
38
|
13
|
19
|
14
|
61
|
31
|
12.7
|
-
|
M10
|
0.74
|
|
UCP202-9
|
9/16
|
|
30.2
|
127
|
95
|
38
|
13
|
19
|
14
|
61
|
31
|
12.7
|
-
|
M10
|
0.74
|
|
UCP202-10
|
5/8
|
|
30.2
|
127
|
95
|
38
|
13
|
19
|
14
|
61
|
31
|
12.7
|
-
|
M10
|
0.74
|
|
UCP203
|
|
17
|
30.2
|
127
|
95
|
38
|
13
|
19
|
14
|
61
|
31
|
12.7
|
-
|
M10
|
0.72
|
|
UCP203-11
|
11/16
|
|
30.2
|
127
|
95
|
38
|
13
|
19
|
14
|
61
|
31
|
12.7
|
-
|
M10
|
0.72
|
|
UCP204
|
|
20
|
33.3
|
127
|
95
|
38
|
13
|
19
|
14
|
64
|
31
|
12.7
|
46.4
|
M10
|
0.70
|
|
UCP204-12
|
3/4
|
|
33.3
|
127
|
95
|
38
|
13
|
19
|
14
|
64
|
31
|
12.7
|
46.4
|
M10
|
0.70
|
|
UCP205
|
|
25
|
36.5
|
140
|
105
|
38
|
13
|
19
|
15
|
71
|
34.1
|
14.3
|
48
|
M10
|
0.76
|
|
UCP205-14
|
7/8
|
|
36.5
|
140
|
105
|
38
|
13
|
19
|
15
|
71
|
34.1
|
14.3
|
48
|
M10
|
0.76
|
|
UCP205-15
|
15/16
|
|
36.5
|
140
|
105
|
38
|
13
|
19
|
15
|
71
|
34.1
|
14.3
|
48
|
M10
|
0.76
|
|
UCP205-16
|
1
|
|
36.5
|
140
|
105
|
38
|
13
|
19
|
15
|
71
|
34.1
|
14.3
|
48
|
M10
|
0.76
|
|
UCP206
|
|
30
|
42.9
|
160
|
121
|
44
|
17
|
21
|
16
|
82
|
38.1
|
15.9
|
52
|
M14
|
1.25
|
|
UCP206-17
|
1-1/16
|
|
42.9
|
160
|
121
|
44
|
17
|
21
|
16
|
82
|
38.1
|
15.9
|
52
|
M14
|
1.25
|
|
UCP206-19
|
1-3/16
|
|
42.9
|
160
|
121
|
44
|
17
|
21
|
16
|
82
|
38.1
|
15.9
|
52
|
M14
|
1.25
|
We also can provide other brand bearing housing such as ASAHI Pillow Block Bearing.
UCP205-16 Bearing Unit Have Widely Applications:
Bearing housing with compact structure, convenient loading and unloading, perfect sealing, suitable for simple support are often used in below area:
1)Agriculture,
2)Light textile,
3)Mining,
4)Food &beverage,
5)Pharmaceutical,
6)Chemical processing,
7)Printing,
8)Dyeing,
9)Various kinds of conveying and rolling devices.
