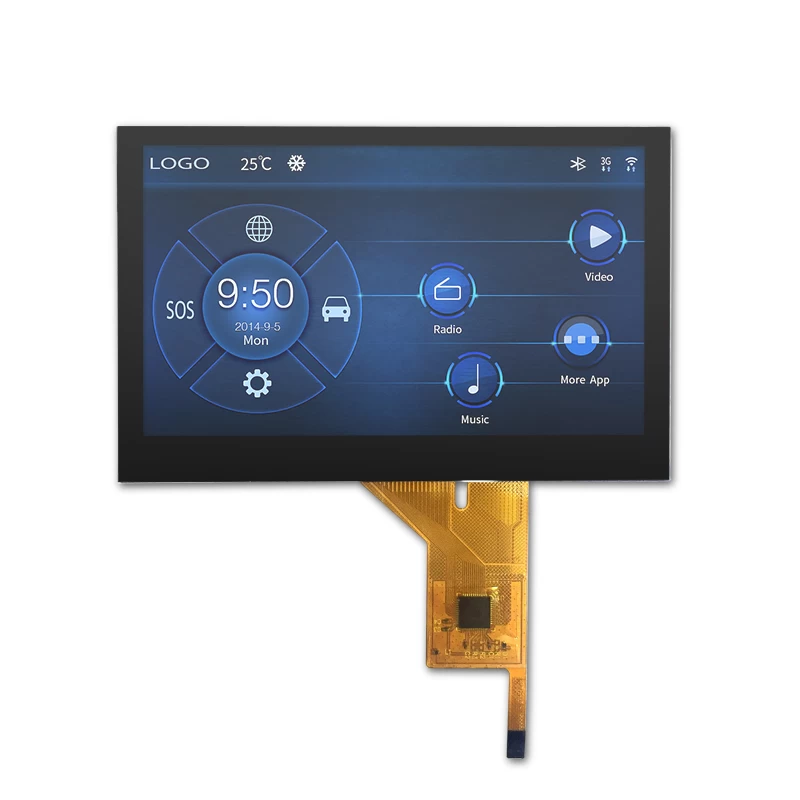

1×7 LEDs 4.3 inch TFT SSD1963 IC MCU interface with same size CTP

1×7 LEDs 4.3 inch TFT SSD1963 IC MCU interface with same size CTP




1×7 LEDs 4.3 inch TFT SSD1963 IC MCU interface with same size CTP



Specification

Description

4.3 MCU tft lcd with CTP

Display type

4.3 inch tft, transmissive

Power supply

3.3v

Module current

40-60MA

Driver element

a-si TFT Active matrix

Outline Dimension(mm)

105.4x67.1x8.48

A.A.(mm)

95.04x53.86

Driver IC

SSD1963

Resolution

480x272 resolution

Viewing Direction

6H

Operating temperature(°C)

-20-70

Storage temperature(°C)

-30-80

Backlight

10 LEDs, white

CTP IC

ST1633i

Interface

8080 MCU, 8/16 bit

CTP interface

I2C

Module lifetime(Hours)

50,000-100,000
