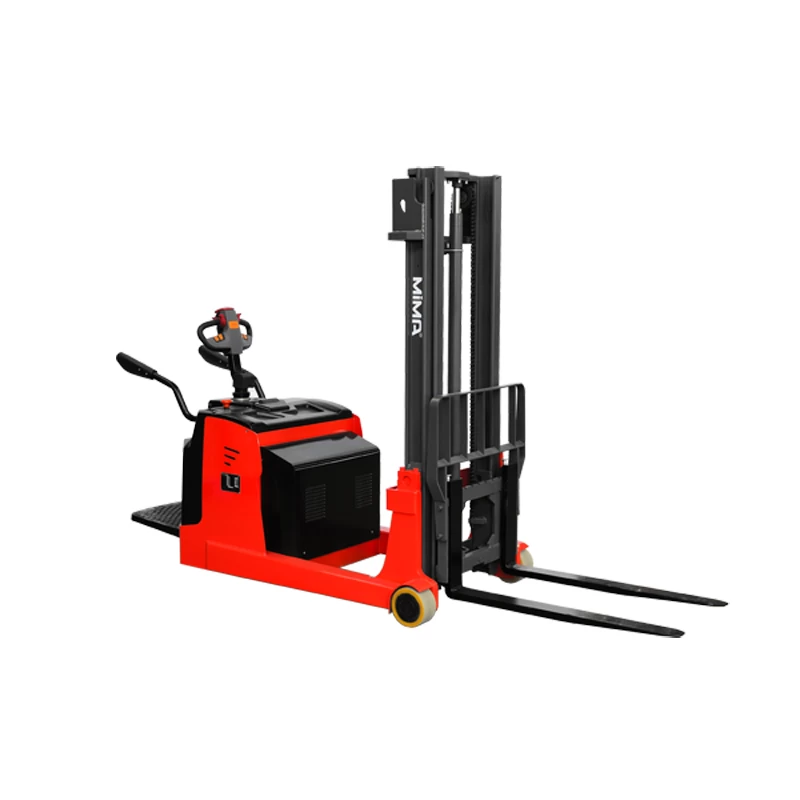

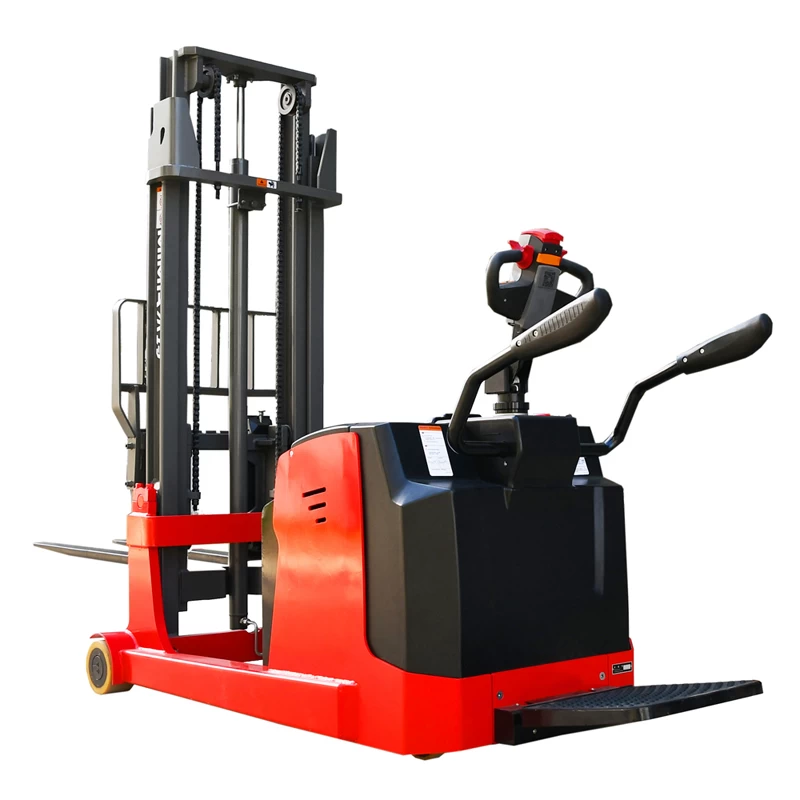

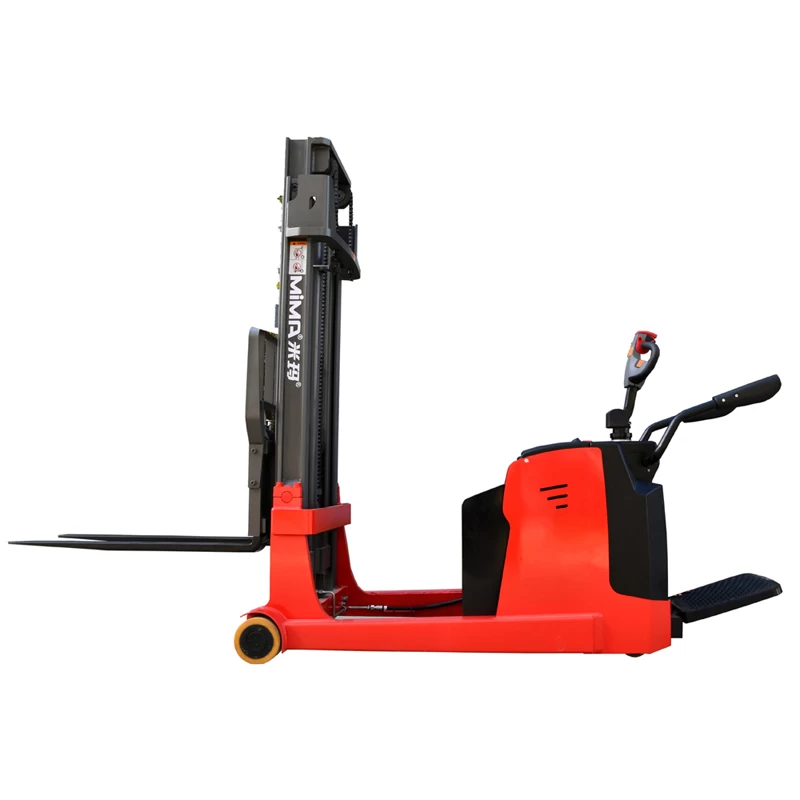

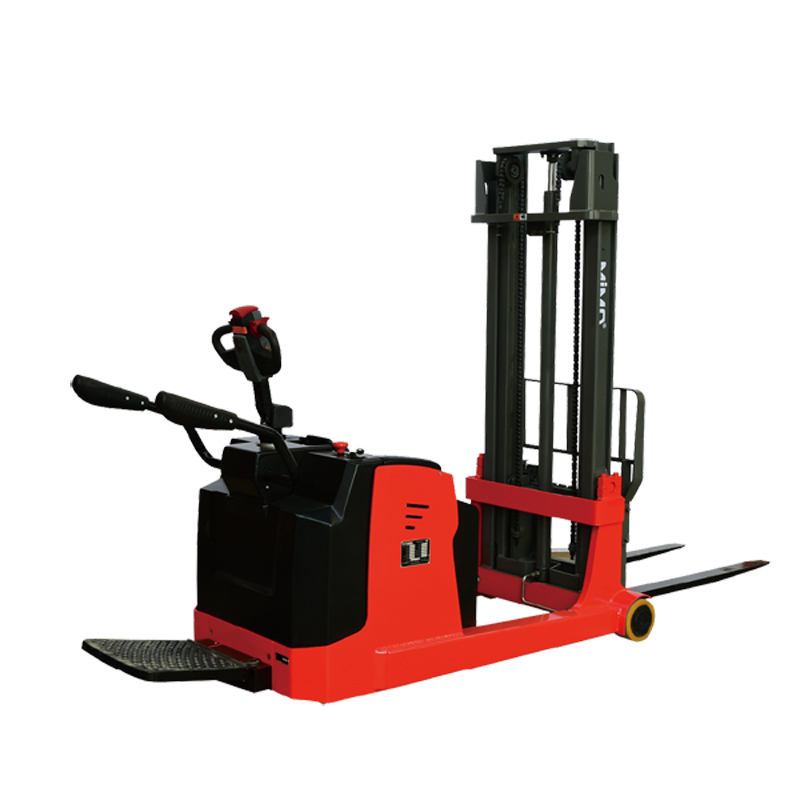

1.0-1.5T Electric/ Battery Counterbalance Stacker with Folding Fork
Main Features:
1.Electric/ Battery Counterbalance Stacker use Maintenance-free high-power AC drive system provide reliable driving power. 210AH large-capacity battery have strong endurance;
2.Standard CURTIS series controller is reliable and durable. AMP waterproof and dustproof plug which provides reliable protection for the line and greatly reduces electrical faults;
3.Station-on type, EPS and integrated Handle provide safe, labor-saving and flexible operation;
4.The newly designed floating suspension system makes the steering operation more flexible and convenient;
5.It adopts 5 points and low gravity design. The frame is made of high-strength steel plate frame structure. The forklift has large spare capacity and long service life.
Specifications:
|
Brand
|
|
MiMA
|
MiMA
|
|
Model
|
|
MBB10
|
MBB15
|
|
Power Type
|
|
Battery
|
Battery
|
|
Operation Type
|
|
Stand-on
|
Stand-on
|
|
Service weight(incl. battery)
|
kg
|
1790
|
1920
|
|
Rated Capacity
|
Q(kg)
|
1000
|
1500
|
|
Load Center
|
C(mm)
|
500
|
500
|
|
Lifting height
|
h3(mm)
|
3000
|
3000
|
|
Forks size
|
l/e/s(mm)
|
1070/100/35
|
1070/100/35
|
|
Front Overhang
|
x(mm)
|
100
|
100
|
|
Turning radius
|
Wa(mm)
|
1415
|
1820
|
|
Max. climbing ability
|
%(tanθ )
|
5/8
|
5/8
|
|
Driving speed(load/unload)
|
km/h
|
4/5.8
|
4/5.8
|
|
Lifting speed(load/unload)
|
mm/s
|
80/110
|
80/110
|
|
Lowering speed(load/unload)
|
mm/s
|
120/140
|
120/140
|
Products Feature:
performance
● Station-driving with standard power distribution steering makes the control lighter and more flexible;
● The latest CURTIS AC control system provide precise and stable control and higher efficiency;
Comfort
●The platform is equipped with a shock absorption design which greatly improves comfort and reduces the fatigue of long driving.
● It is simple and beautiful with integrated joystick. All operation functions can be easily completed with one hand;
reliability
●It adopts 5 points of low center design and the frame is made of high-strength steel plate frame structure which has large rich bearing capacity and long service life;
●All series adopt imported waterproof connectors and all wires and cables have reliable protection which greatly improves the reliability of the electrical system;
safety
●It has three kinds of braking functions: release brake, reverse brake and emergency brake to ensure the safety of driving;
●The stand-up guardrail is integrally formed to better protect the operator;
●The driving speed of the station is automatically reduced with the increase of the steering angle;
● With a falling buffer function to effectively protect cargo safety.
Company Exhibition:
MiMA can offer you electric pallet truck, pallet stacker, reach stacker,reach truck, counter balance stacker,counter balance forklift, tow tractor, order picker, narrow aisle forklift, special forklift, AGV and other customized types for options, which can provide our customers with logistics handling solutions from 500kg to 100,000kg. Due to product serialization and standardization, all MiMA products are widely used in medicine, food, chemical, household electrical appliances, wool cotton textile, tobacco, electronics, machinery, furniture and many other industries.
Certification:
FAQ
Q1: Are you counterbalance pallet stacker factory?
A1: Yes, we are the professional manufacturer of counterbalance pallet stacker for more than 20 years.
Q2: How about the delivery time?
A2: About 20-30 days based on different model. For some standard products, we may have stock and could delivery immediately.
Q3: Is customized solution available?
A3: Yes, we can provide different customized solution.
Q4: Can you provide OEM service?
A4: Yes.
