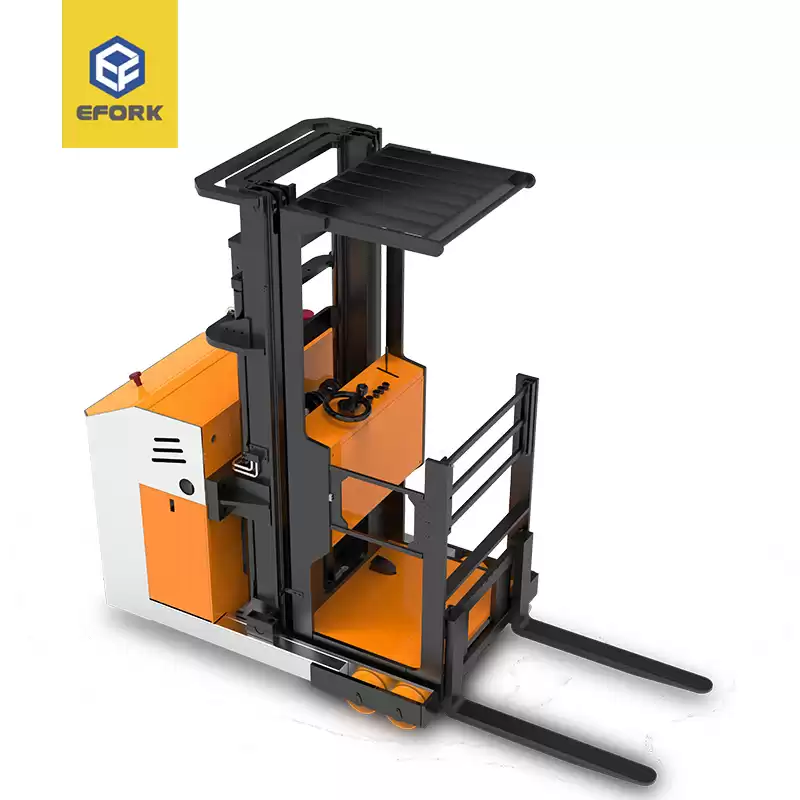

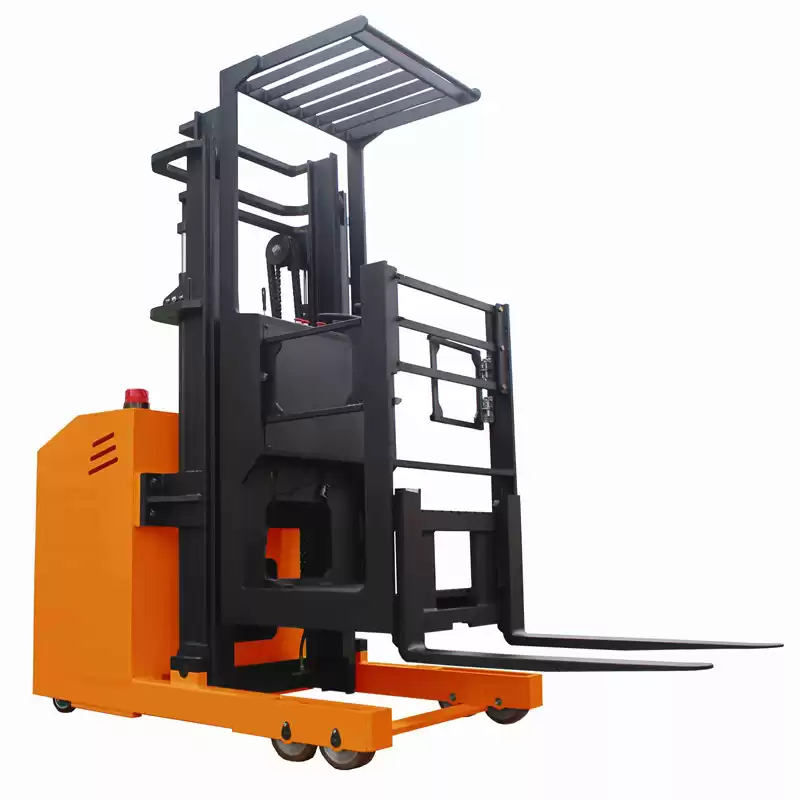

Product Name:Electric order picker 24V
Loading capacity 1000kg--1500kg
Lifting height 4500mm
Advantages of high level electric picking forklift:
●Advanced controller, more stable and safer.
●Maintenance-free AC drive system makes the vehicle react more quickly and accurately, and can be equipped with a full AC system.
●Pure electric steering, small steering force, comfortable and energy saving.
●The lifting system adopts proportional control, which has good start and stop smoothness and no jitter.
●Standard auxiliary lifting function, when the picking operation is carried out, the driver can be prevented from kneeling and the working intensity can be reduced.
●Standard turning speed limit and high lifting speed limit.
●Standard maximum lifting height limit.
Specification:
|
Medium Position Electric Order Picker
|
|
Characteristic
|
1.1
|
Model
|
|
CDD10X-45
|
|
1.2
|
Operate type
|
|
Order Picker
|
|
1.3
|
Load capacity
|
Q(t)
|
1000
|
|
1.4
|
Load center
|
C(mm)
|
500
|
|
1.5
|
Wheelbase
|
Y(mm)
|
1425
|
|
Weight
|
2.1
|
Self weight (including battery)
|
kg
|
2600
|
|
Wheel、Chassis
|
3.1
|
Wheel type
|
|
Polyurethane
|
|
3.2
|
Front wheel size
|
∅×w(mm)
|
180*76
|
|
3.3
|
Drive wheel size
|
∅×w(mm)
|
230*75
|
|
3.4
|
Balancing wheel size
|
∅×w(mm)
|
125*50
|
|
3.5
|
Wheel-track,front wheel
|
b10(mm)
|
1010
|
|
3.6
|
Wheel-track,rear wheel
|
b11(mm)
|
784
|
|
Dimension
|
4.1
|
Height-mast closed
|
h3(mm)
|
4500
|
|
4.2
|
Height of mast open(incl. Load-Backrest)
|
h4(mm)
|
6670
|
|
4.3
|
Overguard height
|
h14(mm)
|
2210
|
|
4.4
|
Overall length（with fork）
|
l2(mm)
|
1865（with fork）
|
|
4.5
|
Overall width
|
b1(mm)
|
1130
|
|
4.6
|
Fork size
|
s/e/l(mm)
|
35/100/920
|
|
4.7
|
Fork Adjustable range
|
b5(mm)
|
210-770
|
|
4.8
|
Min ground clearance (wheelbase center)
|
m2(mm)
|
50
|
|
4.9
|
Aisle width for pallet 1000*1200 crossway
|
Ast(mm)
|
3256
|
|
4.1
|
Min turning radius
|
Wa(mm)
|
1657
|
|
Performance
|
5.1
|
Driving speed(load/unload)
|
km/h
|
5/3
|
|
5.2
|
Max. climbing ability
|
％
|
10/6
|
|
5.3
|
Service Parking
|
|
Electromagnetic
|
|
Motor
|
6.1
|
Drive motor
|
kw
|
2.5
|
|
6.2
|
Driving speed(load/unload)
|
m/s
|
0.275/0.215
|
|
6.3
|
Lifting speed(load/unload)
|
m/s
|
0.150/0.195
|
|
6.4
|
Lift motor
|
kw
|
3
|
|
6.5
|
Battery type
|
|
Lead acid
|
|
6.6
|
Battery V/AH
|
V/Ah
|
24V300Ah
|
|
Others
|
8.1
|
Drive motor type
|
|
AC
|
|
8.2
|
Noise level EN12053
|
dB(A)
|
75
|
After-sale Service
All the product of EFORK supplied with one year or 1000 working hours (which occurs first) period quality warranty.Detail clauses and policies please check our website and consult our customer service executive.
