Digital Battery Electrode Paste/Slurry Viscosity Tester (1-10^5 mPa·s)
SPECIFICATIONS
Since the viscosity of battery electrode pasta/slurry plays an important role during the electrode coating on current collector, it is necessary to use a tester to monitor and then adjust the viscosity when mixing. Usually the cathode slurry viscosity needs to be controlled in range of 6000-1000cp, and Anode slurry viscosity needs to be controlled in range of 1000-3000cp.TOB-NDJ-5S Digital viscometer is with viscosity testing range from 10-100000cp, it can display the testing result in the screen directly without calculate. It is ideal viscosity testing equipment for lithium battery producing and lab research.
|
Model
|

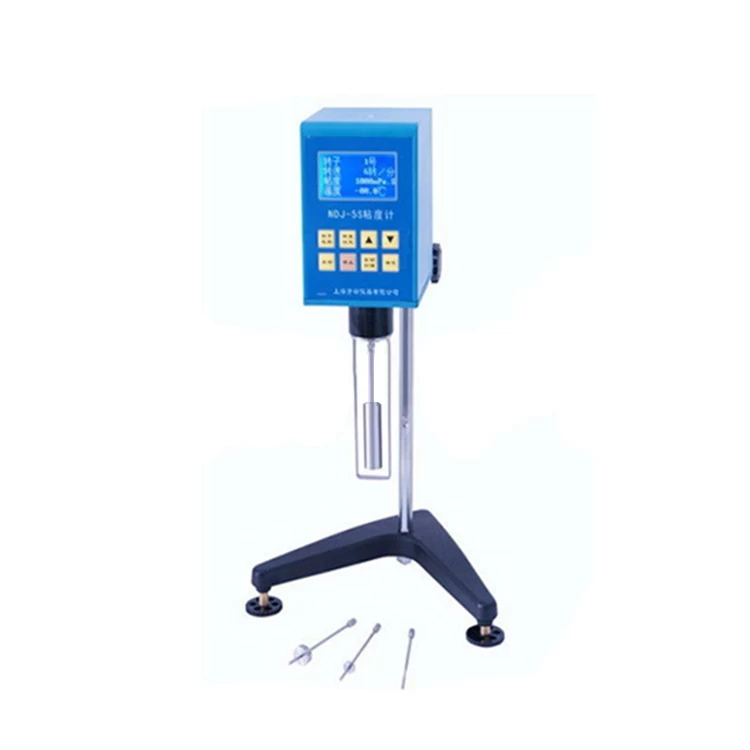

Digital display viscometer TOB-NDJ-5S
|
|
Display
|
English panel display
|
|
Rotation rate (RPM/min)
|
6/12/30/60
|
|
Standard rotor specification
|
1#/2#/3#/4# rotors,
can also choose 0# rotor for testing viscosity from 1-10cp range
|
|
Measuring range
|
1-100000 mPa.s
|
|
Measuring accuracy
(Newtonian liquid)
|
±1%
|
|
Repetitive error
(Newtonian liquid)
|
±0.5%
|
|
Temperature measurement
|
Yes, can choose the temperature probe together
|
|
Dimension
|
300*300*450mm
|
|
Net weight
|
2kg (not including pedestal)
|
|
Working temperature
|
5-35℃
|
|
Working humidity
|
≤80%
|
|
Source voltage
|
AC 100-230V 45-65HZ
|
|
Structure
|
With RS232 date input port
Can choose date process software
|
PACKAGE AND SHIPPING
|
1 Standard exported package : Internal anticollision protection, external export wooden box package
2 Shipping by express, by air, by sea according to customer's requirements to suggest the most suitable shipping mode
3 Responsible for the damage during shipping process, change the damage part for free
4 Supply with suitable voltage input and power plug according to customer's country requirements.
|
