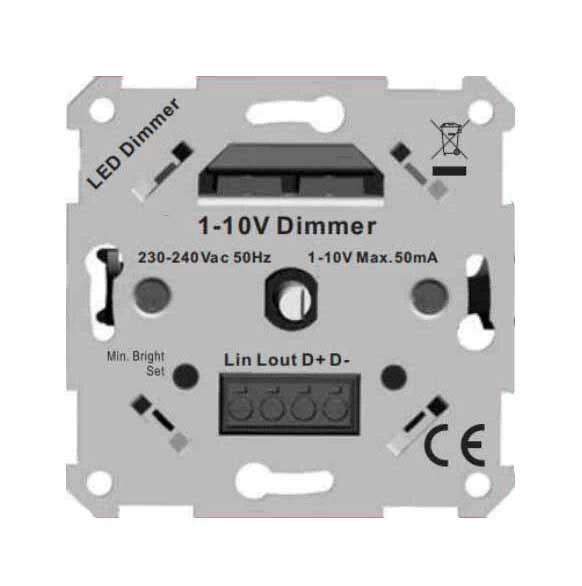

1-10V LED dimmer Features:
1. Standard 1-10V passive dimming controller without power supply.
2. The dimming range is 5-100%.
3. No neutral wiring, 2 wires.
4. Overheating protection, automatic overload protection and short-circuit protection.
5. Dimmer control: rotary.
6. Control type: push.
7. Flush mouting.
Technical Data:
1. Maximum switching load power: 110V 1000W, 220V 2000W
2. High current switch: 10A for reliable shutdown (complete turn off)
3. Effective dimming signal current: ≤ 50mA
4. Adjust voltage: 0.5-10V
5. Dimming range: 5-100% stepless dimming, no stroboscopic
6. Minimum brightness preset range: 5%-50%
7. 100% compatible with drives with standard 0/1-10V dimming signal on the
market
8. Standard EU type panel, size 84*84mm

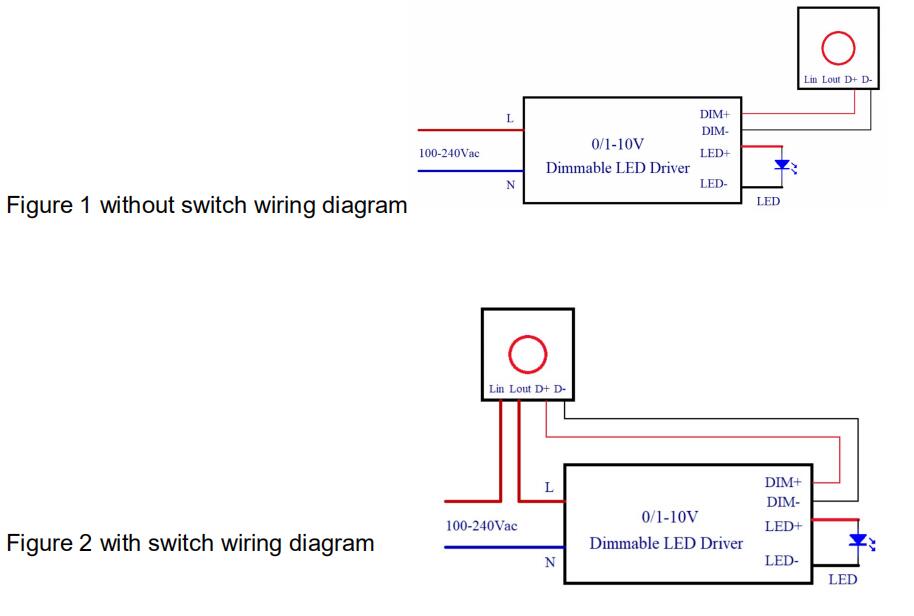

Wiring Diagram:
