Water is scarce in many areas of the world:
Drinking water supplies worldwide are steadily decreasing while international
consumption is rising. EMI® Muti jet water
meters that provide accurate and reliable water consumption
measurement. fast and easy to install water meters are the right and safe
way of designing and installing, as well as being used as a tenant or property
owner.
-

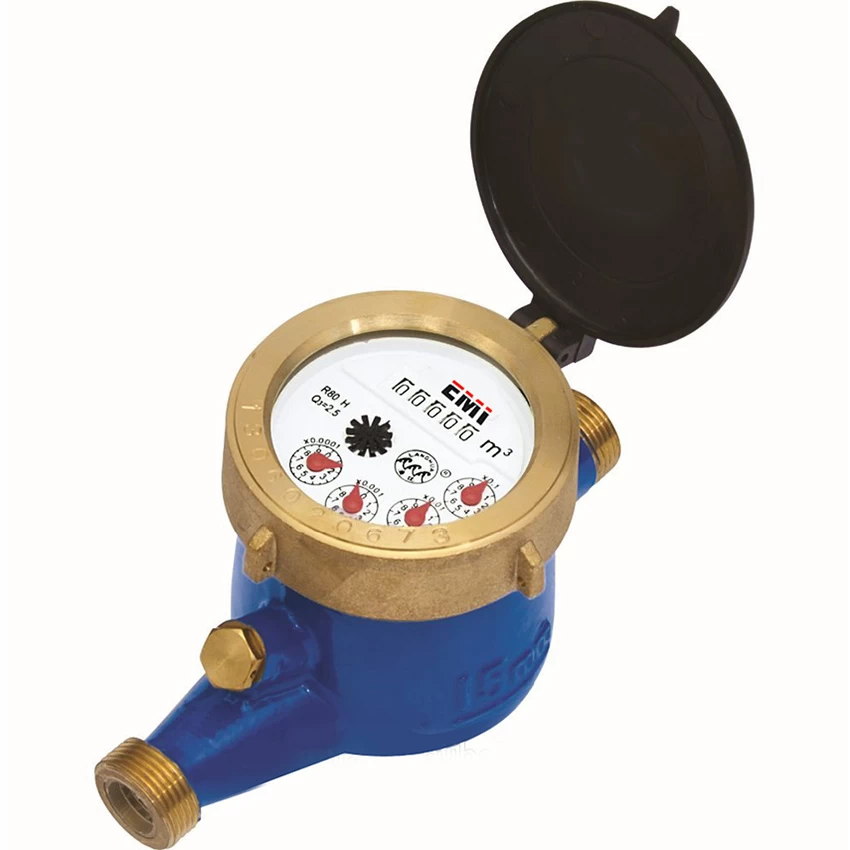

Universally applicable housing
water meter for cold water. The classic standard version.
-
for cold water up to 30 ° C
-
Installation length: 110 mm
-
Permanent size: Q3 6.3 m³ / hour
-
Connection: 12,7 mm (1/2 ")
-
for horizontal and vertical installation length
-
Chromed brass body
-
Fully dry dial
-
rotatable counter head
-
tamper secured
-
calibrated / conformity rated
-
ISO 4064 Class B conformity
-
multi jet principle
-

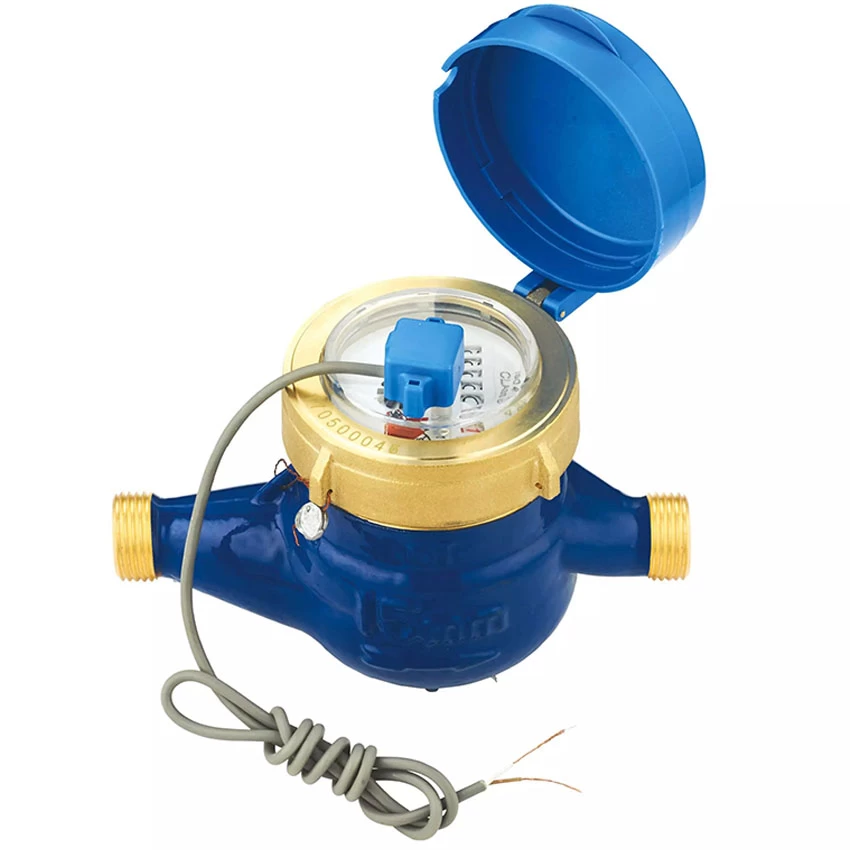

photoelectric or impulsed opitions
-
AMR(Automatic remote reading ) through wired(RS485/Mbus/) or wireless
Note: If your water meter is located outside
(shaft), do not forget to take the following precautions:
-
close the shaft carefully,
-
cover the shaft cover with thermal insulation (polystyrene,
etc.)
-
(if the water meter is set at a non-freezing depth, isolation
is not necessary).
-
If your meter is located inside the
property:
-
protect frost-proof pipes, as well as your own water meter,
using suitable insulating materials,
-
the area where the water meter is located is tightly closed
against cold air entering the outside (for example, a broken cellar window and
draft can cause freezing and damage to the water meter on freezing days).
