1.2'' Round OLED for smart watch with 390*390 resolution RM67162 IC, 24PIN, MIPI/SPI interface

SCE119001-V01 is a Round OLED Display with COG Type, 390*390 Resolution, RM67162 IC, MIPI/SPI interface, 24 PIN


  • PIN24
  • ColorMonochrome (White)
  • IC Part No.RM67162
  • InterfaceMIPI/SPI
  • Active Area (mm)30.42*30.42
  • Viewing Area (mm)32.72*32.72
  • Outline Dimension (mm)33.22*34.72*0.68
  • Resolution390*390
  • FPC typeConnector
Facebook Twitter Pinterest LinkedIn 分享


Basic Information


Product Application:     For Smart Watch
Dot Matrix:                    390*390
Drive IC:                        RM67162
Interface:                       MIPI/SPI
Outline Dimension:        33.22*34.72*0.68
View area:                      30.42*30.42
PIN:                                24
FPC Type:                      Connector: BM28B0.6-24DP/2-0.35V(51)

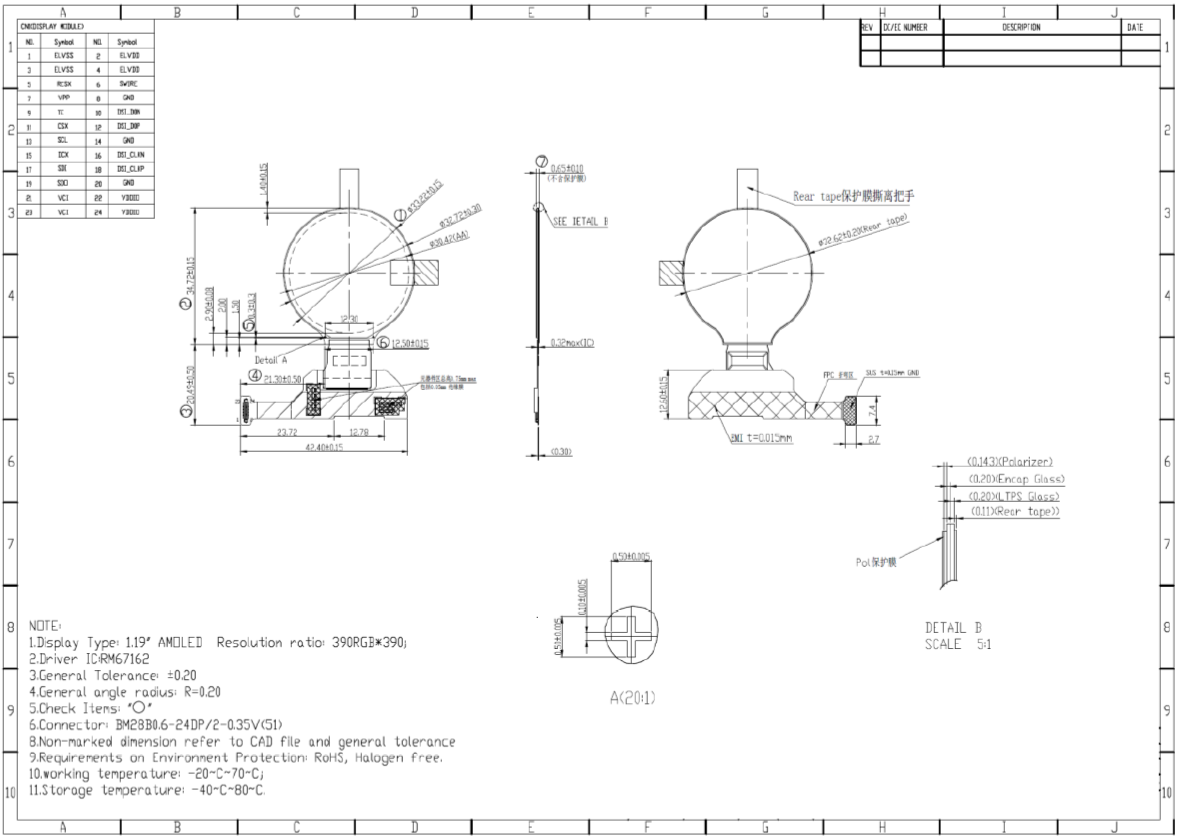

Drawing




General Specification


ITEM SPECIFICATIONS  UNIT
 MODULE SIZE 33.22 x 34.72 x 0.68 mm
 LTPS Glass Outline 33.22 x 34.72 mm
 Encapsulation Glass Outline 33.22 mm
 Number of Dot 390 x 390 dots
 Active Area 30.42 mm
 Diagonal Size 1.19 inch
 Pixel pitch 78*78 um
 Glass Thickness (LTPS Glass) 0.2/0.2 mm





Interface Definition


PIN NO. SYMBOL TYPE FUNCTION DESCRIPTIONS
1 ELVSS Power AMOLED power Negative
2 ELVDD Power AMOLED power Positive
3 ELVSS Power AMOLED power Negative
4 ELVDD Power AMOLED power Positive
5 RESX I This signal will reset the device and must be applied to properly initialize the chip.
Active low.
6 SWIRE O Swire protocol setting pin of Power IC
7 VPP I Power supply for OTP.
Leave the pin to open when not in use.
8 GND Power The power ground
9 TE O Tear effect output
10 DSI_D0N I/O MIPI DSI data0-
11 CSX I SPI Enable clock
12 DSI_D0N I/O MIPI DSI data0+
13 SCL I SPI Serial clock
14 GND Power The power ground
15 DCX I SPI CMD/Data selection signal
16 DSI_CLKN I MIPI DSI clock-
17 SDI I SPI Data Signal
18 DSI_CLKP I/O MIPI DSI clock+
19 SDO O SPI Output signal
20 GND Power The power ground
21 VCI Power Driver IC analog supply
22 VDDIO Power Driver IC digital I/O supply
23 VCI Power Driver IC analog supply
24 VDDIO Power Driver IC digital I/O supply
