ESCXX12-3LCD80
1.25Gbps
CWDM SFP Optical Transceiver, 80KM Reach
Features
Ø Data-rate of 1.25Gbps operation

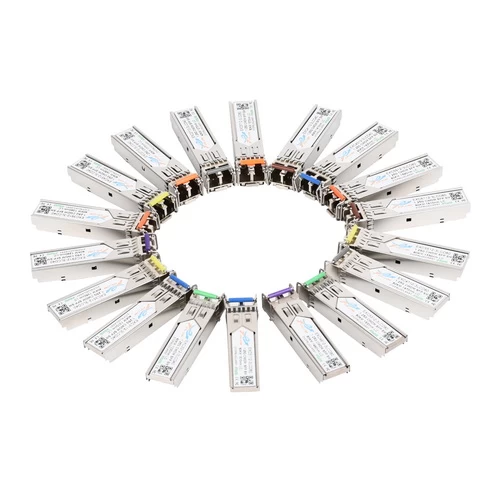

Ø 18 CWDM DFB wavelengths laser and PIN photodetector for 80km transmission
Ø Compliant with SFP MSA and SFF-8472 with duplex LC receptacle
Ø Digital Diagnostic Monitoring:
Internal
Calibration or External Calibration
Ø Compatible with SONET OC-24-LR-1
Ø Compatible with RoHS
Ø +3.3V single power supply
Ø Operating case temperature:
Commercial Temperature: 0 to +70°C
Industrial Temperature: -40 to +85°C
Applications
Ø Gigabit Ethernet
Ø Fiber Channel
Ø Switch to Switch interface
Ø Switched backplane applications
Ø Router/Server interface
Ø Other optical transmission systems
Description
The SFP transceivers are high performance, cost effective
modules supporting data-rate of 1.25Gbps and 80KM transmission distance with
SMF.
The transceiver consists of
three sections: an uncooled CWDM DFB laser transmitter, a PIN photodiode
integrated with a trans-impedance preamplifier (TIA) and MCU control unit. All
modules satisfy class I laser safety requirements.
