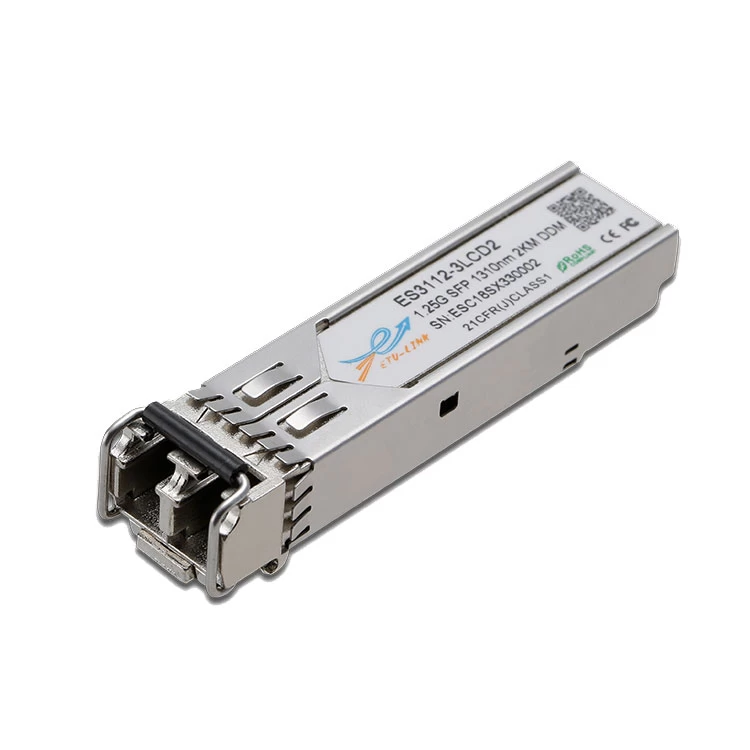

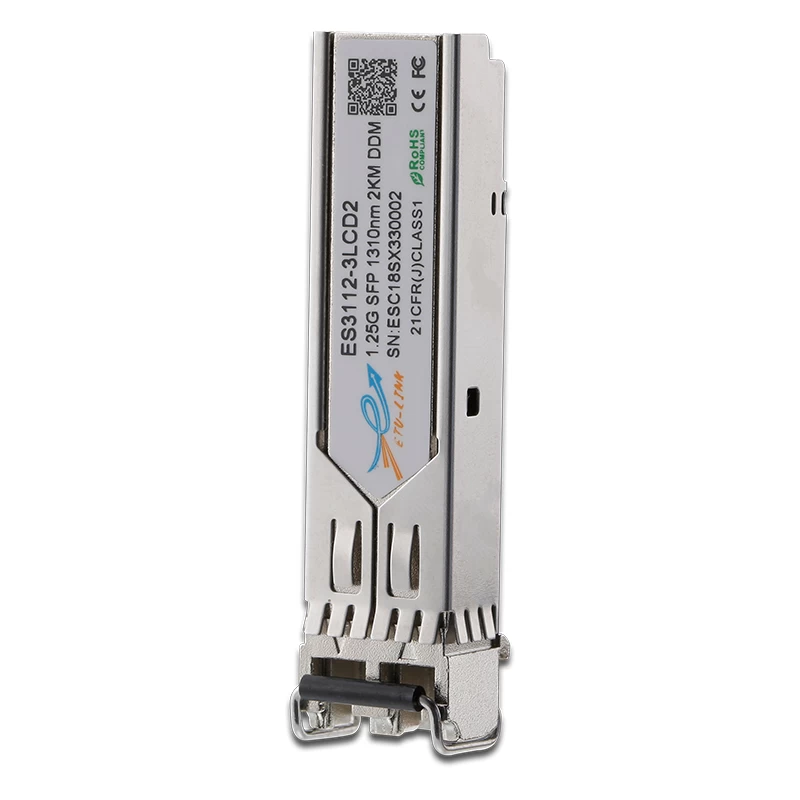

ES3112-3LCD2
1.25Gbps
SFP Optical Transceiver, 2KM Reach
Features
Ø Data-rate of 1.25Gbps operation
Ø 1310nm FP laser and PIN photo detector for 2km transmission with MMF
Ø Compliant with SFP MSA and SFF-8472 with duplex LC receptacle
Ø Digital Diagnostic Monitoring:
Internal Calibration or External Calibration
Ø Compatible with SONET OC-24-LR-1
Ø Compatible with RoHS
Ø +3.3V single power supply
Ø Operating case temperature:
Standard : 0 to +70°C
Industrial : -40 to +85°
Applications
Ø Gigabit Ethernet
Ø Fiber Channel
Ø Switch to Switch interface
Ø Switched backplane applications
Ø Router/Server interface
Ø Other optical transmission systems
Description
The SFP transceivers are high performance, cost effective
modules supporting data-rate of 1.25Gbps and 2KM transmission distance with MMF.
The
transceiver consists of three sections: a FP laser transmitter, a PIN
photodiode integrated with a trans-impedance preamplifier (TIA) and MCU control
unit. All modules satisfy class I laser safety requirements.
The transceivers are
compatible with SFP Multi-Source Agreement (MSA) and SFF-8472. For further
information, please refer to SFP MSA.
